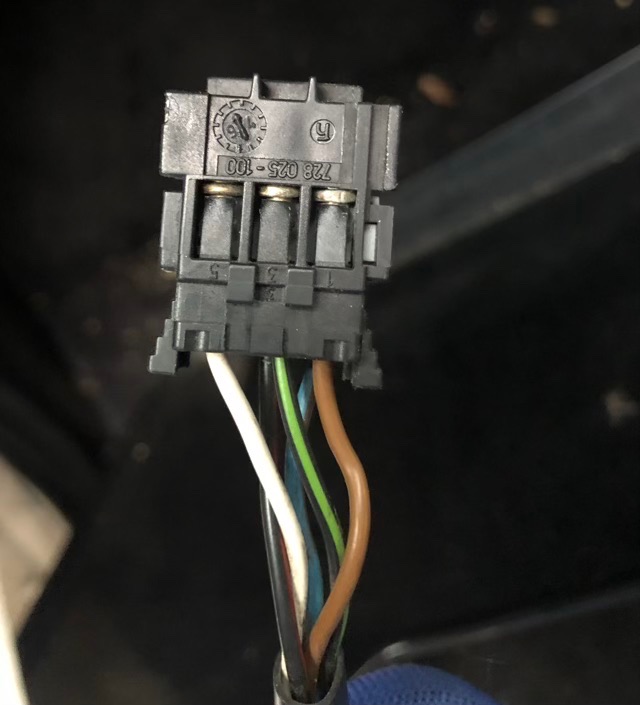

| King_GH Extreme Veteran Date registered: Oct 2011 Location: London Vehicle(s): 95 G300 RHD Posts: 324  | Which line is for heated mirror on 300GE The previous owner of my truck had replaced the original mirrors with the G500 one however the heated mirrors weren’t connected. I’ve managed to locate the heated mirror lines for the g500 mirror and trying to match it with the original connection. I’ve attached the connector for the old mirror which is on the car but not connected. (Attached image) I’ve managed to find out what the lines are for and they are mainly for controlling the glass movement. White - back Green/black - left Blue/brown - right Red/black - always on Brown - ??? I suspect this may be quite simple however when I turned on the defroster, I didn’t get any power coming through the brown. My question is: what is the brown for and why isn’t any power coming through, or does that mean my car had no heated mirrors to begin with? That’ll be odd cos the manual does mention that the defroster heats up the mirror. (IMG_0028.jpg) Attachments ----------------  IMG_0028.jpg (63KB - 48 downloads) | |
| ||
| ||
| Inkblotz Expert Date registered: Apr 2006 Location: Georgia Vehicle(s): 90 300GD "Thundering Turtle II", w/ 603A turbo Posts: 3190  | ||
| ||
| ||
| King_GH Extreme Veteran Date registered: Oct 2011 Location: London Vehicle(s): 95 G300 RHD Posts: 324 | ||
| ||
|
