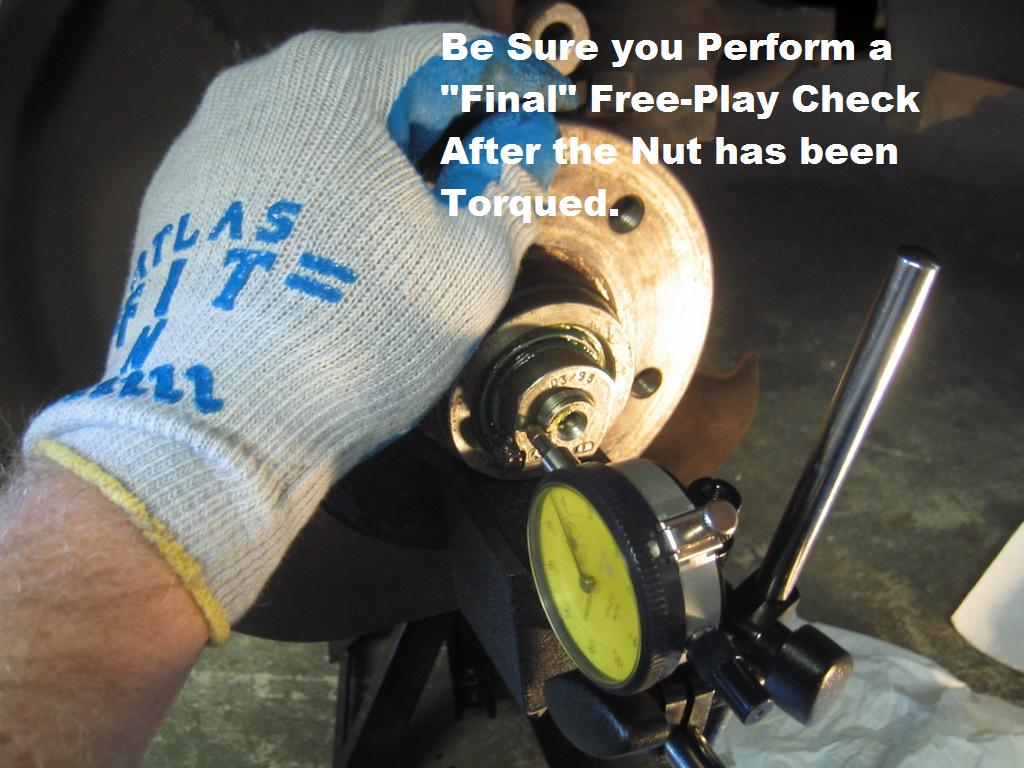

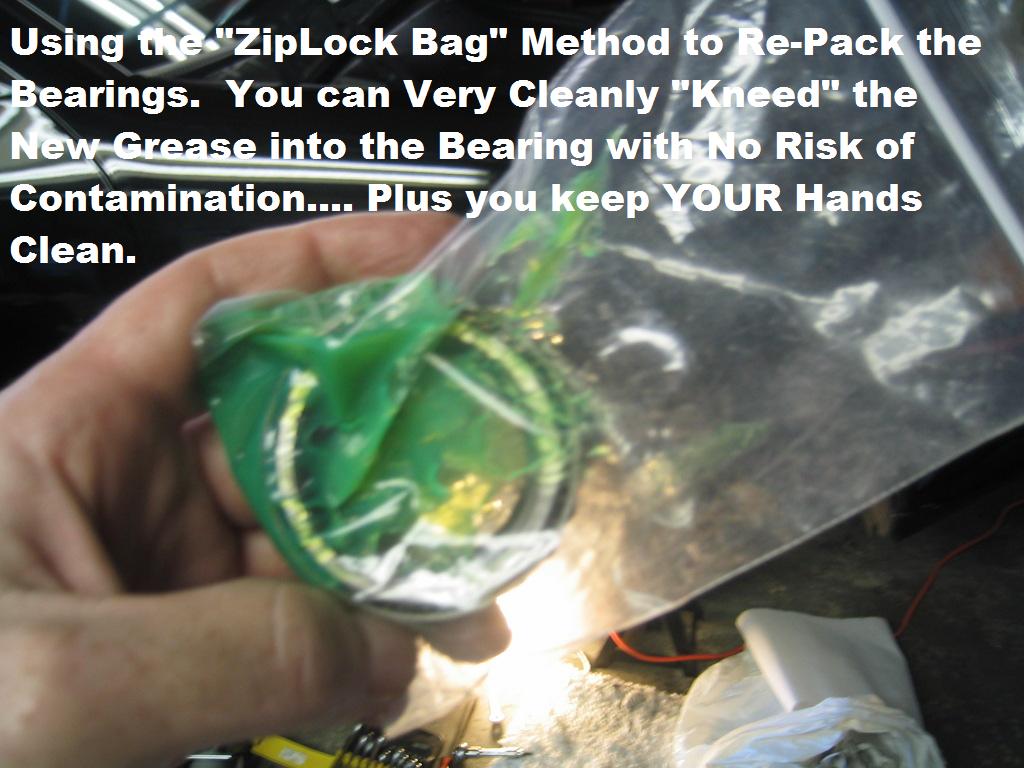

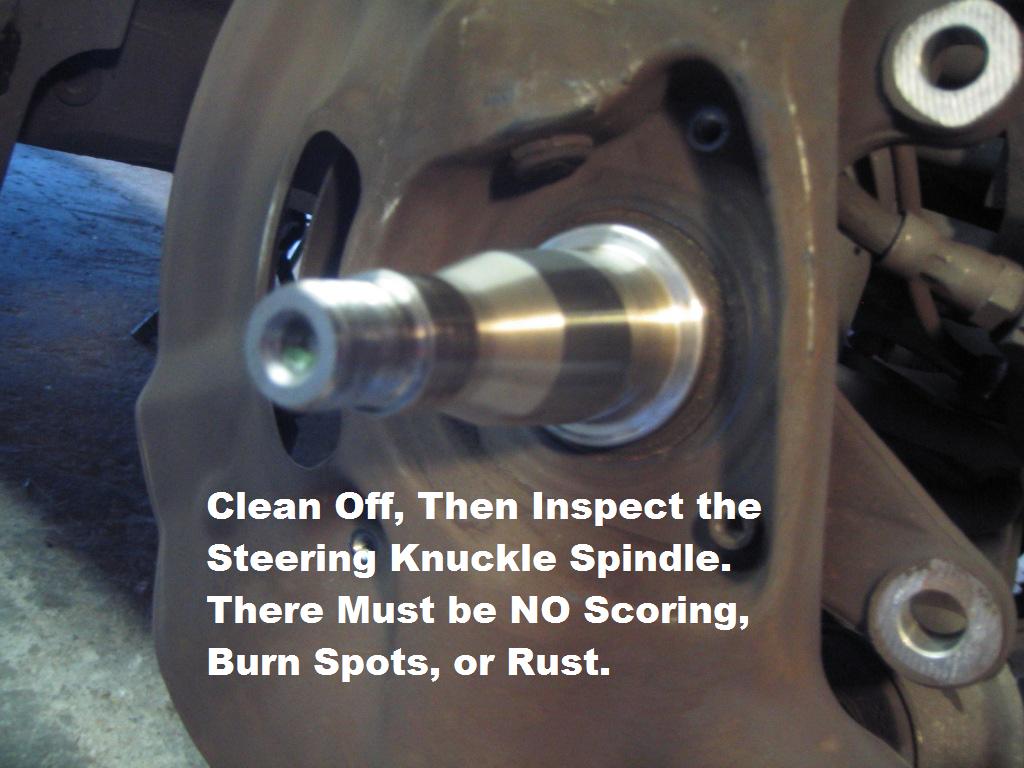

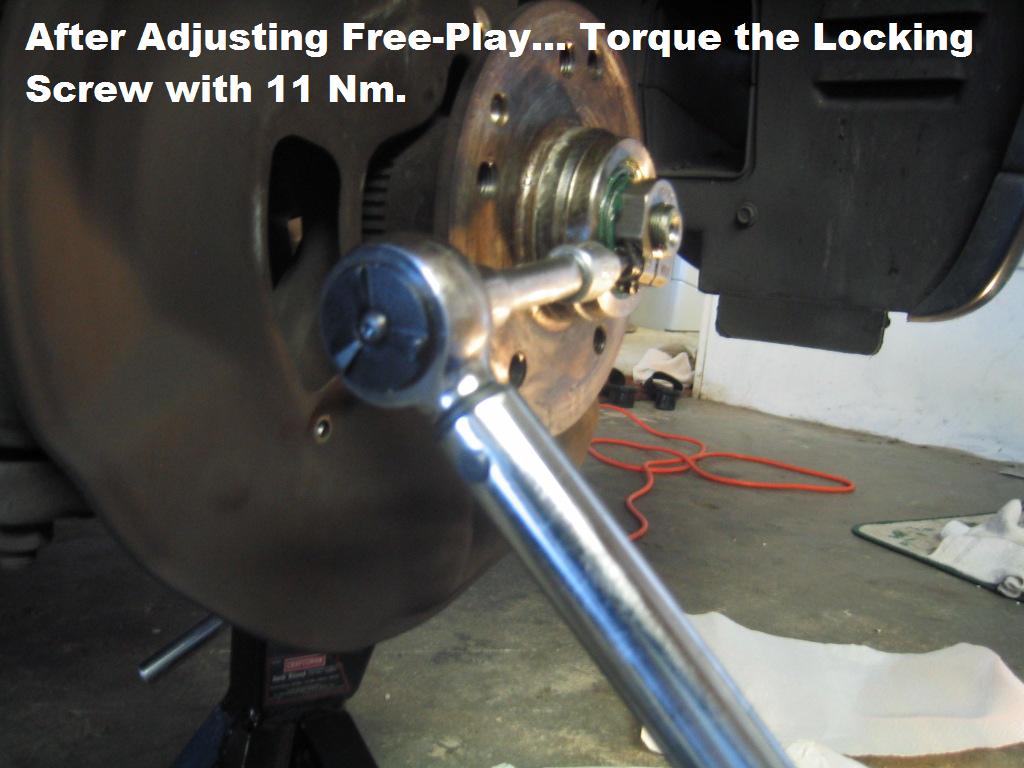

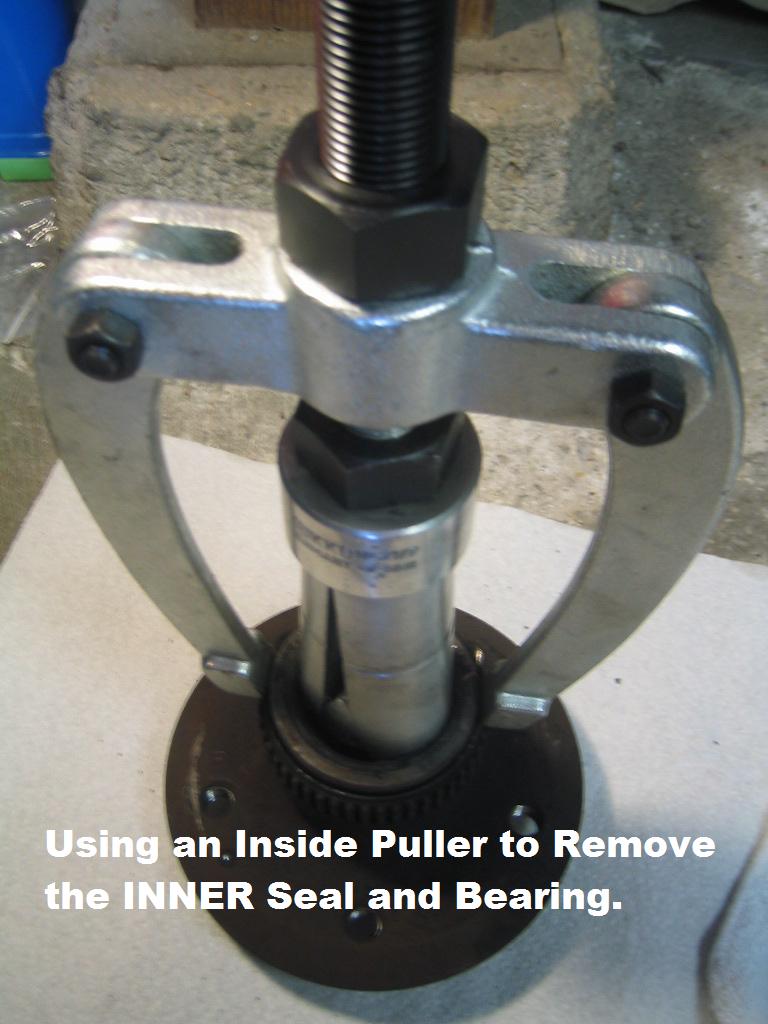

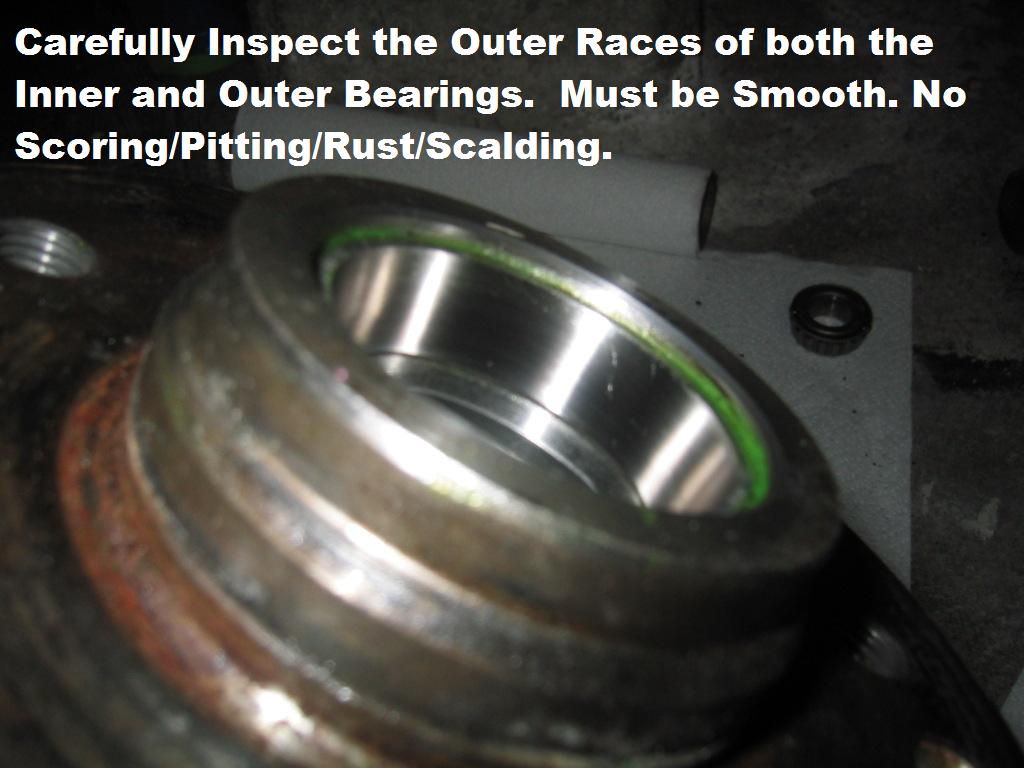

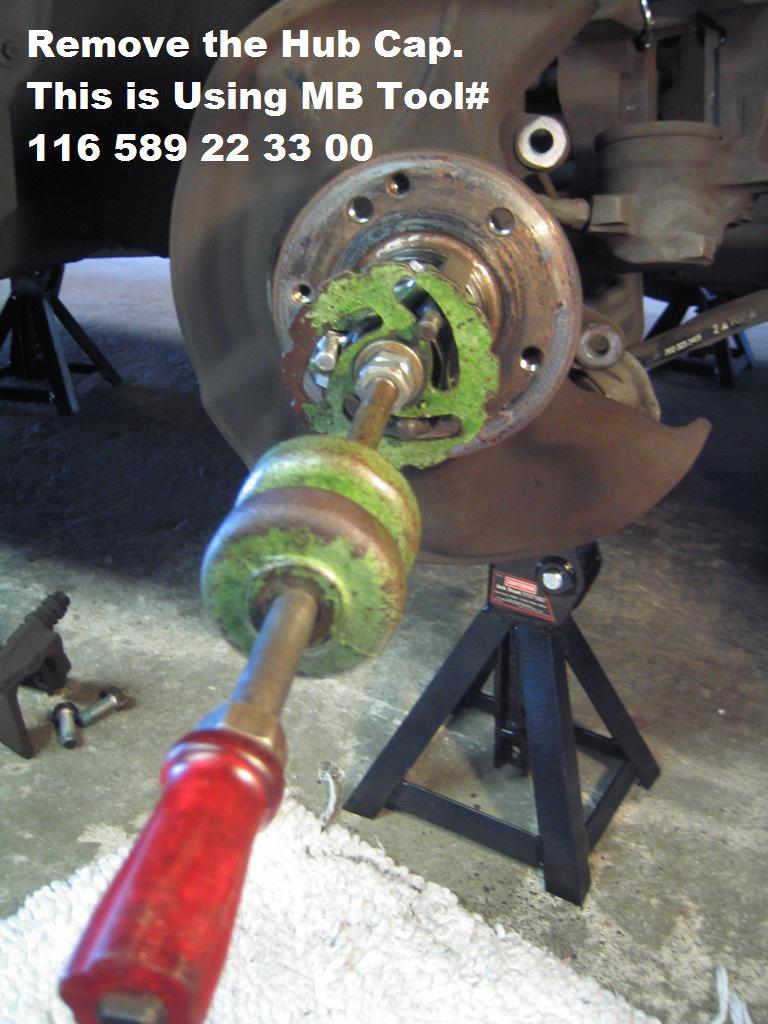

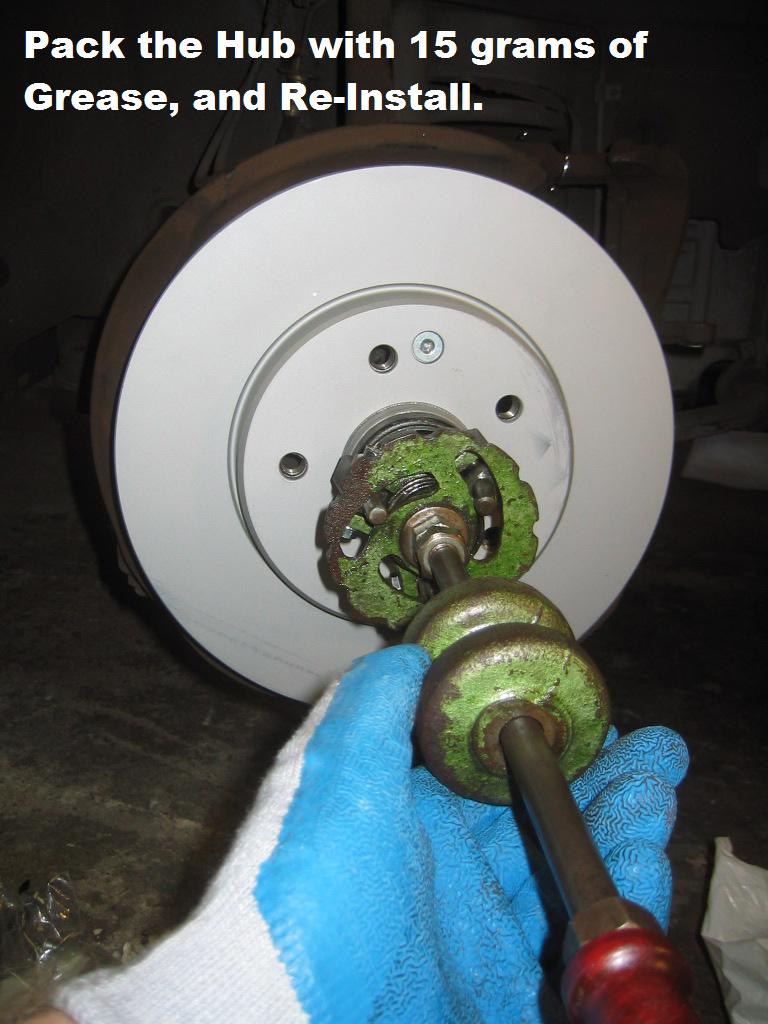

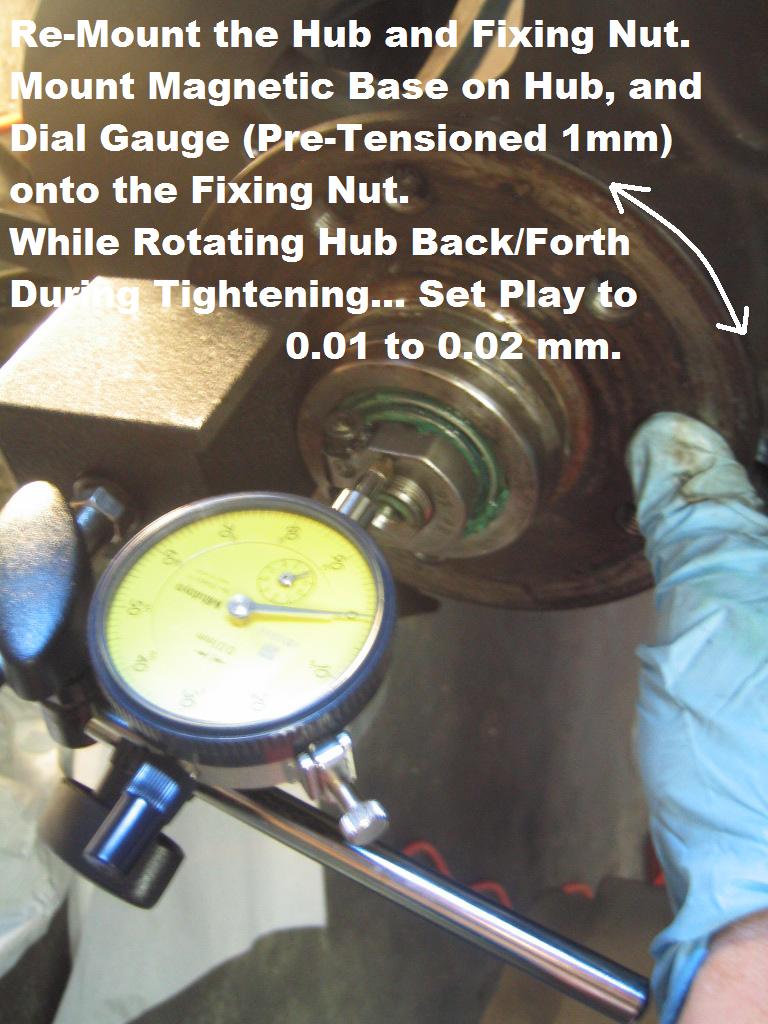

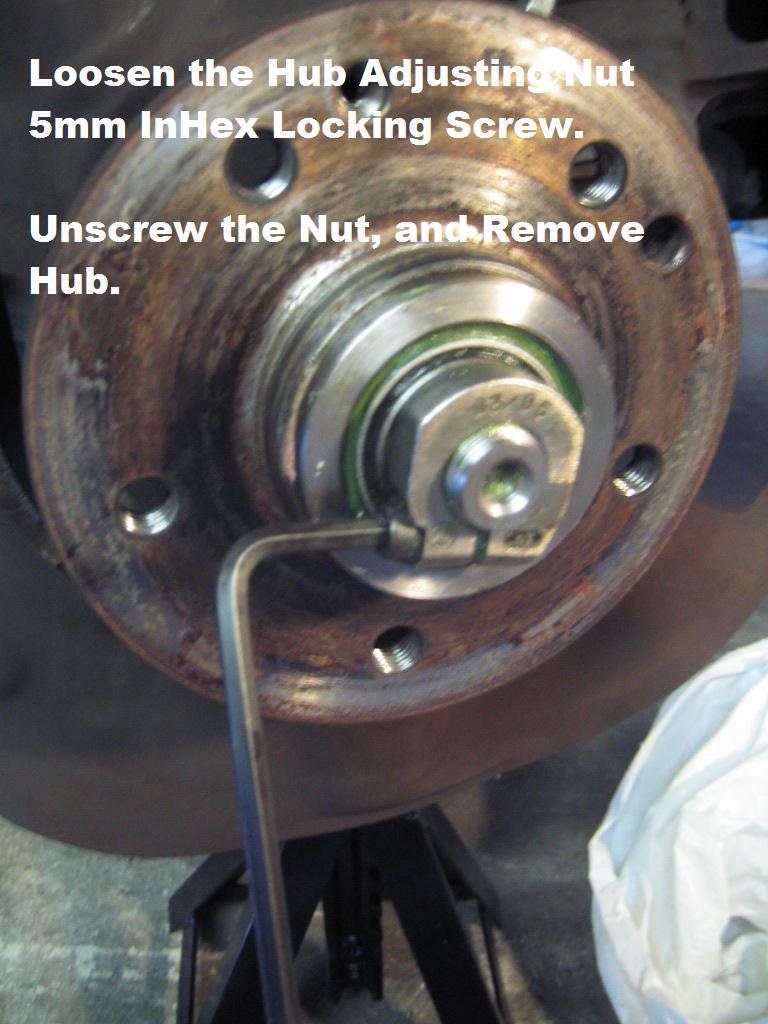

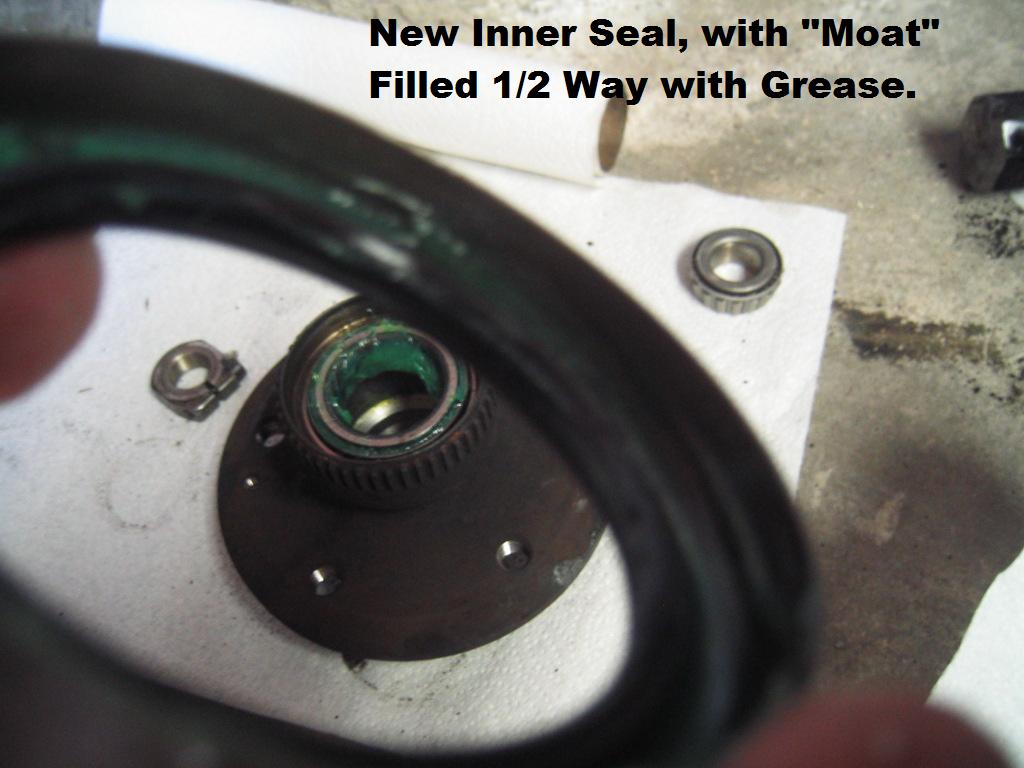

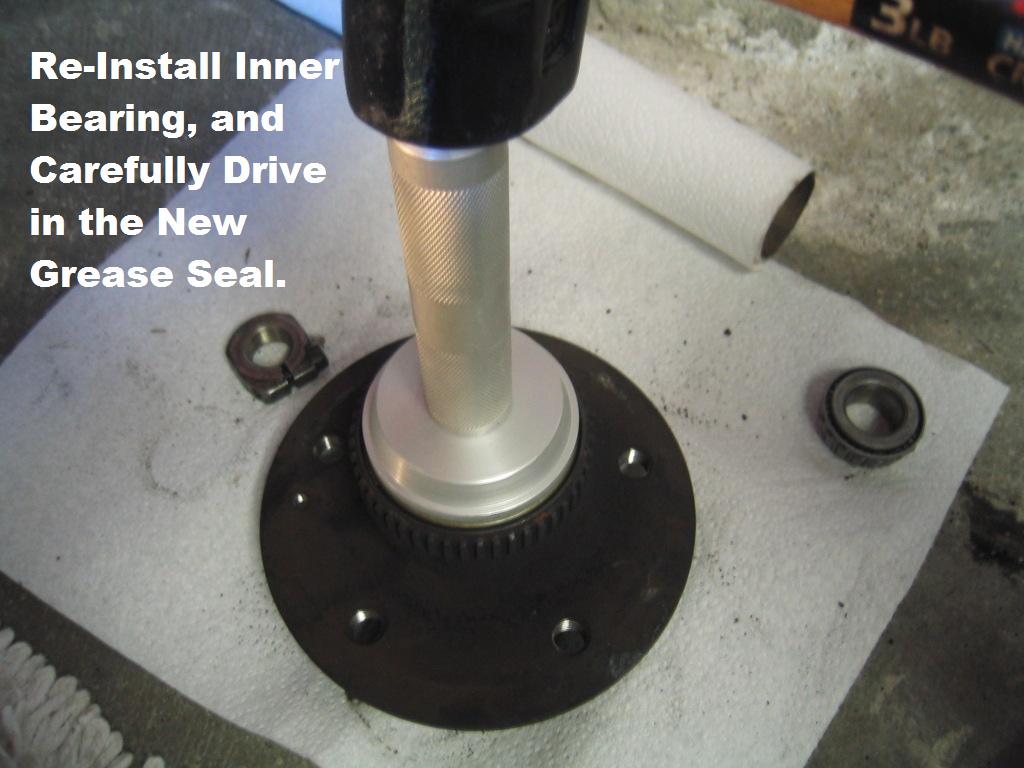

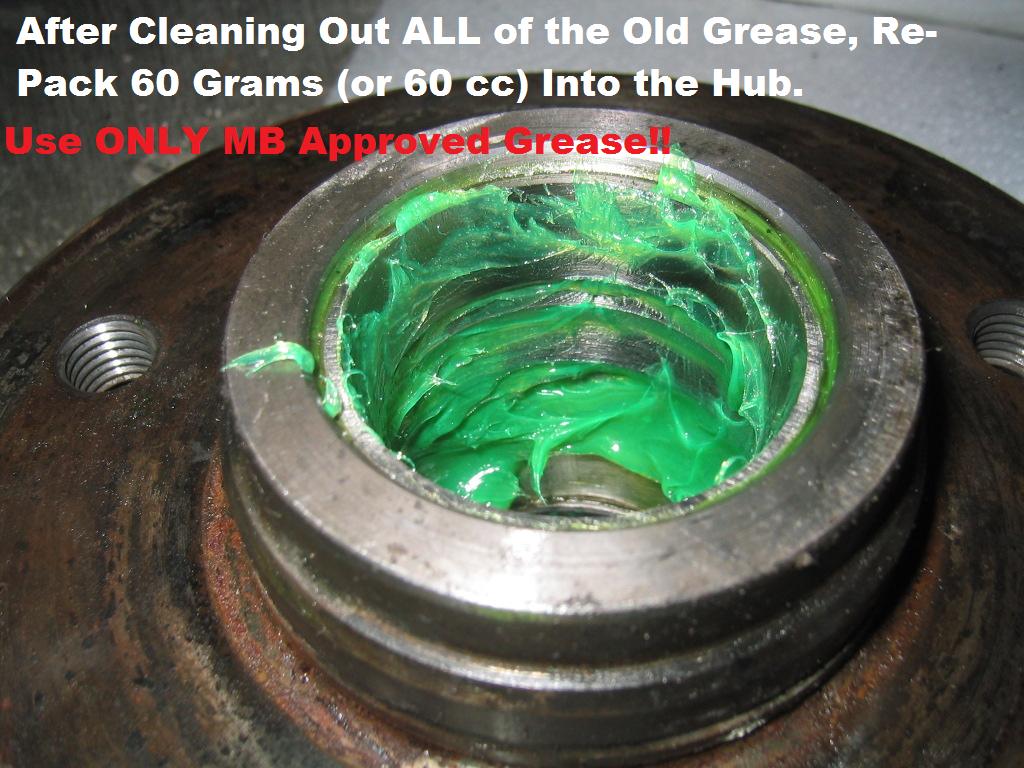

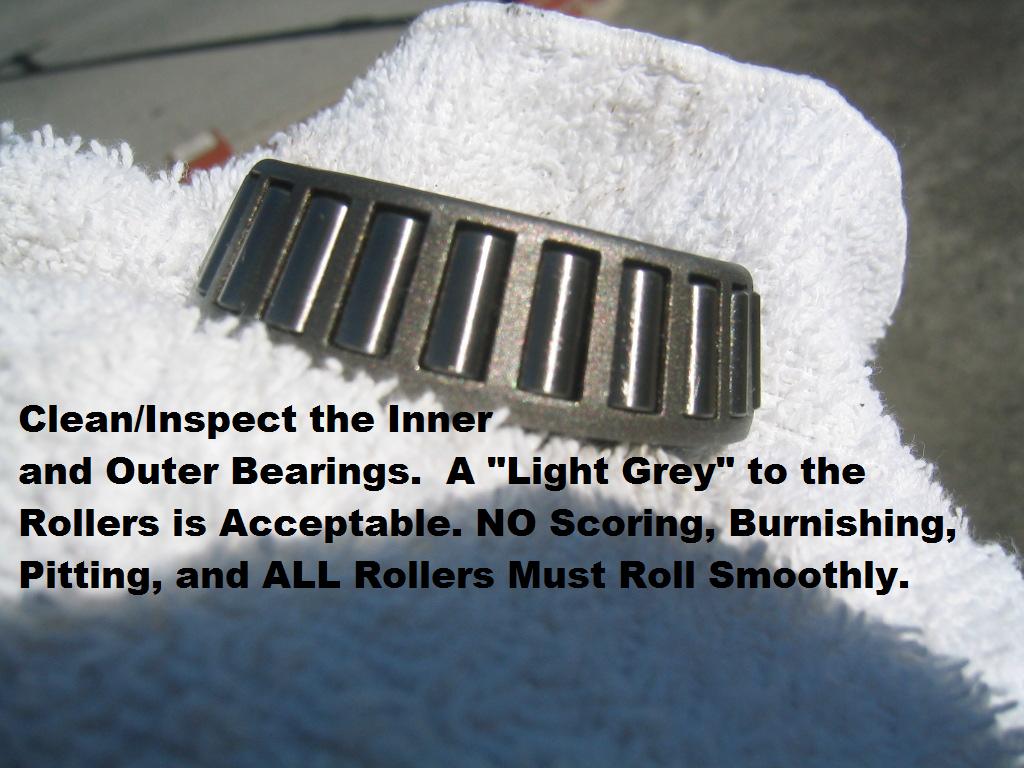

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 ![]() | Photo DIY- Front Wheel Bearing R/R Repack. With 150,000 miles on the clock.... and since I was going to Re-Do my mother-in-laws brake system..... I went the very small extra step to do the wheel bearings while I was there. One 150 Gram tube of Mercedes Grease, and new Inner Seals are all that is required (assuming the bearings are OK... which a vast majority of the time, they ARE!). Be sure to give good "back and forth" Rotation of the Hub while doing the Tightening and Adjustments.... you want the bearings well seated. Please see my "Front Brake Overhaul" Post for the Disassembly of the Calipers/Rotors, to get you to the Level of the Hub Job. (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) (9.jpg) (10.jpg) (11.jpg) (12.jpg) (13.jpg) (14.jpg) Attachments ---------------- 1.jpg (108KB - 475 downloads) 2.jpg (98KB - 445 downloads) 3.jpg (87KB - 433 downloads) 4.jpg (102KB - 496 downloads) 5.jpg (85KB - 371 downloads) 6.jpg (85KB - 479 downloads) 7.jpg (107KB - 448 downloads) 8.jpg (129KB - 391 downloads) 9.jpg (80KB - 467 downloads) 10.jpg (85KB - 479 downloads) 11.jpg (117KB - 450 downloads) 12.jpg (82KB - 414 downloads) 13.jpg (111KB - 415 downloads) 14.jpg (94KB - 423 downloads) | ||
