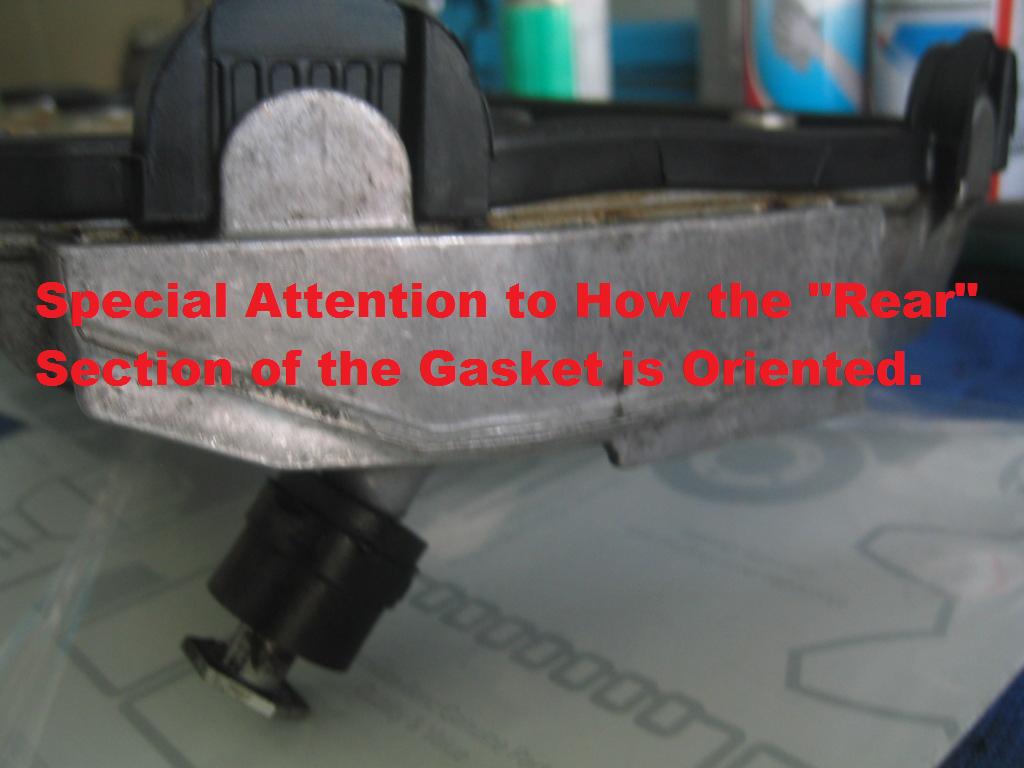

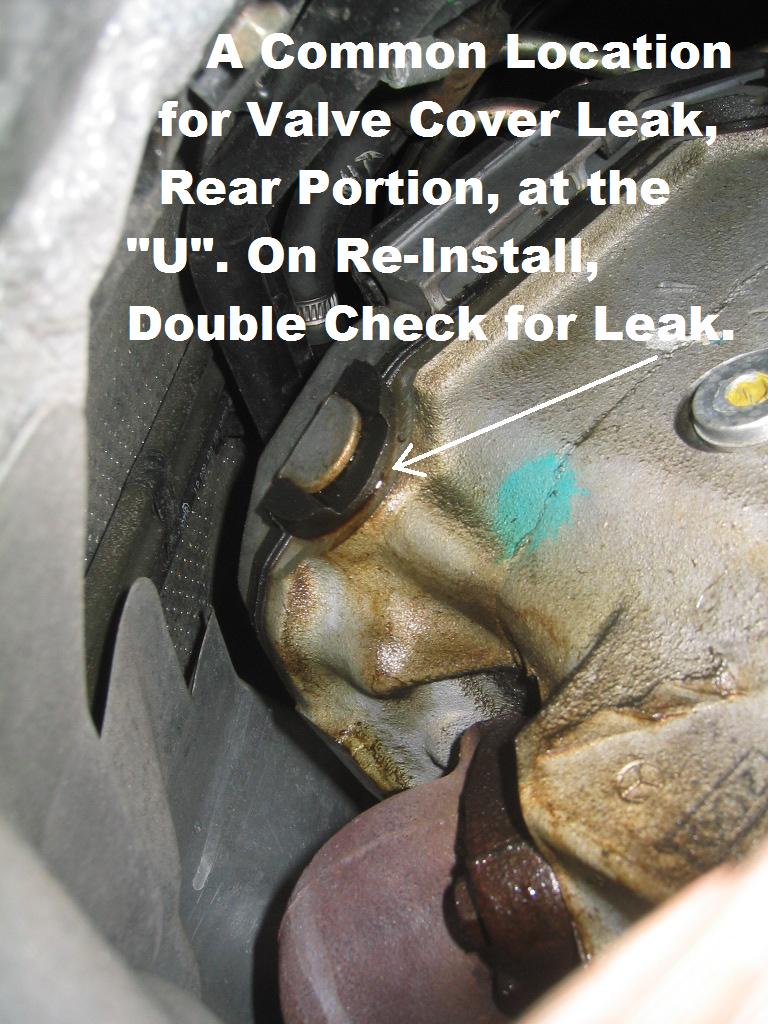

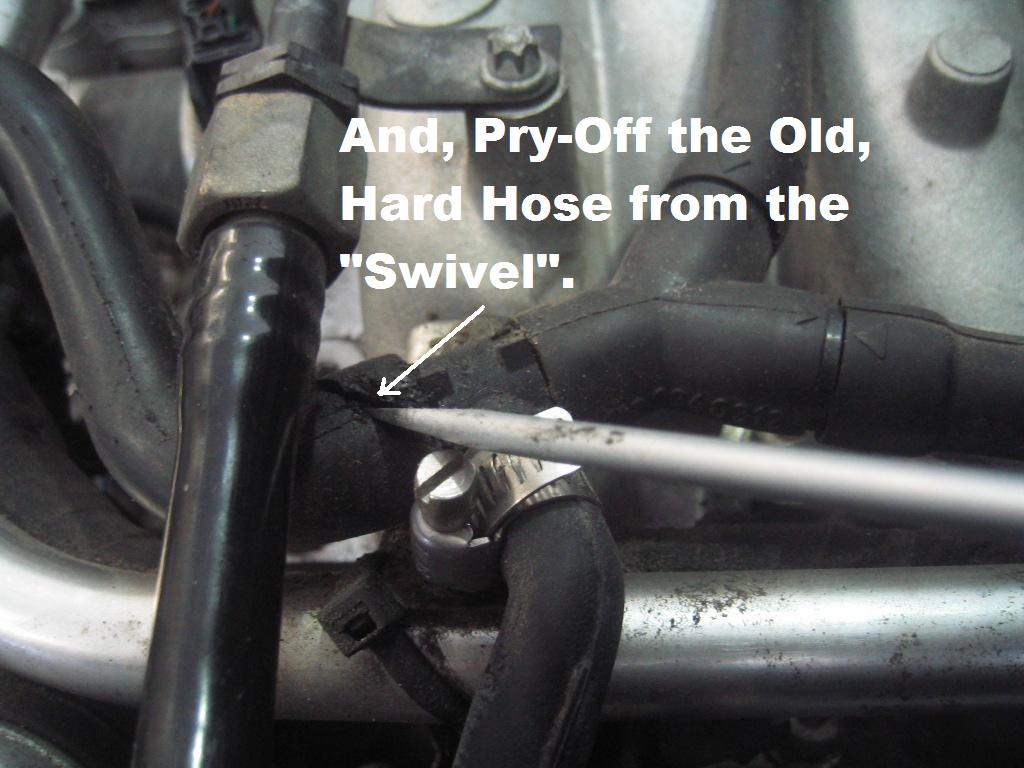

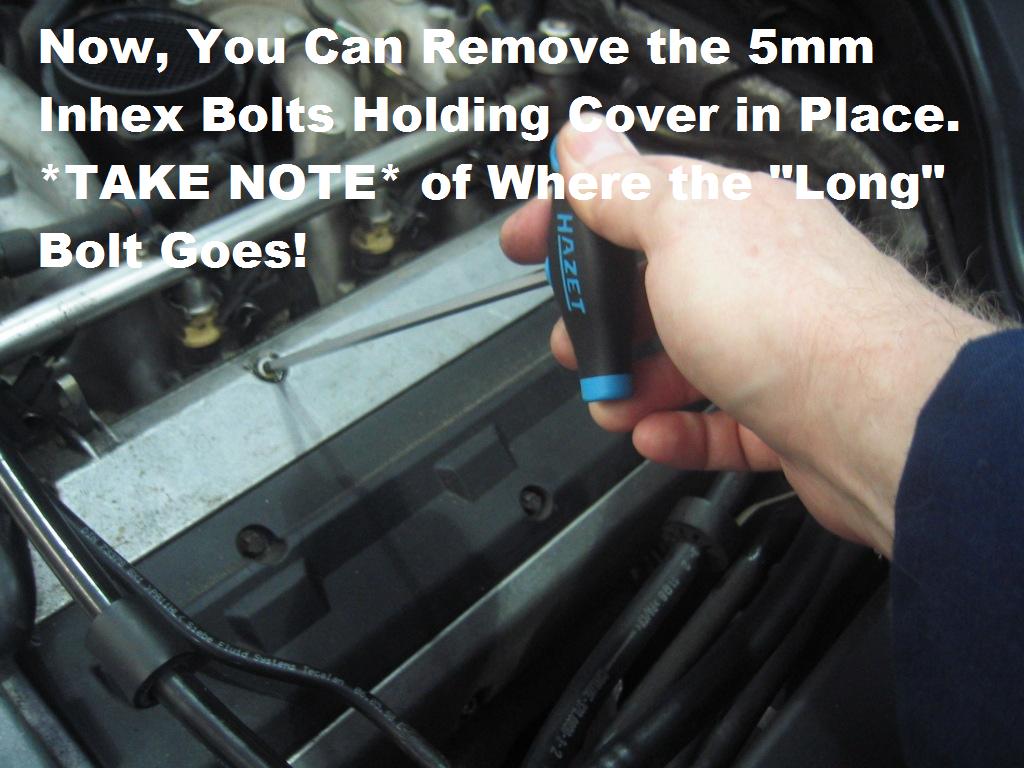

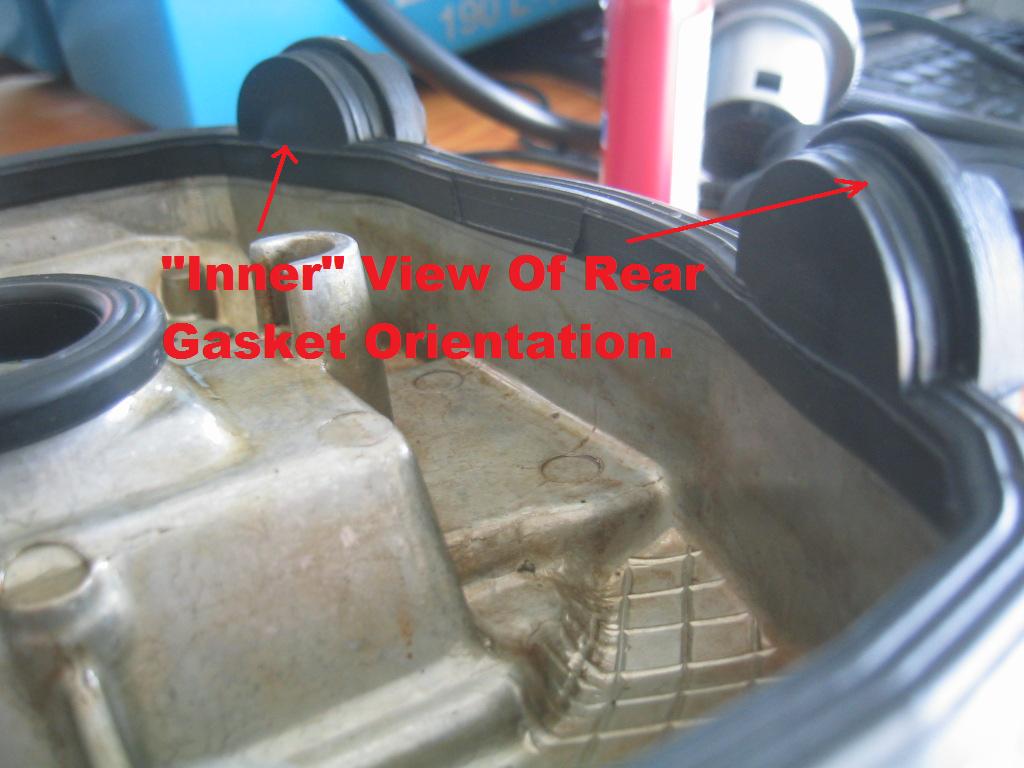

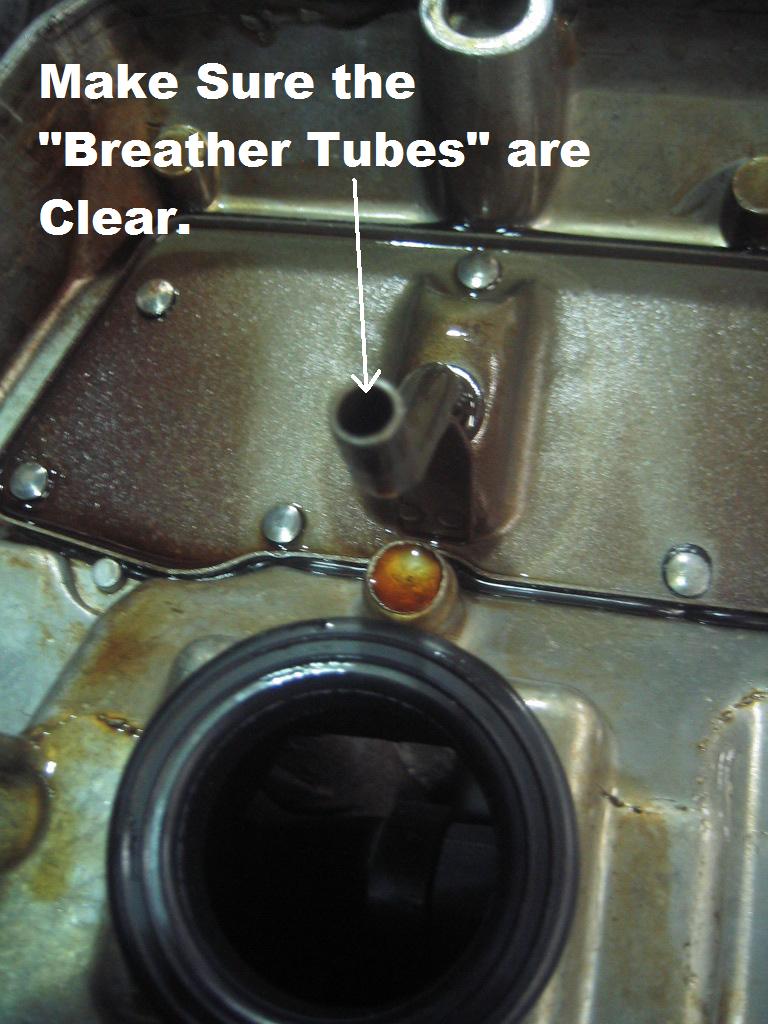

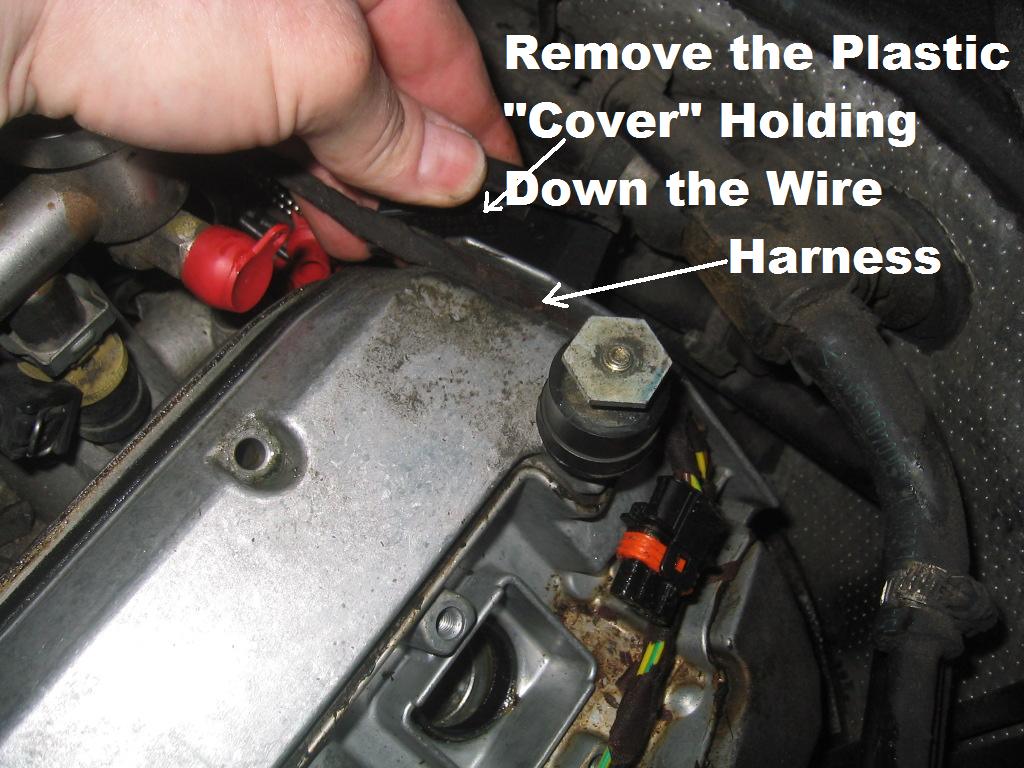

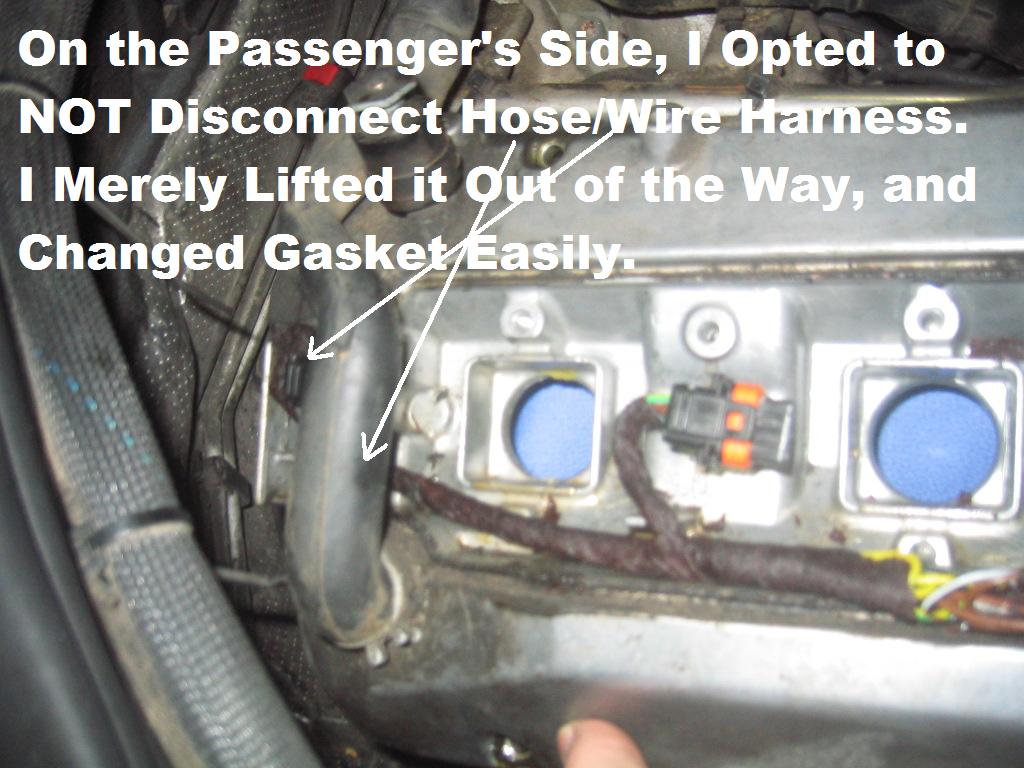

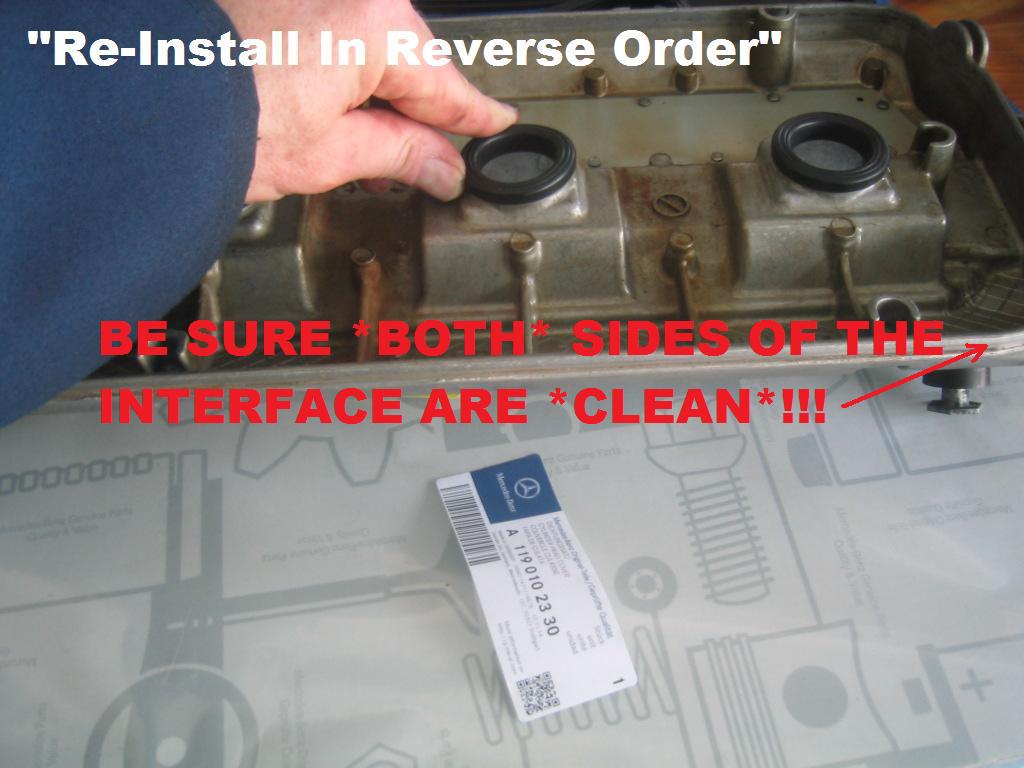

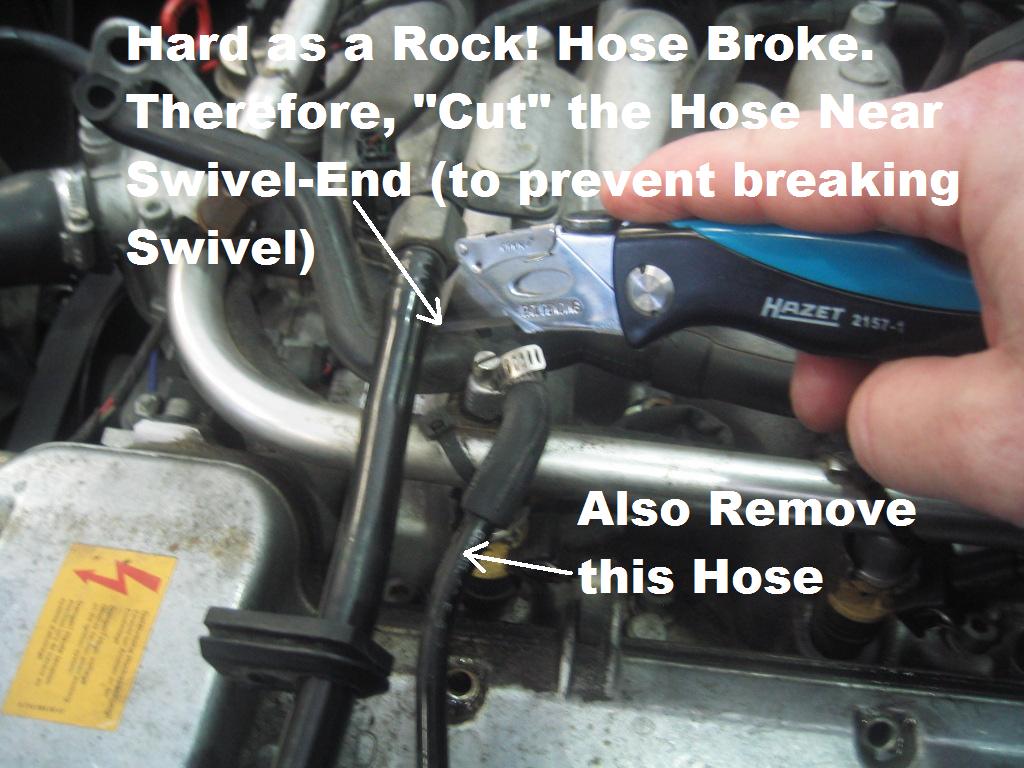

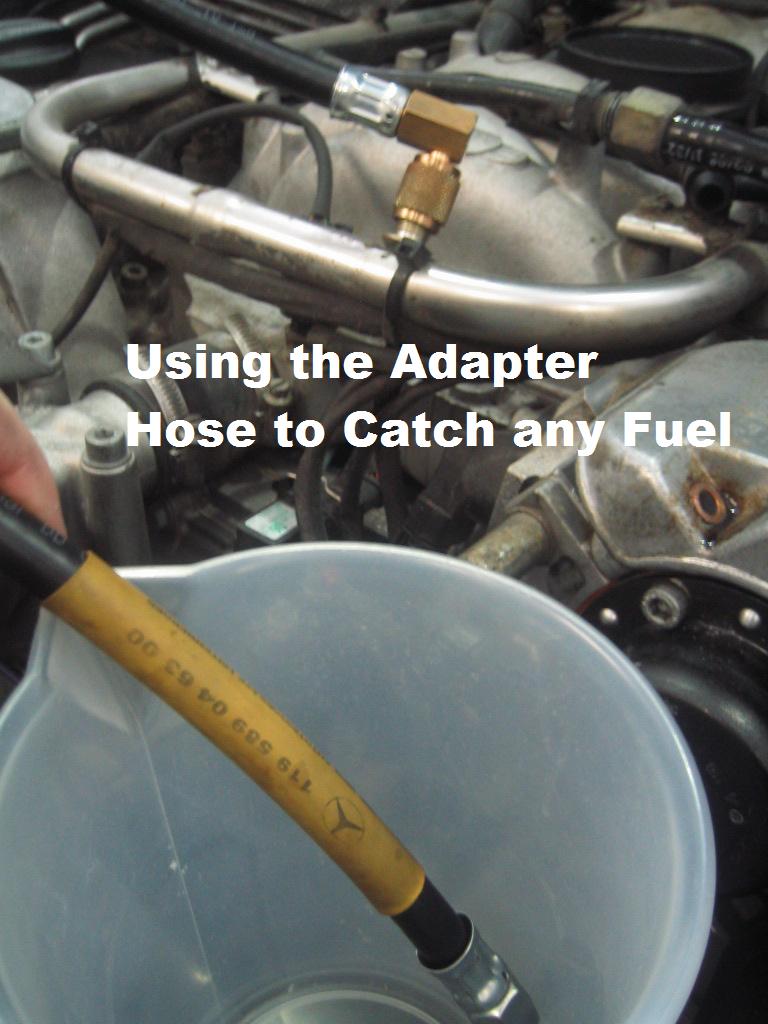

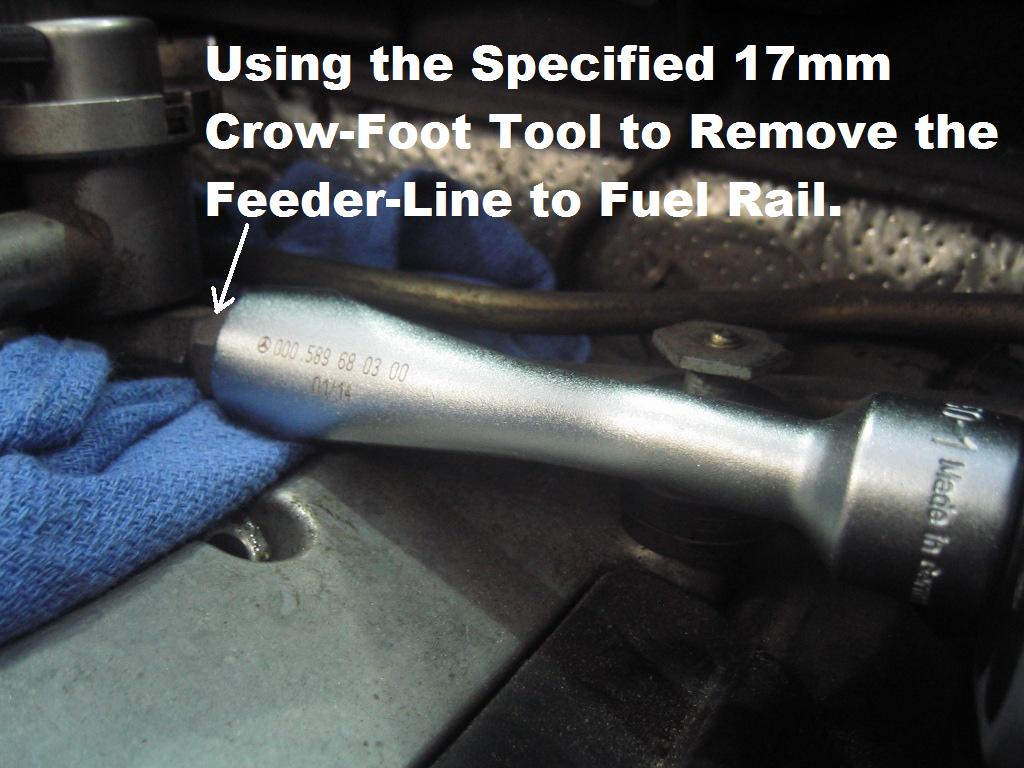

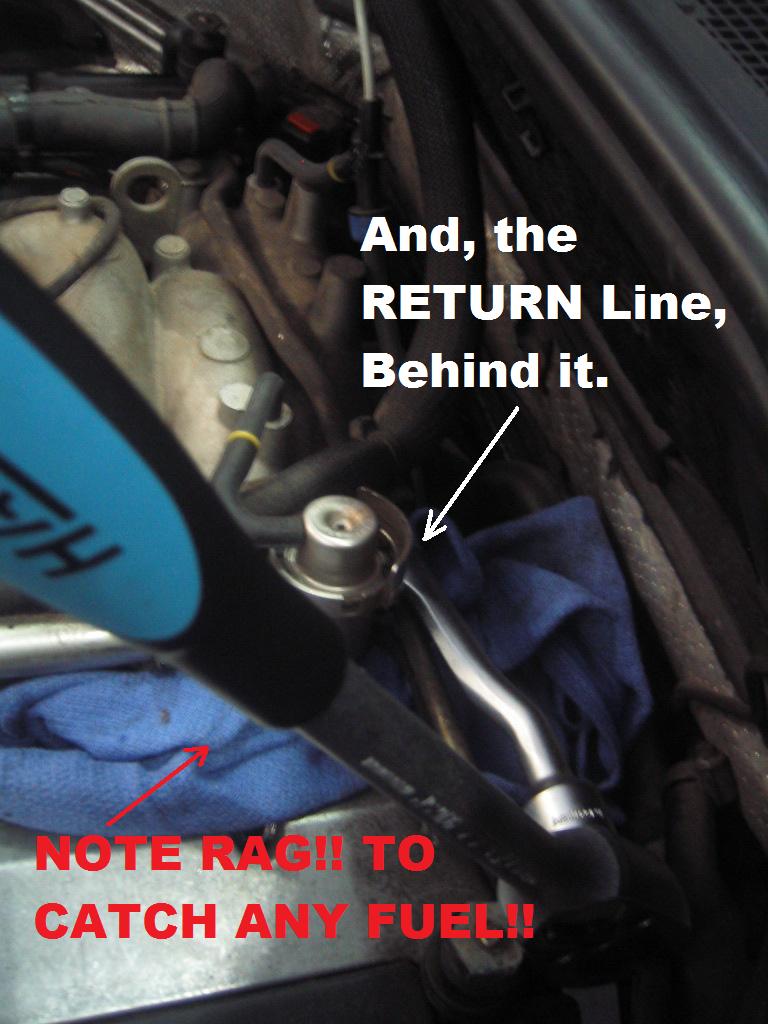

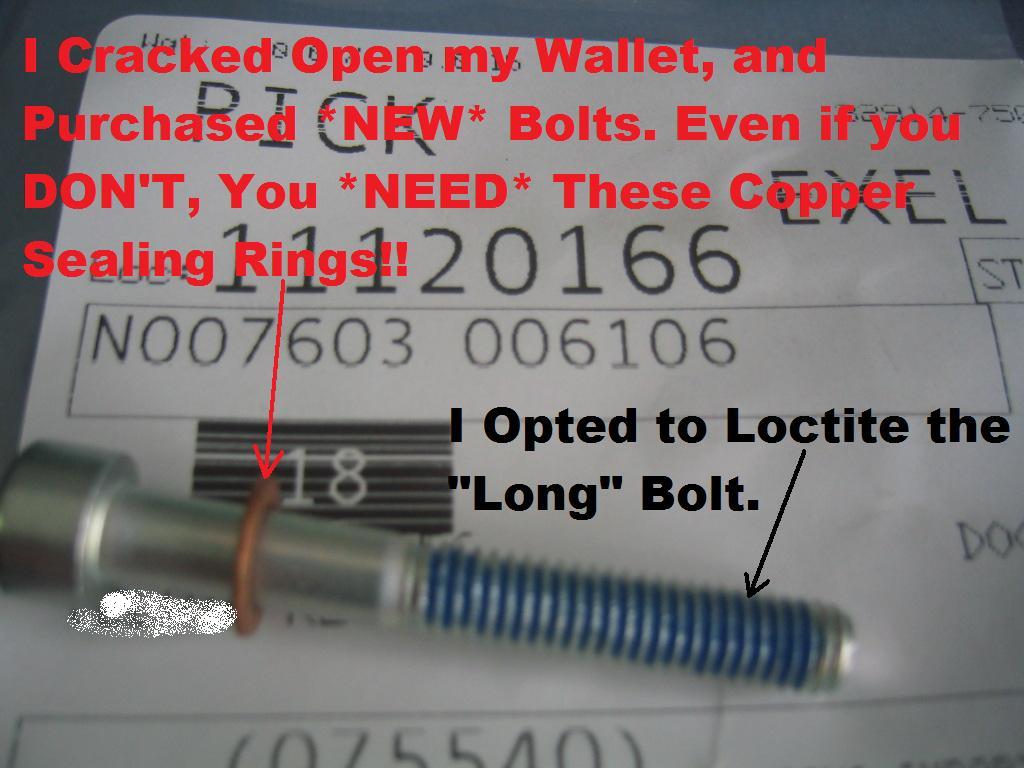

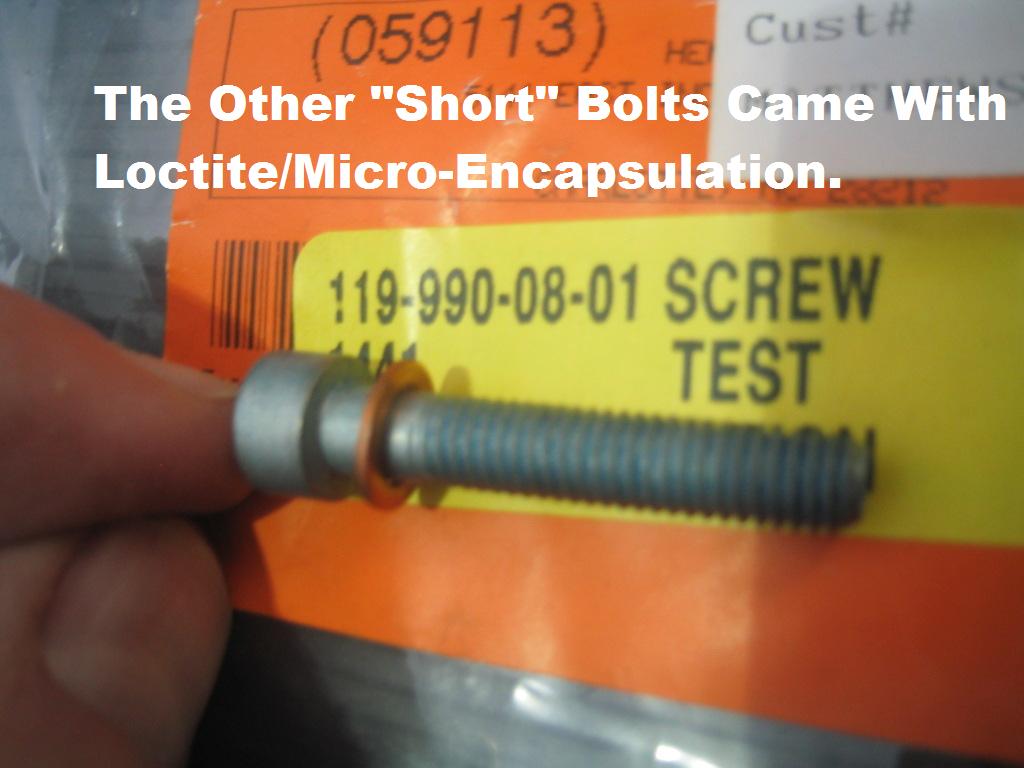

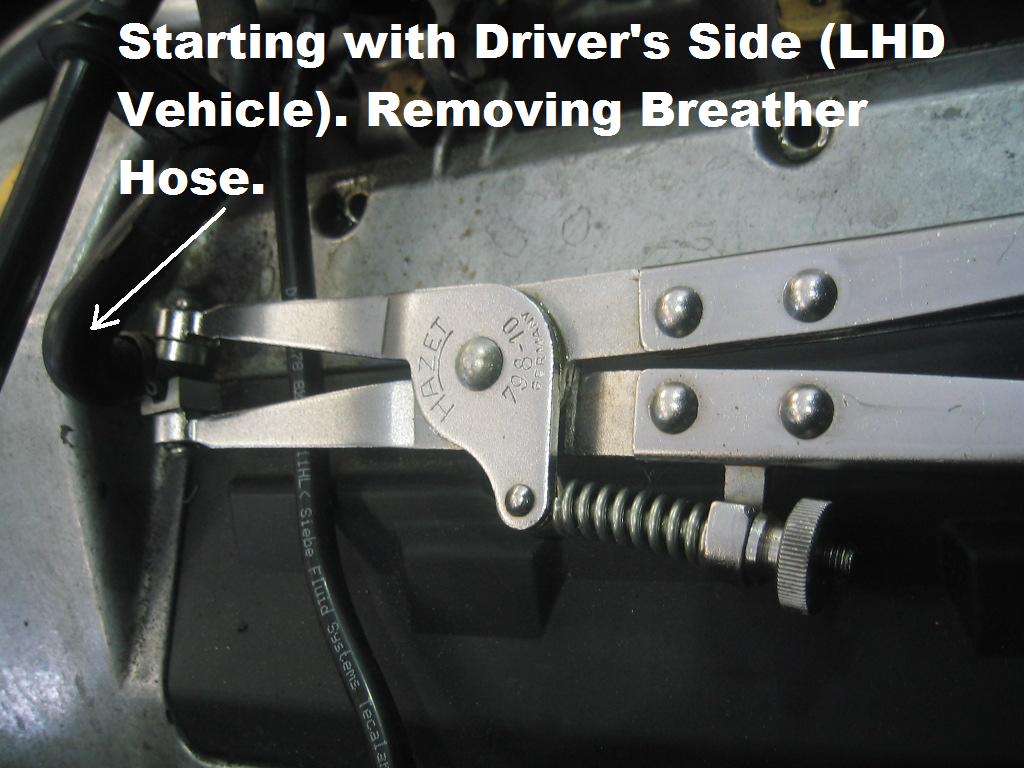

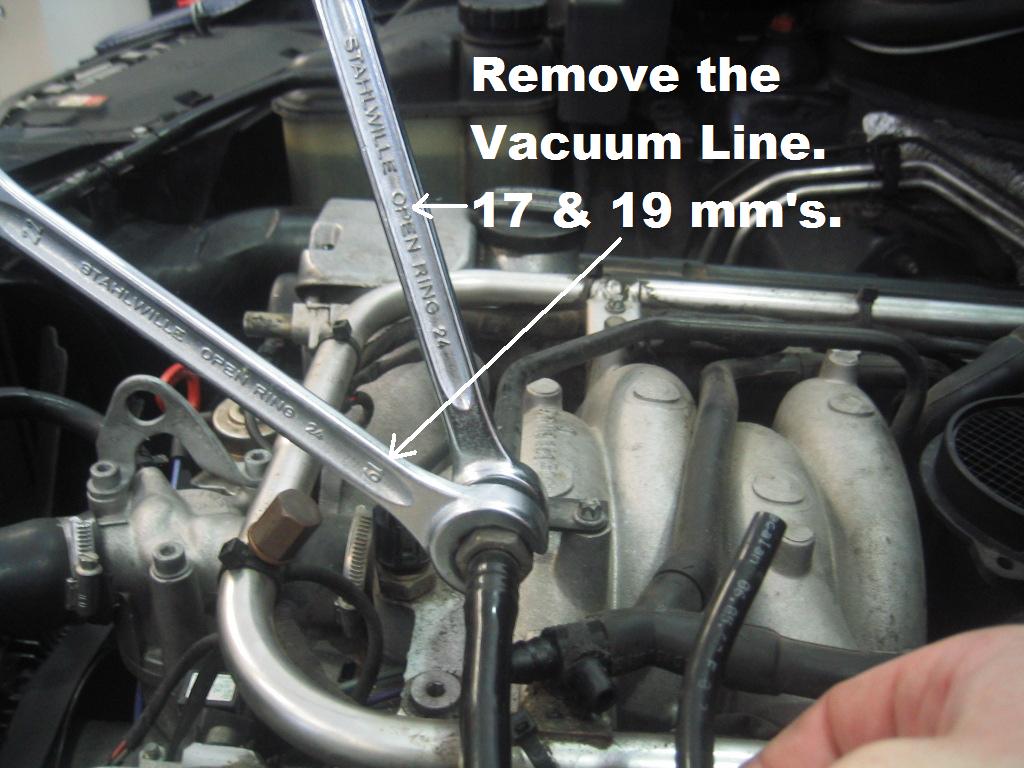

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 ![]() | Photo DIY- M119 Valve Cover Gasket R/R M119 on 1999 S420 Well, I thought I was in the clear... after Re-Sealing the Camshaft Adjuster Solenoids... Found a nice puddle on my nice white garage floors!! That won't do, at all!! ;^) Having a look from underneath, revealed a "common" leak, from the Aft, "U-Shaped" section of the Valve cover Gasket. Upon removal? The Gasket was as *HARD* as a Rock!! And Brittle!! IMPORTANT NOTE!!!-- When Ordering your valve cover Gaskets? Make sure you order the "Sealing Rings" for the Cover Bolts. Also, you will "Most-Likely" Need New Breather Hoses, as well. You would be Well-Advised to "Feel" the Rubbers prior to contemplating the Job, so you have them On-Hand. The Driver's Side (LHD Vehicles) is the more difficult of the two, as you need to remove several hoses, including the Fuel Lines. Obviously have rags to catch any Fuel Drips, and a Fire Extinguisher on-hand. Plug the Connections upon removal, to prevent contamination. The Passenger's Side? Much Easier. In fact, I was able to Tilt the Valve Cover sufficiently to R/R the Gasket, WITHOUT the need to Disconnect the Breather Hose, or the Wire Harness. Hope this Helps someone.. "G" (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) (9.jpg) (10.jpg) (11.jpg) (12.jpg) (13.jpg) (14.jpg) (15.jpg) (16.jpg) (17.jpg) (18.jpg) (19.jpg) (20.jpg) (21.jpg) (22.jpg) (23.jpg) (24.jpg) (25.jpg) (26.jpg) (27.jpg) Attachments ---------------- 1.jpg (137KB - 460 downloads) 2.jpg (98KB - 408 downloads) 3.jpg (112KB - 431 downloads) 4.jpg (93KB - 477 downloads) 5.jpg (105KB - 419 downloads) 6.jpg (92KB - 379 downloads) 7.jpg (90KB - 389 downloads) 8.jpg (101KB - 447 downloads) 9.jpg (92KB - 453 downloads) 10.jpg (89KB - 364 downloads) 11.jpg (88KB - 406 downloads) 12.jpg (109KB - 411 downloads) 13.jpg (123KB - 428 downloads) 14.jpg (103KB - 376 downloads) 15.jpg (133KB - 438 downloads) 16.jpg (106KB - 475 downloads) 17.jpg (83KB - 384 downloads) 18.jpg (64KB - 412 downloads) 19.jpg (79KB - 486 downloads) 20.jpg (90KB - 457 downloads) 21.jpg (69KB - 444 downloads) 22.jpg (126KB - 463 downloads) 23.jpg (79KB - 427 downloads) 24.jpg (93KB - 334 downloads) 25.jpg (115KB - 524 downloads) 26.jpg (117KB - 444 downloads) 27.jpg (103KB - 380 downloads) | ||
