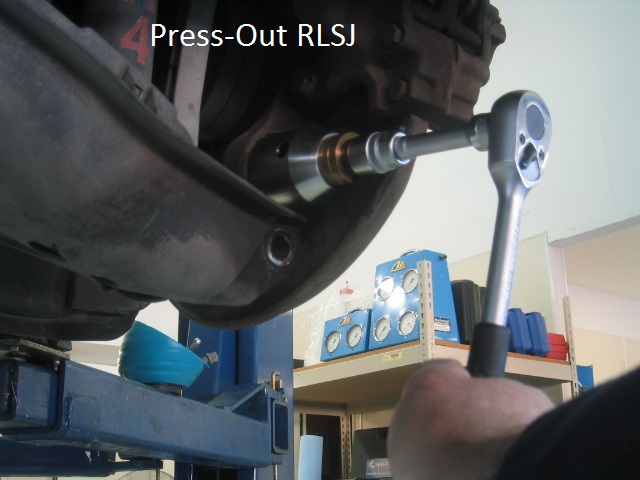

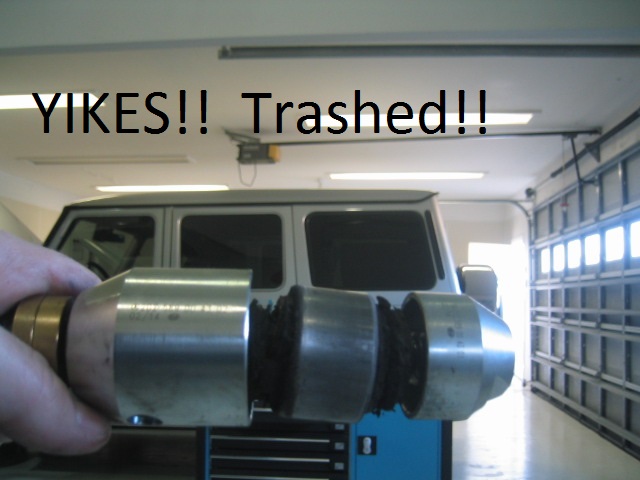

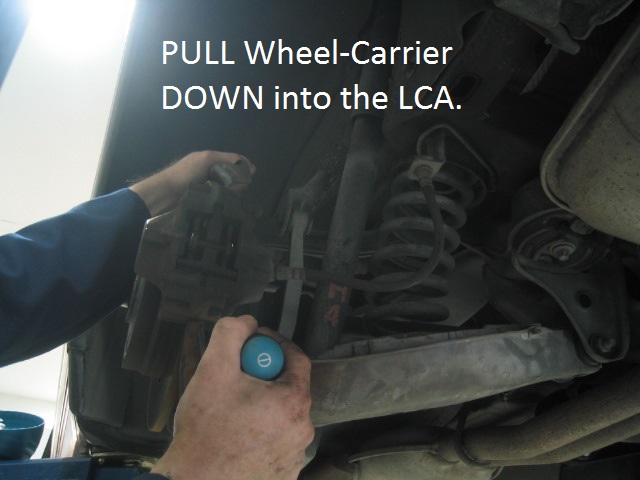

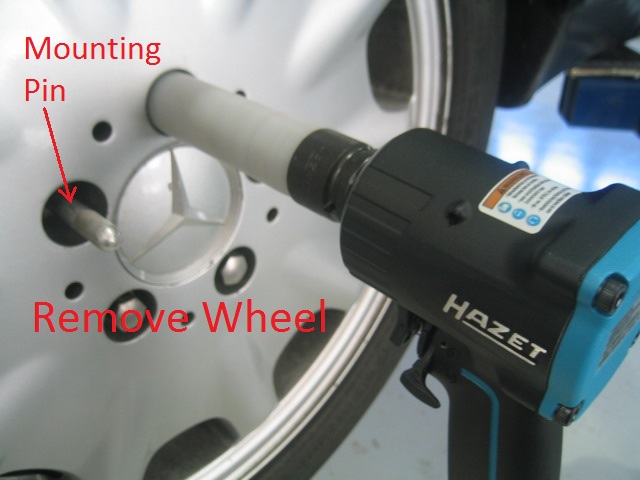

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DIY: Rear Lower Support Joint R/R As part of my 'Vibration at 50 mph' search, I could visually see the Rear Lower Support Joints (RLSJ) had deteriorated rubber. A surprisingly easy job, especially if you follow the WIS procedure of R/R "With Wheel Carrier Installed". NO NEED to remove Springs, Shock, Entire Lower Control Arm... Simply remove tire, R/R LCA-to-Wheel Carrier Nut/Bolt **** YOU MUST REPLACE SELF-LOCKING NUT PER WIS*** Separate the Wheel Carrier from the LCA, Press OUT the Old Joint, Pull-In the New Joint, Re-Align the components by pulling the wheel carrier back into the LCA, Nut/Bolt back in.. Torque.... DONE!! Here is what My RLSJ looked like: https://youtu.be/zX8WZzB6s_M Of course... Post-Procedure, a 4-Wheel Hunter 'Laser' Alignment is in Order! G (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) (9.jpg) (10.jpg) (11.jpg) (12.jpg) (13.jpg) Attachments ----------------  1.jpg (74KB - 57 downloads) 2.jpg (77KB - 62 downloads) 3.jpg (113KB - 58 downloads) 4.jpg (88KB - 67 downloads) 5.jpg (78KB - 66 downloads) 6.jpg (77KB - 53 downloads) 7.jpg (73KB - 55 downloads) 8.jpg (86KB - 57 downloads) 9.jpg (97KB - 64 downloads) 10.jpg (91KB - 63 downloads) 11.jpg (73KB - 56 downloads) 12.jpg (74KB - 63 downloads) 13.jpg (109KB - 65 downloads) | |
| ||
|
