Photo DIY- Foglamp and Lens R/R

Due to a broken lens,,,,,

Another DIY

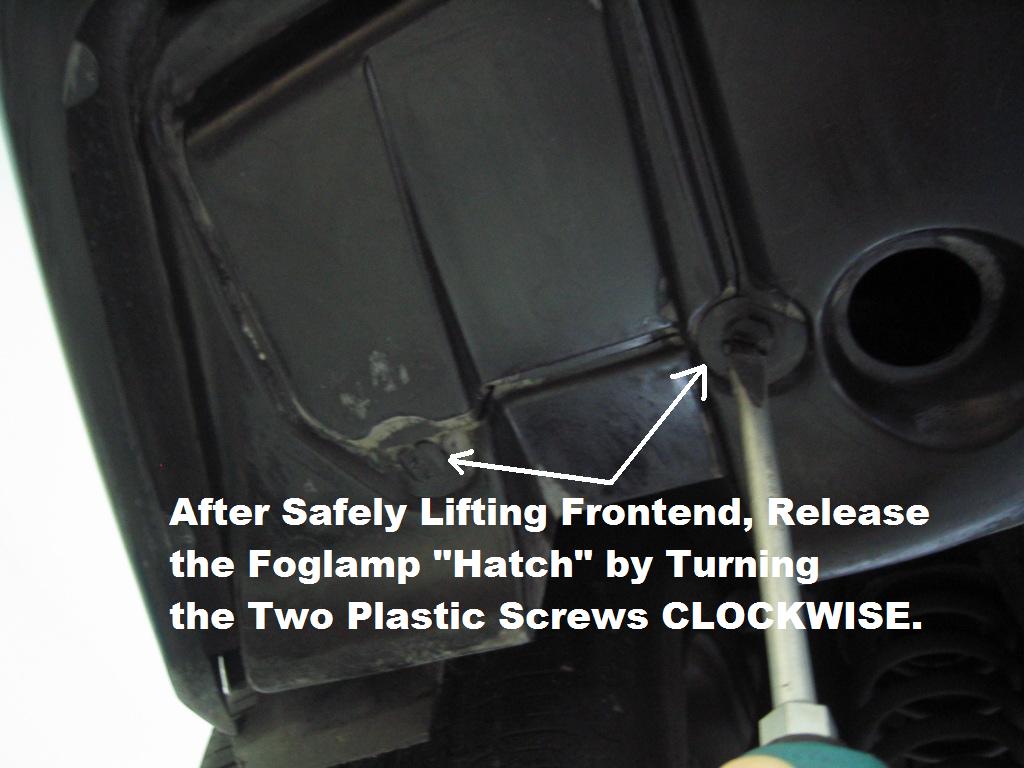

You DON'T need to remove the whole "diaper" (underside engine cover) to remove the housing. You CAN do it all through the access panel.

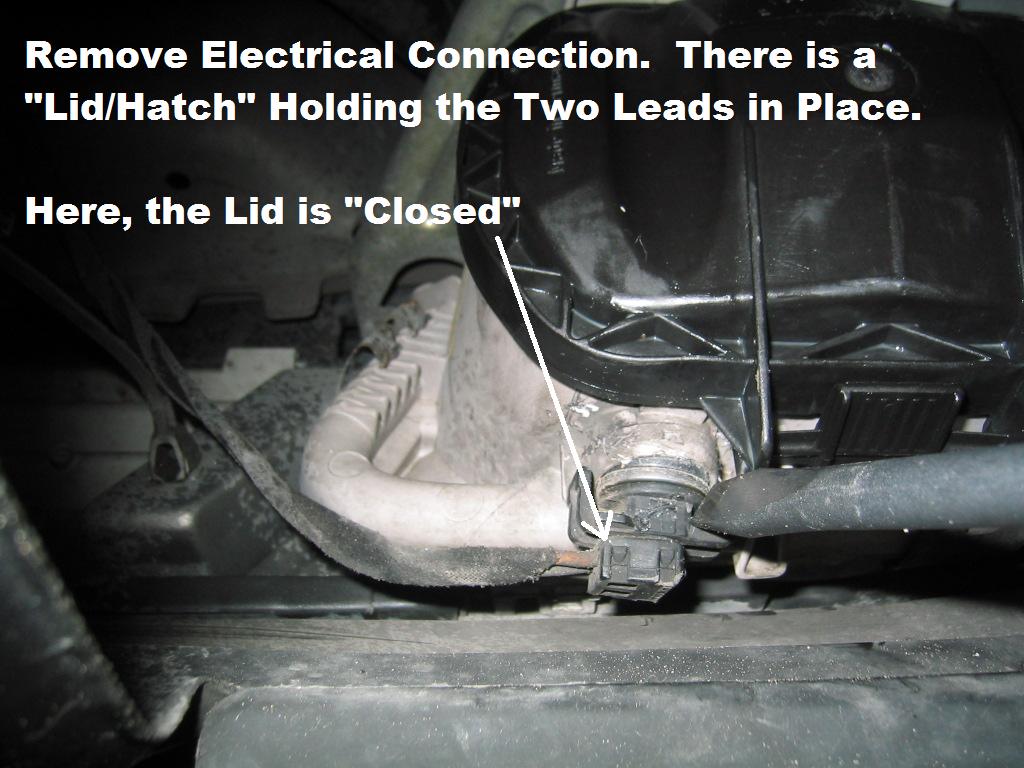

(1.JPG)



(2.JPG)



(3.JPG)



(4.JPG)



(5.JPG)



(6.JPG)



(7.JPG)



(8.JPG)



(9.JPG)



Attachments
----------------
Attachments 1.JPG (80KB - 15 downloads)
Attachments 2.JPG (89KB - 14 downloads)
Attachments 3.JPG (108KB - 16 downloads)
Attachments 4.JPG (126KB - 14 downloads)
Attachments 5.JPG (67KB - 12 downloads)
Attachments 6.JPG (105KB - 15 downloads)
Attachments 7.JPG (117KB - 13 downloads)
Attachments 8.JPG (76KB - 15 downloads)
Attachments 9.JPG (99KB - 12 downloads)
