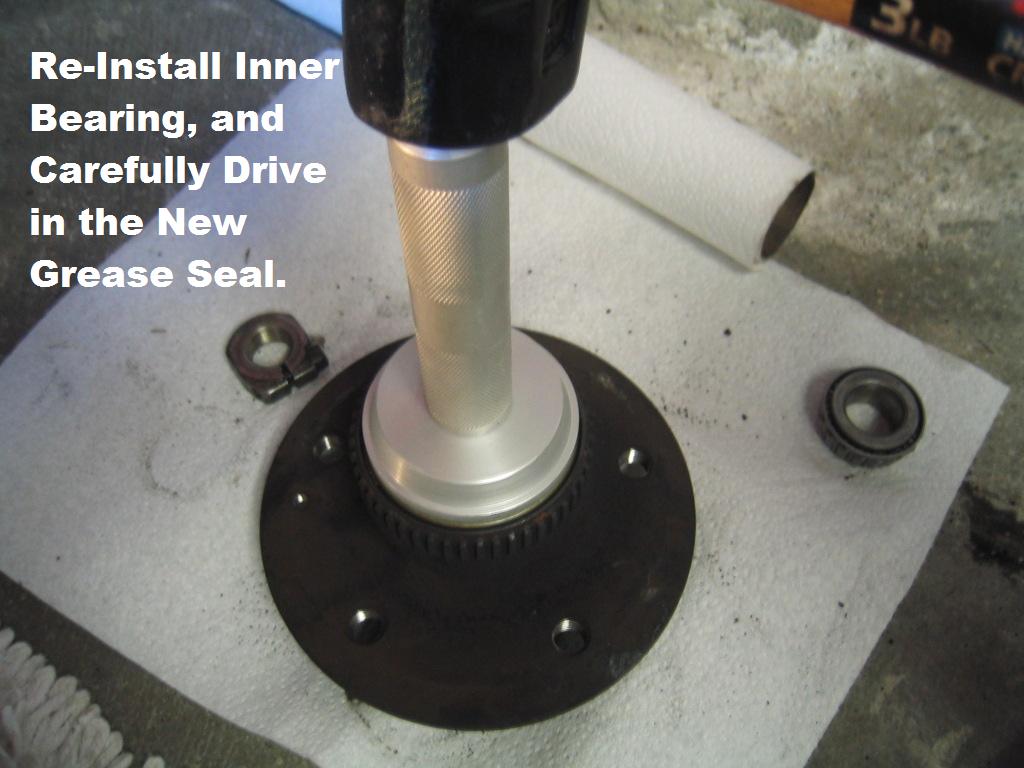

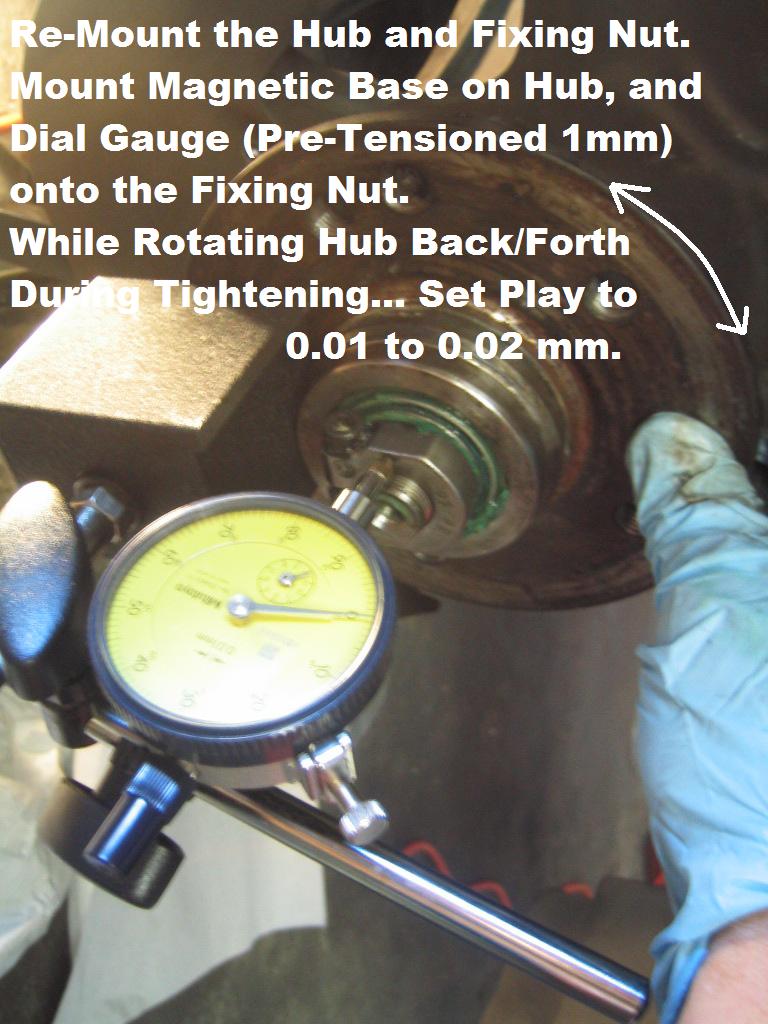

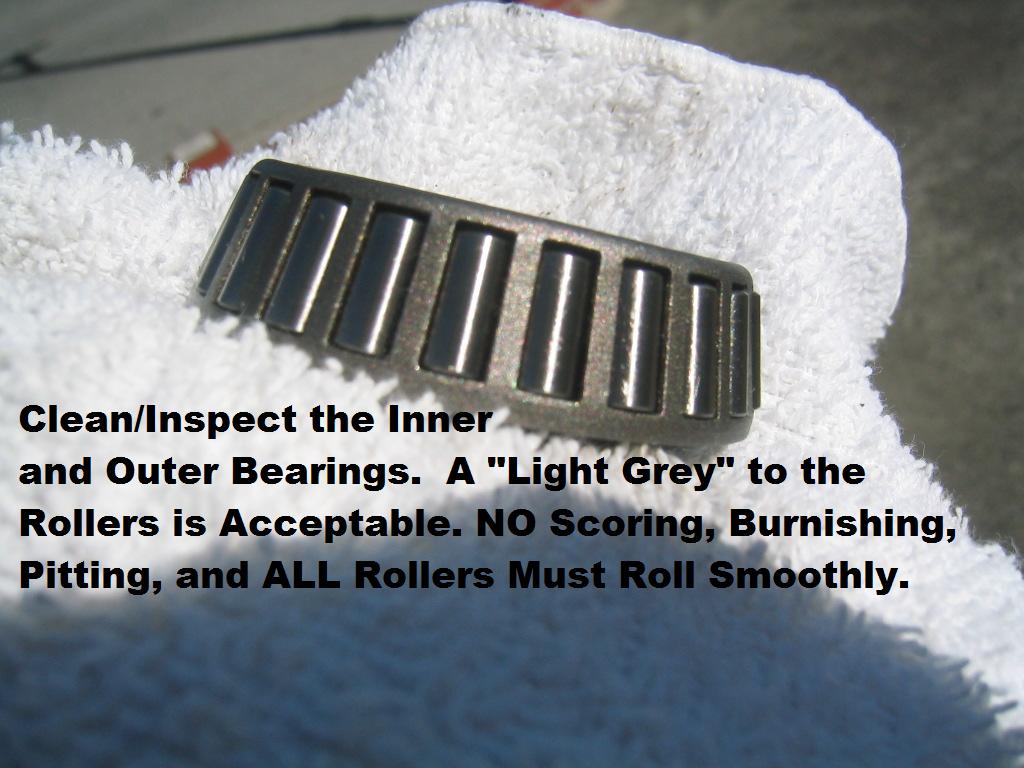

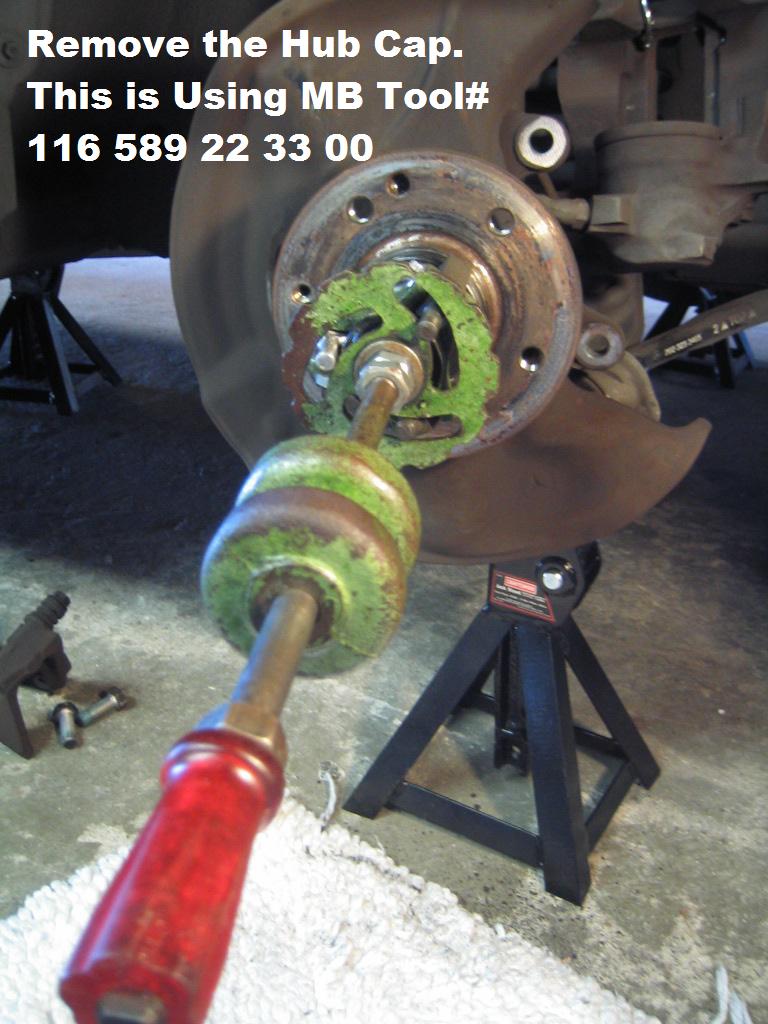

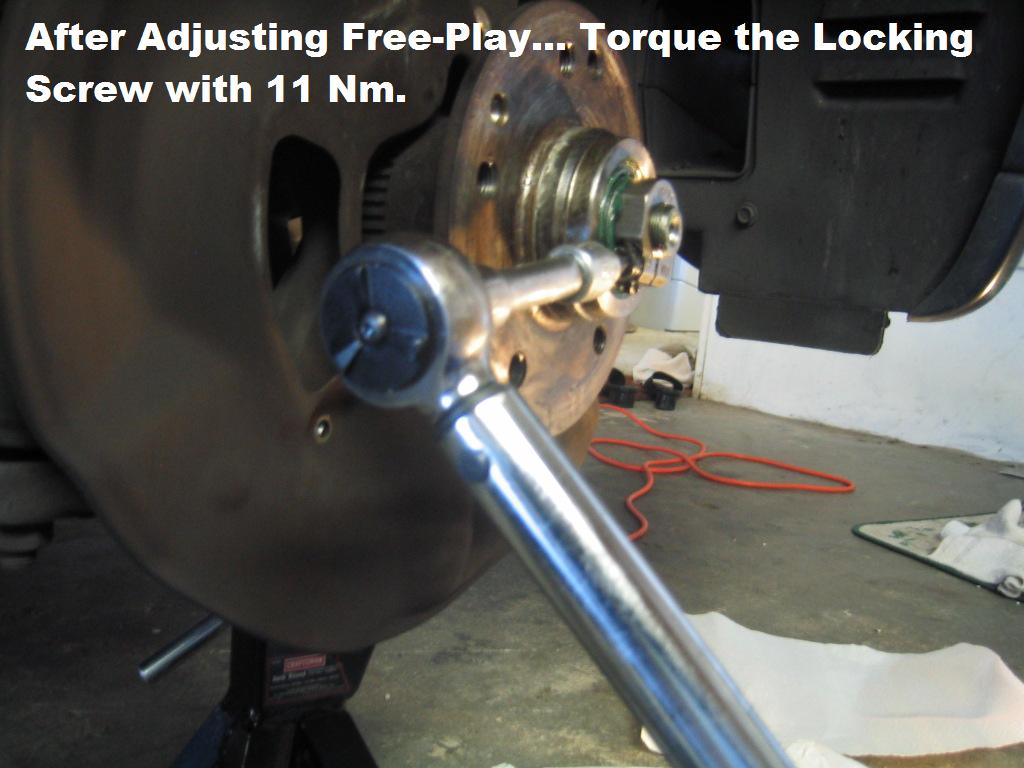

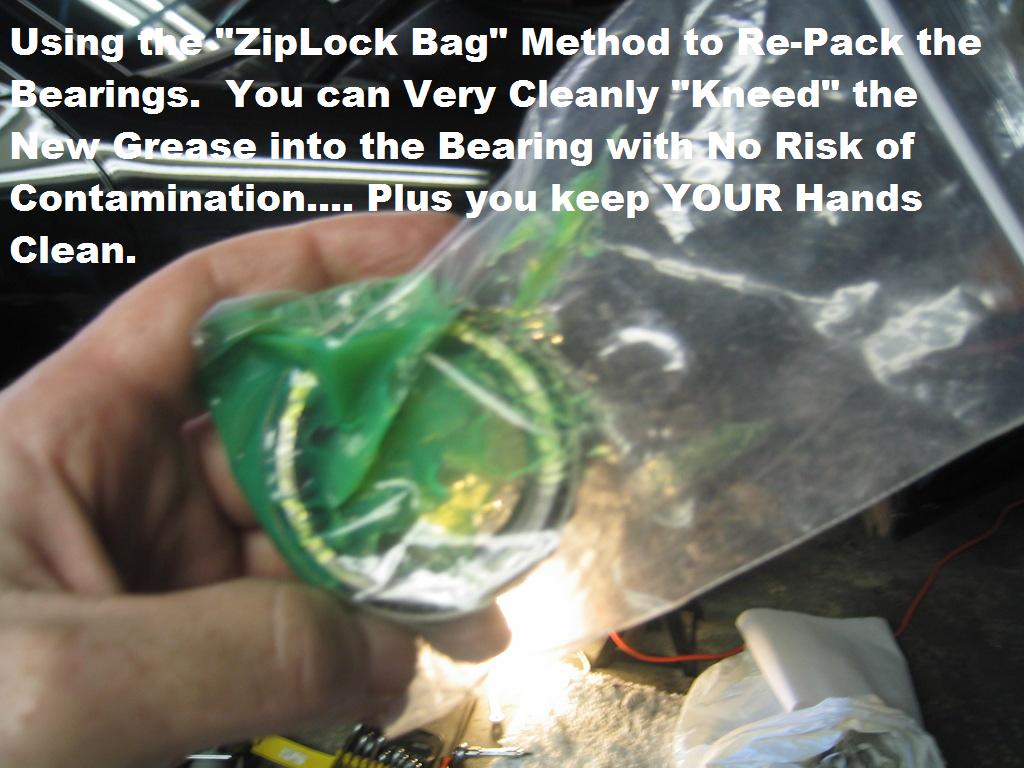

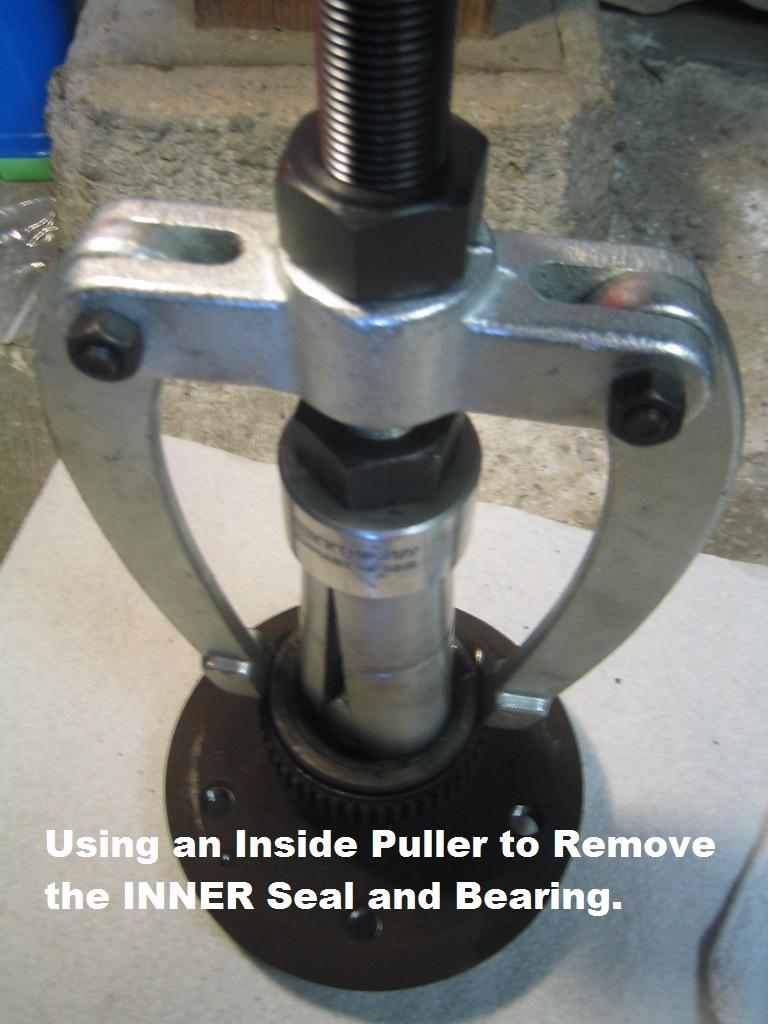

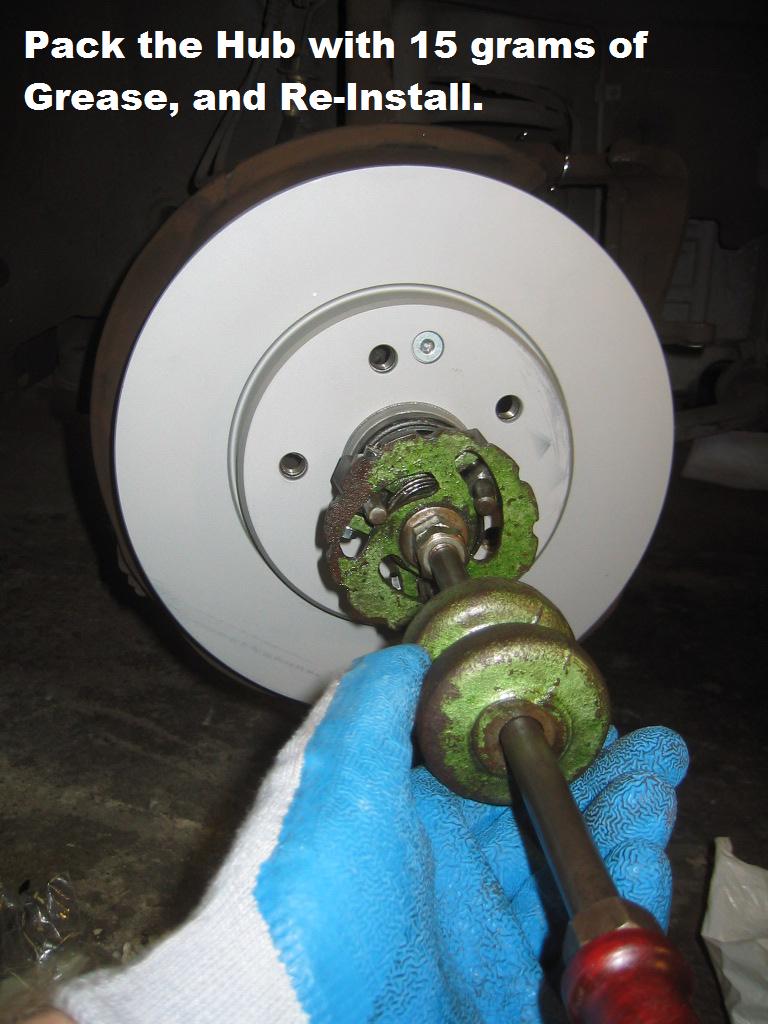

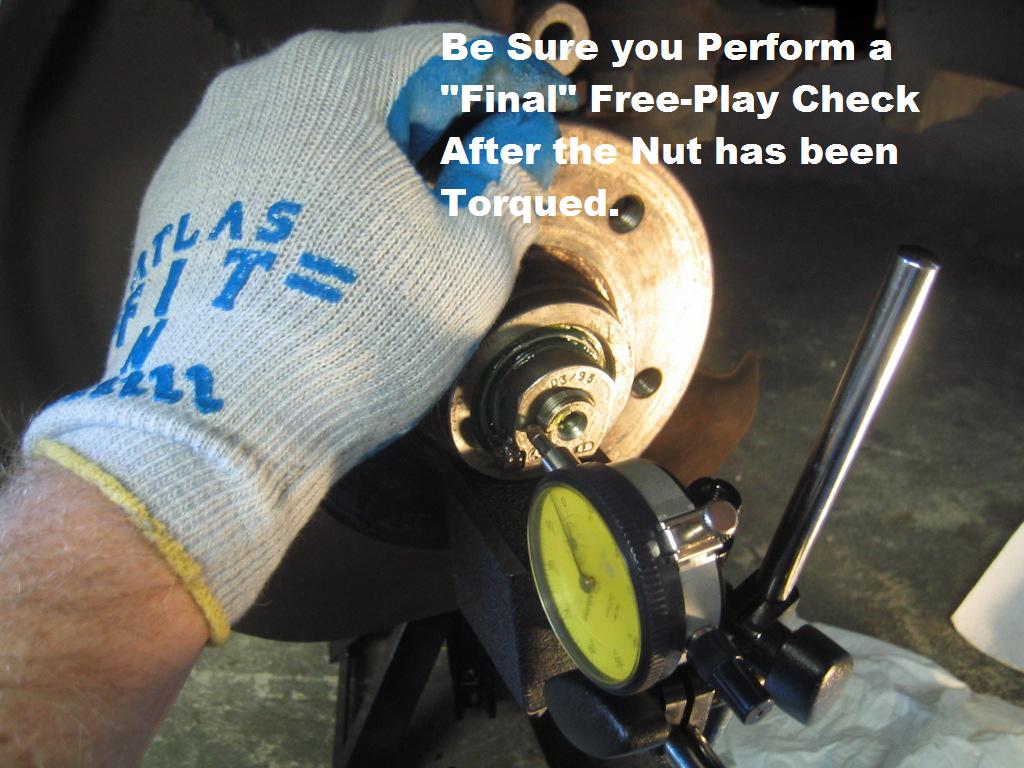

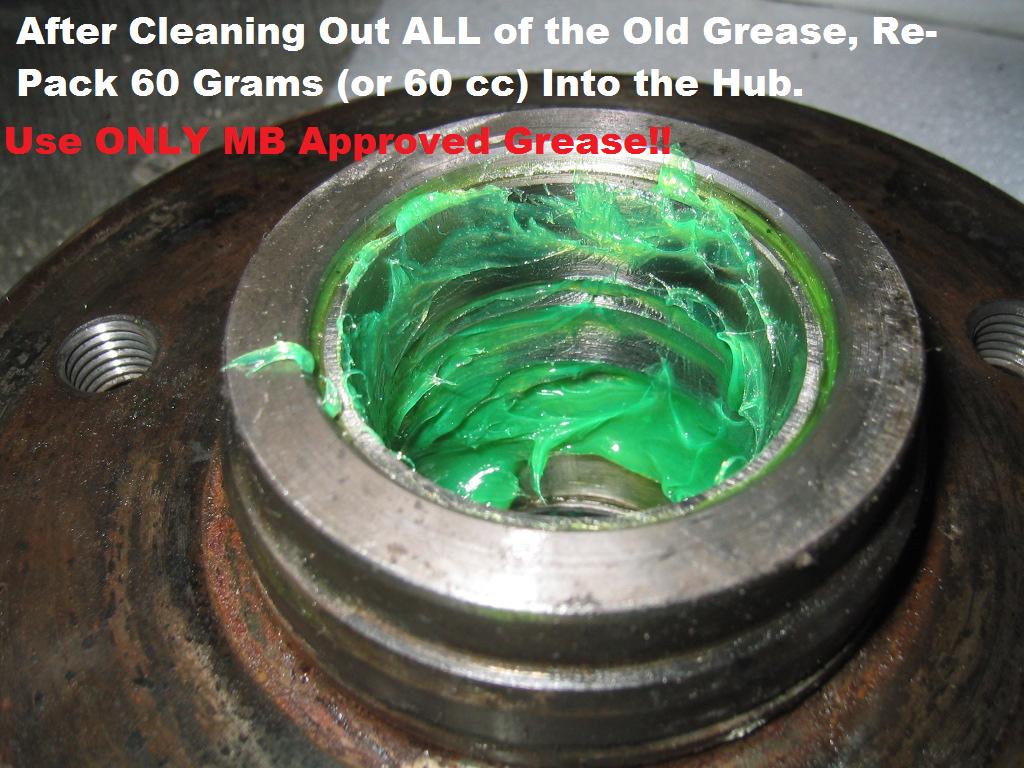

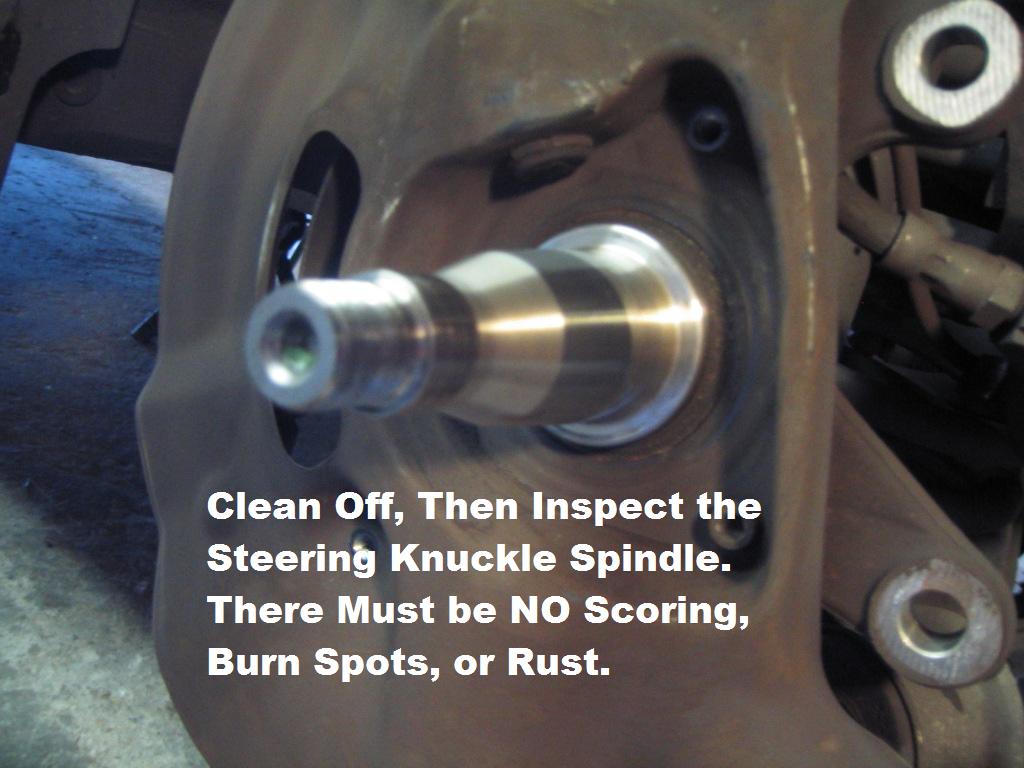

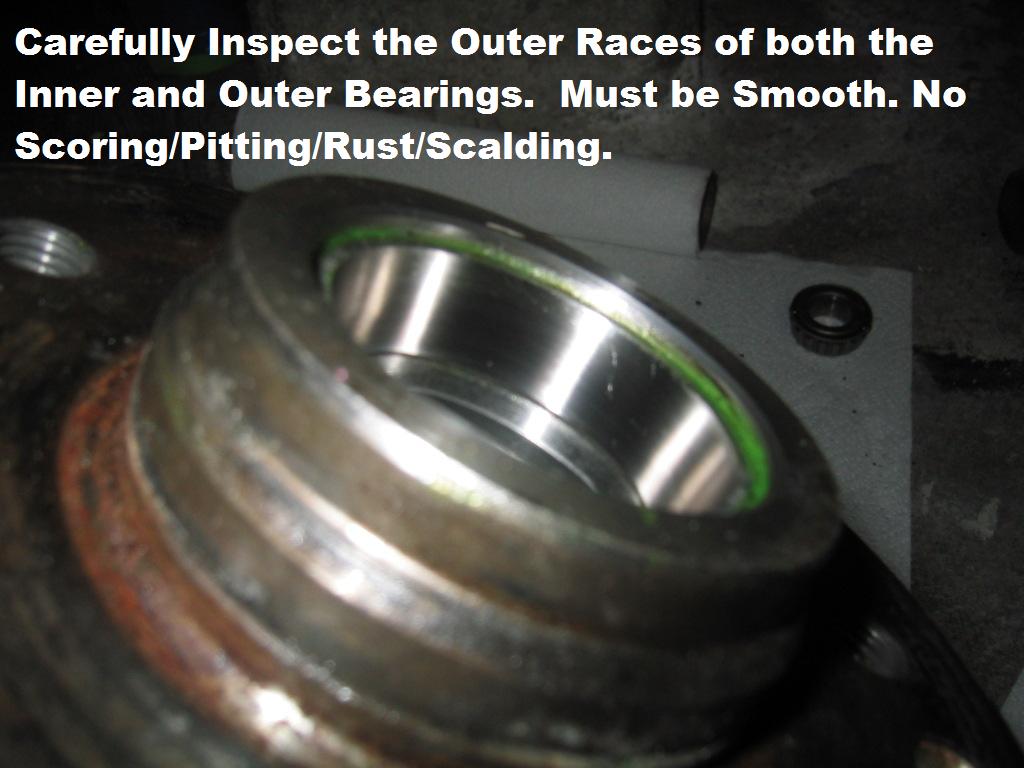

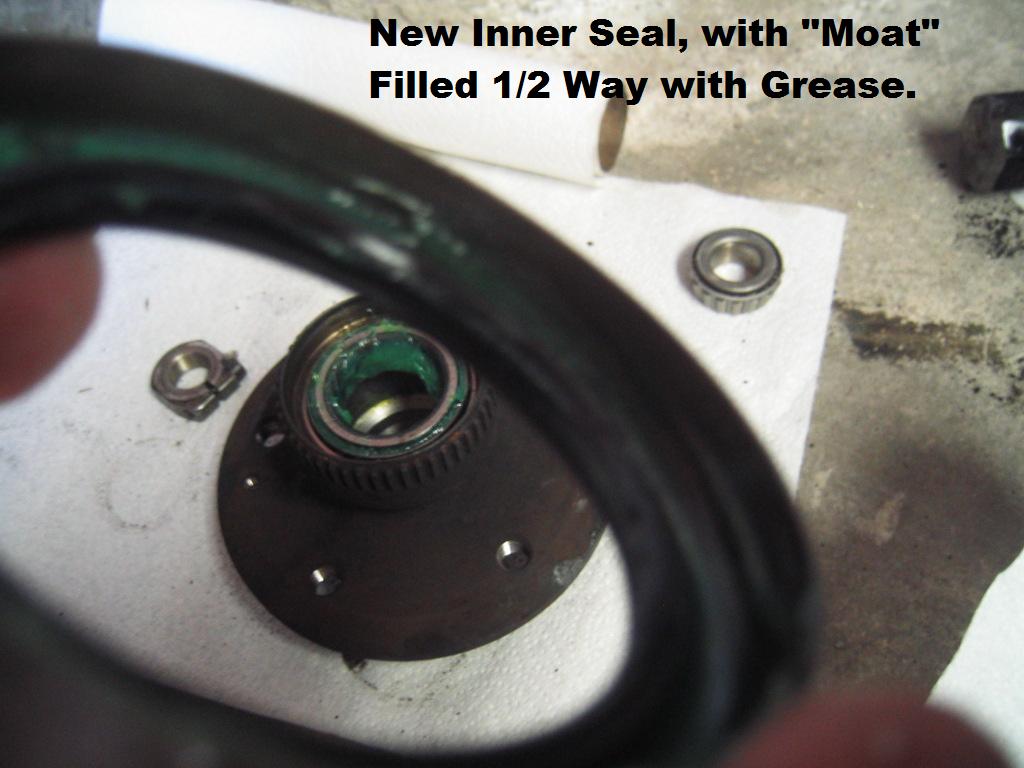

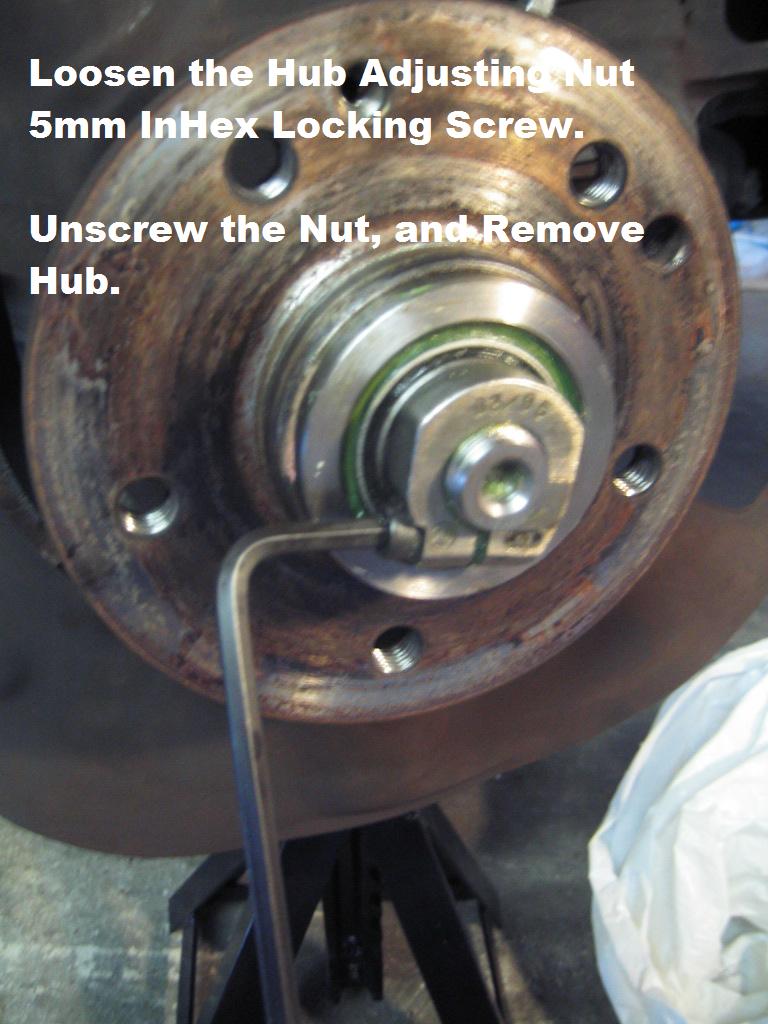

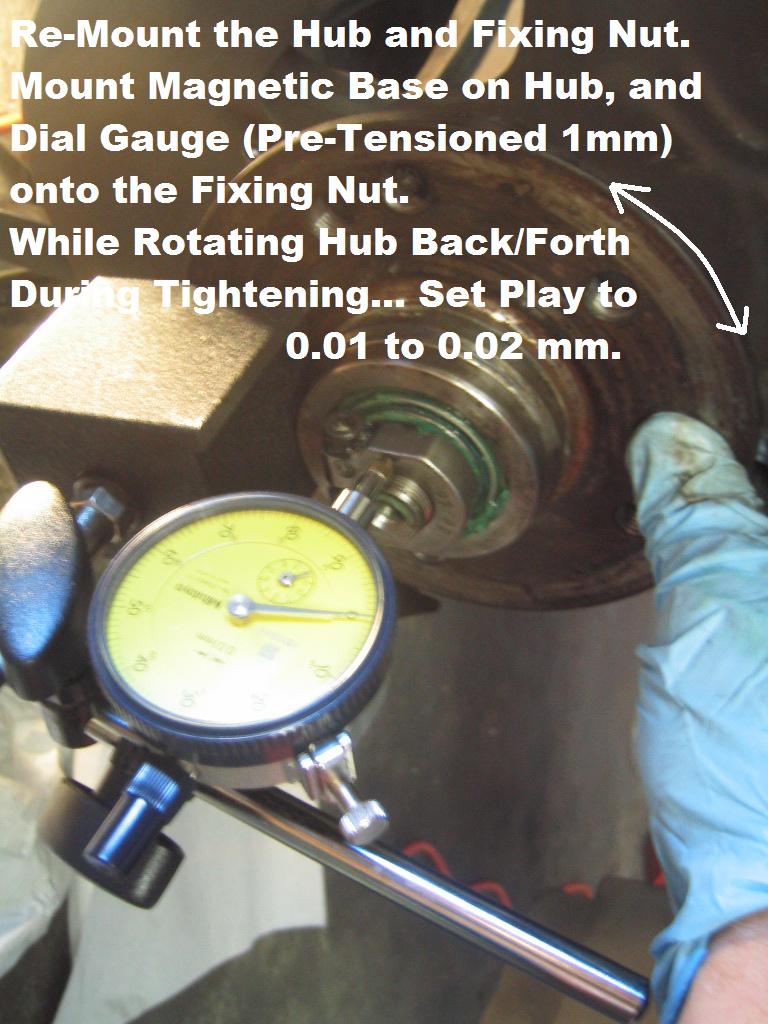

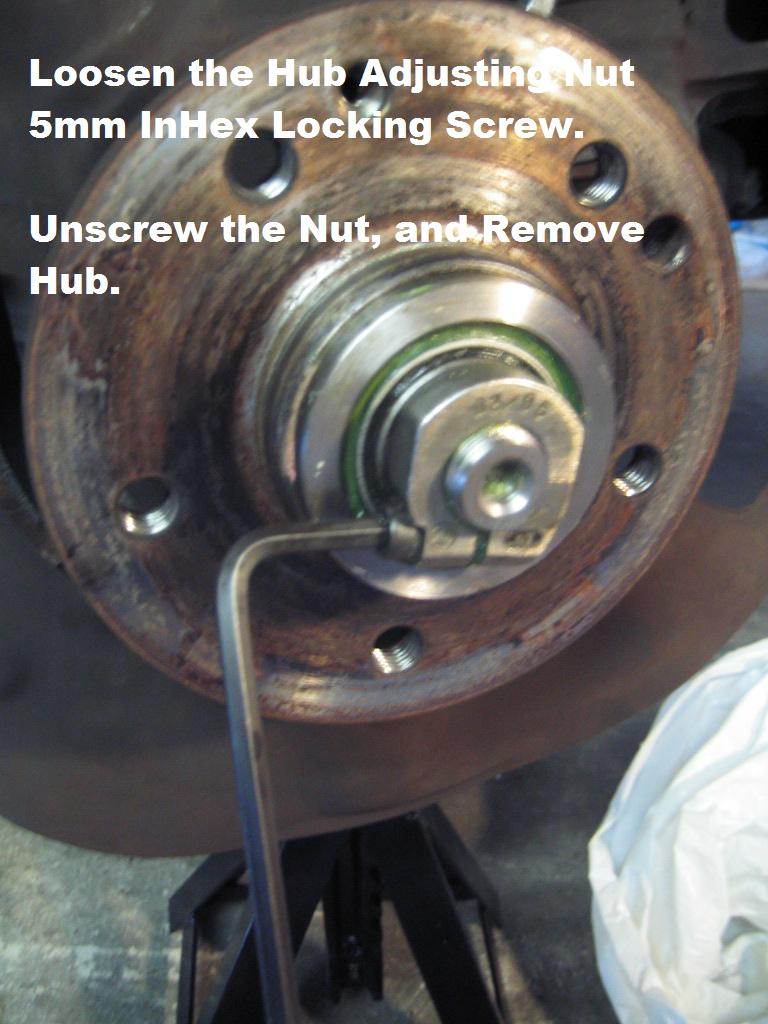

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 ![]() | Photo DIY- Front Wheel Bearing R/R Repack. With 150,000 miles on the clock.... and since I was going to Re-Do my mother-in-laws brake system..... I went the very small extra step to do the wheel bearings while I was there. One 150 Gram tube of Mercedes Grease, and new Inner Seals are all that is required (assuming the bearings are OK... which a vast majority of the time, they ARE!). Be sure to give good "back and forth" Rotation of the Hub while doing the Tightening and Adjustments.... you want the bearings well seated. Please see my "Front Brake Overhaul" Post for the Disassembly of the Calipers/Rotors, to get you to the Level of the Hub Job. (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) (9.jpg) (10.jpg) (11.jpg) (12.jpg) (13.jpg) (14.jpg) Attachments ---------------- 1.jpg (108KB - 474 downloads) 2.jpg (98KB - 444 downloads) 3.jpg (87KB - 432 downloads) 4.jpg (102KB - 495 downloads) 5.jpg (85KB - 370 downloads) 6.jpg (85KB - 478 downloads) 7.jpg (107KB - 447 downloads) 8.jpg (129KB - 390 downloads) 9.jpg (80KB - 466 downloads) 10.jpg (85KB - 478 downloads) 11.jpg (117KB - 449 downloads) 12.jpg (82KB - 413 downloads) 13.jpg (111KB - 414 downloads) 14.jpg (94KB - 422 downloads) | ||
