| Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Yes, a very basic maintenance item, but one I think is overlooked, and often is POORLY and INCOMPLETELY performed.
Ask the "Stealership" *HOW* they do their $49.95 "Coolant" services...... I think you will find *MOST* will just drain the Radiator, and Refill.... end of story!
This leaves around 1/3 of the fluid still in the system. Yes, perhaps an infusion of fresh anticorrosive coolant is better than nothing,,,,, I believe in the WIS SPECIFIED method of Coolant Service as shown in this Post.
Personally I do Coolant Service every TWO years, instead of the "recommended" THREE years. I live in a horribly harsh environment of heat, humidity and salt, thus, my desire to have a more "accelerated" schedule. I also change the brake fluid ANNUALLY.
Since I do a "complete" drain frequently, I see no need to do the "Fresh Water 'FLUSH'".... Plus, I've NEVER understood the logic of how one estimates how much Straight fluid to add to compensate for the residual "Water" in the inner spaces of the engine. And, on the "modern" motors, how do you CHECK the true concentration??? All you are checking is the RESERVOIR, and NOT the actual fluid moving around IN the engine!!
Please use care when working with the coolant system. ONLY open the system with temps less than 90C, and do it SLOWLY. Wear a face shield, gloves and protective clothing.

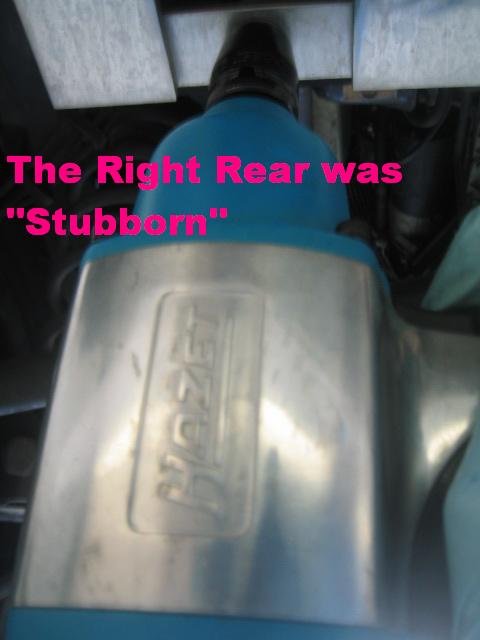

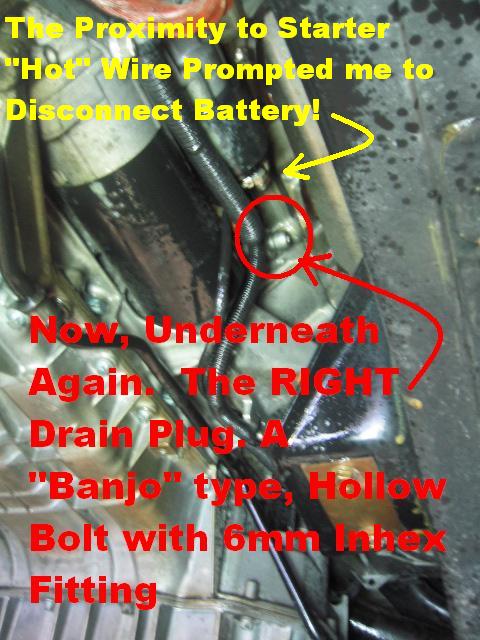

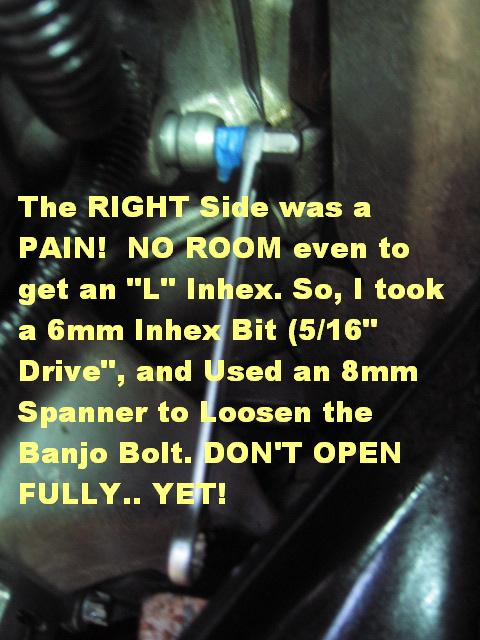

**ALSO, DUE TO PROXIMITY TO THE STARTER, I OPTED TO DISCONNECT THE BATTERY***

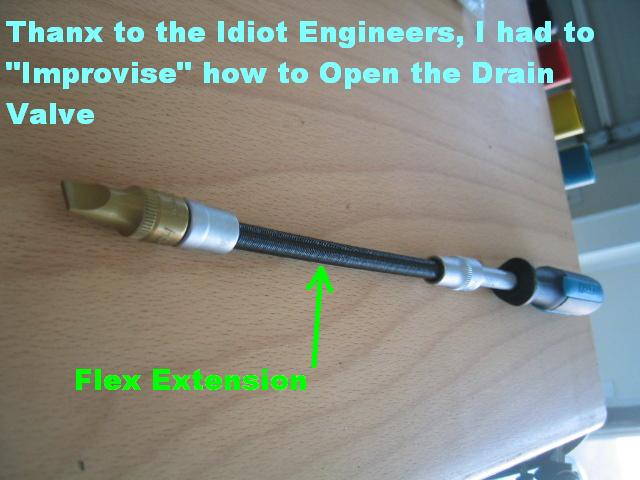

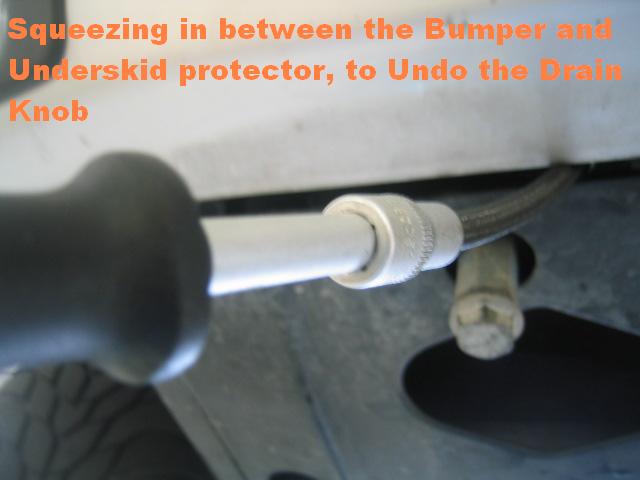

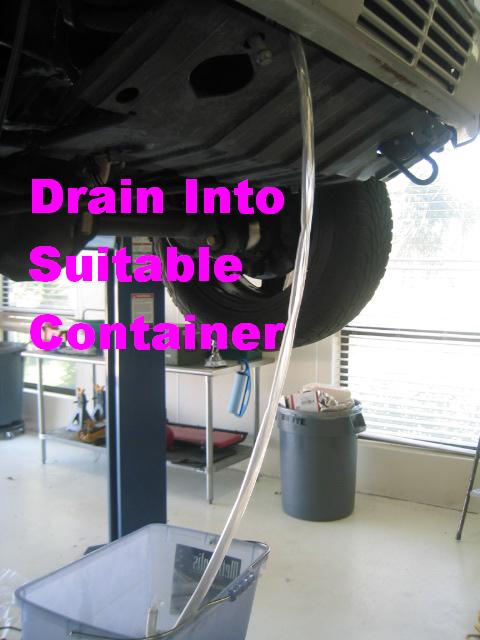

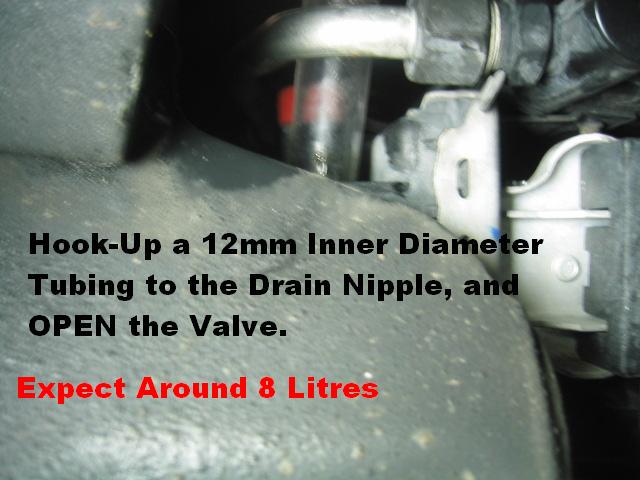

Please Dispose of the Coolant per your LOCAL regulations, even though it is classified as "Biodegradable".

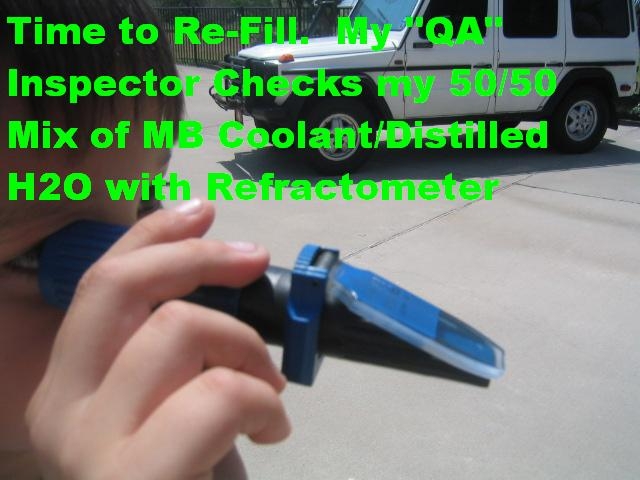

Apparently Zerex 05 is the "same" thing as the MB fluid for cheaper. WIS allow Distilled H2O. (Our water here is horrible).

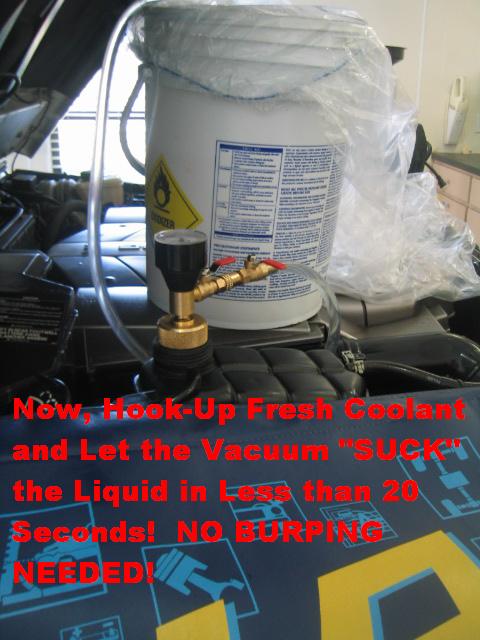

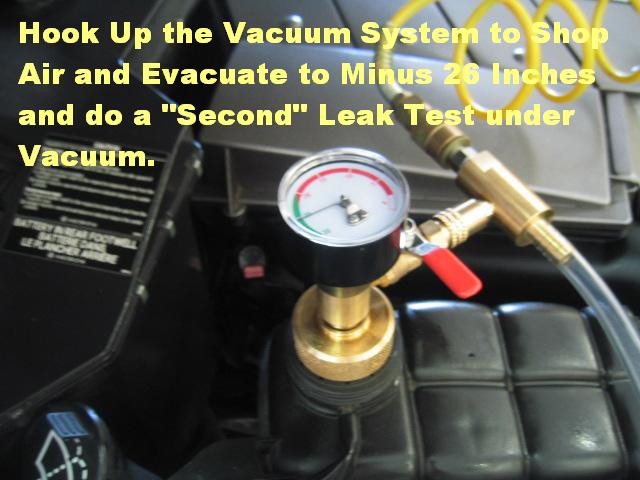

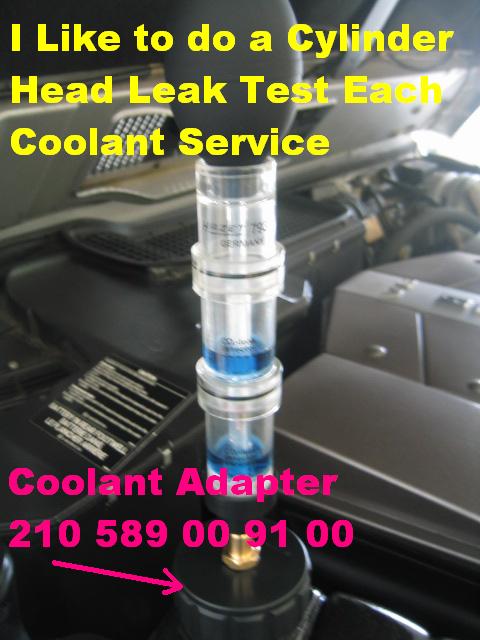

I would strongly recommend the Vacuum Fill method. With the "Remote" expansion reservoirs, and their "weenie" tube with go to the radiator, it takes a long time to fill with the normal "gravity" method.. Plus you have the issue of "burping" out any retained bubbles in the system.
PLEASE NOTE THIS IS FOR THE 113.982 ENGINE ON THE G55!!

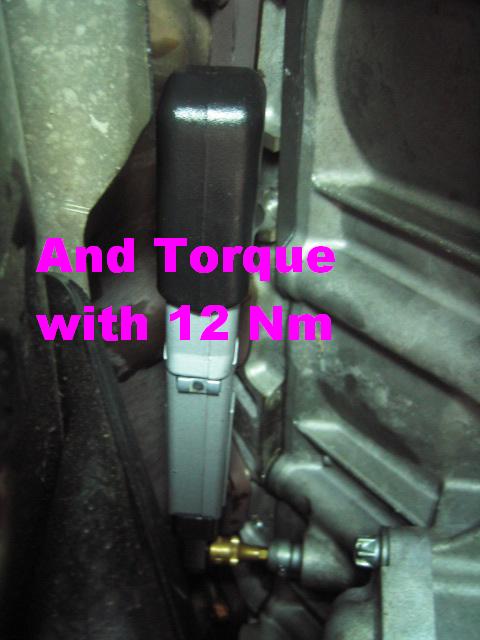

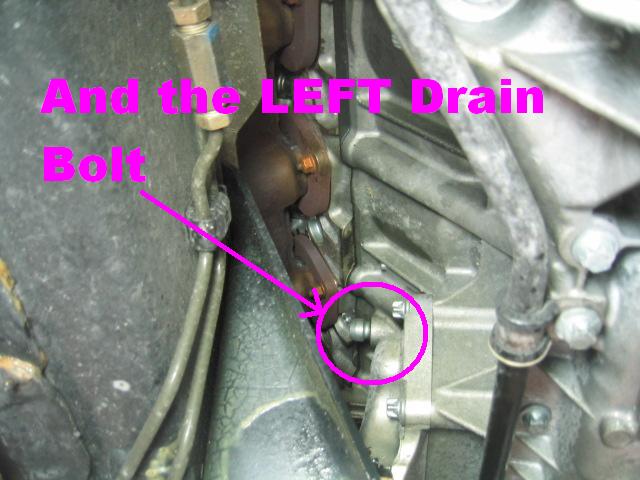

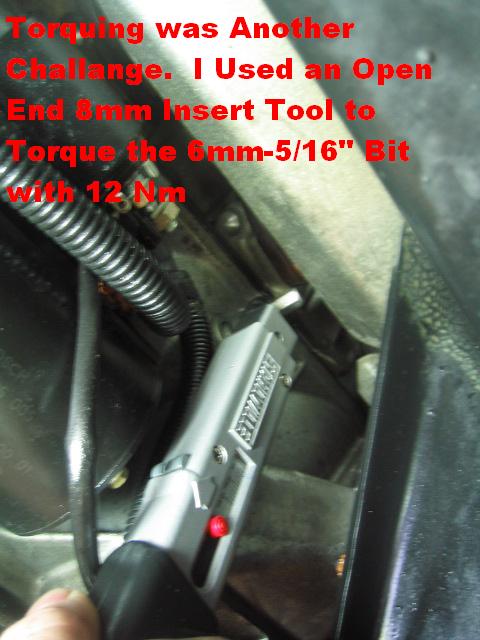

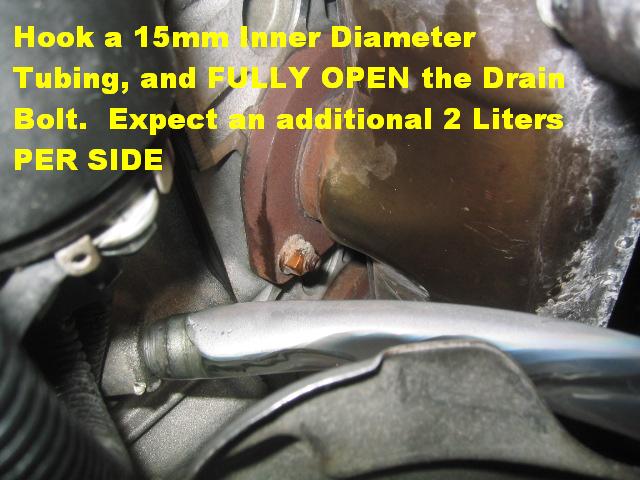

After doing a similar service on the M112 engine of the W210, it is "Similar". Only Volumes are different, AND a higher Drain Bolt torque of 12 vs. 10 Nm
Edited by G-AMG 5/10/2009 2:21 PM
 (1.JPG)
 (2.JPG)
 (3.JPG)
 (4.JPG)
 (5.JPG)
 (6.JPG)
 (7.JPG)
 (8.JPG)
 (9.JPG)
 (10.JPG)
 (11.JPG)
 (12.JPG)
 (13.JPG)
 (14.JPG)
 (15.JPG)
 (16.JPG)
 (17.JPG)
 (18.JPG)
 (19.JPG)
 (20.JPG)
 (21.JPG)
 (22.JPG)
Attachments
----------------
|
|
| |
|
nadd
Expert
Date registered: Apr 2006
Location: UAE, Dubai
Vehicle(s): G500 2016 LHD, numerous Chevys
Posts: 1285
| Re: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Great write-up G-AMG, also thanks for posting a photo of the whole W124 pump. If it works on the M110 and M113 I'd hope it also works on the M103.
Could you not reach the radiator valve from the front/top? I vaguely recall doing it by removing the grille and headlight surround on that side, but that's on the 300GE, the M113k engine bay will surely be more dense. |
|
| |
|
prbmeat
Date registered: Dec 1899
Location:
Vehicle(s):
| Re: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Any suggestions on a "vacuum" make and type? Can I purchae a "vacuum" that could be used for both oil AND coolant?
Thanks for the good visual detail. |
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| Re: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
prbmeat,
I have both the "low-end" and the "High-end" models(OEM MB aka Leitenberger), both work equally well.
Here is a "Low-End" unit:
http://compare.ebay.com/like/370485529769?var=lv<yp=AllFixedPrice...

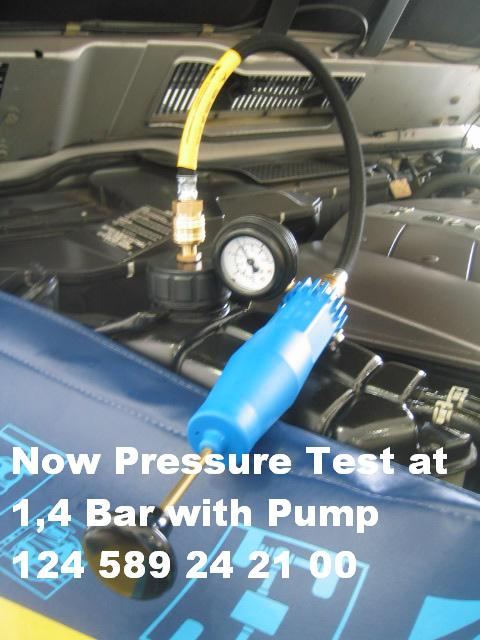

When you see how fast/easy it is to Fill your system, WITHOUT any air pockets... you will be a believer! Plus, you get a free "leak test" out of the procedure. |
|
| |
|
hipine
Date registered: Jul 2006
Location: US, CO, Bailey
Vehicle(s): 460 1980 280GE w. 617A
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Nice work! I know it takes twice as long to get pictures and write it all up as it does to just do the job. Thanks for taking the time to help others. I've never used the "pre-vac" method you describe but I have to admit, I'm curious now. I think I'll recommend it to some of my LR buddies. Those have been prone to bubbles since the '90s.
All the best,
-Dave G. |
|
| |
|
prbmeat
Date registered: Dec 1899
Location:
Vehicle(s):
| Re: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
G-AMG - 7/1/2011 6:44 AM
prbmeat,
I have both the "low-end" and the "High-end" models (OEM MB aka Leitenberger ), both work equally well.
Here is a "Low-End" unit:
http://compare.ebay.com/like/370485529769?var=lv
When you see how fast/easy it is to Fill your system, WITHOUT any air pockets... you will be a believer! Plus, you get a free "leak test" out of the procedure.

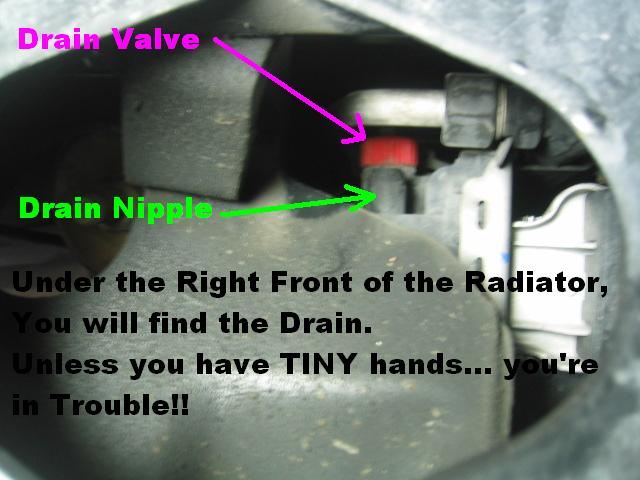

Hey thanks for the response. I just picked up some Zerex G-05 coolant and need to flush out. I was going to originally just drain the coolant from the red valve in front, but it seemed kind of like a half-ass-way to do it. Thanks for your DIY post.
Oh and I just ordered that pump off ebay. You're tha man.
Edited by prbmeat 7/6/2011 4:02 PM
|
|
| |
|
stevegsmith
Expert
Date registered: Apr 2006
Location: SF Bay Area, CA USA
Vehicle(s): 82 300GD WVO, 06 Jeep Lib CRD B99
Posts: 1301
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Will you please empty the garage trash can (in the 11th pic) before you shoot another DIY.
My God Man!!!
 |
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
stevegsmith - 7/6/2011 6:41 PM
Will you please empty the garage trash can (in the 11th pic) before you shoot another DIY.
My God Man!!!
;)
Shhheeeeeeshhh, Pick-y Pick-y, aren't we??
I promise to "clean up my act" (and my trash cans) next time... ~:-O |
|
| |
|
ychung
Veteran
Date registered: Aug 2015
Location: SO CAL
Vehicle(s): 2004 G500, 2014 ML350, 2008 S550
Posts: 196
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Hi,
I am going to replace radiator upper, lower hoses and bypass hose as preventive maintenance.
Is this DIY will be same for 2004 G500 because I don't think I have ATF under skid on mine?
If I'm changing all hoses, do I still need to take out drain plug?
Since it's going to take about 12 Liters, do I just need 6 Liters of MB coolant?
Can this be done on Jack Stands, not on a hoist?
Although it looks straight forward, does anyone have instruction for changing all hoses mentioned above?
Can I do it without use of a vacumn? or please recommend one that I can use for oil as well.
Just for curiosity, if there is s air pocket, wouldn't it eventually disappear?
Thank you in advance for all your comments
Yong
Edited by ychung 5/25/2016 7:56 PM
|
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
ychung - 5/25/2016 7:51 PM
Hi,
I am going to replace radiator upper, lower hoses and bypass hose as preventive maintenance.
Is this DIY will be same for 2004 G500 because I don't think I have ATF under skid on mine?
If I'm changing all hoses, do I still need to take out drain plug?
Since it's going to take about 12 Liters, do I just need 6 Liters of MB coolant?
Can this be done on Jack Stands, not on a hoist?
Although it looks straight forward, does anyone have instruction for changing all hoses mentioned above?
Can I do it without use of a vacumn? or please recommend one that I can use for oil as well.
Just for curiosity, if there is s air pocket, wouldn't it eventually disappear?
Thank you in advance for all your comments
Yong
I haven't done the hoses on the W463, only the W460.
I would imagine you do not need to lift the truck to do this job.

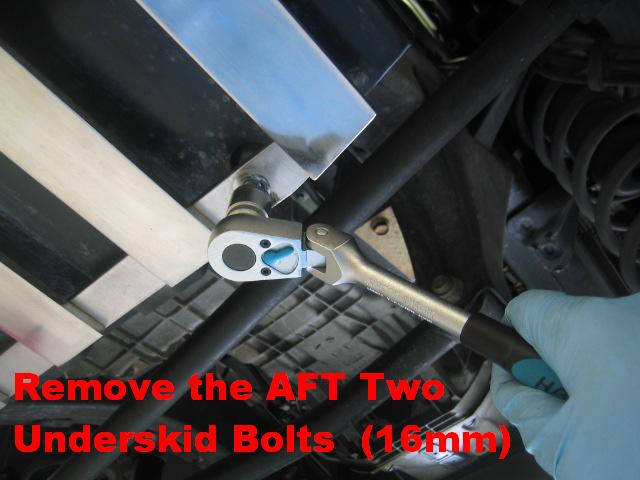

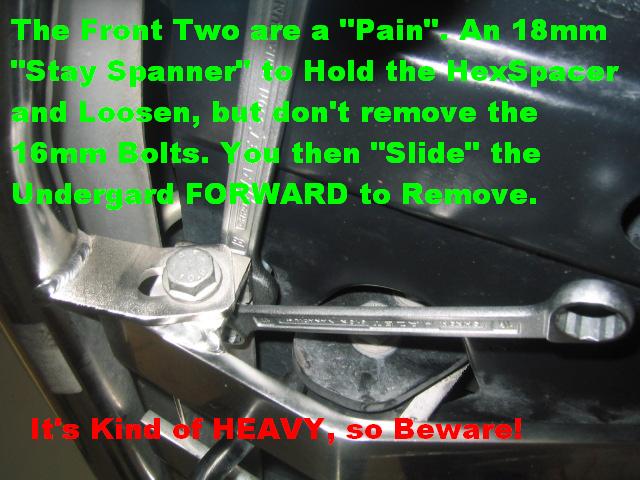

Since this post, I have switched to COMPLETELY REMOVING both of my Skid Plates, when I do my coolant services.. a few extra minutes, but much easier access!
I think you will need to remove you skid plates to get to the lower hose.
In terms of Draining the system first? You probably Don't need to. Remove the lower hose, and let things drain from there.
And, No, you don't "NEED" the Vacuum system. The thermostat has an Self-Purging hole in it.
Yes, you will need 2 Gallon Jugs of MB Coolant, and 2 Gallons of Distilled water.
Please post your pics on the "regular" forum for Vetting, before sending them to the DIY site.
Good Luck!
G |
|
| |
|
ychung
Veteran
Date registered: Aug 2015
Location: SO CAL
Vehicle(s): 2004 G500, 2014 ML350, 2008 S550
Posts: 196
| RE: Photo DIY- W 463 Coolant Service a la "Vacuum" Method
Thanks G |
|
| |
