Photo DIY- W463 Hydraulic Service
Topic Tools Message Format
Author
Posted 4/14/2013 9:56 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Photo DIY- W463 Hydraulic Service

I realized I have not posted the Hydraulic (Differential and Brake Systems) for the W463, so Since I am doing my ANNUAL Service, I would shoot some Photos.

I know MBUSA says "BI-Annual", I prescribe to the Euro-WIS ANNUAL Interval... Especially Living in a very Hot & HUMID Environ. It's not a big deal when you get everything set up... then I can do all 5 Vehicles at once.

I use the MB Brake Fluid... I'm sure there are several other options out there... it's just what I like.

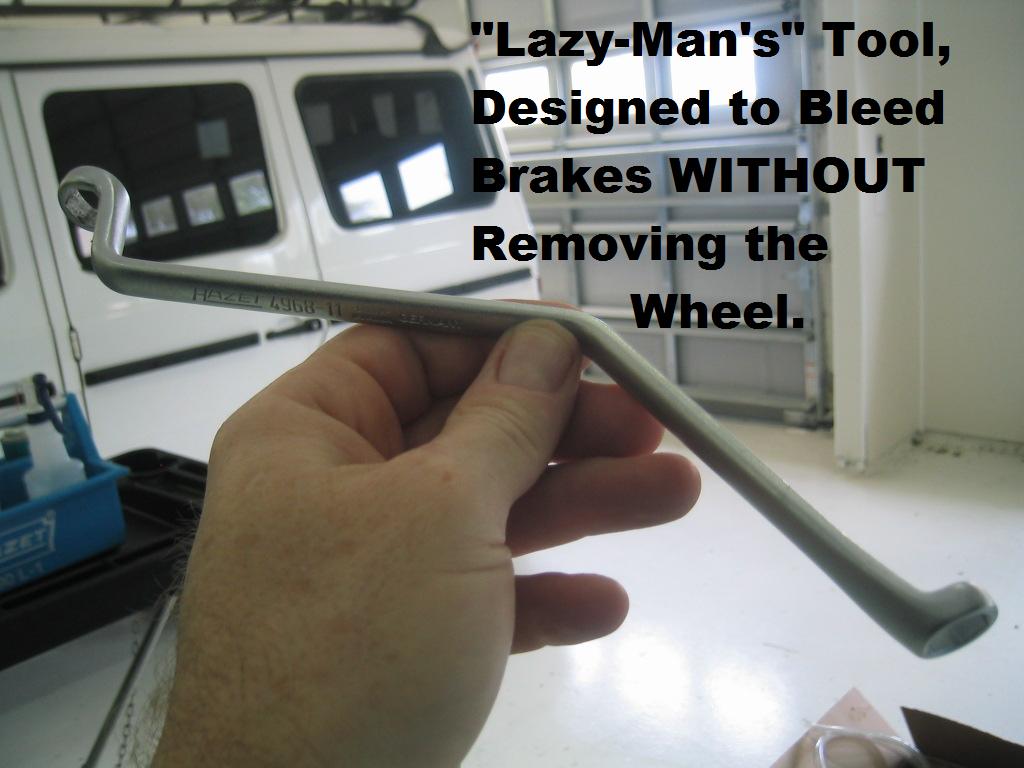

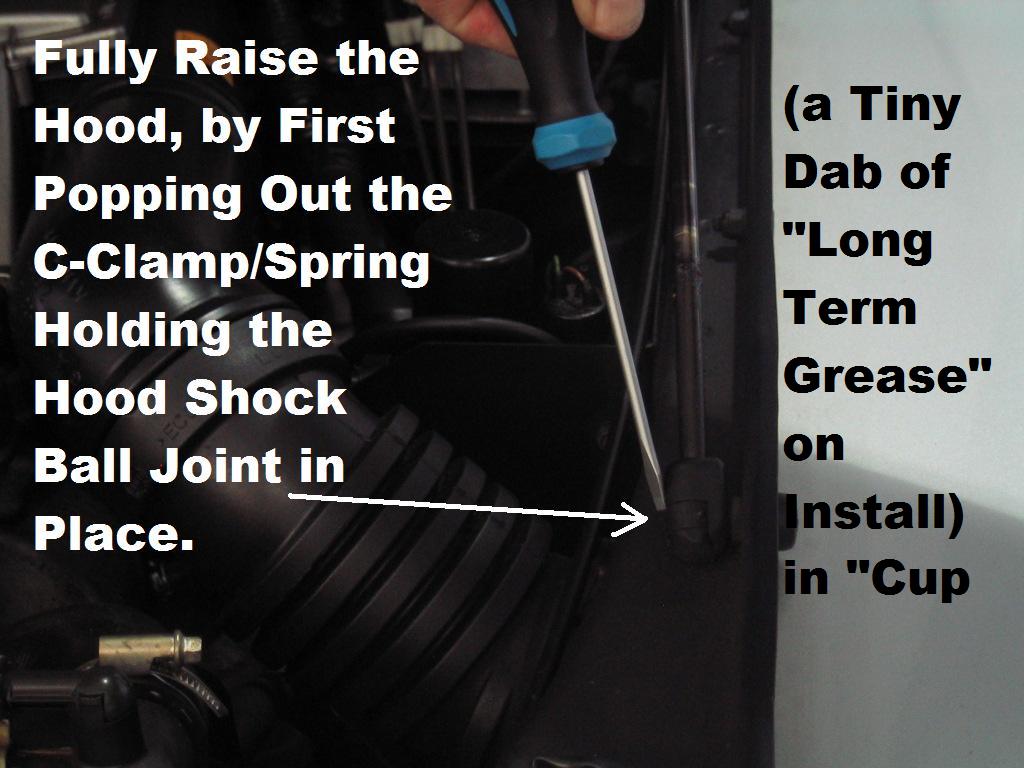

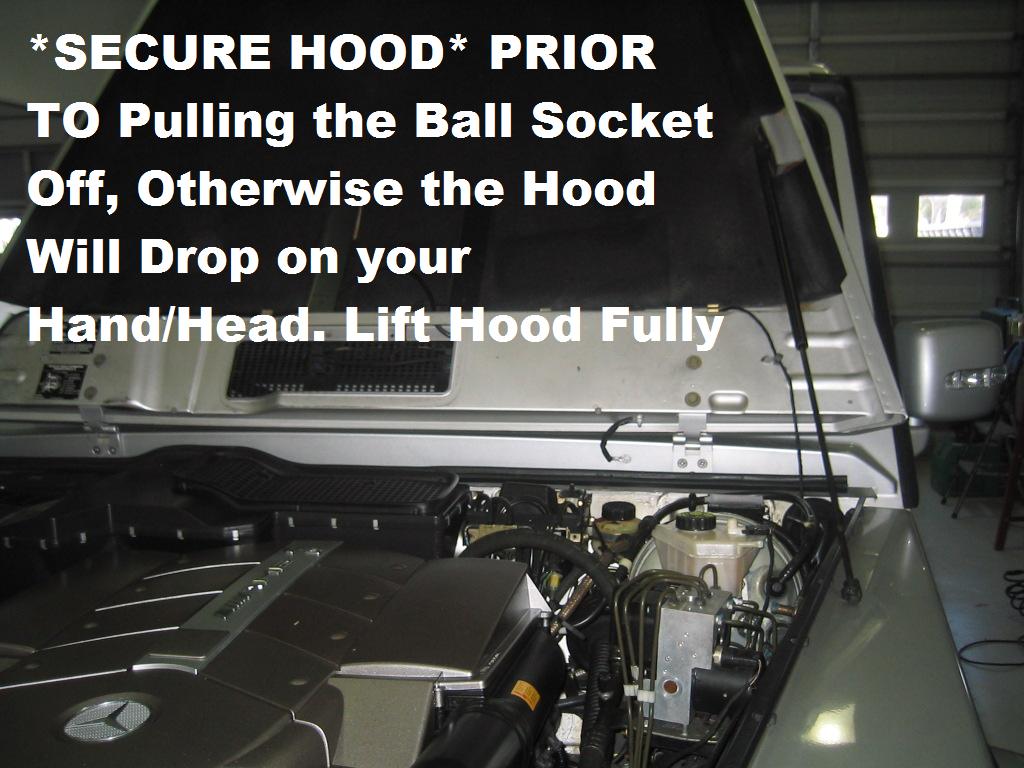

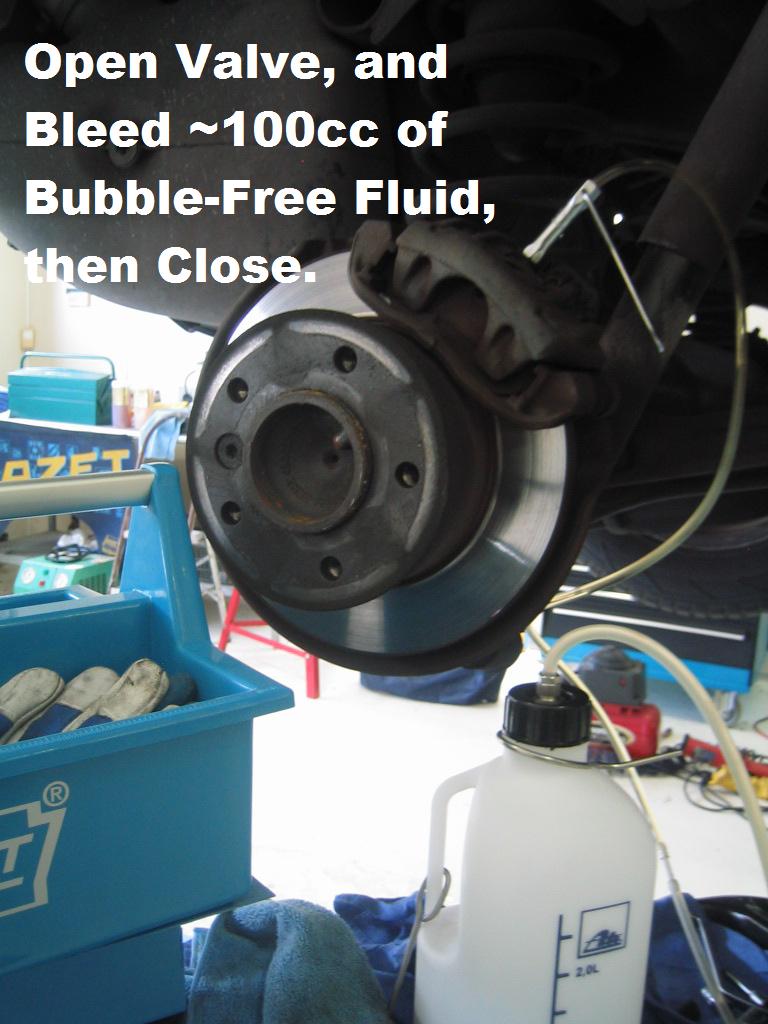

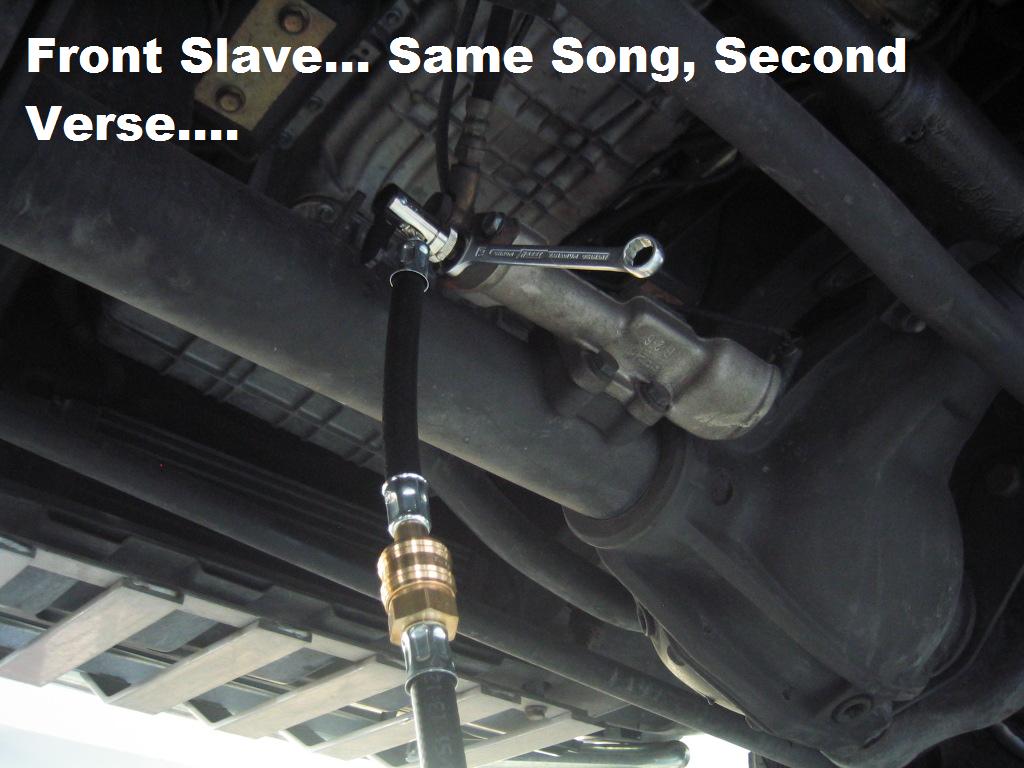

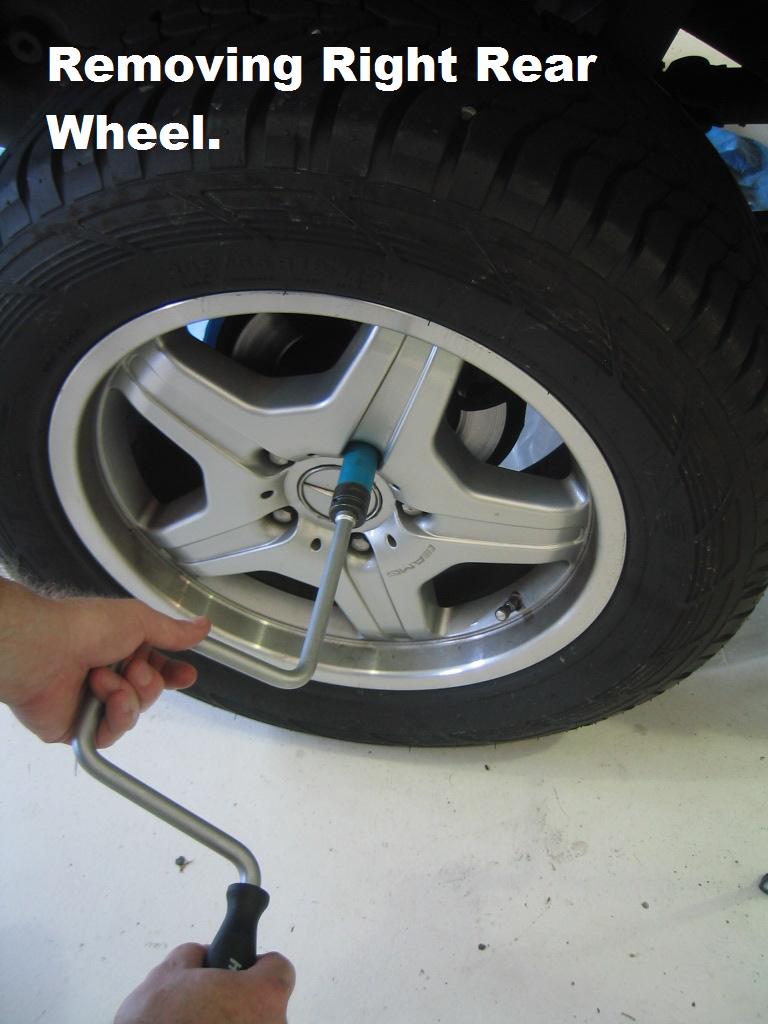

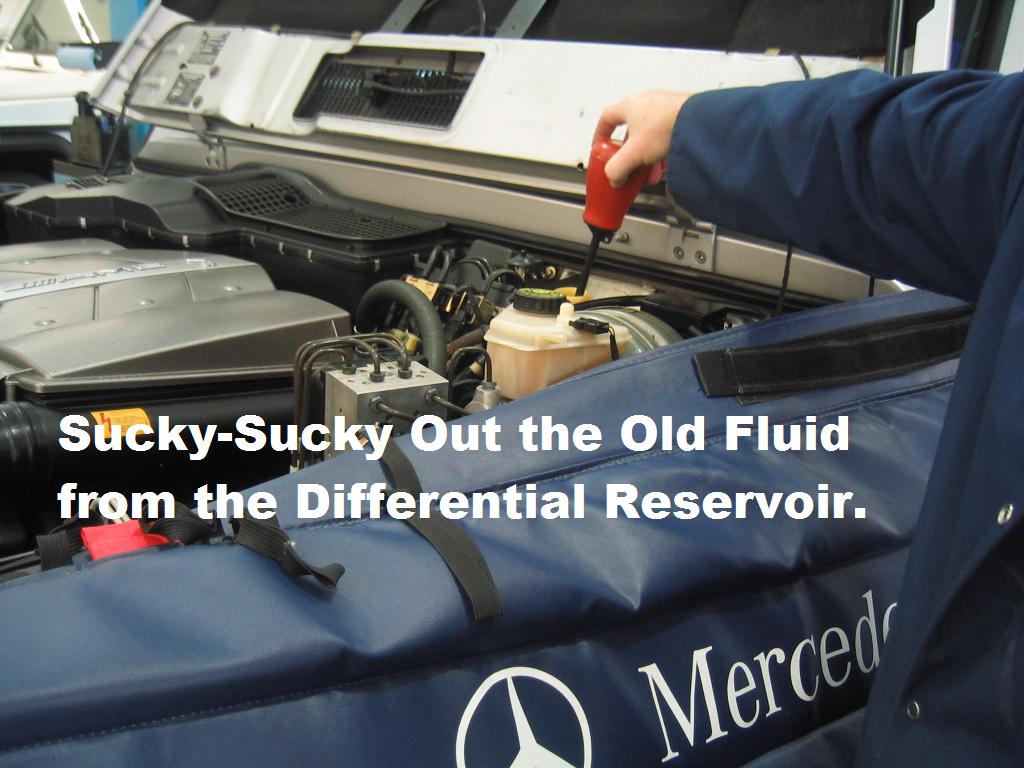

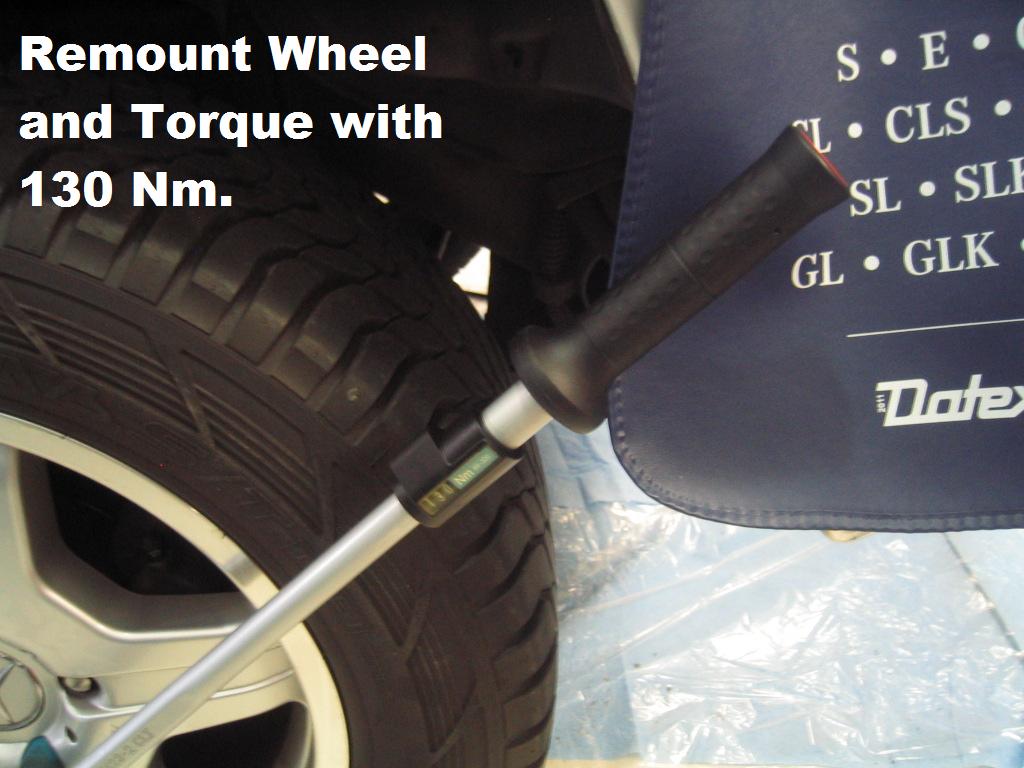

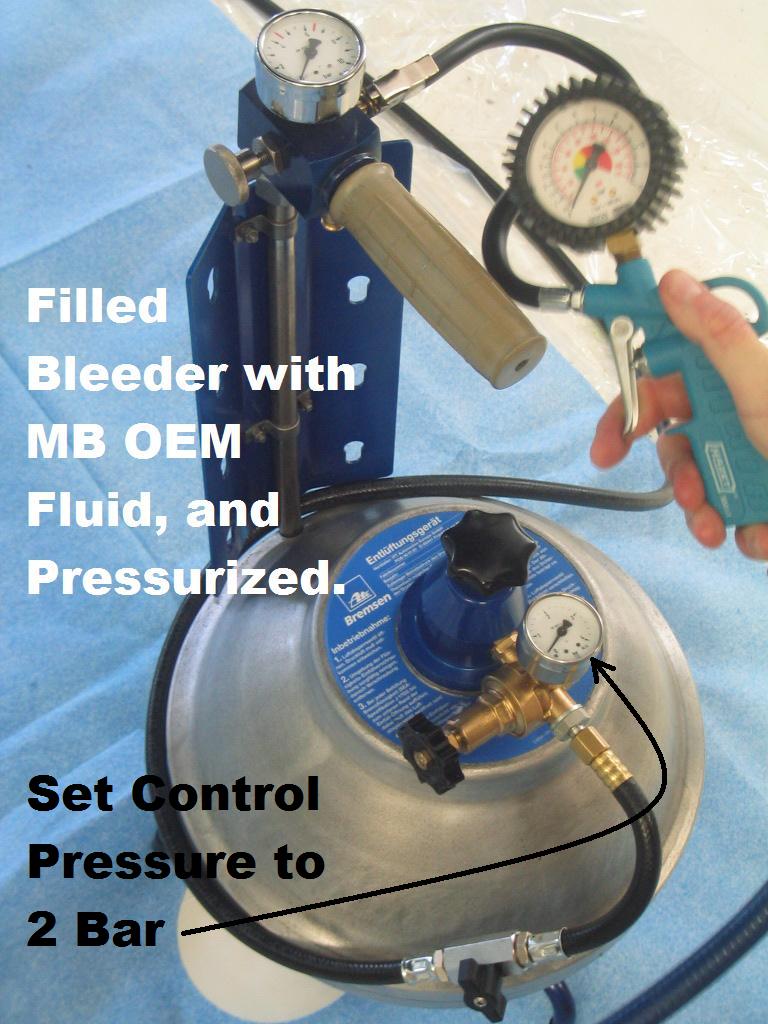

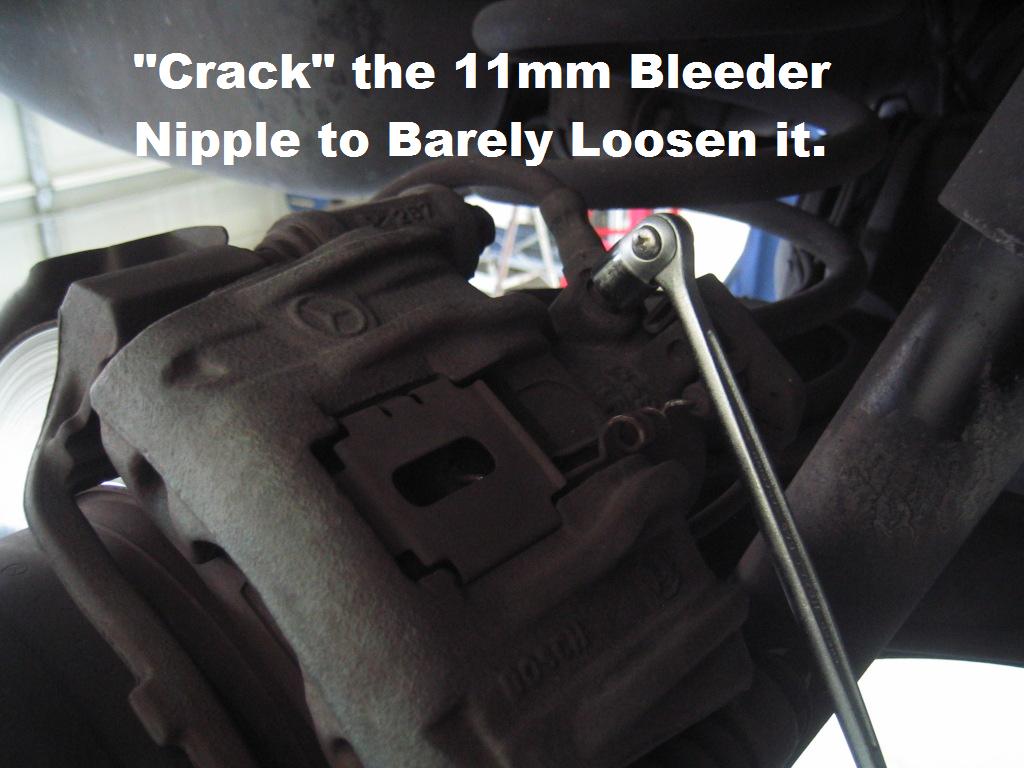

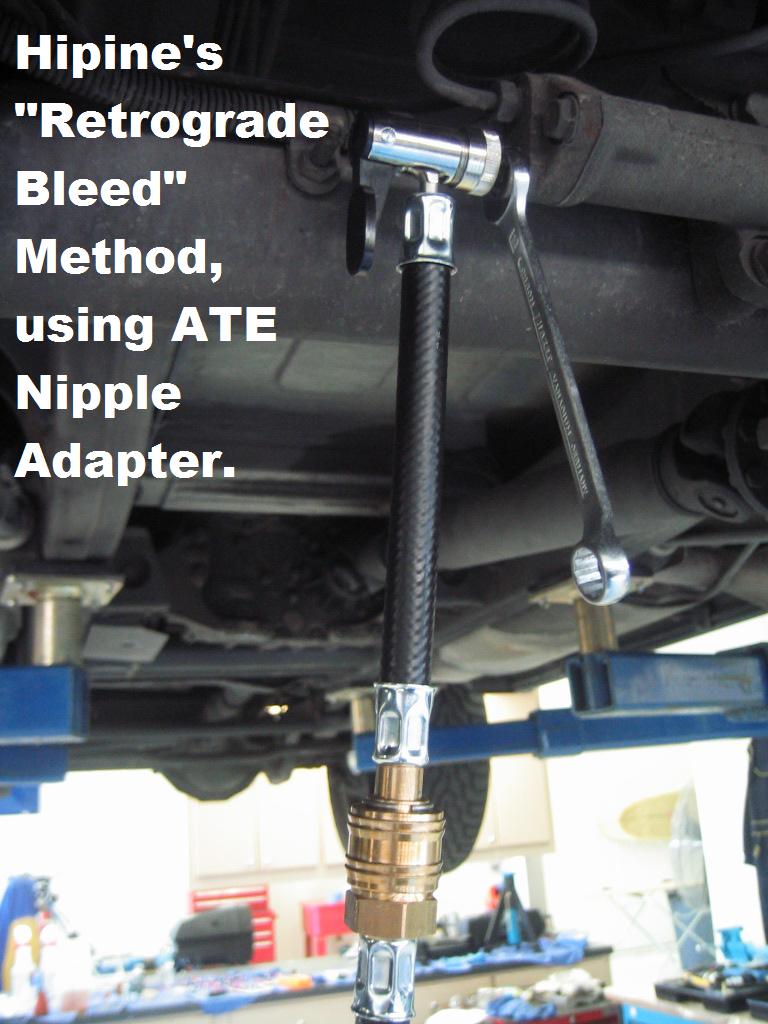

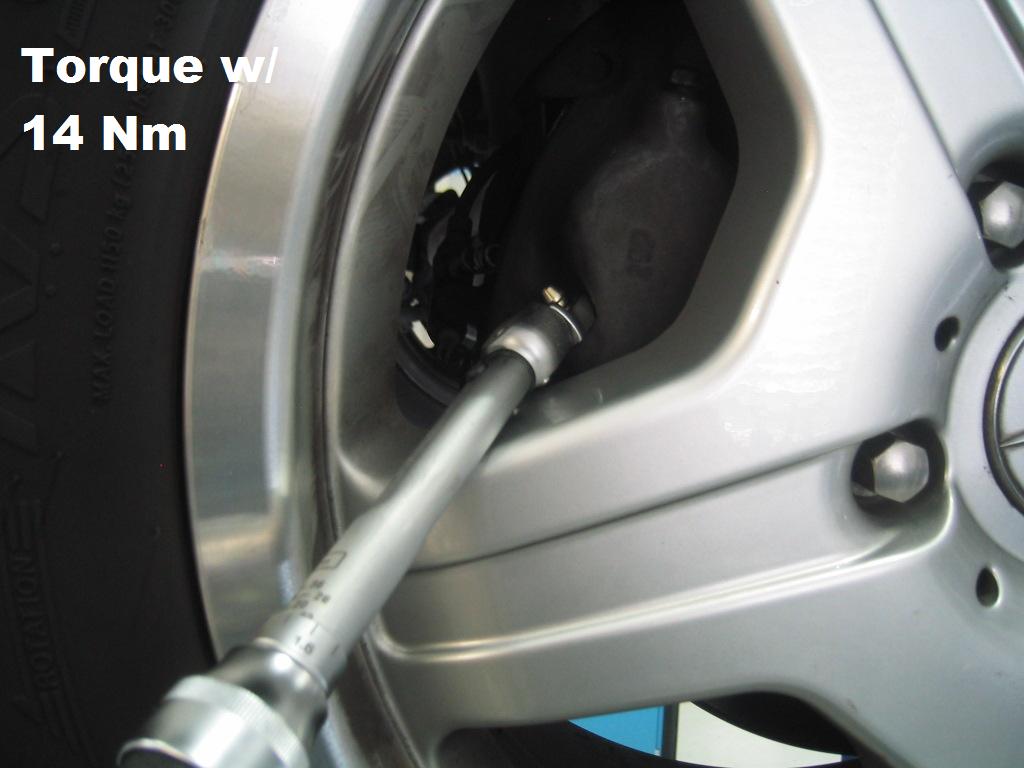

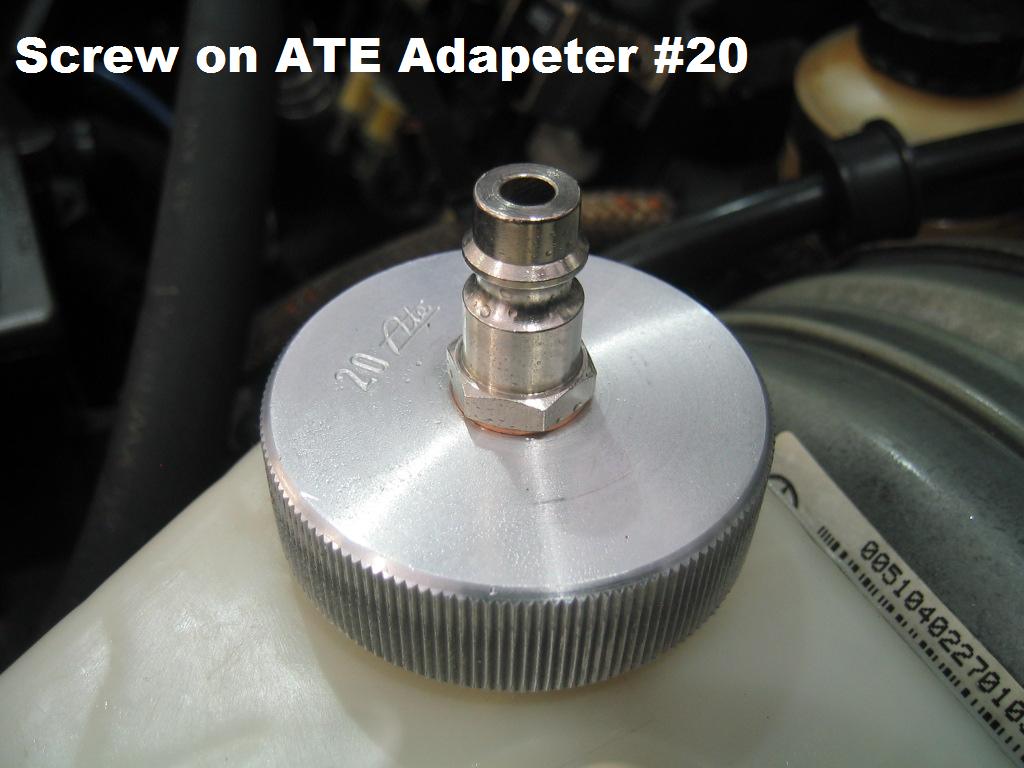

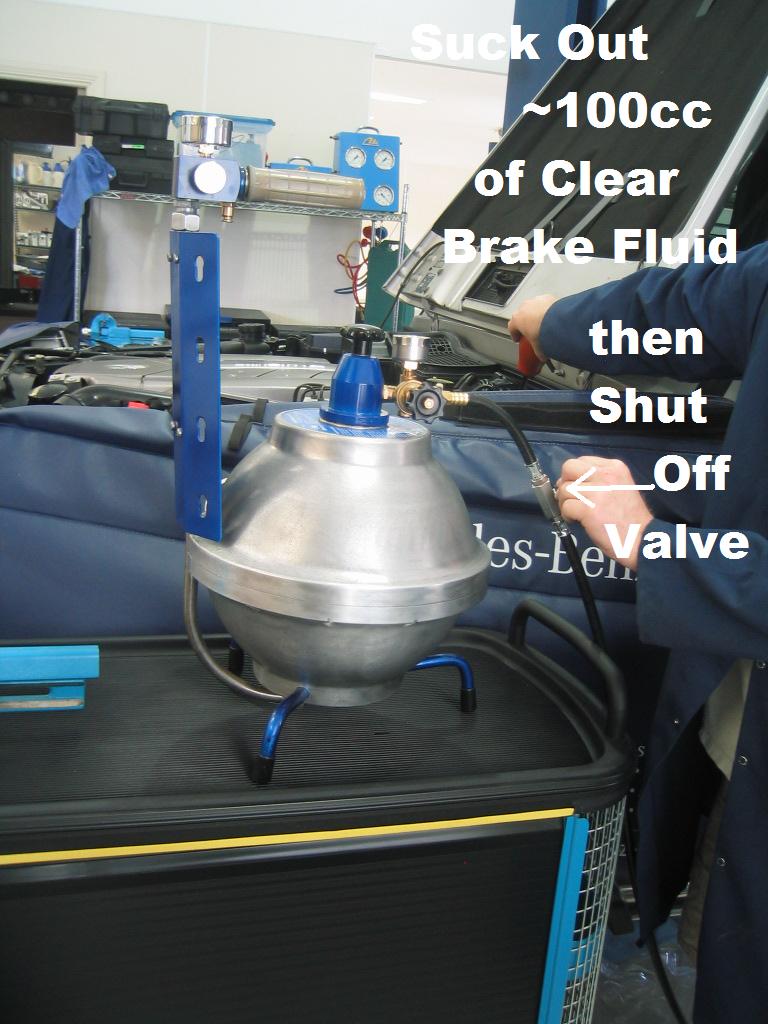

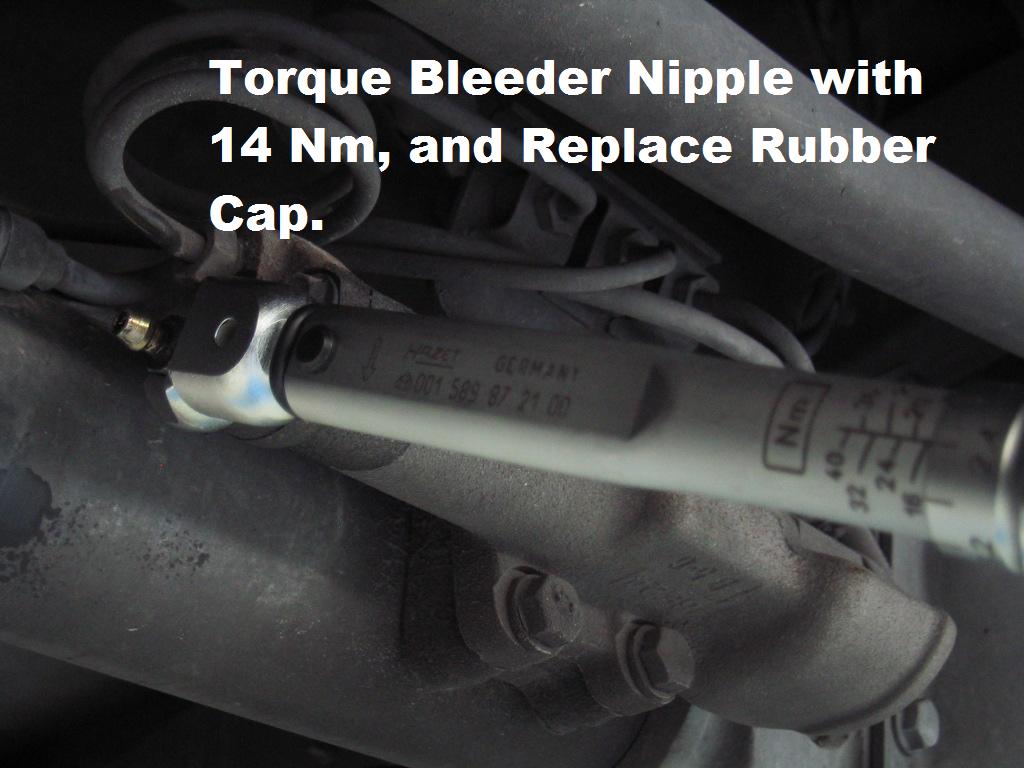

I tried something "different" this year: I am using the Hipine "Retrograde" Bleeding of the Differential system, since the Differential Reservoir is not quite as "Robust" as the Brake Reservoir, it makes me a bit nervous Pressurizing the Diff system to 2 Bar. I have heard stories of the Tubing becoming dislodged, making quite the mess. Using the Specially Designed ATE Bleeding Nipple Adapter for this procedure makes it a Snap!!

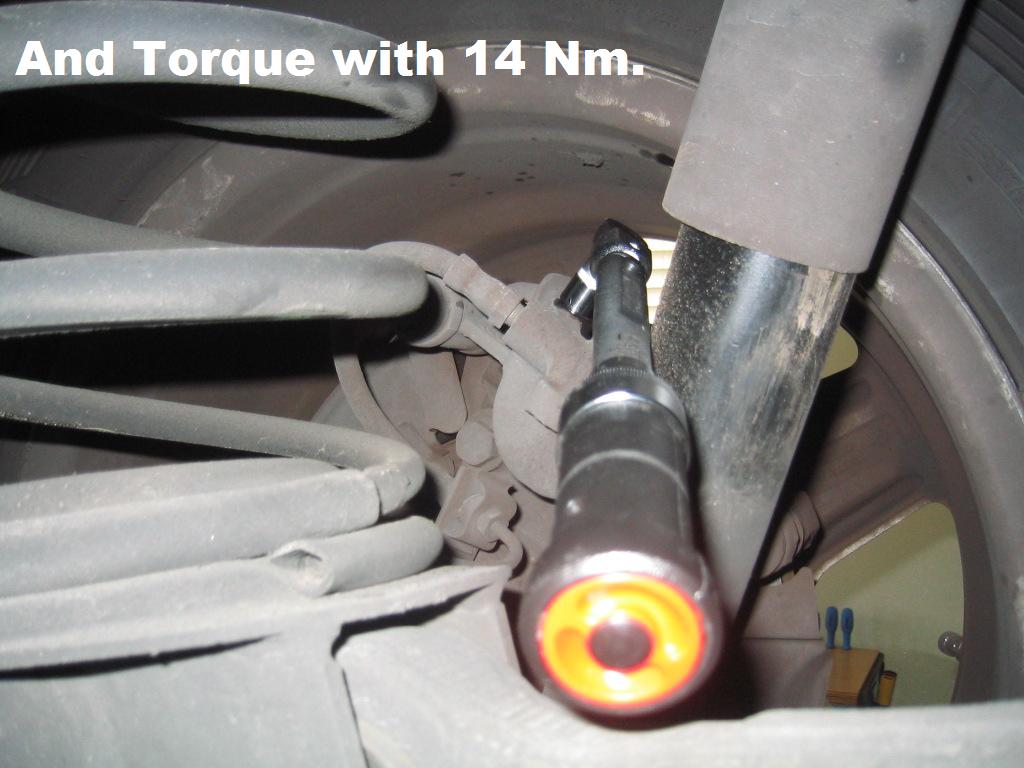

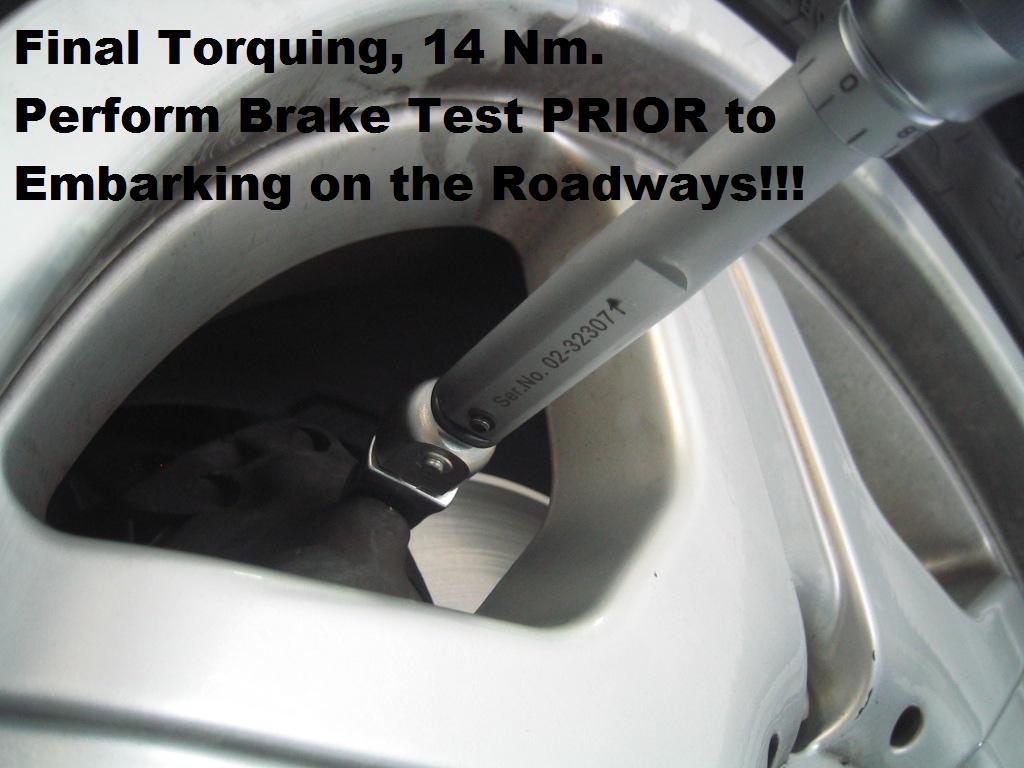

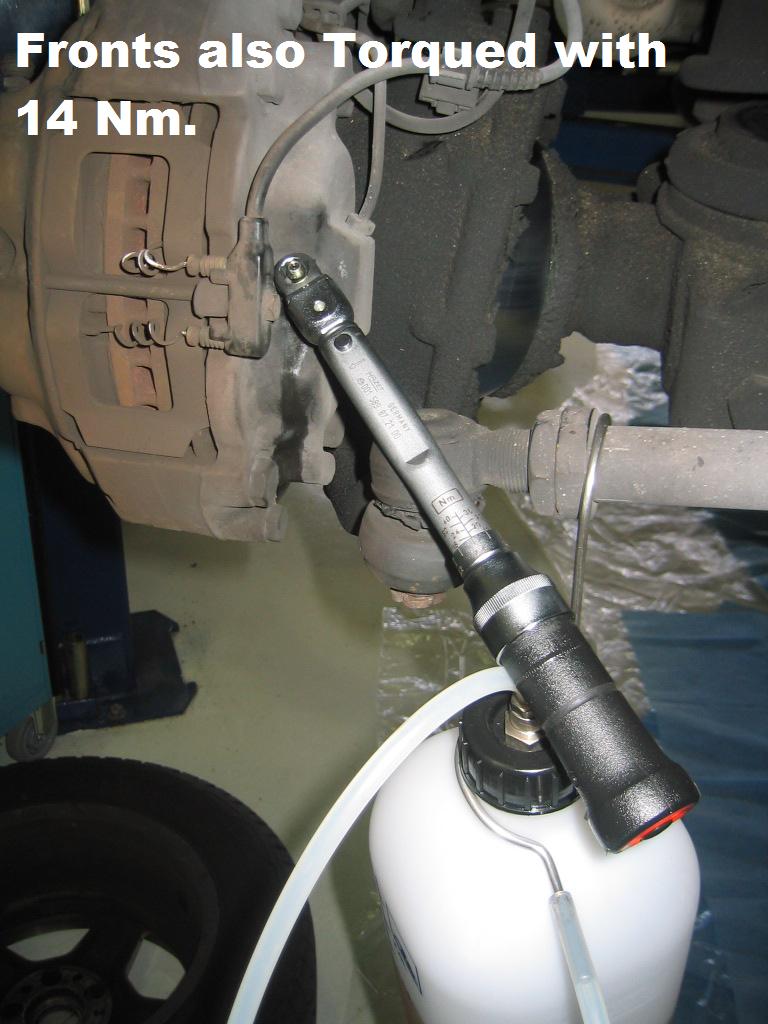

Please remember to work Safely... and Test the Brake PRIOR to venturing onto the Roadways!

NOTE: This is for a 2004 G55! Check your manual for your particulars.



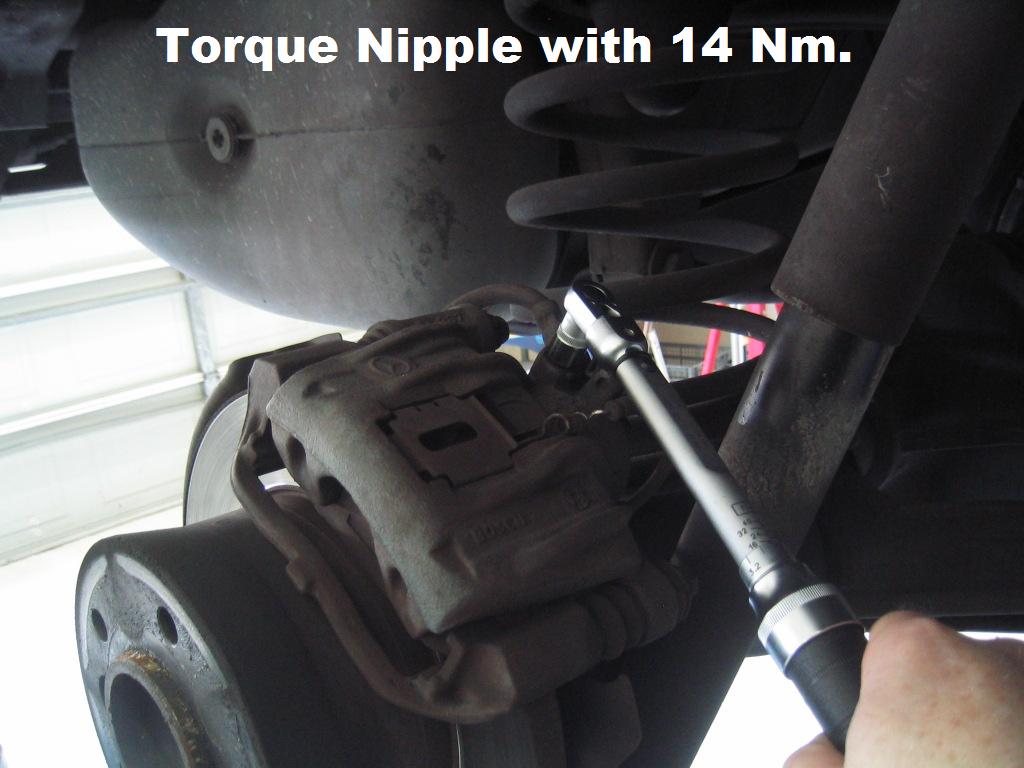

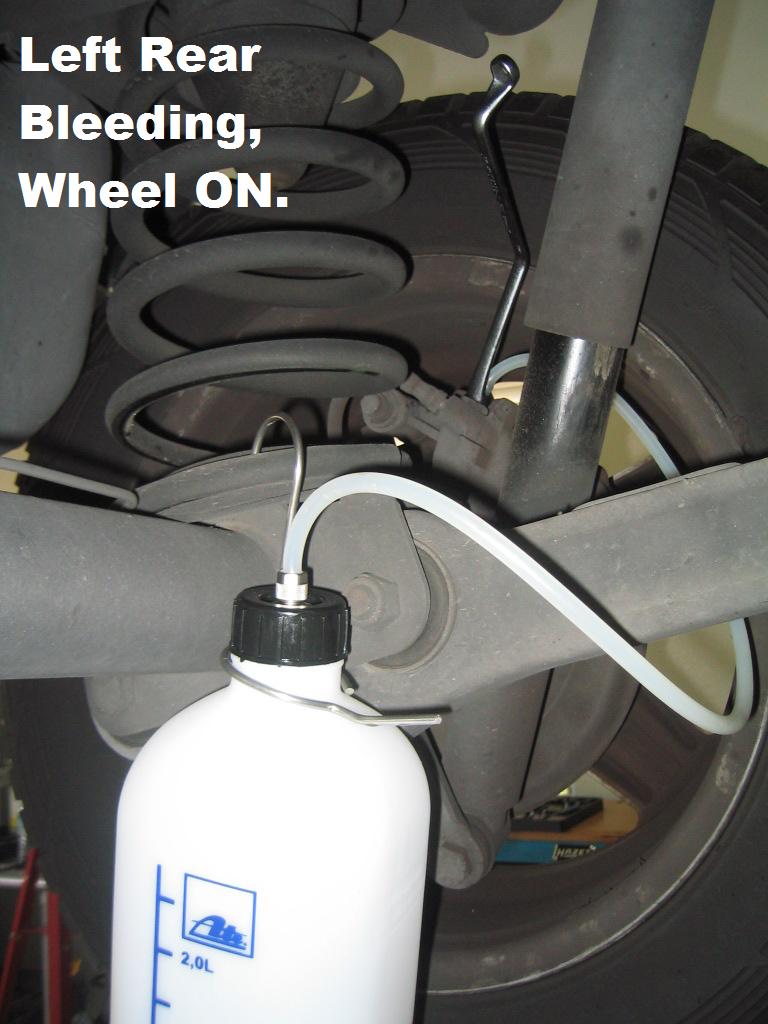

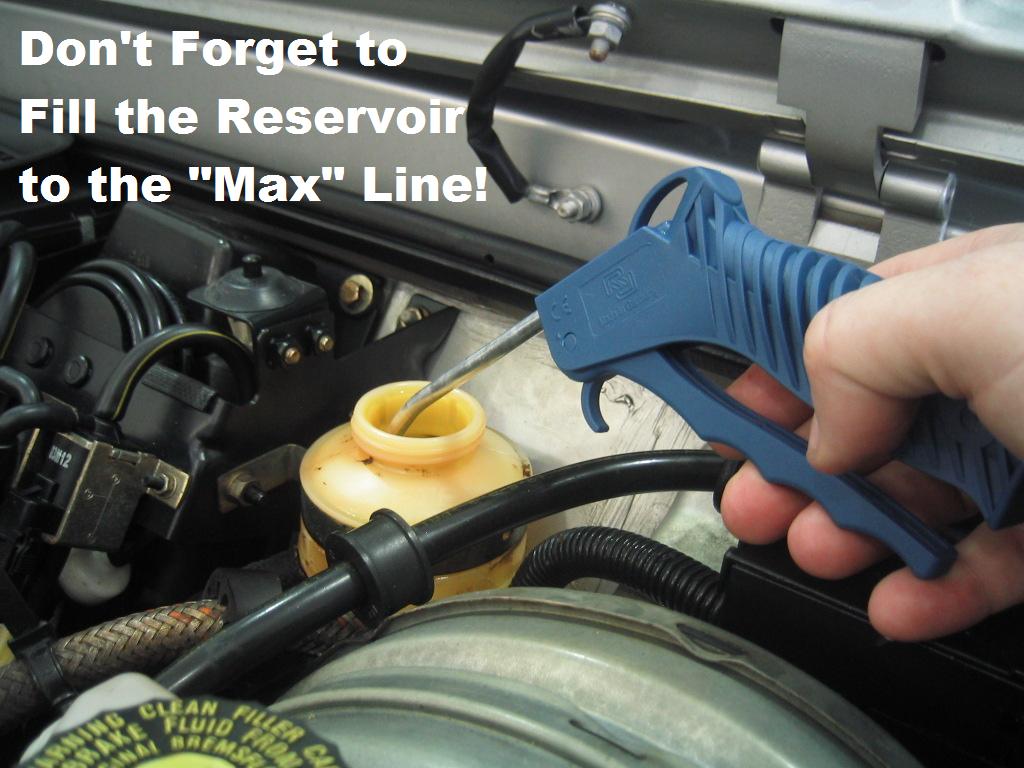

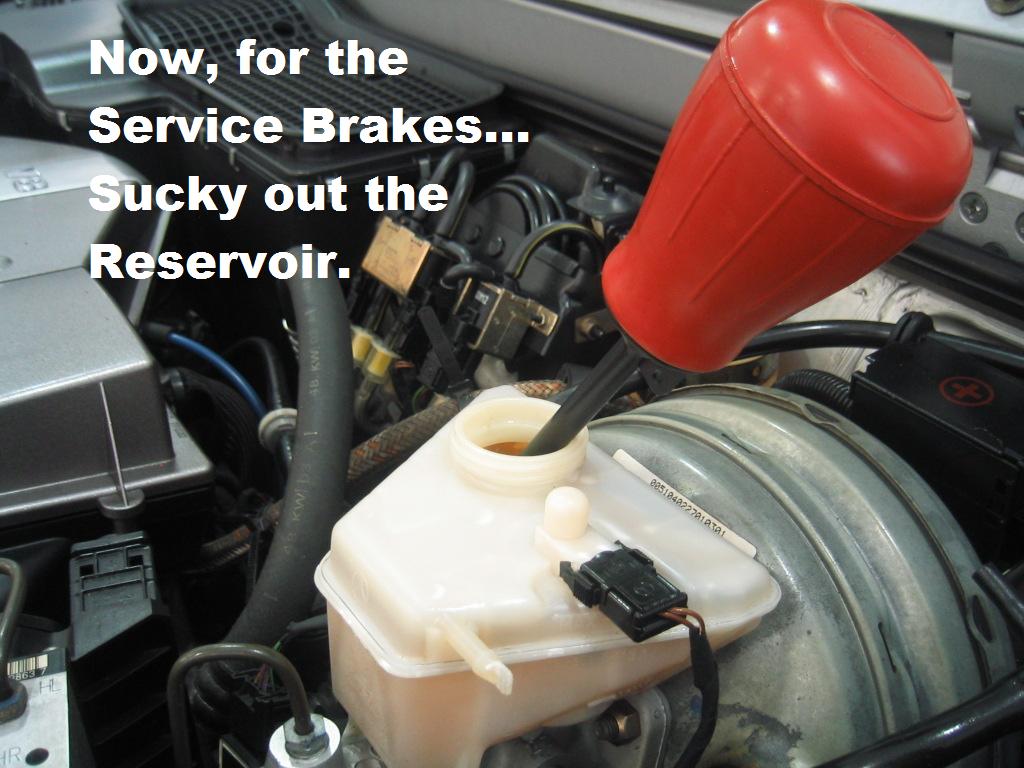

(1.jpg)



(2.jpg)



(3.jpg)



(4.jpg)



(5.jpg)



(6.jpg)



(7.jpg)



(8.jpg)



(9.jpg)



(10.jpg)



(11.jpg)



(12.jpg)



(13.jpg)



(14.jpg)



(15.jpg)



(16.jpg)



(17.jpg)



(18.jpg)



(19.jpg)



(20.jpg)



(21.jpg)



(22.jpg)



(23.jpg)



(24.jpg)



(25.jpg)



(26.jpg)



(27.jpg)



(28.jpg)



(29.jpg)



(30.jpg)



Attachments
----------------
Attachments 1.jpg (99KB - 25 downloads)
Attachments 2.jpg (113KB - 16 downloads)
Attachments 3.jpg (117KB - 15 downloads)
Attachments 4.jpg (109KB - 18 downloads)
Attachments 5.jpg (87KB - 14 downloads)
Attachments 6.jpg (100KB - 15 downloads)
Attachments 7.jpg (109KB - 17 downloads)
Attachments 8.jpg (85KB - 22 downloads)
Attachments 9.jpg (89KB - 18 downloads)
Attachments 10.jpg (104KB - 20 downloads)
Attachments 11.jpg (106KB - 18 downloads)
Attachments 12.jpg (77KB - 20 downloads)
Attachments 13.jpg (84KB - 15 downloads)
Attachments 14.jpg (79KB - 19 downloads)
Attachments 15.jpg (83KB - 19 downloads)
Attachments 16.jpg (95KB - 22 downloads)
Attachments 17.jpg (79KB - 19 downloads)
Attachments 18.jpg (89KB - 15 downloads)
Attachments 19.jpg (81KB - 14 downloads)
Attachments 20.jpg (87KB - 22 downloads)
Attachments 21.jpg (84KB - 16 downloads)
Attachments 22.jpg (105KB - 18 downloads)
Attachments 23.jpg (95KB - 11 downloads)
Attachments 24.jpg (86KB - 11 downloads)
Attachments 25.jpg (86KB - 12 downloads)
Attachments 26.jpg (70KB - 17 downloads)
Attachments 27.jpg (134KB - 16 downloads)
Attachments 28.jpg (64KB - 22 downloads)
Attachments 29.jpg (84KB - 16 downloads)
Attachments 30.jpg (79KB - 18 downloads)
#213077
Top of the page Bottom of the page
Author
Posted 4/14/2013 10:16 PM
AlanMcR
Expert




Date registered: Apr 2006
Location: US, CA, Los Altos
Vehicle(s): G300DT E300DT 230SL
Posts: 3500
2000
RE: Photo DIY- W463 Hydraulic Service

Nicely done.

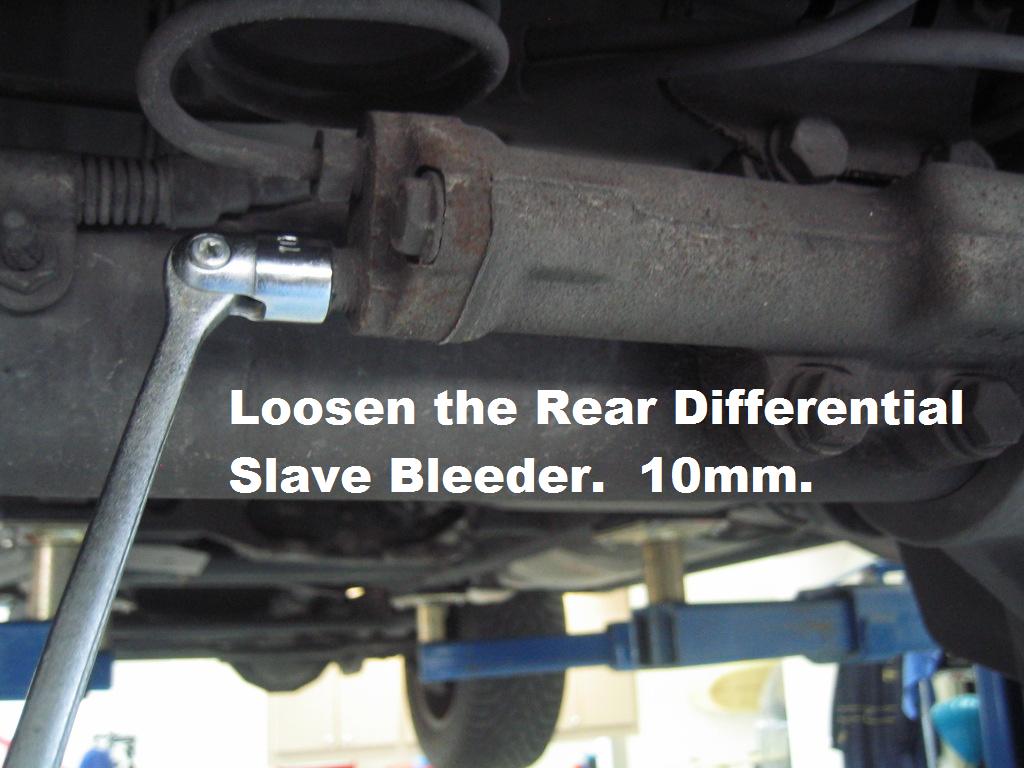

Seeing the pictures reminds me of a question I've always harbored: Why is the locker slave cylinder bleeder at the *bottom*, rather than the top?

It seems like having the bleeder at the bottom guarantees that a bubble will always stay in the system. Is it just to protect the pipe?

#213078 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 4/15/2013 12:04 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
RE: Photo DIY- W463 Hydraulic Service

AlanMcR - 4/14/2013 10:16 PM

Nicely done.

Seeing the pictures reminds me of a question I've always harbored: Why is the locker slave cylinder bleeder at the *bottom*, rather than the top?

It seems like having the bleeder at the bottom guarantees that a bubble will always stay in the system. Is it just to protect the pipe?



Hmmm, Good Observation..

The Good News is the "Hipine" Method will Solve that Problem, by Blowing any Floating Bubbles UP-STREAM.
#213080 - in reply to #213078
Top of the page Bottom of the page
Author
Posted 4/21/2013 8:09 AM
louwdj
Veteran


Date registered: Feb 2007
Location: Johannesburg South Africa
Vehicle(s): 89 W460 230GE 5 door; 82 W123 230e; 99 W210 E240
Posts: 139
100
RE: Photo DIY- W463 Hydraulic Service

I wish all hydraulic cylinders have bleeding nipples top and bottom. The bottom for draining off accumulated gunk and water and the top for bleeding off air buubles!
#213277 - in reply to #213080
Top of the page Bottom of the page
Author
Posted 4/29/2013 5:55 PM
H1LM002G55
Expert




Date registered: Mar 2010
Location: S Florida / Geneva / Jeddah
Vehicle(s): 500 GE, G55, LM002, H1
Posts: 1796
1000
Re: Photo DIY- W463 Hydraulic Service

Perfect timing on this! Thank you! I like your 1 year interval as well.
#213486 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 12/1/2013 6:42 AM
elvis100
Member


Date registered: Nov 2013
Location: UK
Vehicle(s): 280GE, G350TD w/603 TD, classics, Airstream
Posts: 7

Re: Photo DIY- W463 Hydraulic Service

What tool did you use to fill the reservoirs? Is it a hand vacuum pump arrangement? Must be better than my tipping in and overflowing/wiping up method. Did the brakes on my w460 and w463. Had to bleed them twice in both cases. Important thing is bubble free and not opening bleeder too much. Slowly does it and in the correct order as detailed.
#218601 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 12/1/2013 1:57 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Re: Photo DIY- W463 Hydraulic Service

elvis100 - 12/1/2013 6:42 AM

What tool did you use to fill the reservoirs? Is it a hand vacuum pump arrangement? Must be better than my tipping in and overflowing/wiping up method. Did the brakes on my w460 and w463. Had to bleed them twice in both cases. Important thing is bubble free and not opening bleeder too much. Slowly does it and in the correct order as detailed.

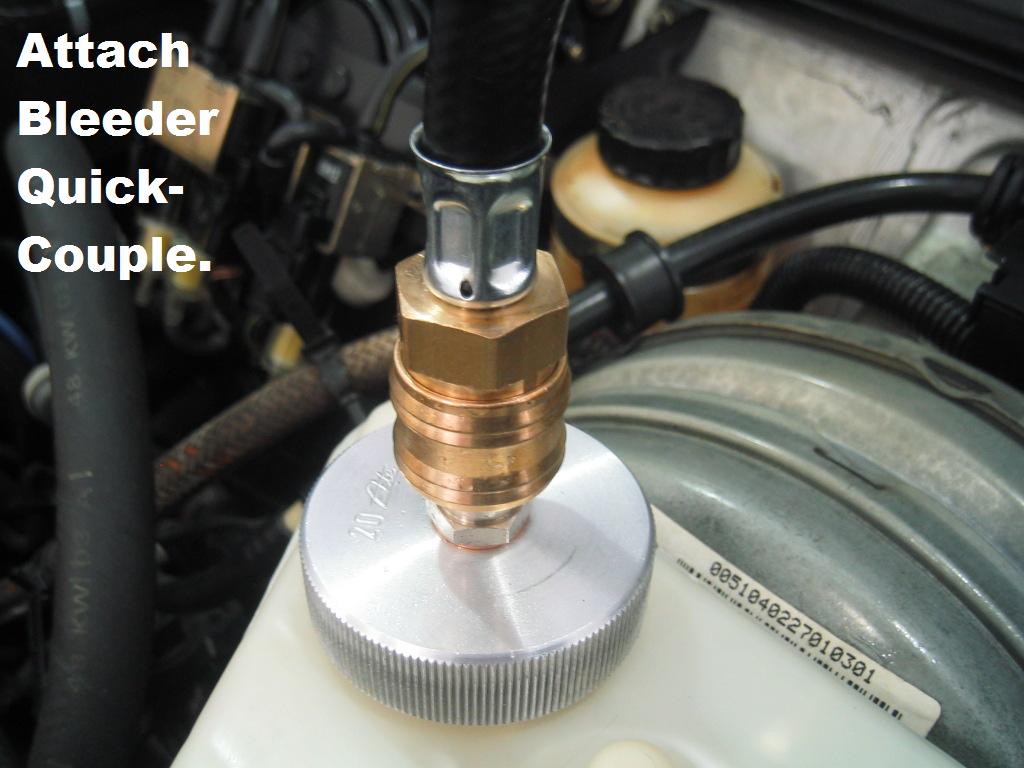

Elvis, actually it is part of the ATE "System" of quick connect Attachments.

I'm sure one could easily fashion something similar for a garden sprayer-type brake bleeding set-up.

Here is the ATE reference: http://www.ate-info.de/de/products/datasheet/zubehoerset-mineraloel...
#218612 - in reply to #218601
Top of the page Bottom of the page
Author
Posted 4/24/2016 2:18 PM
jmr89



Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
100
RE: Photo DIY- W463 Hydraulic Service

Can you tell me for purging AV calipers

the order of the purge


Edited by jmr89 4/24/2016 2:19 PM




(etrier.JPG)



Attachments
----------------
Attachments etrier.JPG (32KB - 21 downloads)
#232177 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 4/26/2016 1:02 PM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
5000
RE: Photo DIY- W463 Hydraulic Service

jmr89 - 4/24/2016 2:18 PM

Can you tell me for purging AV calipers

the order of the purge


See attached.



Attachments
----------------
Attachments Bleed brake system.pdf (36KB - 53 downloads)
#232201 - in reply to #232177
Top of the page Bottom of the page
Author
Posted 4/27/2016 2:36 AM
jmr89



Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
100
Re: Photo DIY- W463 Hydraulic Service

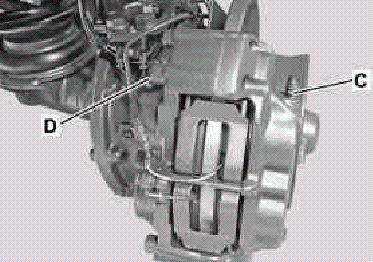

there are two screws see the image (view image) D -C
#232206 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 4/27/2016 9:15 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Re: Photo DIY- W463 Hydraulic Service

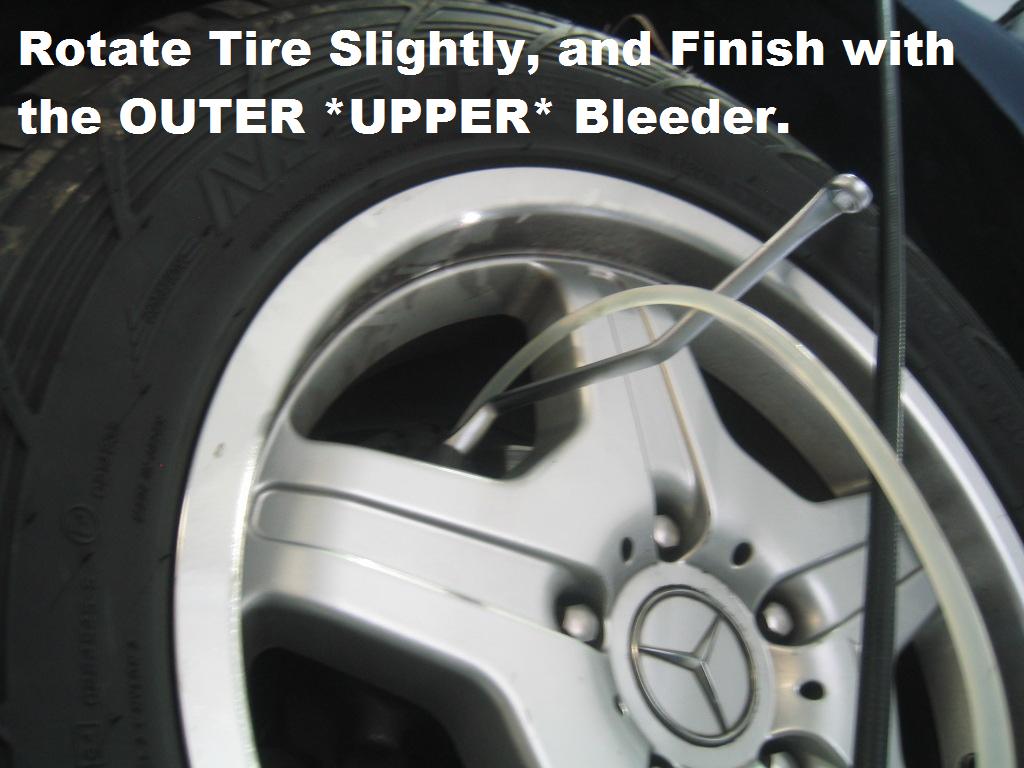

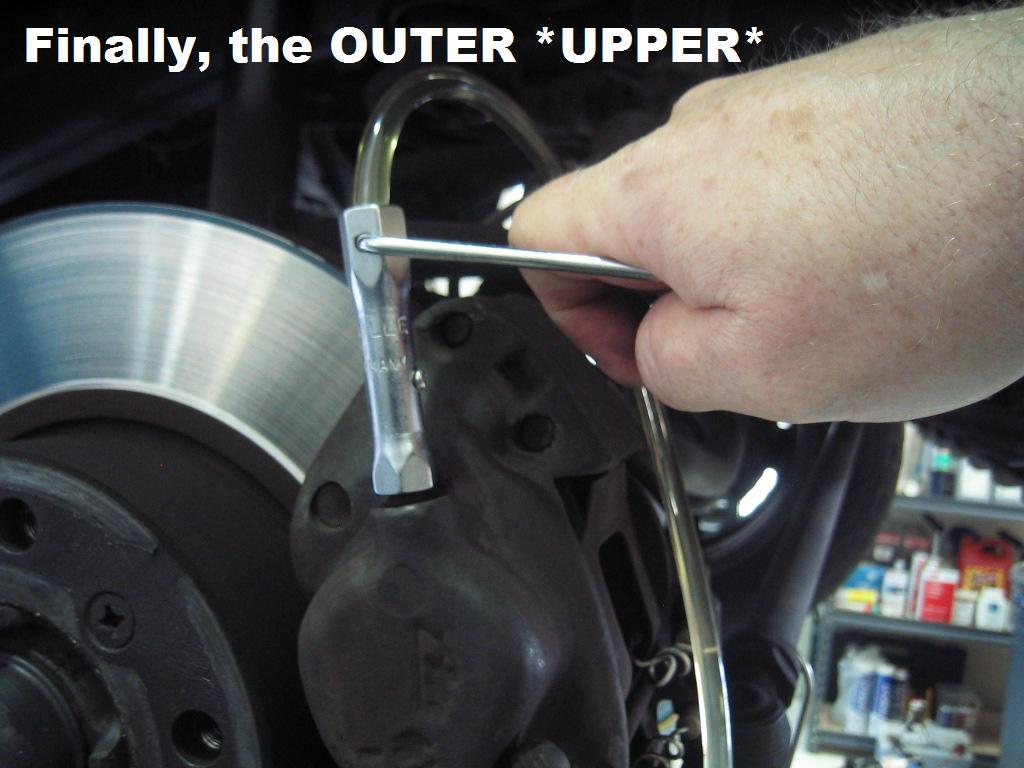

Per the Post Pictures:

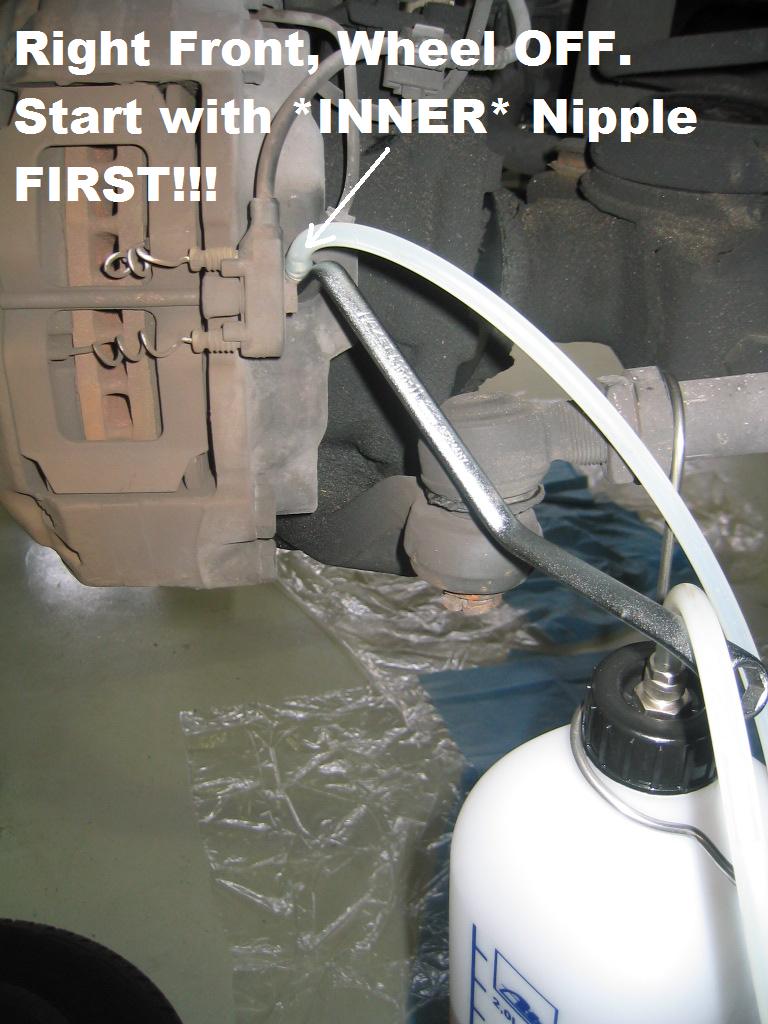

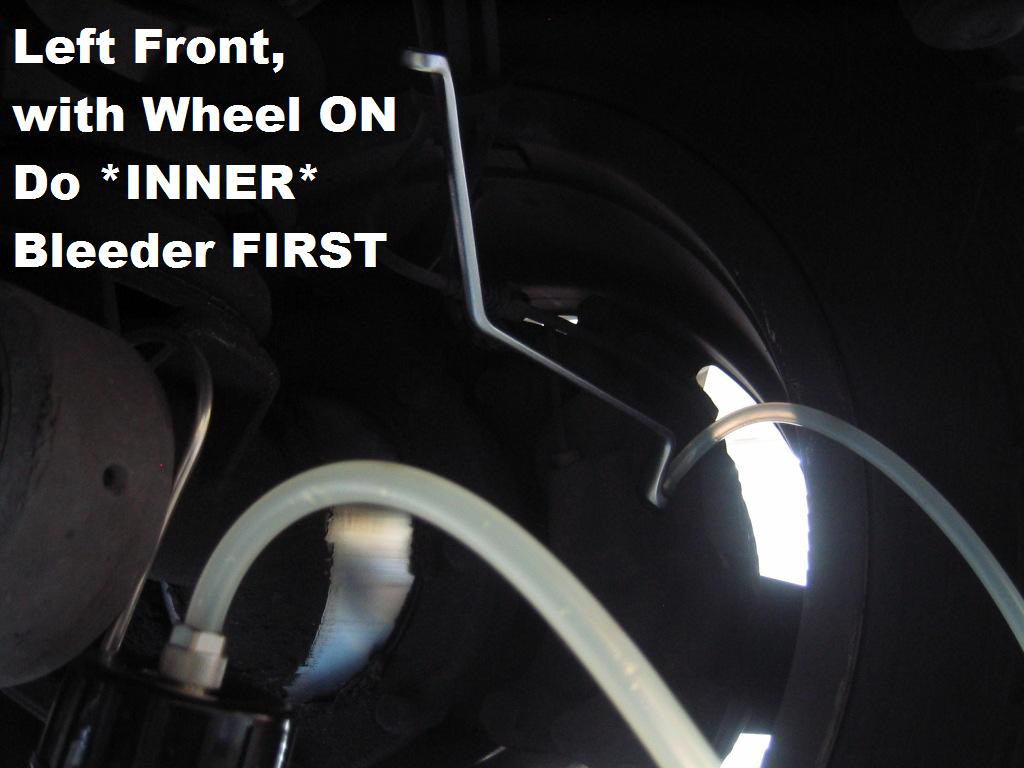

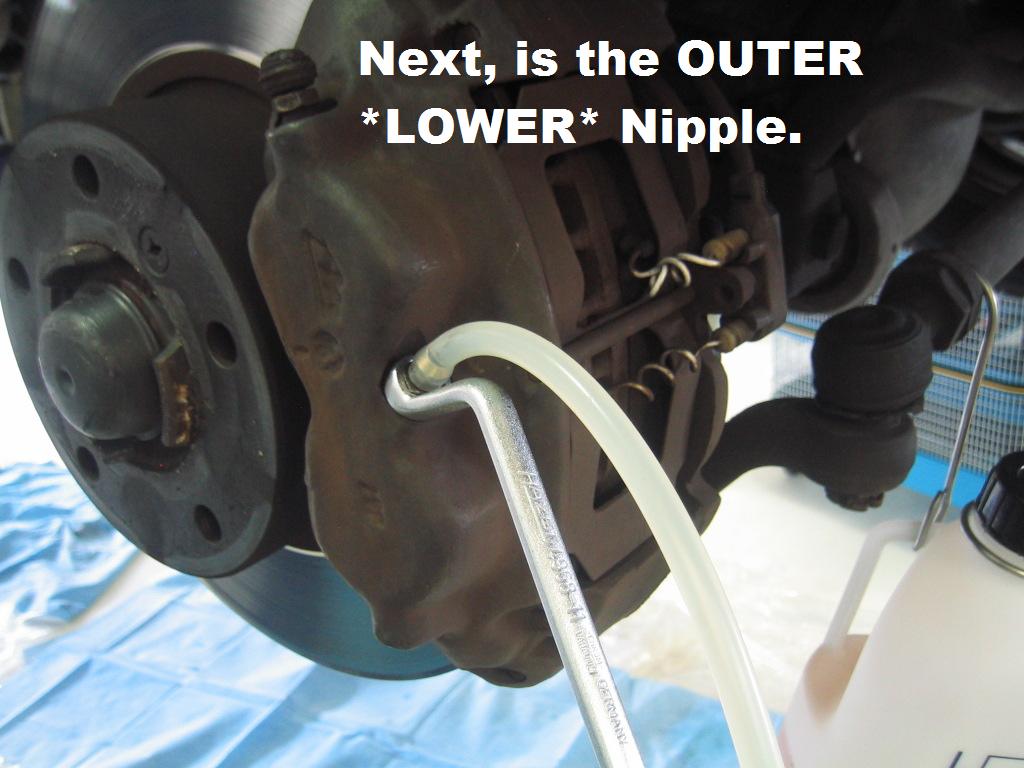

First- INNER

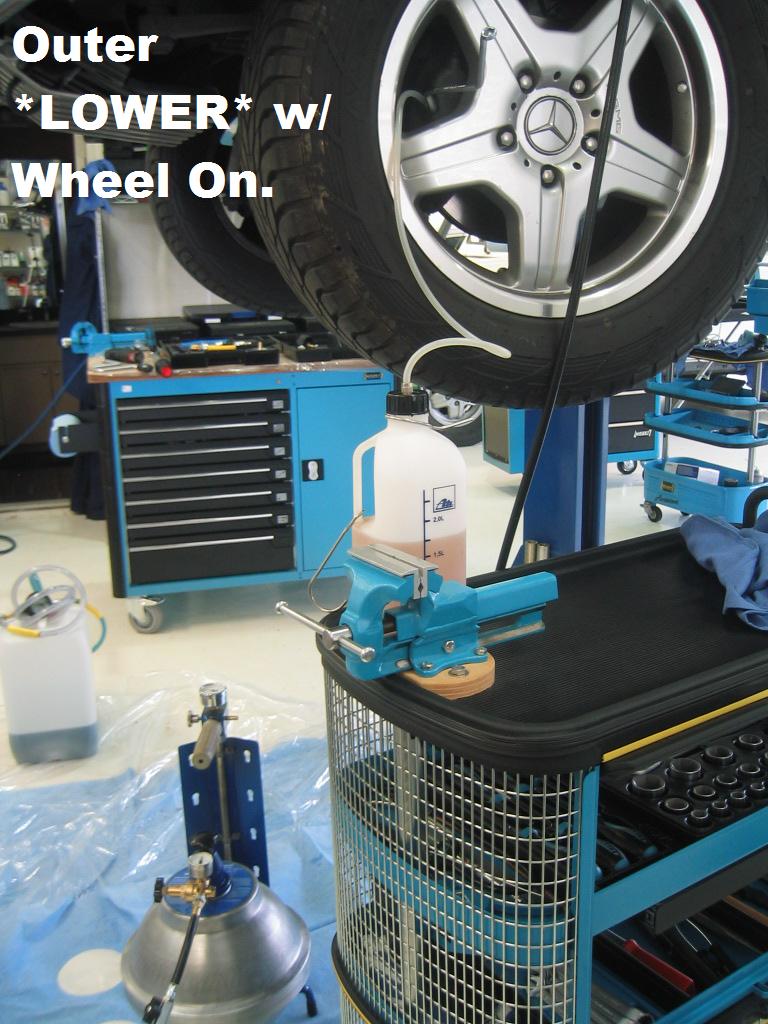

Second- LOWER OUTER

Last- UPPER OUTER
#232208 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 4/27/2016 9:31 AM
jmr89



Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
100
Re: Photo DIY- W463 Hydraulic Service

Ok AMG G Great
#232209 - in reply to #213077
Top of the page Bottom of the page
Author
Posted 5/7/2016 2:53 PM
diesel_jim
Veteran




Date registered: Jan 2014
Location: N Wiltshire. UK
Vehicle(s): LR Defender 110, 1989 W460 SWB
Posts: 114
100
Re: Photo DIY- W463 Hydraulic Service

Good idea on the "not pressurising the difflock reservoir"....


I used a gunson easybleed on my defender 110; the brake master cylinder looked a little "crazy paved" cracked, but I connected a low pressure-pumped up tyre to it, and the friggin thing exploded.... brake fluid all over me and my paintwork (luckily nothing happened; I washed it all down quickly), but it could have gone in my eyes and knackered the paint, so be careful out there folks!
