HID projector headlight upgrade tips

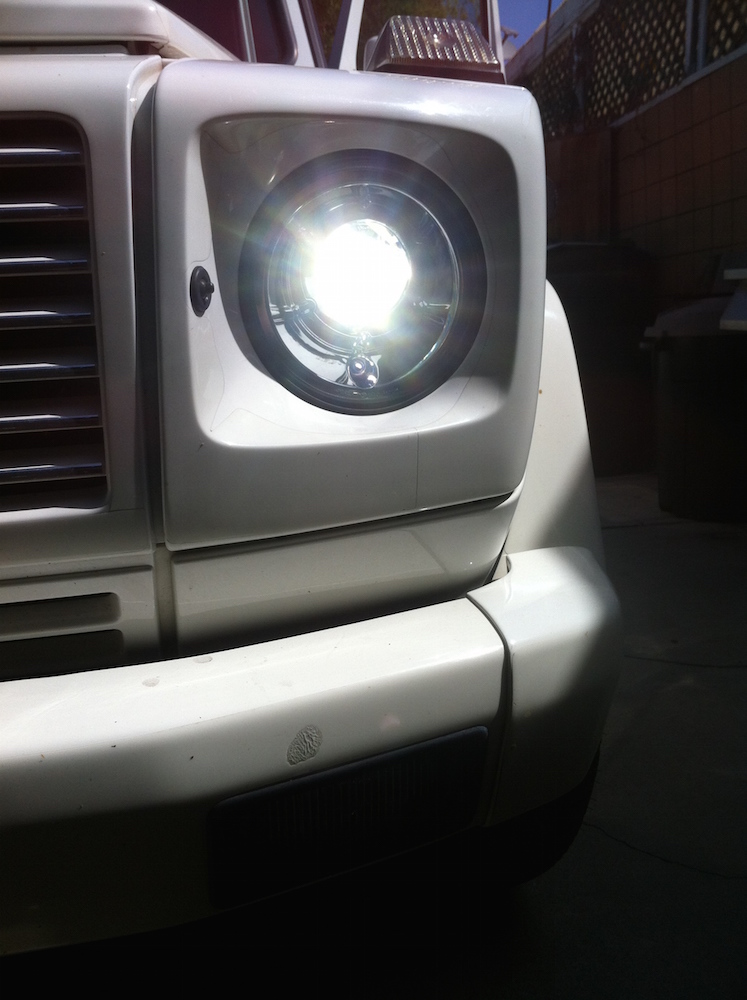

I spent some trial and error setting up my lamps. A rock cracked my original lens so it gave me a reason to upgrade to brighter HIDs. I ordered some Depo lamps from Fishcake. I installed them and the ballasts gave me errors. The seller replaced them with higher quality canbus ballasts and my lamps slightly flickered and gave me an error when I use the high beams. I ended up researching the types of available ballasts and ordered a set of Hylux ballasts with ASIC controller chips. They work beautifully and have been solid for over a year now. My lights are super bright and stable so I want to share my setup with anyone here that is thinking about upgrading. I hope this will save you some time.


Purchase

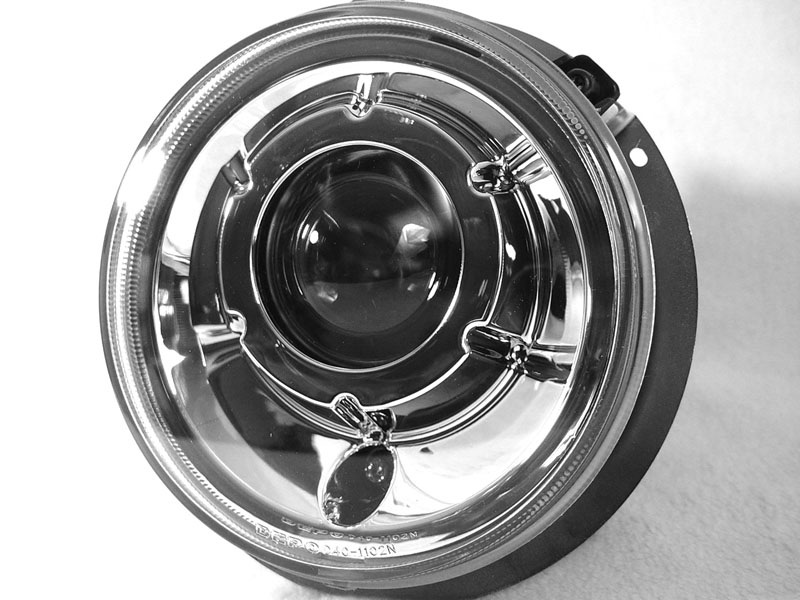

1.a pair of Depo projector lamp housings

2. a pair of Hylux 35W ASIC CAN_BUS ballasts. (My ballasts have little windows showing the ASIC chip)

3. a pair of 4300Kelvin H7 HID bulbs. I tried 5000K and they suck at illuminating the road and has a slight blue tint. Stick with 4300K. Trust me.

4. a pair of wedge bulbs (I chose PIAA 3700K bulbs) I couldn't find bulbs in 4300K at the time.

I have been using the ones that came with my Hylux ballasts.  I have read that HID bulbs made by CN-lights and Morimoto are really good. I'll replace mine when they go out.

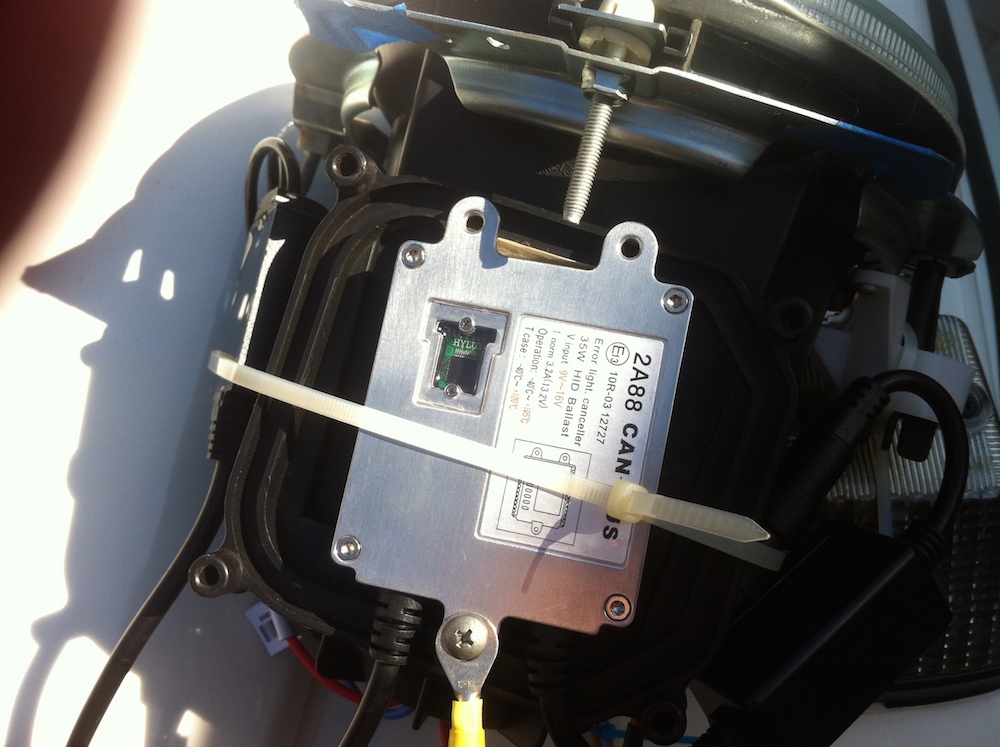

I used double stick tape and zip ties to strap the ballast and wiring to the housing before installing them.  Test them before screwing them in. Check for errors and flickering.  If everything checks out, screw them in and aim the headlights.  You should have some of the brightest beams on the road now. Let me know if you have any questions for me.  I will adding pics later.





Edited by g-wagging 12/21/2014 11:41 PM




(temp.jpg)



(hylux.png)



(hylux back.png)



(HID upgrade.jpg)



(HID G500.jpg)



Attachments
----------------
Attachments temp.jpg (127KB - 18 downloads)
Attachments hylux.png (205KB - 9 downloads)
Attachments hylux back.png (257KB - 14 downloads)
Attachments HID upgrade.jpg (249KB - 13 downloads)
Attachments HID G500.jpg (230KB - 7 downloads)
#225818
Top of the page Bottom of the page
Author
Posted 12/22/2014 9:18 AM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
5000
RE: HID projector headlight upgrade tips

g-wagging - 12/21/2014 11:25 PM


You should have some of the brightest beams on the road now.

And hopefully, you have them aimed low enough so as to not blind oncoming drivers.

Keep in mind that the factory HID's have sensors on the truck's suspension system to keep the lights leveled and properly aimed, no matter what the load.

#225823 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 12/24/2014 2:51 PM
WEBIII
Extreme Veteran


Date registered: Oct 2010
Location: Inlet Beach, FL
Vehicle(s): 461.318, 463.241
Posts: 317
300
Re: HID projector headlight upgrade tips

Dutch, what headlights are you using? JW Speaker?

Recently I've been doing a lot of research on headlight upgrades for my G500 which still has the DOTs. The HID conversion is tempting but it seems like the leveling system retrofit is necessary to maintain good coverage without blinding other drivers. I'm curious to hear if the OP has people honking at him.
#225848 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 12/25/2014 8:50 AM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
5000
Re: HID projector headlight upgrade tips

WEBIII - 12/24/2014 2:51 PM

Dutch, what headlights are you using? JW Speaker?


Yes. If you have the US DOT buckets used by most Federalizers, the JW Speaker lights are a direct drop in.
#225855 - in reply to #225848
Top of the page Bottom of the page
Author
Posted 1/1/2015 9:13 PM
g-wagging
Member




Date registered: Jan 2012
Location: Southern California
Vehicle(s): 2005 G500
Posts: 22

Re: HID projector headlight upgrade tips

Hi Guys. No I have them aimed well and have never had any complaints from others. Most of the times the cutoff is way below other car's side mirrors. My wife was driving our G following me and I noticed that I get very little glare compared to other cars on the road. It throws down a bright beam on the road which is what I want. I just ordered projectors for my fogs. I'll see how 2500k osram halogens do with them. I don't think I need to run HIDs for fogs.
#225944 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 3/7/2015 9:41 AM
artiei
Member




Date registered: Nov 2014
Location: Park City, UT
Vehicle(s): 1984 280SL, 1984 300GD, 1967 MGB
Posts: 19

Re: HID projector headlight upgrade tips

Ordered the HID and was not thrilled with the complexity of the install and I majored in Electrical Engineering. I sent the kit back and opted for an inexpensive, simple and more effective solution: LED bulbs. They took all of 15 minutes to install. AMAZING RESULTS:

Read about it:
http://snowgwagon.blogspot.com/2015/03/g-wagon-led-headlights.html
#227104 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 3/11/2015 6:37 PM
15903120696

Date registered: Dec 1899
Location:
Vehicle(s):
Re: HID projector headlight upgrade tips

Dutch, Jw speaker 8700?
#227195 - in reply to #225855
Top of the page Bottom of the page
Author
Posted 3/23/2015 6:59 PM
brabus g36
Elite Veteran




Date registered: Jun 2006
Location: Canada
Vehicle(s): 89 230GE cabrio, 88 280GE LWB, 87 300GD pickup
Posts: 608
500
Re: HID projector headlight upgrade tips

It is complicated because they don't fit in a 460 and early 463's.

artiei - 3/7/2015 9:41 AM

Ordered the HID and was not thrilled with the complexity of the install and I majored in Electrical Engineering. I sent the kit back and opted for an inexpensive, simple and more effective solution: LED bulbs. They took all of 15 minutes to install. AMAZING RESULTS:

Read about it:
http://snowgwagon.blogspot.com/2015/03/g-wagon-led-headlights.html[...
#227392 - in reply to #227104
Top of the page Bottom of the page
Author
Posted 8/1/2015 9:24 PM
Wag-on G
Member




Date registered: Sep 2011
Location: Mississauga, Ontario, Canada
Vehicle(s): 84 280GE
Posts: 18

Re: HID projector headlight upgrade tips

Anyone installed the Jw speaker 8700 Headlights?
#228877 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 8/3/2015 6:37 PM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
5000
Re: HID projector headlight upgrade tips

Wag-on G - 8/1/2015 9:24 PM

Anyone installed the Jw speaker 8700 Headlights?


Several of us have, including myself. Do a search on the main forum.
#228901 - in reply to #228877
Top of the page Bottom of the page
Author
Posted 8/17/2015 12:48 PM
NYG500
Member


Date registered: Aug 2014
Location: NJ/NY
Vehicle(s): 2007 G500
Posts: 43
25
Re: HID projector headlight upgrade tips

I have JW8700's on my JK and factory HID's on my G500 both are excellent.
#229043 - in reply to #228901
Top of the page Bottom of the page
Author
Posted 10/14/2015 12:07 PM
xxxstiki
Member




Date registered: Dec 2013
Location: Slovakia
Vehicle(s): Mercedes G W463 270CDI
Posts: 7

Re: HID projector headlight upgrade tips

Hi, what about high beam function...I also replace my H4 lights with DEPO projectors. My problem is high beam not working properly.(when switching from high to low beat it blinks for moment). It is necessary to change front SAM model with newer one. A4635401550 but it is too expensive.
#229884 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 10/17/2015 3:55 PM
koly
Elite Veteran




Date registered: Jul 2006
Location: Scottsdale, AZ USA
Vehicle(s): 2000 G500
Posts: 823
500
RE: HID projector headlight upgrade tips

Did your Depo housings come with the bottom adjustment screw/fixture?

I'm trying to source the adjuster... for the bottom (lower left hand side of the bulb if you're looking at it head on).
#229946 - in reply to #225818
Top of the page Bottom of the page
Author
Posted 10/18/2015 3:17 PM
xxxstiki
Member




Date registered: Dec 2013
Location: Slovakia
Vehicle(s): Mercedes G W463 270CDI
Posts: 7

RE: HID projector headlight upgrade tips

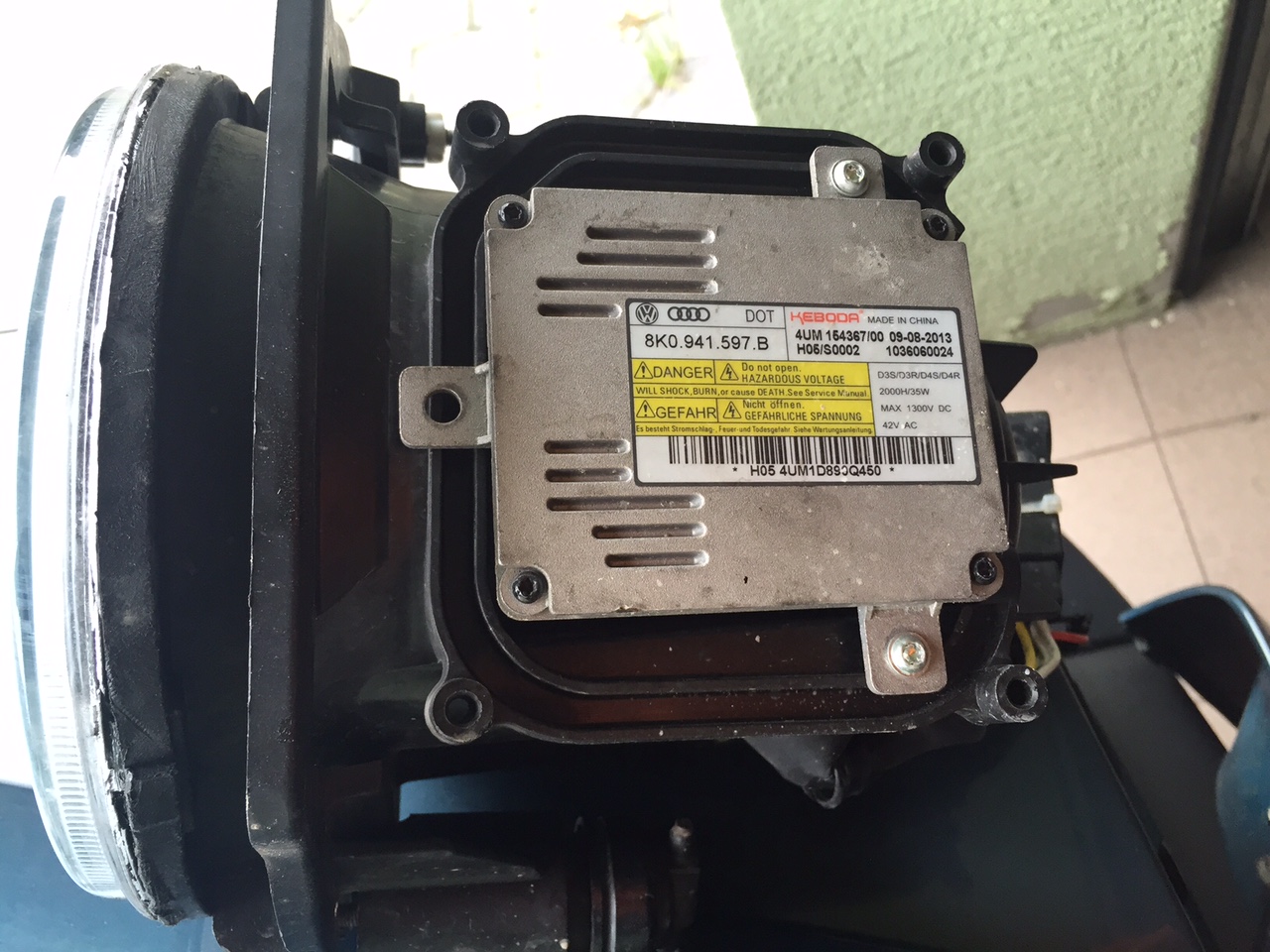

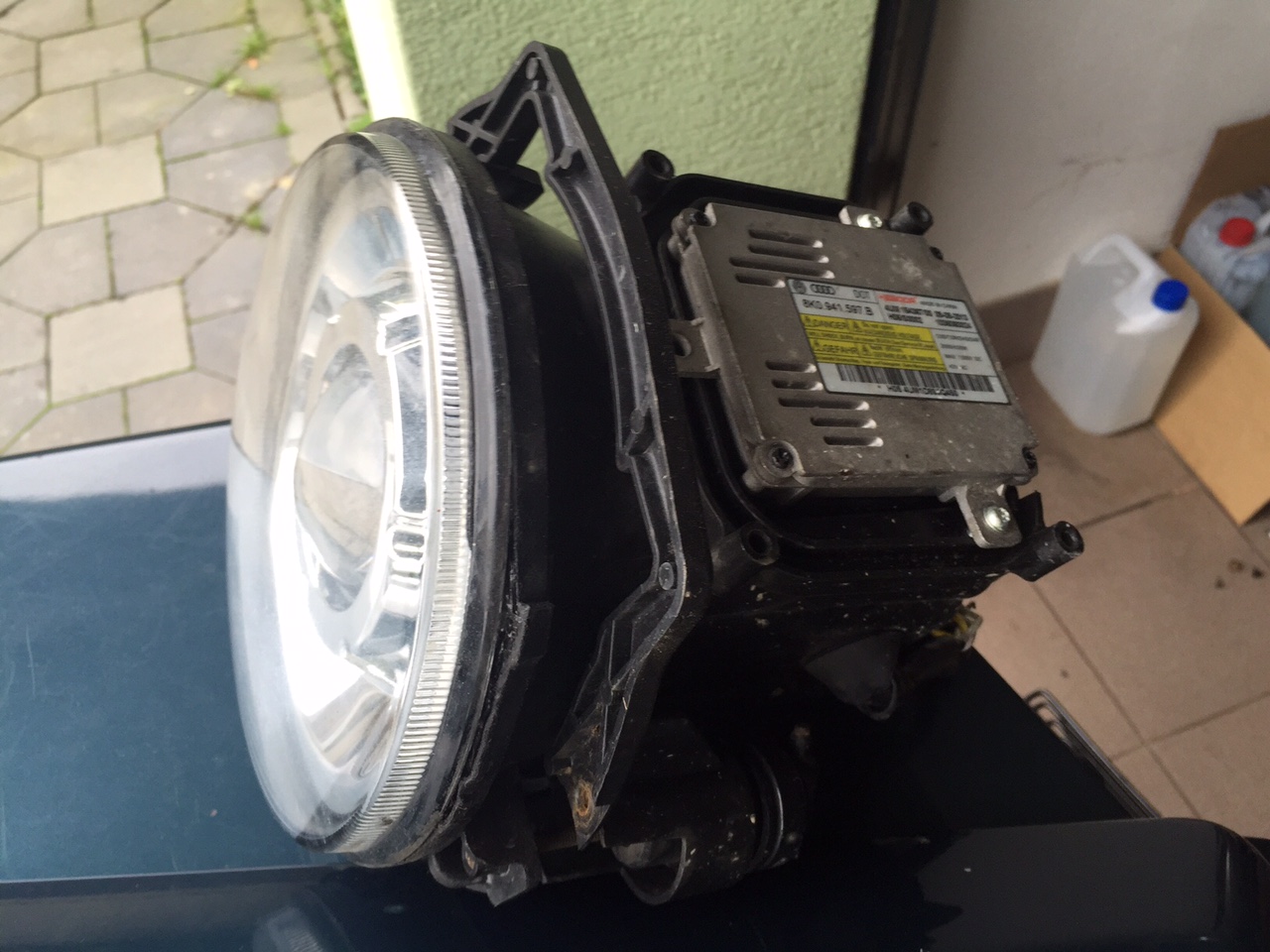

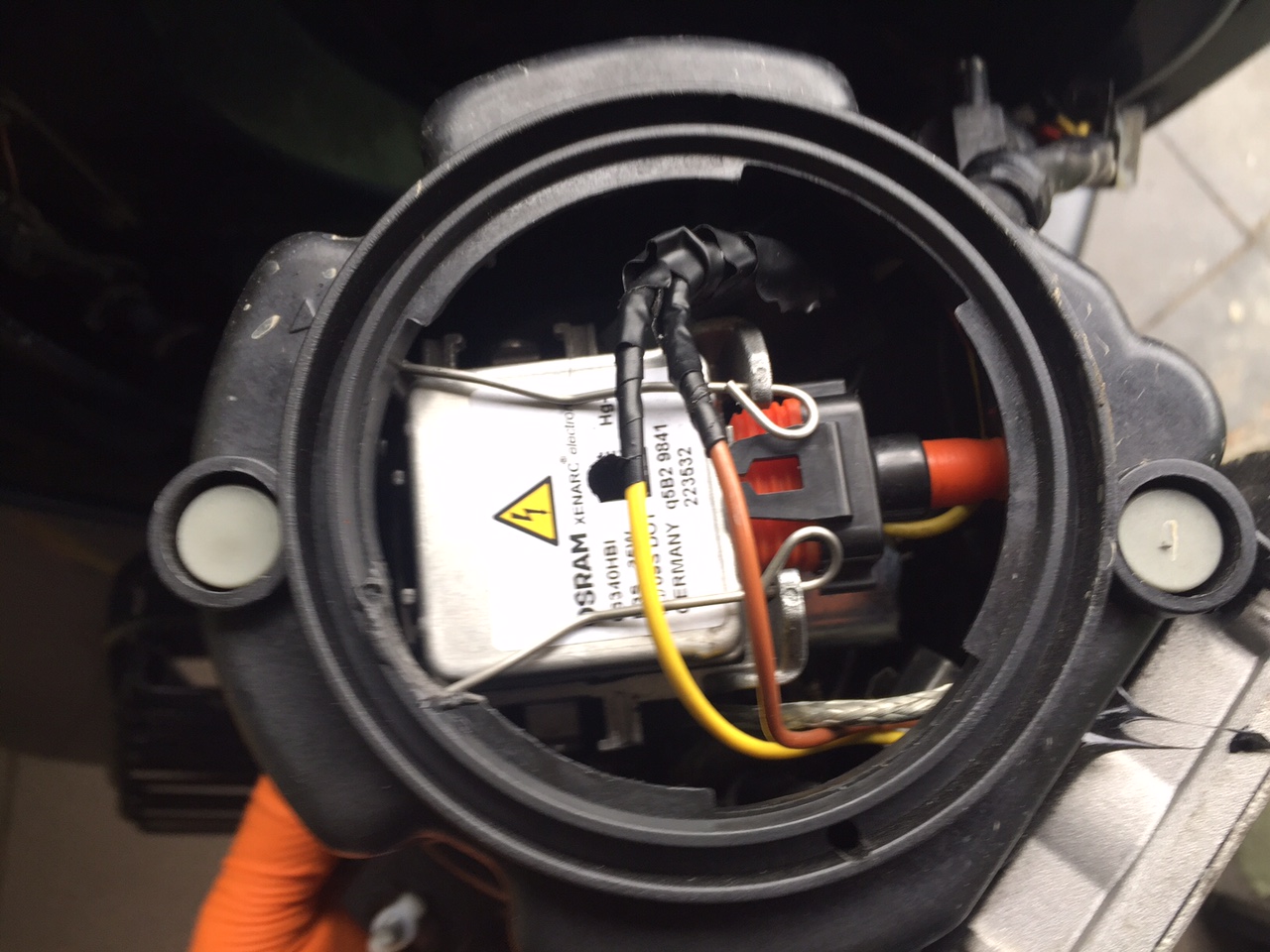

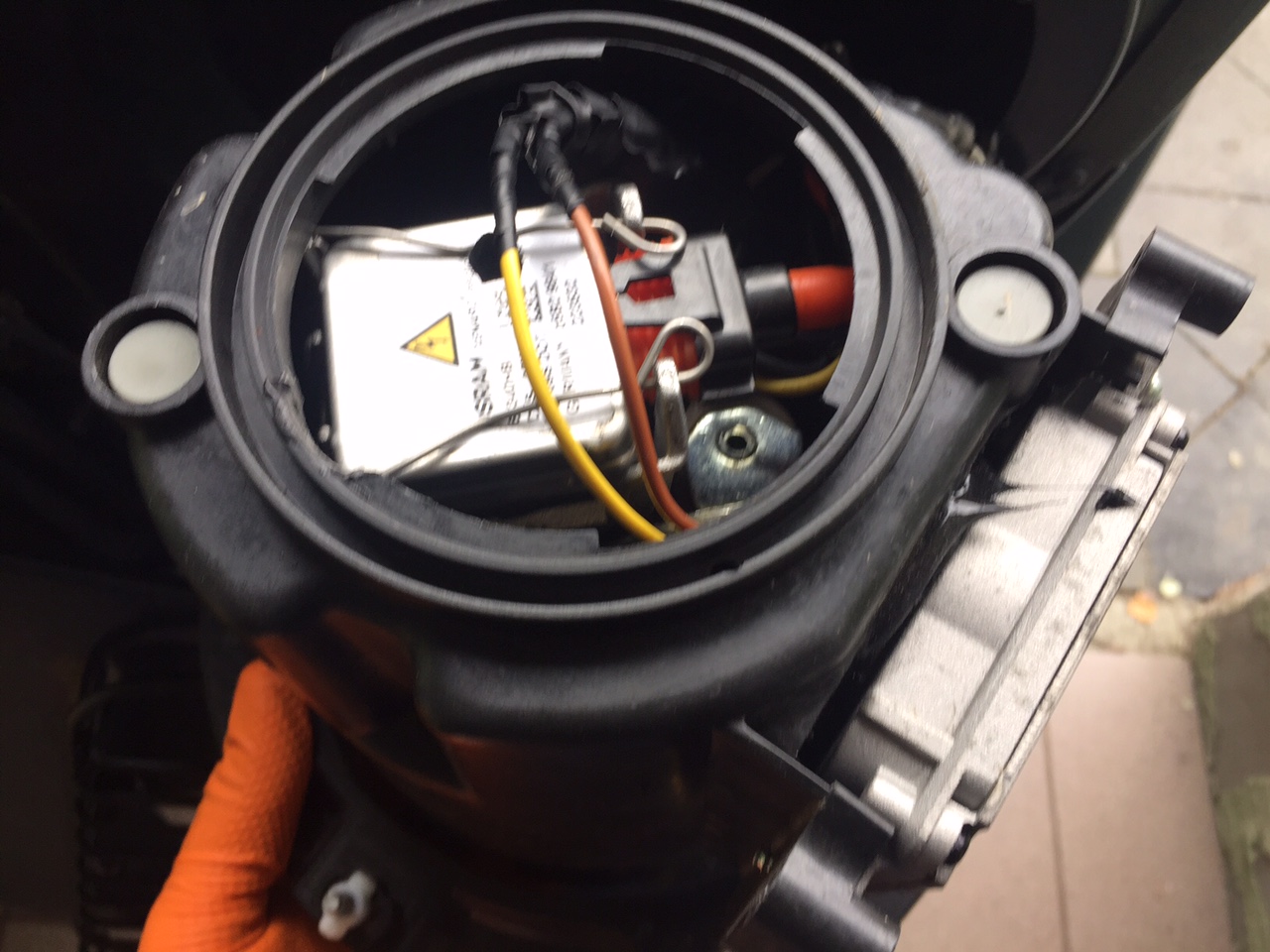

No, they didn't come with adjustment mechanism...I used screw from original H4 lights...I also bought used front SAM module and now I can code EZS to xenon equipment, so lights works correctly...BTW I was very disappointed with quality of DEPO inner H7 projector (most of china 's projectors has poor quality) so I decided to rebuild them...After research I found that BMW X5 projector are very similar (similar dimension), so I put BMW X5 projectors (D3S bulb) into DEPO lights and AUDI KEBODA electronics (even they are made in China they are original AUDI)... Now I am very satisfied with my real xenon lights not china H7 HID...May be they light better than original Mercedes G (HELLA) D1S lights
