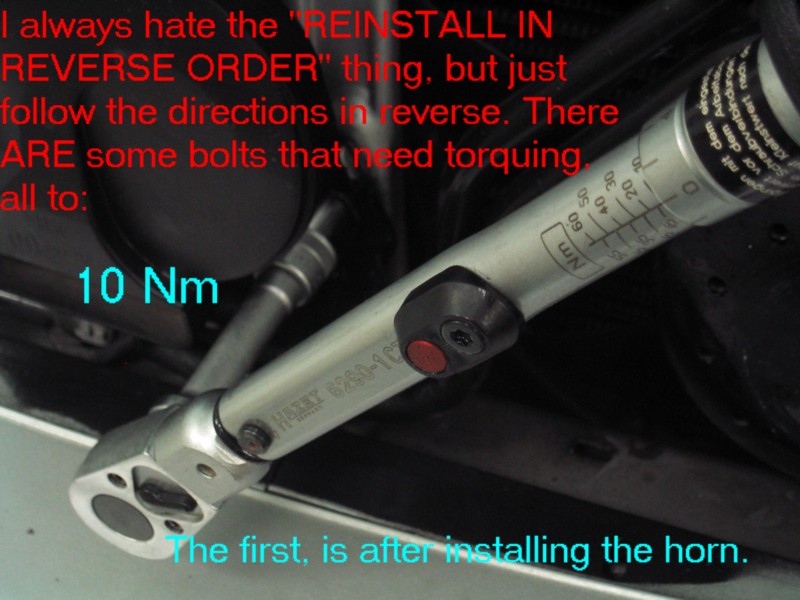

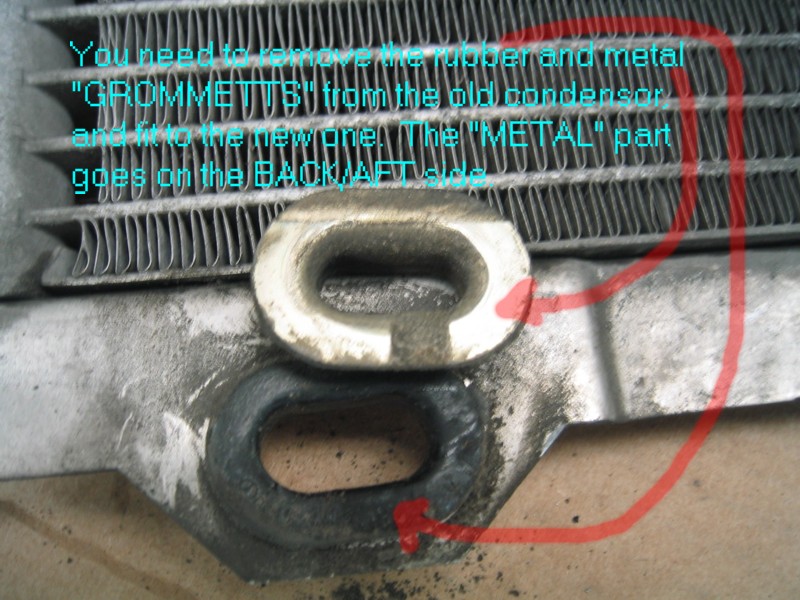

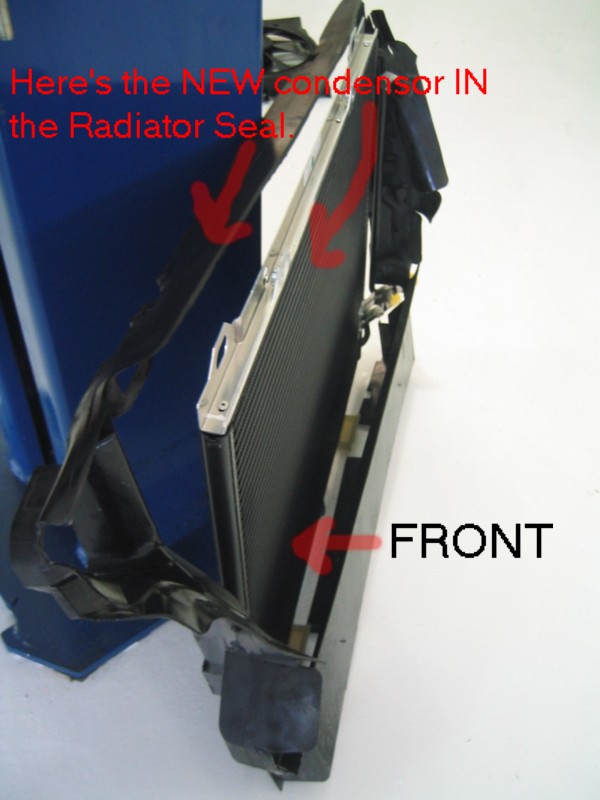

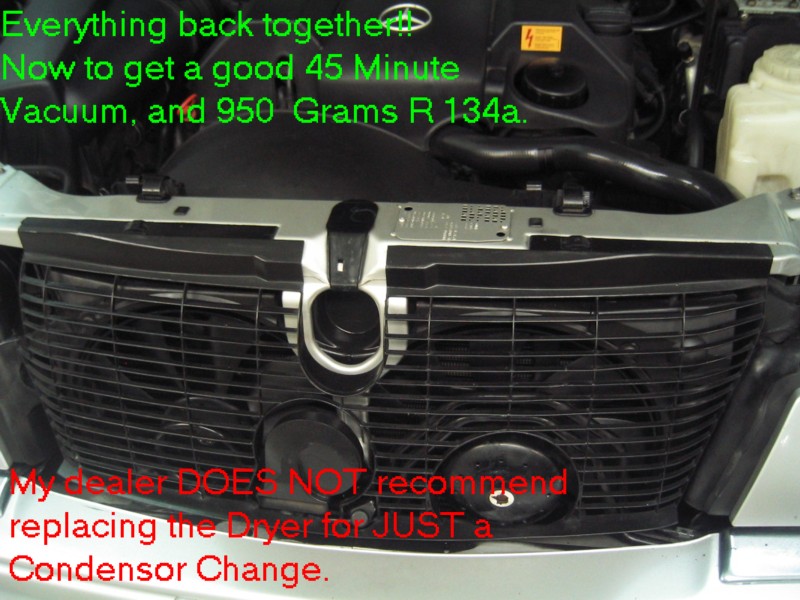

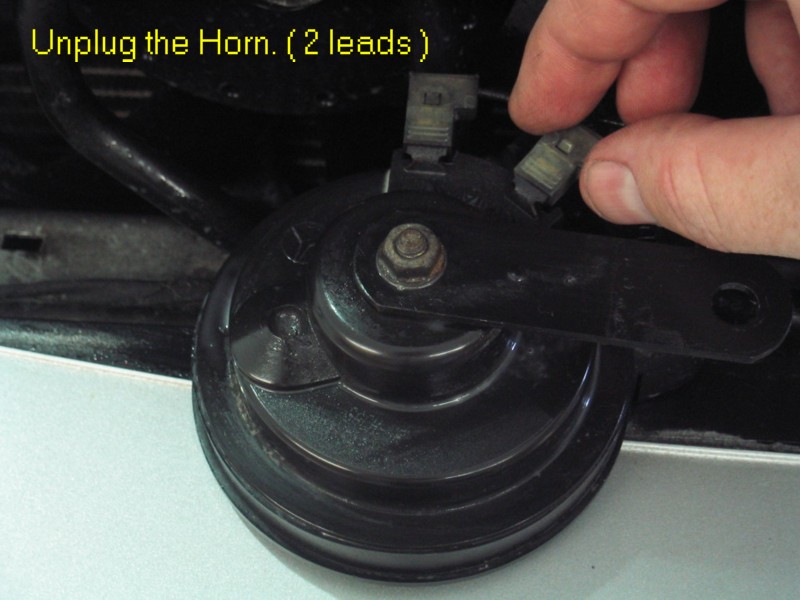

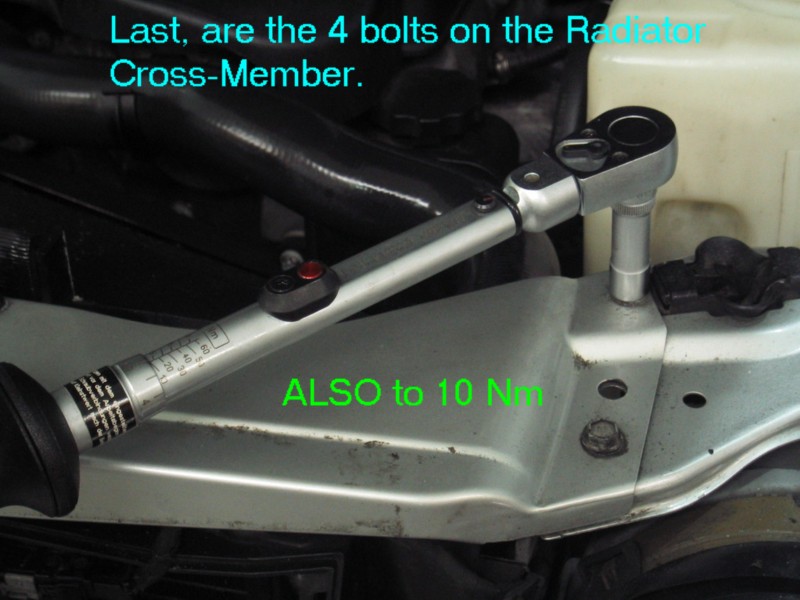

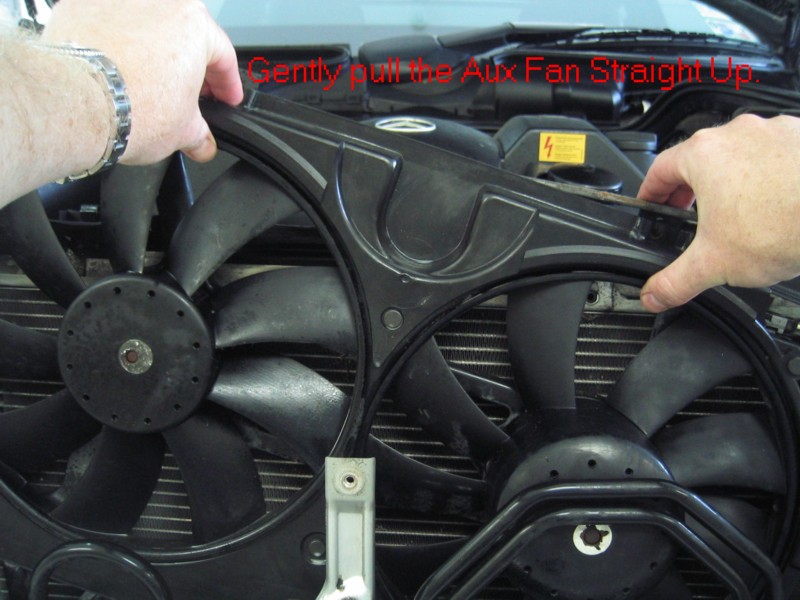

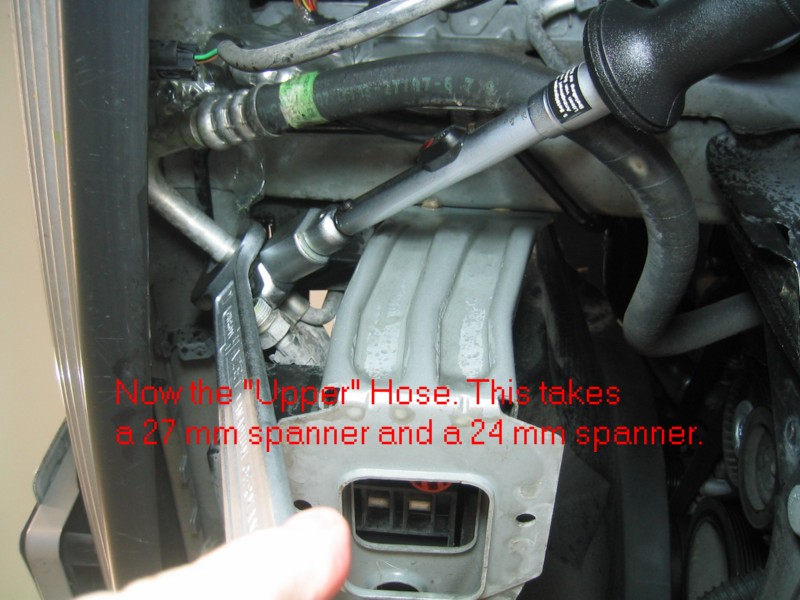

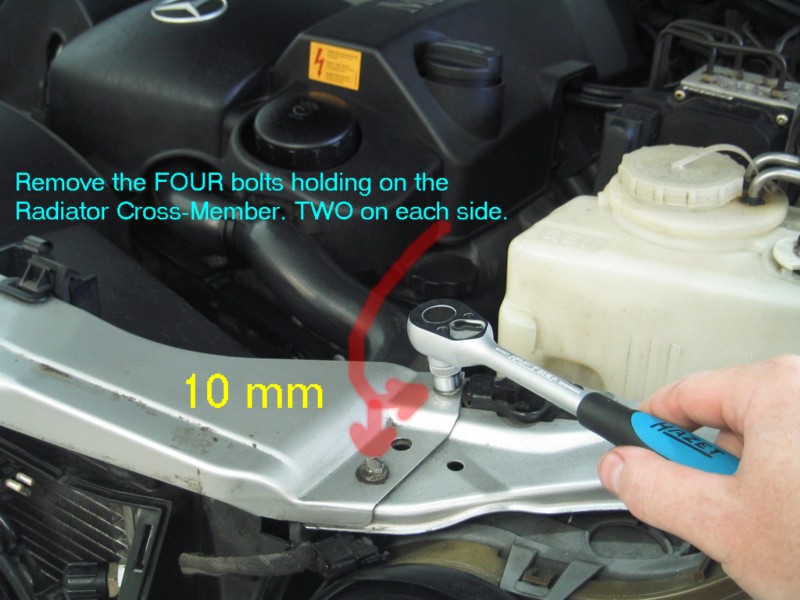

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DIY- A/C Condensor Replacement. At first I thought this to be a bit too "esoteric" of a DIY, but after reading several posts, this seems to be a fairly "common" problem. Since I had a micro leak, I was forced to replace mine. Please be environment conscious, and have your system evacuated BEFORE starting this job. PLUS<<< your system will NOT be under HIGH PRESSURE!! The usual CYA blah, blah stuff. I am not claiming any expertise. I make no bones about it, I am a novice mechanic. My projects are based on my interpretation of the WIS procedures, and/or outside sources. Do work at your own discretion. (1.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) (8.JPG) (9.JPG) (9a.JPG) (9b.JPG) (9c.JPG) (9d.JPG) (9e.JPG) (9f.JPG) (9g.JPG) (9h.JPG) (9i.JPG) (9J.JPG) (9k.JPG) (9L.JPG) (9m.JPG) (9n.JPG) (9O.JPG) (9p.JPG) (9q.JPG) Attachments ----------------  1.JPG (97KB - 210 downloads) 2.JPG (105KB - 233 downloads) 3.JPG (122KB - 245 downloads) 4.JPG (97KB - 230 downloads) 5.JPG (82KB - 258 downloads) 6.JPG (98KB - 212 downloads) 7.JPG (94KB - 289 downloads) 8.JPG (104KB - 234 downloads) 9.JPG (88KB - 283 downloads) 9a.JPG (83KB - 240 downloads) 9b.JPG (88KB - 286 downloads) 9c.JPG (102KB - 250 downloads) 9d.JPG (109KB - 277 downloads) 9e.JPG (104KB - 236 downloads) 9f.JPG (96KB - 250 downloads) 9g.JPG (129KB - 245 downloads) 9h.JPG (141KB - 228 downloads) 9i.JPG (126KB - 230 downloads) 9J.JPG (69KB - 233 downloads) 9k.JPG (83KB - 192 downloads) 9L.JPG (120KB - 291 downloads) 9m.JPG (141KB - 251 downloads) 9n.JPG (83KB - 285 downloads) 9O.JPG (101KB - 222 downloads) 9p.JPG (89KB - 227 downloads) 9q.JPG (128KB - 242 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- A/C Condensor Replacement. SORRY! I missed one Pic. It should be BEFORE the LOWER HOSE hook-up. (9M1.JPG) Attachments ---------------- 9M1.JPG (114KB - 221 downloads) | |
| ||
|
