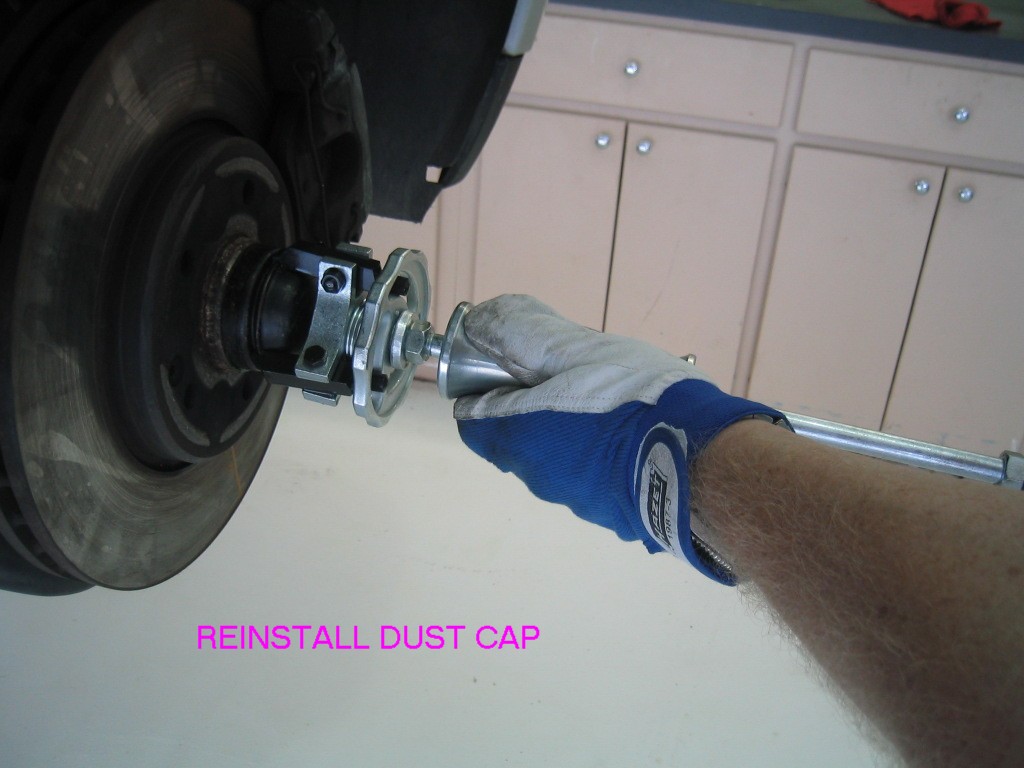

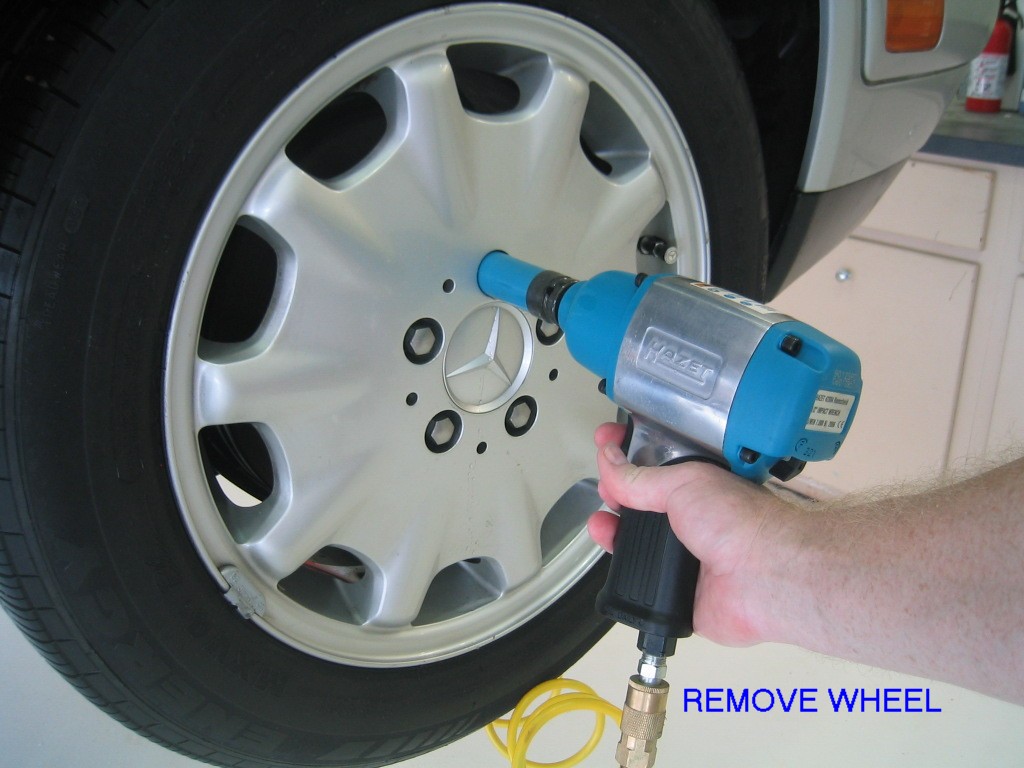

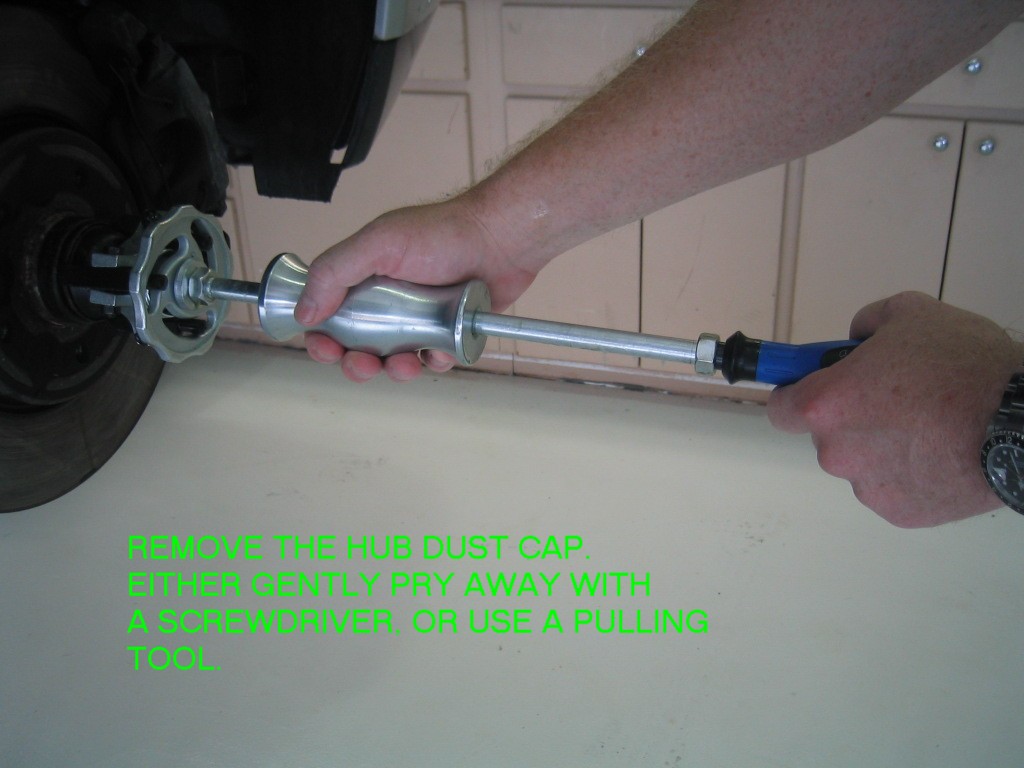

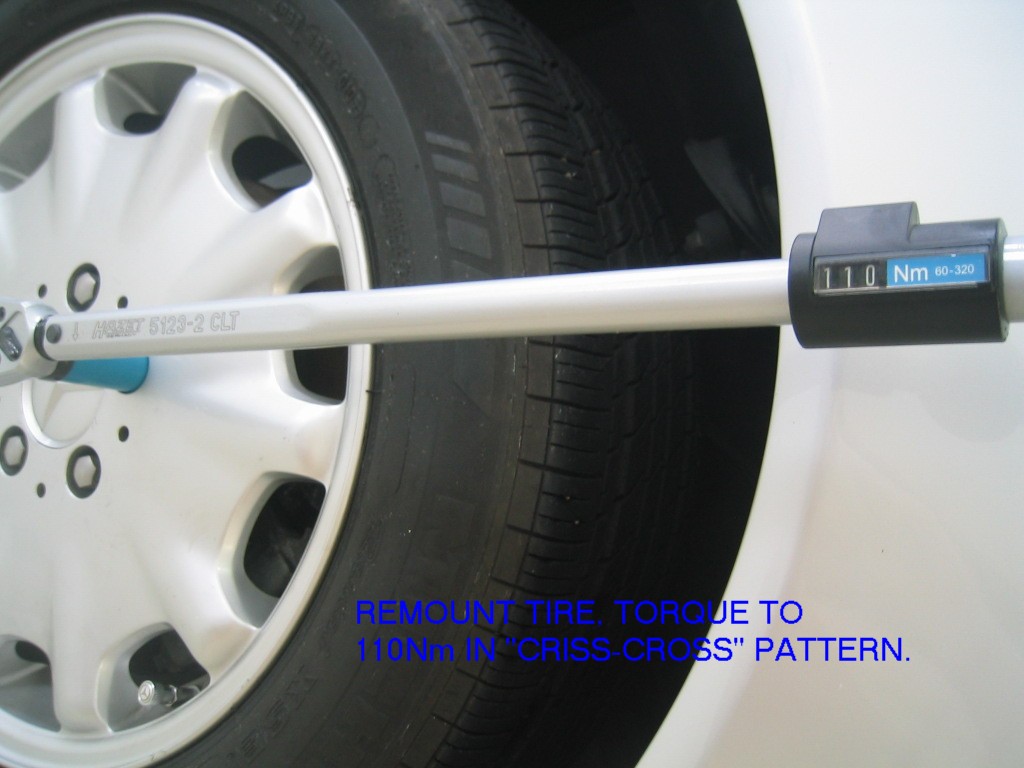

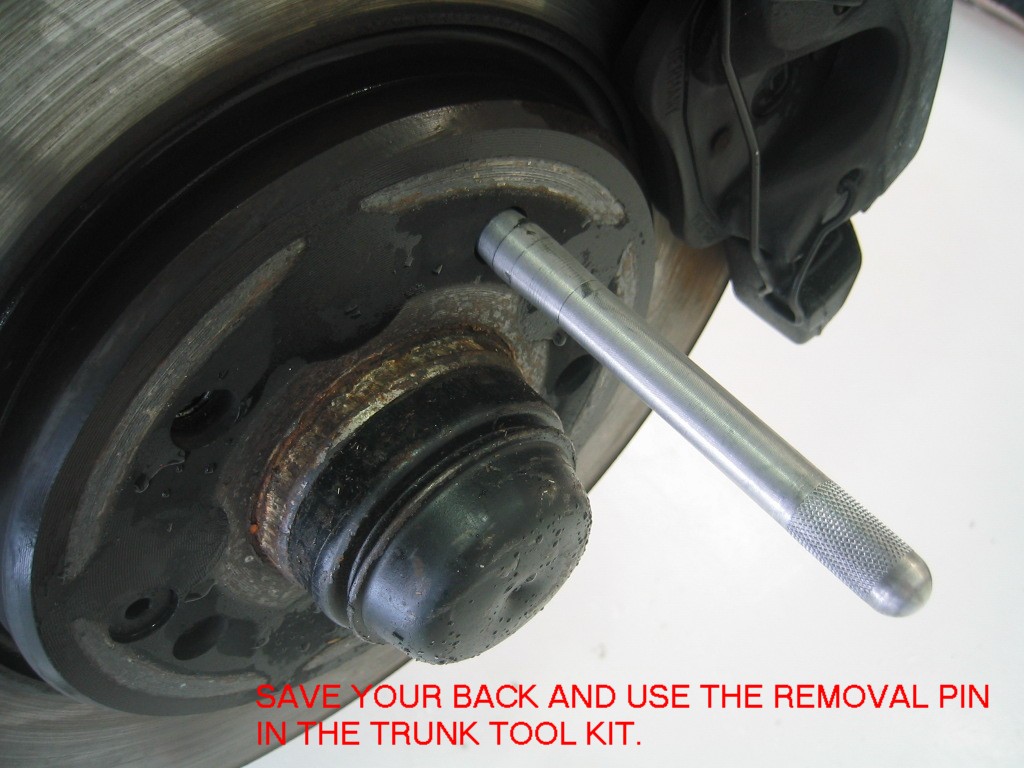

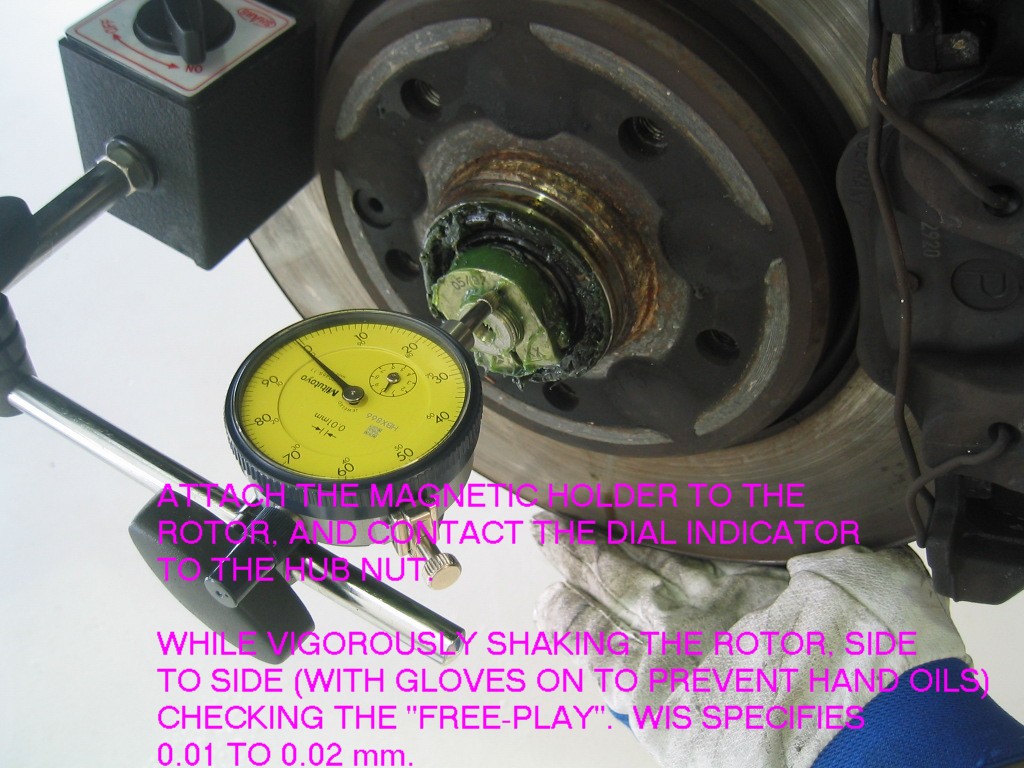

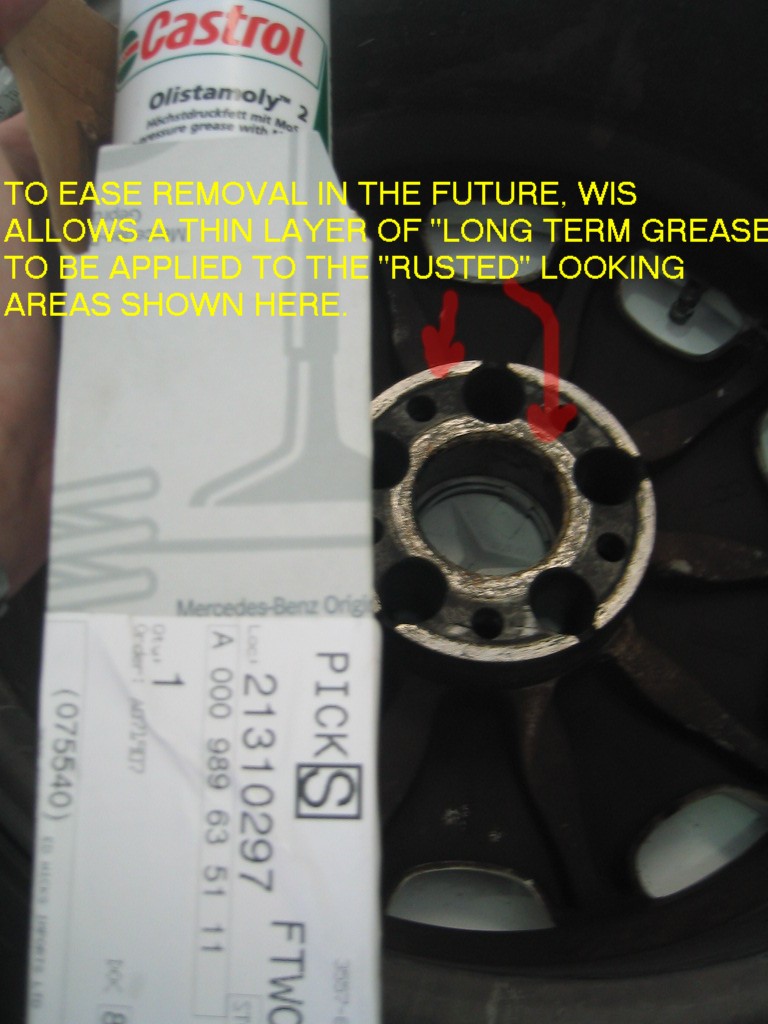

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | PHOTO DIY- WHEEL BEARING FREE PLAY EVALUATION GREETS. To start with, this was SUPPOSED to be a wheel bearing adjustment post. While rotating my tires, the front wheel bearings felt "loose" when I would check for play (grabbing tire, and vigorously shaking side to side on wheel----in relation to the axle). When it came to an actual measurement, though, it was spot on. Anyway, since I did the work, I thought I would at least post the diagnostic portion. (1.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) Attachments ----------------  1.JPG (137KB - 68 downloads) 2.JPG (149KB - 60 downloads) 3.JPG (114KB - 58 downloads) 4.JPG (197KB - 59 downloads) 5.JPG (118KB - 56 downloads) 6.JPG (130KB - 63 downloads) 7.JPG (113KB - 63 downloads) | |
| ||
| ||
| ||
|
