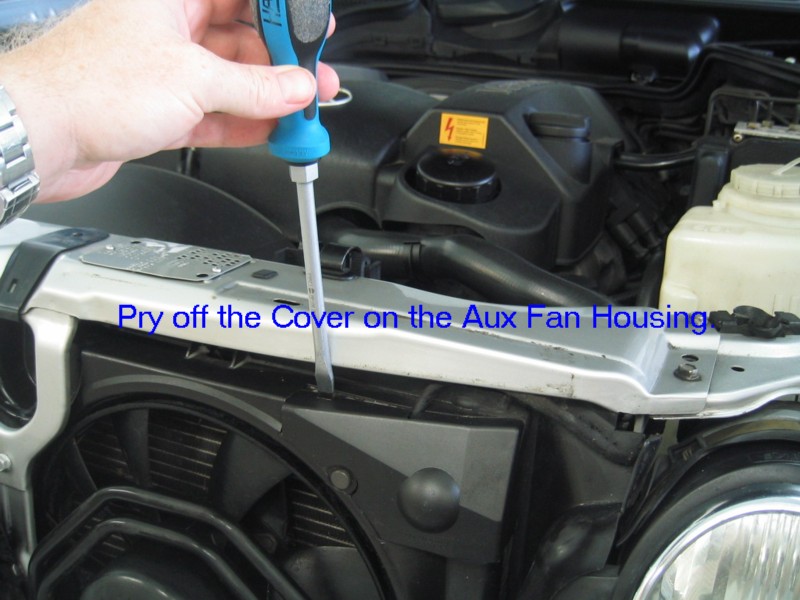

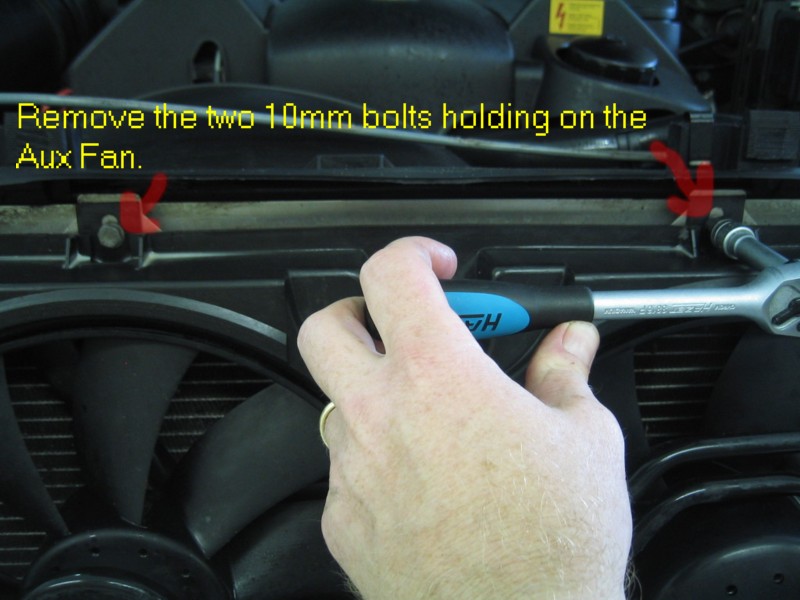

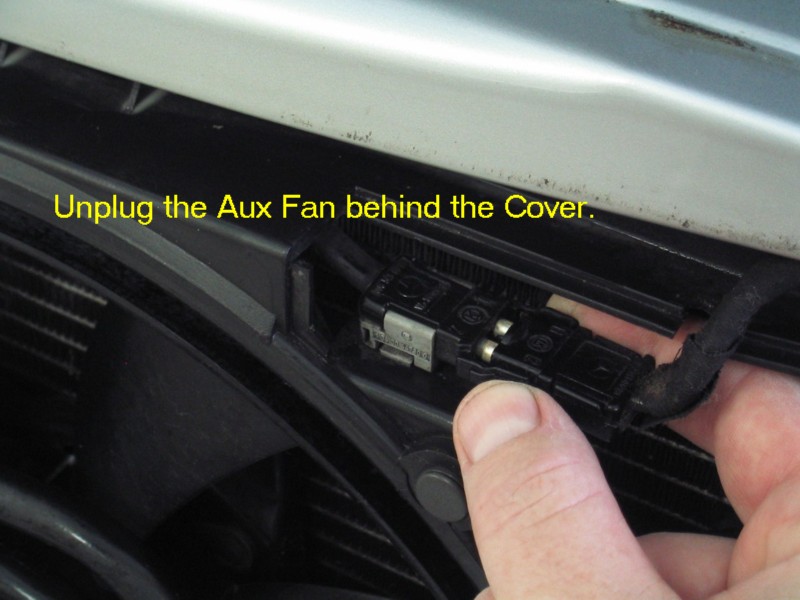

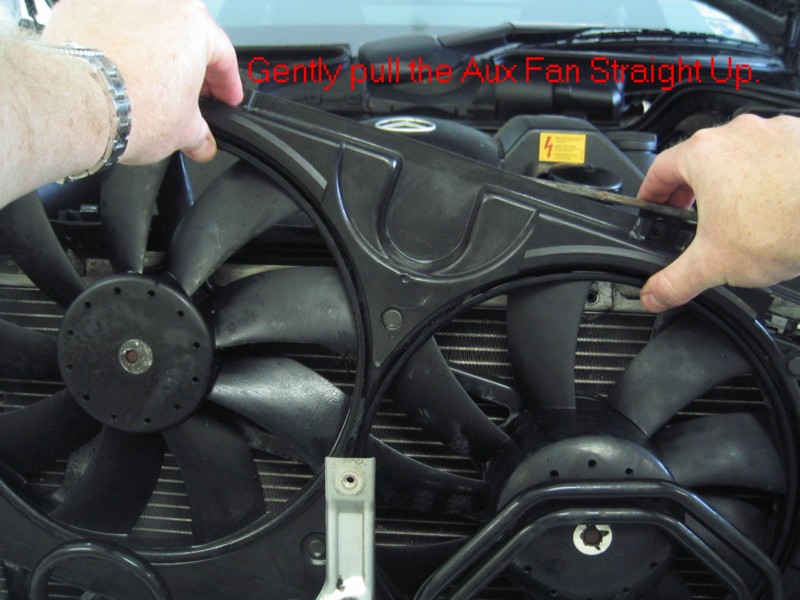

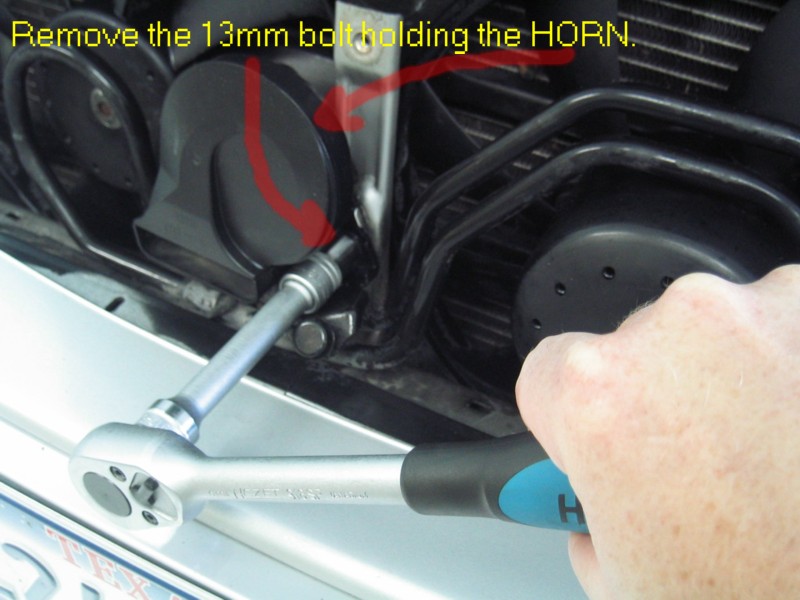

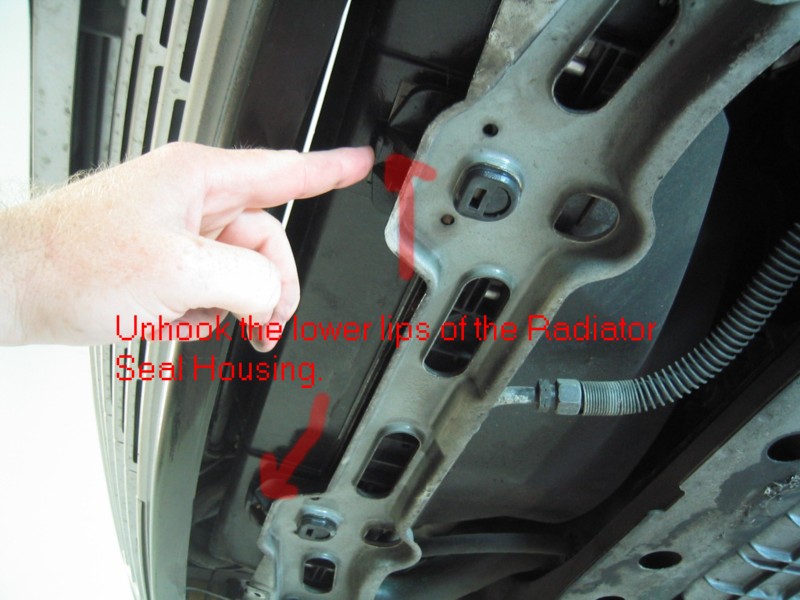

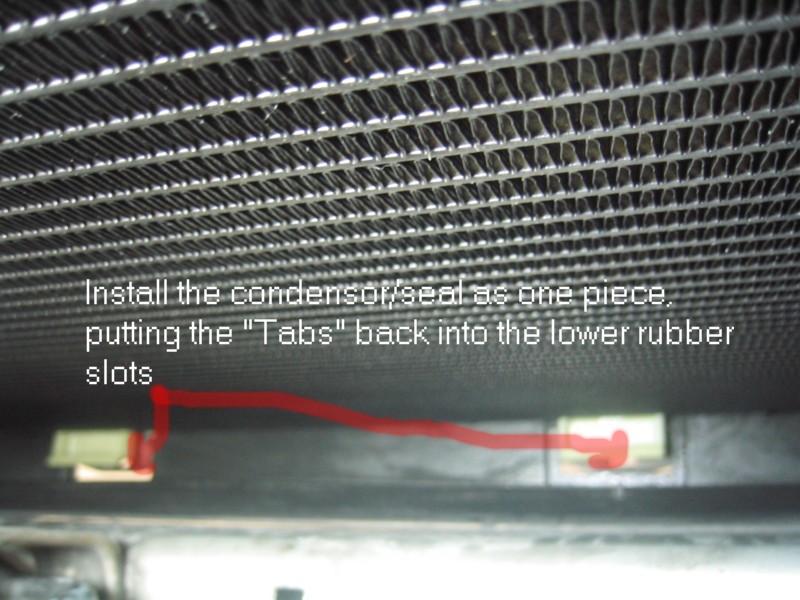

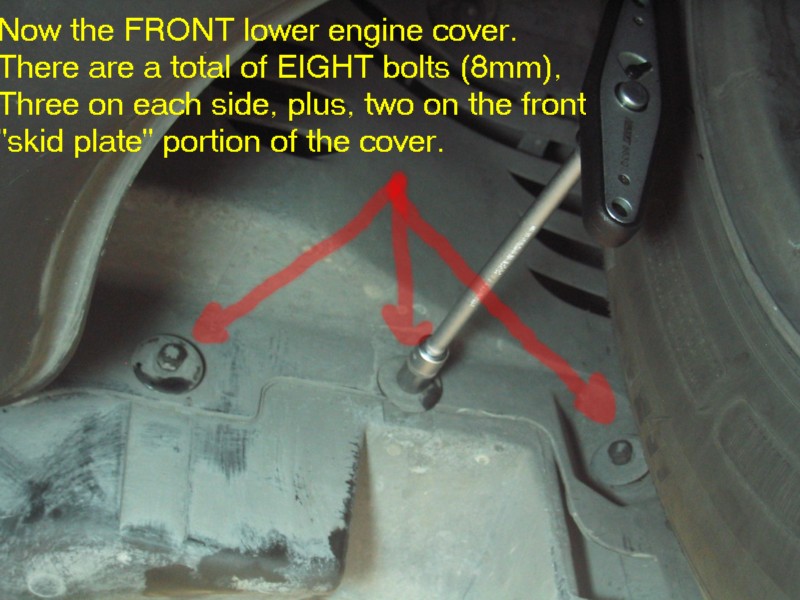

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DIY- A/C Condensor Replacement. At first I thought this to be a bit too "esoteric" of a DIY, but after reading several posts, this seems to be a fairly "common" problem. Since I had a micro leak, I was forced to replace mine. Please be environment conscious, and have your system evacuated BEFORE starting this job. PLUS<<< your system will NOT be under HIGH PRESSURE!! The usual CYA blah, blah stuff. I am not claiming any expertise. I make no bones about it, I am a novice mechanic. My projects are based on my interpretation of the WIS procedures, and/or outside sources. Do work at your own discretion. (1.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) (8.JPG) (9.JPG) (9a.JPG) (9b.JPG) (9c.JPG) (9d.JPG) (9e.JPG) (9f.JPG) (9g.JPG) (9h.JPG) (9i.JPG) (9J.JPG) (9k.JPG) (9L.JPG) (9m.JPG) (9n.JPG) (9O.JPG) (9p.JPG) (9q.JPG) Attachments ----------------  1.JPG (97KB - 172 downloads) 2.JPG (105KB - 168 downloads) 3.JPG (122KB - 177 downloads) 4.JPG (97KB - 166 downloads) 5.JPG (82KB - 159 downloads) 6.JPG (98KB - 162 downloads) 7.JPG (94KB - 182 downloads) 8.JPG (104KB - 170 downloads) 9.JPG (88KB - 170 downloads) 9a.JPG (83KB - 175 downloads) 9b.JPG (88KB - 178 downloads) 9c.JPG (102KB - 178 downloads) 9d.JPG (109KB - 173 downloads) 9e.JPG (104KB - 165 downloads) 9f.JPG (96KB - 179 downloads) 9g.JPG (129KB - 171 downloads) 9h.JPG (141KB - 173 downloads) 9i.JPG (126KB - 166 downloads) 9J.JPG (69KB - 161 downloads) 9k.JPG (83KB - 163 downloads) 9L.JPG (120KB - 178 downloads) 9m.JPG (141KB - 156 downloads) 9n.JPG (83KB - 162 downloads) 9O.JPG (101KB - 169 downloads) 9p.JPG (89KB - 165 downloads) 9q.JPG (128KB - 150 downloads) | |
| ||
| ||

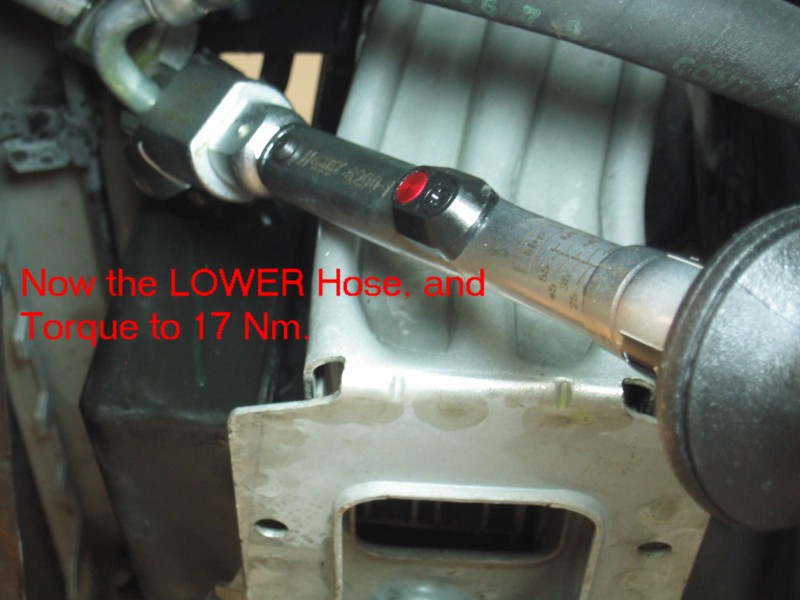

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- A/C Condensor Replacement. SORRY! I missed one Pic. It should be BEFORE the LOWER HOSE hook-up. (9M1.JPG) Attachments ---------------- 9M1.JPG (114KB - 162 downloads) | |
| ||
|
