Photo DIY- Front Door Panel Removal W463
Topic Tools Message Format
Author
Posted 10/7/2008 11:39 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Photo DIY- Front Door Panel Removal W463

Yes, this may be a bit "esoteric" but, perhaps it might help someone down the road.

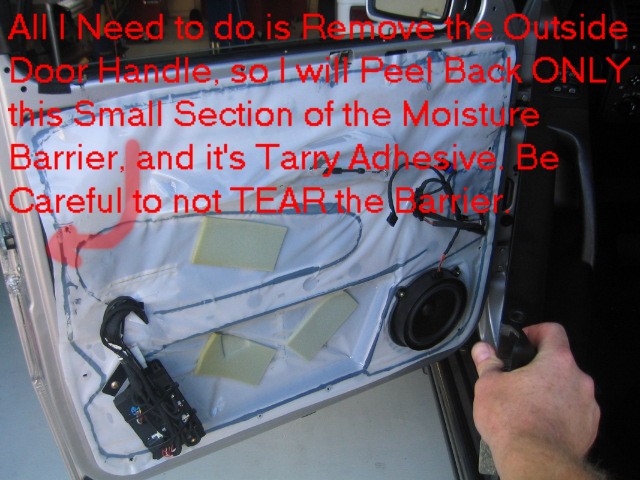

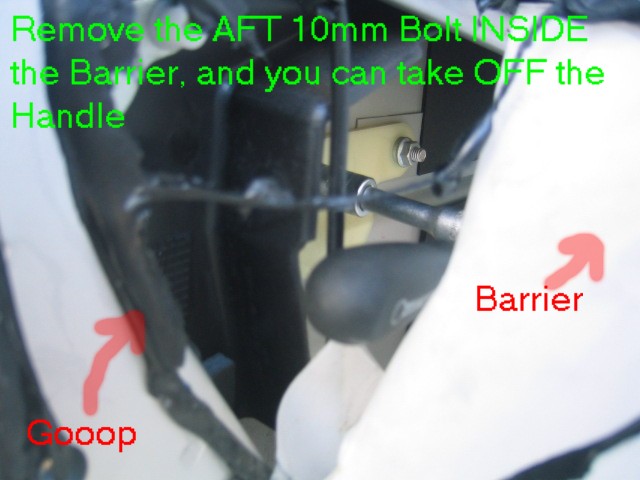

Due to a need to remove my door handle (see next post for the "drama"), I had to take the door panel off.

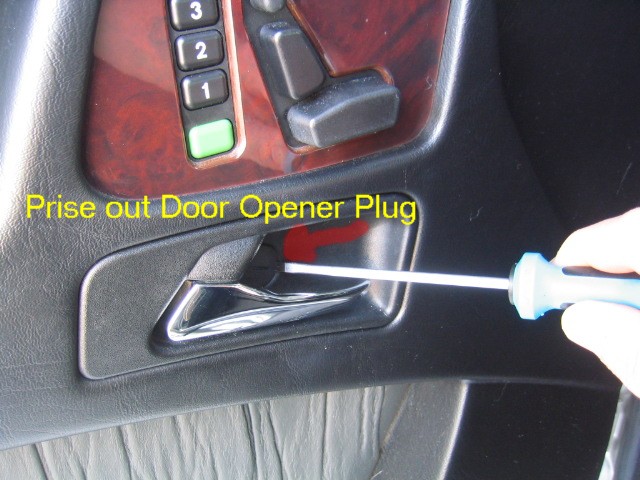

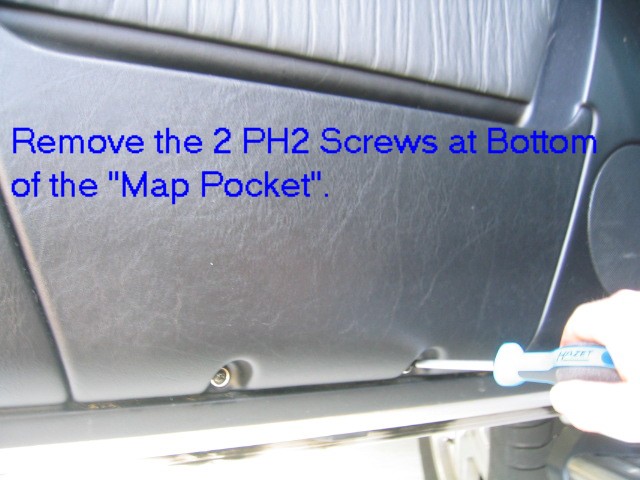

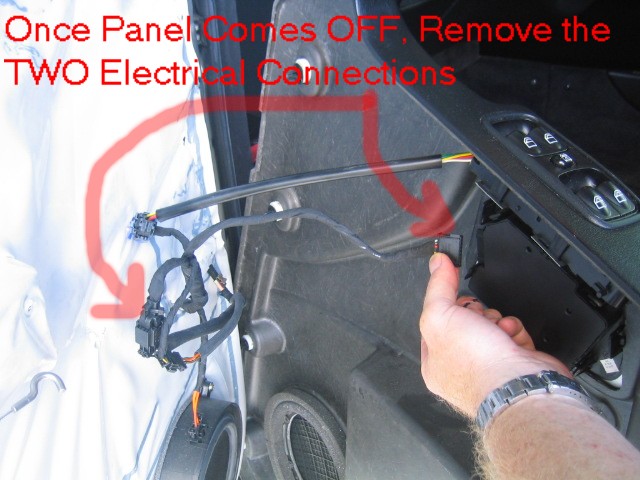

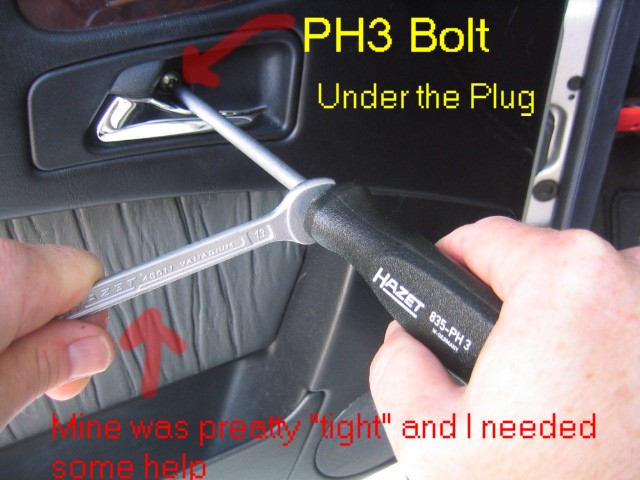

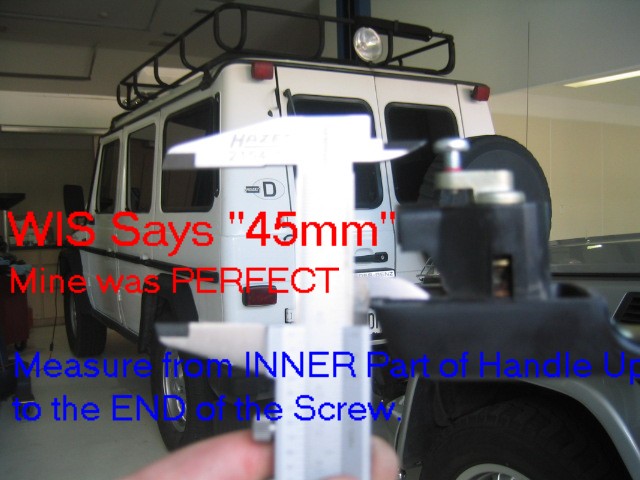

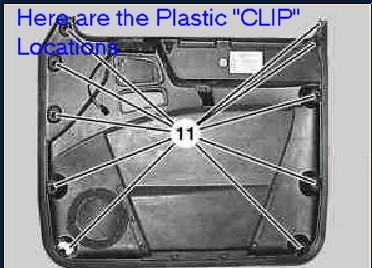

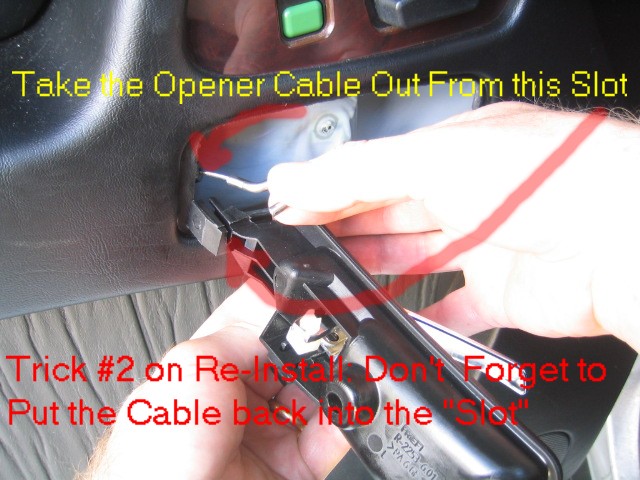

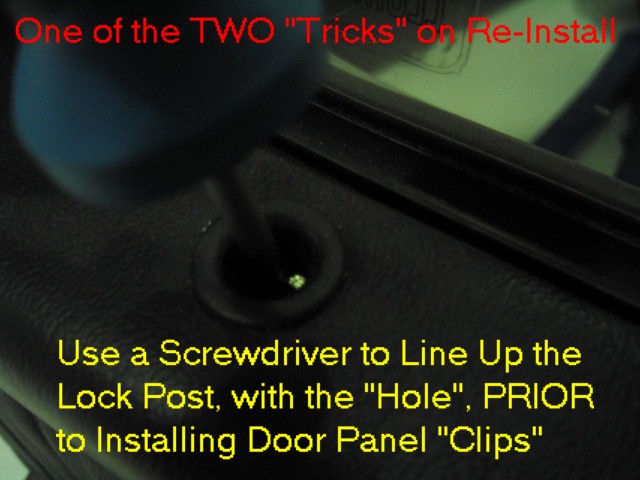

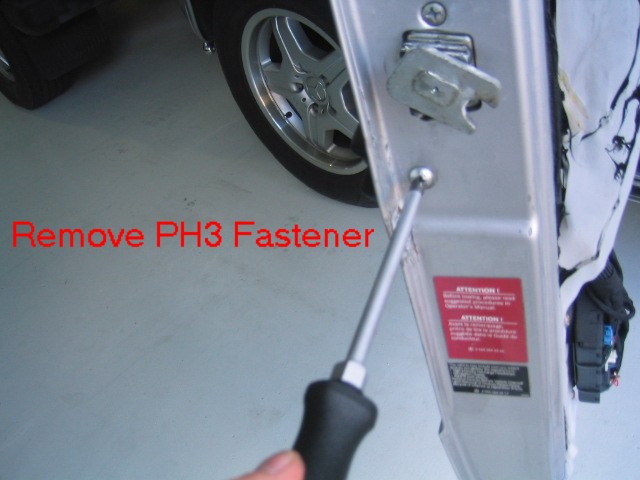

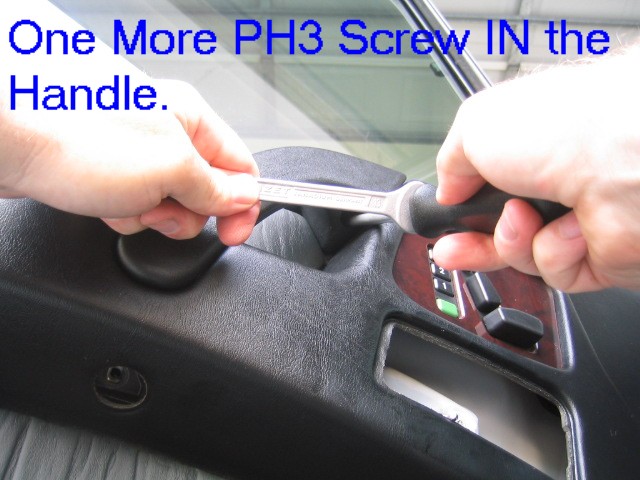

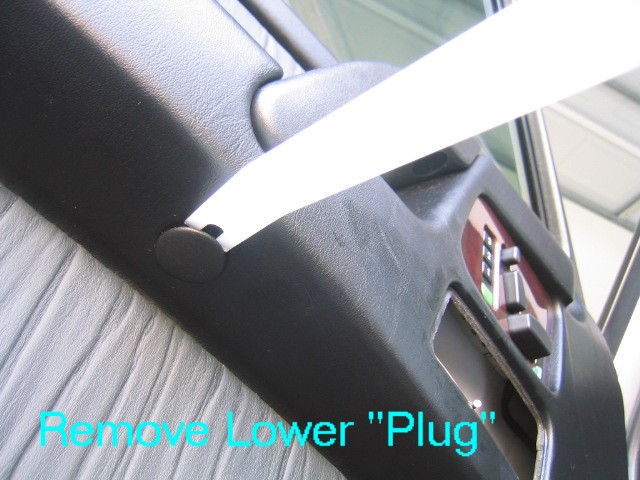

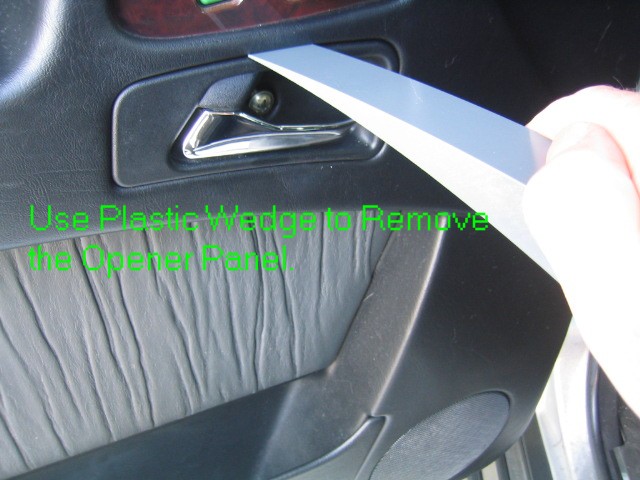

No "tricks", other than the two items noted in the pics.

Re-Install is opposite of install, just be sure to re-seal the barrier/"foil" well.

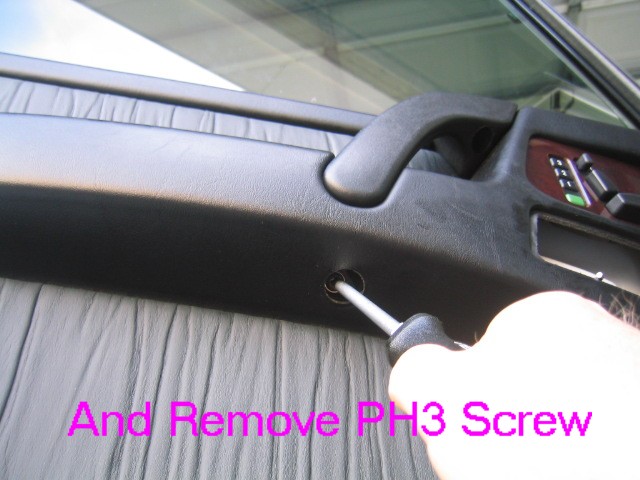

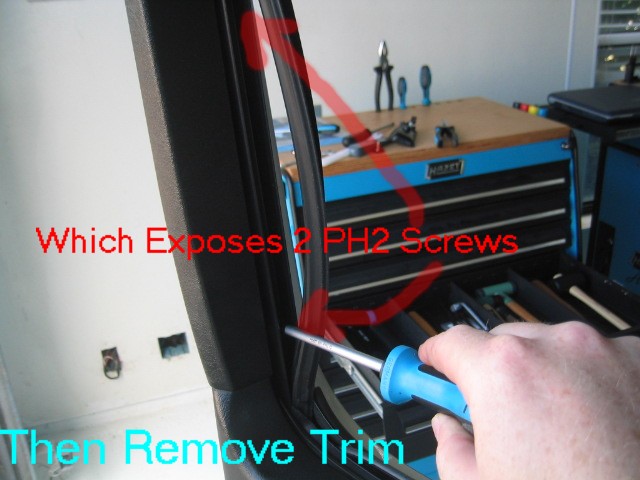

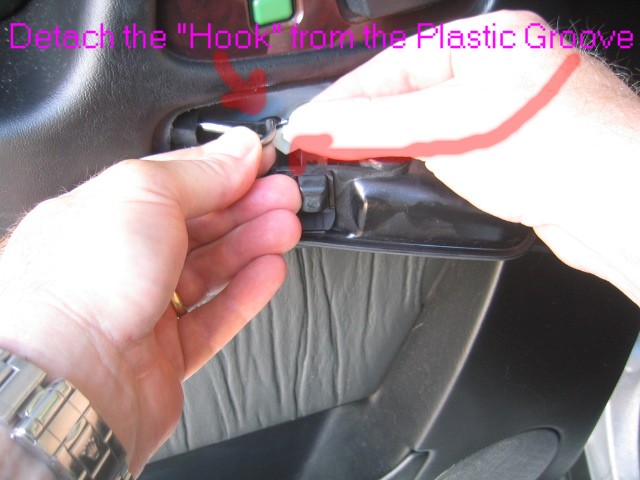

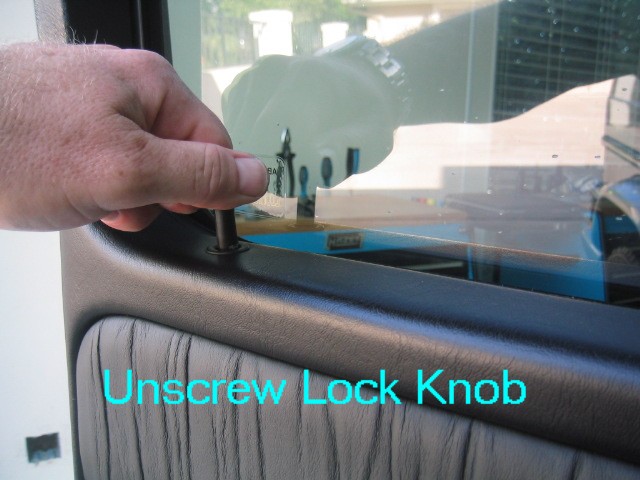

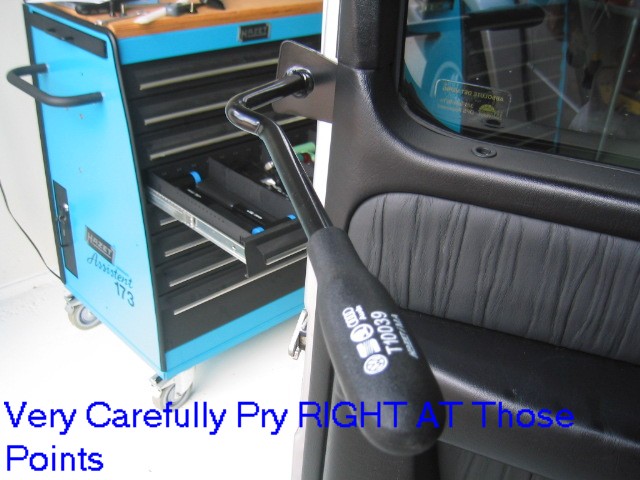

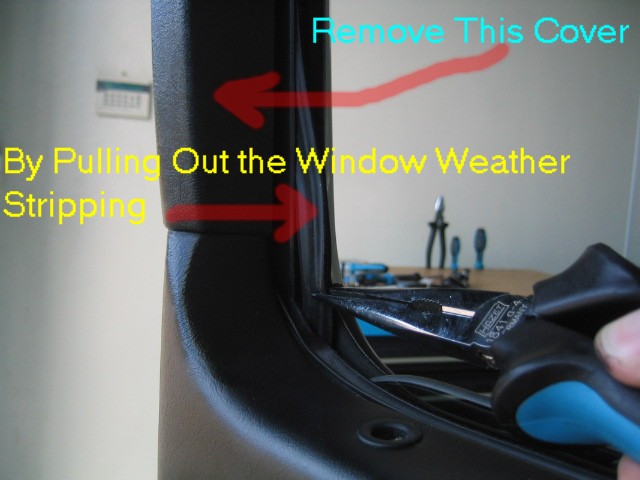

(1.JPG)



(2.JPG)



(3.JPG)



(4.JPG)



(5.JPG)



(6.JPG)



(7.JPG)



(8.JPG)



(9.JPG)



(10.JPG)



(11.JPG)



(12.JPG)



(13.JPG)



(14.JPG)



(15.JPG)



(16.JPG)



(17.JPG)



(18.JPG)



(19.JPG)



(20.JPG)



Attachments
----------------
Attachments 1.JPG (85KB - 52 downloads)
Attachments 2.JPG (76KB - 29 downloads)
Attachments 3.JPG (73KB - 29 downloads)
Attachments 4.JPG (67KB - 31 downloads)
Attachments 5.JPG (89KB - 28 downloads)
Attachments 6.JPG (70KB - 32 downloads)
Attachments 7.JPG (58KB - 34 downloads)
Attachments 8.JPG (65KB - 31 downloads)
Attachments 9.JPG (77KB - 37 downloads)
Attachments 10.JPG (72KB - 30 downloads)
Attachments 11.JPG (77KB - 30 downloads)
Attachments 12.JPG (68KB - 32 downloads)
Attachments 13.JPG (76KB - 33 downloads)
Attachments 14.JPG (39KB - 35 downloads)
Attachments 15.JPG (82KB - 32 downloads)
Attachments 16.JPG (95KB - 33 downloads)
Attachments 17.JPG (55KB - 30 downloads)
Attachments 18.JPG (59KB - 27 downloads)
Attachments 19.JPG (70KB - 31 downloads)
Attachments 20.JPG (70KB - 32 downloads)
#133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 12:14 AM
djdinaz
Extreme Veteran




Date registered: Jun 2007
Location: Arizona
Vehicle(s): 03 G55
Posts: 439
300
Re: Photo DIY- Front Door Panel Removal W463

The only "trick" I can add is rubber tubing for the lock mechanism, as opposed to a screwdriver. Cut a 3 to 4 inch length of 1/8th irrigation tubing (or vacuum tubing), twist it on to the lock shaft, and it really aids in lining up with the hole in the door panel.

Thanks for the great pictures, I had always wondered how the trim panels around the windows were removed (those which the door panel slide under).
#133354 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 7:24 AM
nadd
Expert




Date registered: Apr 2006
Location: UAE, Dubai
Vehicle(s): G500 2016 LHD, numerous Chevys
Posts: 1285
1000
Re: Photo DIY- Front Door Panel Removal W463

Superb write-up..thanks! This'll be useful in another 10 years when I get a post-2003 model
#133367 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 8:10 AM
03-Gwagen
Elite Veteran


Date registered: Apr 2006
Location: Western Pennsylvania
Vehicle(s): CLK63 Black Series, 2018 G63, 2016 GLE300d
Posts: 888
500
RE: Photo DIY- Front Door Panel Removal W463

G-AMG - 10/7/2008 11:39 PM

Yes, this may be a bit "esoteric" but, perhaps it might help someone down the road.

Due to a need to remove my door handle (see next post for the "drama"), I had to take the door panel off.

No "tricks", other than the two items noted in the pics.

Re-Install is opposite of install, just be sure to re-seal the barrier/"foil" well.


Another Great post.

While I had mine off, I put a thin layer of dynamat dynaliner on the backside of the door panel. Made a huge difference especially when I did the tailgate. It significantly reduced the road noise plus the boom of a slamming tailgate.

Edited by 03-Gwagen 10/8/2008 8:14 AM
#133370 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 10:32 AM
boilerworks
Veteran




Date registered: Sep 2007
Location: Hinsdale, IL.
Vehicle(s): 02 G500
Posts: 296
100
RE: Photo DIY- Front Door Panel Removal W463



Another Great post.

While I had mine off, I put a thin layer of dynamat dynaliner on the backside of the door panel. Made a huge difference especially when I did the tailgate. It significantly reduced the road noise plus the boom of a slamming tailgate.

03 - did you install dynamat on all your doors? I had considered this as I was replacing my RR window regulator. I also installed new speakers while I was in there (rear doors only). I noticed that there was OEM sound deadening on the doors. It looks like maybe some sort of fiberous board material about 1/16" thickness. So i was wondering if it would be a benefit to add the dynamat? You say " huge difference" so that is why I was wondering which doors (or all) you installed dynamat on and did you remove the OEM sound deadening material? Thanks

Nice write up G- AMG!

Thank you

#133379 - in reply to #133370
Top of the page Bottom of the page
Author
Posted 10/8/2008 10:58 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Re: Photo DIY- Front Door Panel Removal W463

Call me the odd man out, but, "Why would I want to REDUCE the noise when I have that wonderful sounding AMG exhaust " ;^)

VVVOOOOORRRRUUUUMMMMM bring it on!!
#133382 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 2:41 PM
syncro
Extreme Veteran




Date registered: May 2007
Location: Orinda, CA
Vehicle(s): '84 280GE LWB > 300GD, '75 240D
Posts: 477
300
RE: Photo DIY- Front Door Panel Removal W463

nice write-up.
Boy that seems complicated for a door panel. This affirms my choice of driving a w460
#133391 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2008 6:47 PM
03-Gwagen
Elite Veteran


Date registered: Apr 2006
Location: Western Pennsylvania
Vehicle(s): CLK63 Black Series, 2018 G63, 2016 GLE300d
Posts: 888
500
RE: Photo DIY- Front Door Panel Removal W463

boilerworks - 10/8/2008 10:32 AM

03 - did you install dynamat on all your doors? I had considered this as I was replacing my RR window regulator. I also installed new speakers while I was in there (rear doors only). I noticed that there was OEM sound deadening on the doors. It looks like maybe some sort of fiberous board material about 1/16" thickness. So i was wondering if it would be a benefit to add the dynamat? You say " huge difference" so that is why I was wondering which doors (or all) you installed dynamat on and did you remove the OEM sound deadening material? Thanks


Yes, I did install it on all the doors without removing any factory deadening material.

I stuck it to the rear of the panel so that it would not need to be removed if I needed access inside the door panel.

It made the G quieter and seemed to add a temperature barrier as well. The panels were not as cold in the winter.

Edited by 03-Gwagen 10/8/2008 6:50 PM
#133409 - in reply to #133379
Top of the page Bottom of the page
Author
Posted 12/14/2008 9:01 AM
UN Mobile

Date registered: Dec 1899
Location:
Vehicle(s):
RE: Photo DIY- Front Door Panel Removal W463

Thanks for a great write up, all of my door skins will be pulled today installing damplifier pro an improved dynamat sound deadening materiel also new seat control switches and interior door handles plus replacement of the dealer mangled vapor barriers .
#138188 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 12/14/2008 9:44 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
RE: Photo DIY- Front Door Panel Removal W463

UN,

I'd be curious to see how those sound deadening panels work for you.

Hmmmm, I sure hope the dealer is going to fix the mangled vapor barrier for you..... If they DON'T, I would expect they at least give you the new materials.....

I would definately also get new Sealant for the barrier. I looked all thru the Sealants section of the EPC, and I couldn't find the part number for the stuff (the Tarry, Rubbery Sealant). Maybe your Stealer's Parts guy can help....

Good Luck!
#138190 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 12/15/2008 11:40 AM
DesertStar
Expert




Date registered: Apr 2006
Location: San Diego, CA USA
Vehicle(s): 85-280GE/95-G320/08-G500
Posts: 2156
2000
RE: Photo DIY- Front Door Panel Removal W463

Excellent write up as always Patrick. If you ever get a chance, could you post a photo of the "end" of your prybar used to pull the panel out ?

I do want to add a thread to this post showing written detail on the door handle/latch adjustment, which has a good attachment by Mortinson..  This would apply to those that find they are having to press the door handle button more and more "in" to unlatch the door.

http://pointedthree.com/disc/forums/showthread.php?tid=10545&posts=7&mid=106701&highlight=door+handle&highlightmode=1&action=search#M106701

 Mike

#138298 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 12/15/2008 1:18 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
RE: Photo DIY- Front Door Panel Removal W463

DesertStar - 12/15/2008 11:40 AM

Excellent write up as always Patrick. If you ever get a chance, could you post a photo of the "end" of your prybar used to pull the panel out

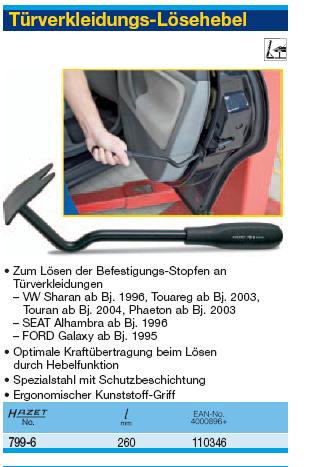

Mike, I don't know if this pic "scratches you where you itch"

If it doesn't, I'll take some photos when I get home.



(HZ799-6.JPG)



Attachments
----------------
Attachments HZ799-6.JPG (32KB - 24 downloads)
#138306 - in reply to #138298
Top of the page Bottom of the page
Author
Posted 12/15/2008 2:10 PM
DesertStar
Expert




Date registered: Apr 2006
Location: San Diego, CA USA
Vehicle(s): 85-280GE/95-G320/08-G500
Posts: 2156
2000
RE: Photo DIY- Front Door Panel Removal W463

Thanks Patrick, I was very curious what the "end" looked like (size of the V opening).   This would be a handy tool to have for most any door panel it seems.  I have broke my share of door clips on many vehicles, but mostly due to not knowing where the clips are.  Your photo essay shows clip placement for the G....that will be helpful for most.

mike

#138310 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 7/18/2011 7:51 PM
OTTO
New user


Date registered: Oct 2007
Location:
Vehicle(s):
Posts: 1

Re: Photo DIY- Front Door Panel Removal W463

Really phenomenal write up. Photos are first class.
Let me ask: Do you have to go through all this to access the seat adjustment controls?
Also, I love your roof carrier!!! Where did you get it?
Thanks.
John
#192618 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 9/26/2012 4:05 PM
thebigblue

Date registered: Jan 2012
Location:
Vehicle(s):
500
RE: Photo DIY- Front Door Panel Removal W463

Thank you.

I bought the HAZET 799-6, Türverkleidungs-Lösehebel here:
http://heisse-nuesse.de/index.php?page=product&info=2590&xd9602=71a...

Paid €10 shipping cost to DEN
Will see how it works out one of these days... need to fix the control panel for the electrical seat
#207649 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 9/27/2012 6:10 PM
AlanMcR
Expert




Date registered: Apr 2006
Location: US, CA, Los Altos
Vehicle(s): G300DT E300DT 230SL
Posts: 3500
2000
RE: Photo DIY- Front Door Panel Removal W463

I found that the nylon spatulas that come with rice makers work very well.
#207685 - in reply to #207649
Top of the page Bottom of the page
Author
Posted 9/29/2012 10:18 PM
drey
Extreme Veteran


Date registered: Sep 2012
Location: Scottsdale AZ
Vehicle(s): 04 G500
Posts: 364
300
Re: Photo DIY- Front Door Panel Removal W463

Appreciate the write up, just replaced my lock mechanisms this was very helpful.

#207742 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/8/2014 5:47 PM
MudMonkey
Veteran




Date registered: Jun 2013
Location: CO
Vehicle(s): '03 G500
Posts: 274
100
Re: Photo DIY- Front Door Panel Removal W463

Does anyone know what the name of the black sealer that Mercedes uses to attach the vapor barrier to the door?

Would like to buy some.
#224333 - in reply to #133352
Top of the page Bottom of the page
Author
Posted 10/9/2014 10:07 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Re: Photo DIY- Front Door Panel Removal W463

MudMonkey - 10/8/2014 5:47 PM

Does anyone know what the name of the black sealer that Mercedes uses to attach the vapor barrier to the door?

Would like to buy some.


I think there was an entire post dedicated to this question:

http://pointedthree.com/disc/forums/showthread.php?tid=20075&posts=...

The only "M-B" part numbered material is the "TeroKal" shown in the post, but this is NOT the black, gummy stuff you are looking for.... rather it is the "Yellow-Brown" adhesive seen in other M-B models.
#224363 - in reply to #224333
Top of the page Bottom of the page
Author
Posted 10/13/2014 8:24 PM
MudMonkey
Veteran




Date registered: Jun 2013
Location: CO
Vehicle(s): '03 G500
Posts: 274
100
Re: Photo DIY- Front Door Panel Removal W463

MudMonkey - 10/8/2014 5:47 PM

Does anyone know what the name of the black sealer that Mercedes uses to attach the vapor barrier to the door?

Would like to buy some.



Seems that this black sealer is actually sold as "butyl tape". Lots of options for it out there.

I ended up using a precision heat gun (from my wife's craft toolbox :P ) to warm it up little by little, and re-attached the barrier that way. Worked well, at least, so far.

Thanks for a great DIY, by the way!
#224462 - in reply to #224333
Top of the page Bottom of the page
