Vehicross99
Veteran
Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
| Re: Photo DIY Windshield gasket sealent
sps, since I have had a vehicle that developed rust holes in that area I am taking measures to prevent it from happening again. |
|
| |
|
timmer123
New user
Date registered: Mar 2011
Location: Port Elgin, Ontario, Canada
Vehicle(s): 1998 SL500, 2002 G500, 2006 Tacoma Crew Cab 4X4
Posts: 2
| Re: Photo DIY Windshield gasket sealent
I had some rust showing around my windshield gasket and finally judt got around to getting the truck into a body shop. $2000 later and the long drawn out cleanup of the sandblasting grit from the holes through the windshield frame you cannot see until the gasket is out.
It didn't have the new glass caulked in when it was installed but it is now. This is work you don't want to do twice. |
|
| |
|
jmr89
Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
| RE: Photo DIY Windshield gasket sealent

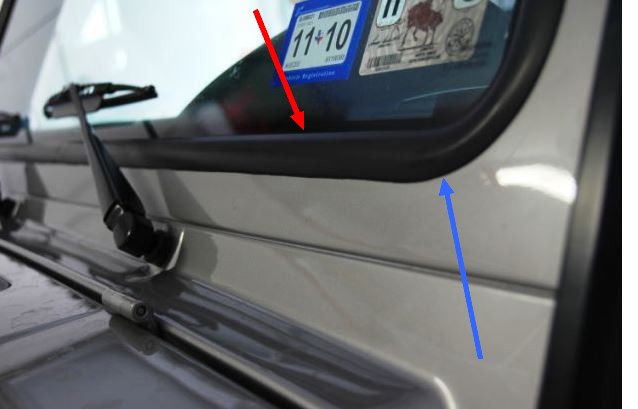

3M put it all around the joint between the body and seal (blue Fleche)
and must also be put between the glass and gasket ??? (red arrow)
 (pare brise.JPG)
Attachments
----------------
 pare brise.JPG (42KB - 14 downloads)
|
|
| |
|
AlanMcR
Expert
Date registered: Apr 2006
Location: US, CA, Los Altos
Vehicle(s): G300DT E300DT 230SL
Posts: 3500
| RE: Photo DIY Windshield gasket sealent
Glue/sealant at the blue arrow serves to protect from rust. Glue/sealant at the red arrow is used to keep the window in place when the airbag fires. Without it, the passenger airbag will blow out the window instead of protecting the passenger.
|
|
| |
|
jmr89
Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
| RE: Photo DIY Windshield gasket sealent
AlanMcR - 2/13/2015 1:26 PM
Glue/sealant at the blue arrow serves to protect from rust. Glue/sealant at the red arrow is used to keep the window in place when the airbag fires. Without it, the passenger airbag will blow out the window instead of protecting the passenger.
thank you very much
for blue Fleche this reference A 001 989 3120 ???
|
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| RE: Photo DIY Windshield gasket sealent
jmr89 - 2/15/2015 9:36 AM
thank you very much
for blue Fleche this reference A 001 989 3120 ???
Hmmmm,
Last time I did this job, the part# for the Sealant was 005 989 61 71 (Which you should be able to source in Europe as Terostat MS 930).
If you are interested, I posted the "W463 Method" (even though I was working on the W460) for Windscreen Gasket Sealing here: (you have to go towards the END of the post)
http://www.pointedthree.com/disc/forums/showthread.php?tid=19159&po... |
|
| |
|
jmr89
Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
| Re: Photo DIY Windshield gasket sealent
G-AMG thank you
I had already looked yon tutorial= super
look for Teroson MS 930
Mercedes A 005 989 61 71
and put between the seal and the body
thank you very much
JM
______________________________________________
last info
Mercedes
Ref: A 005 989 61 71 = Colle windshield
Ref: A 001 989 31 20 = paste of waterproofness ((Recommended by Mercedes))
>>>>>>So I prefer Ref: A 001 989 31 20
because the dough will not hardened
Edited by jmr89 2/16/2015 7:50 AM
|
|
| |
