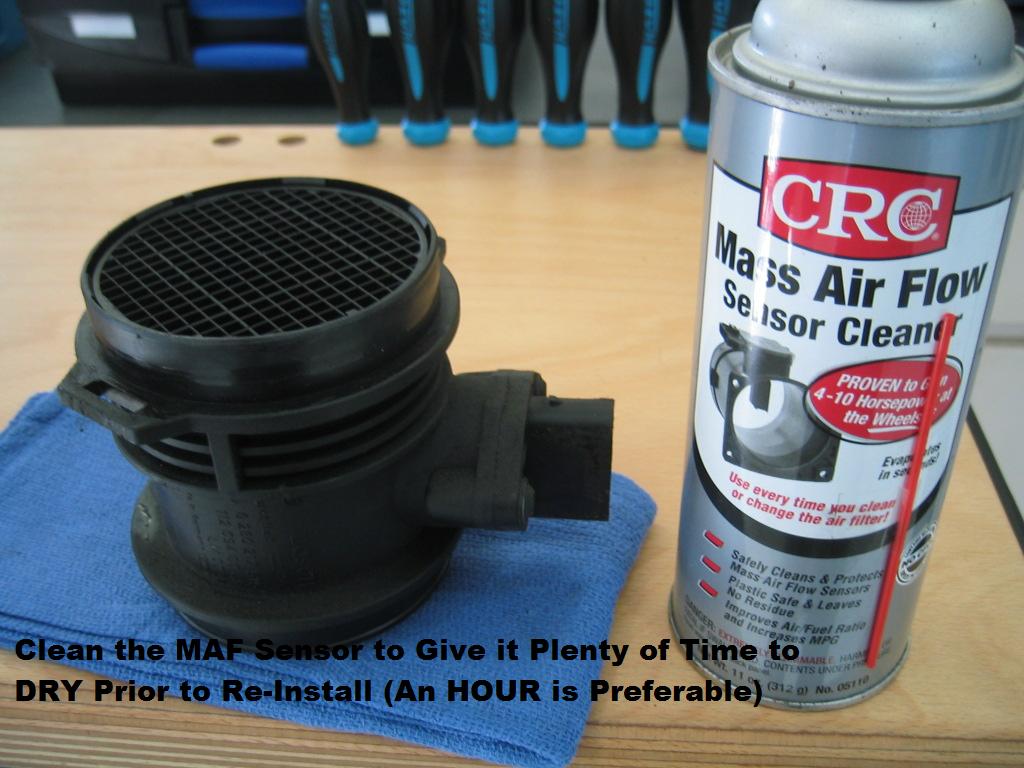

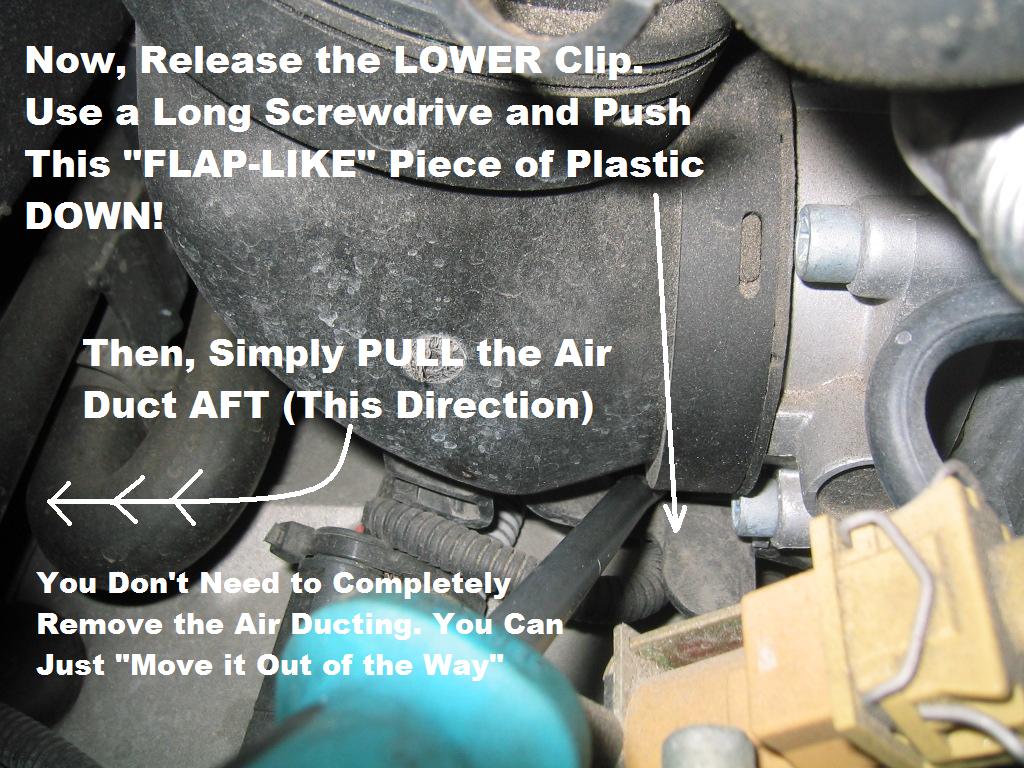

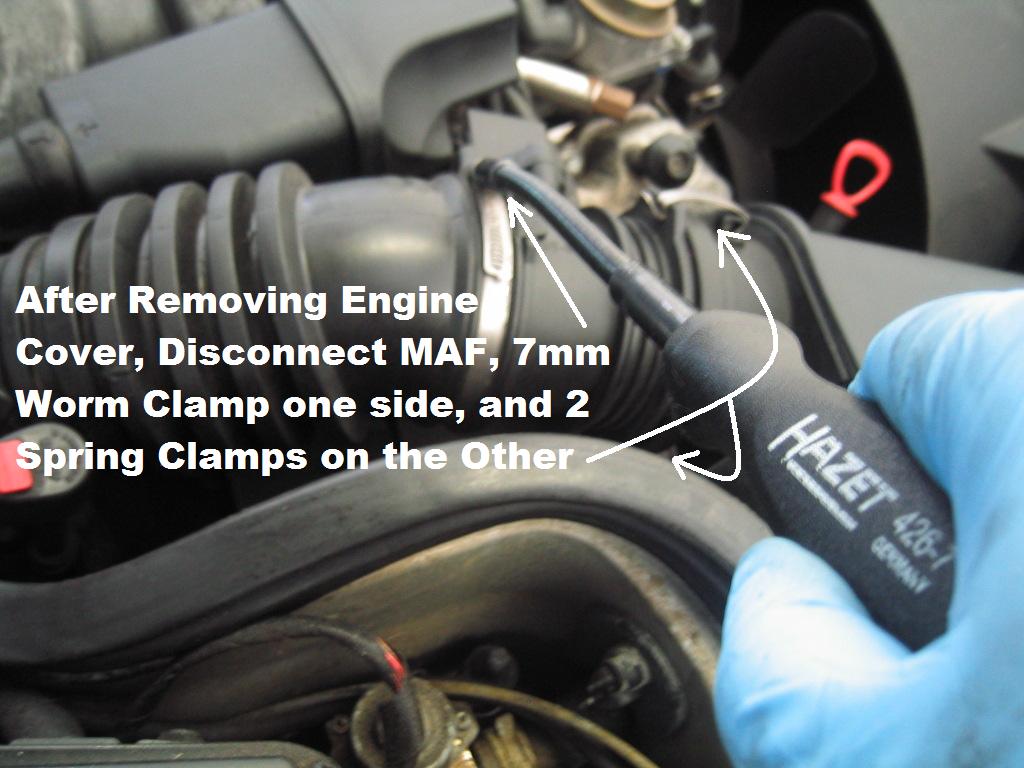

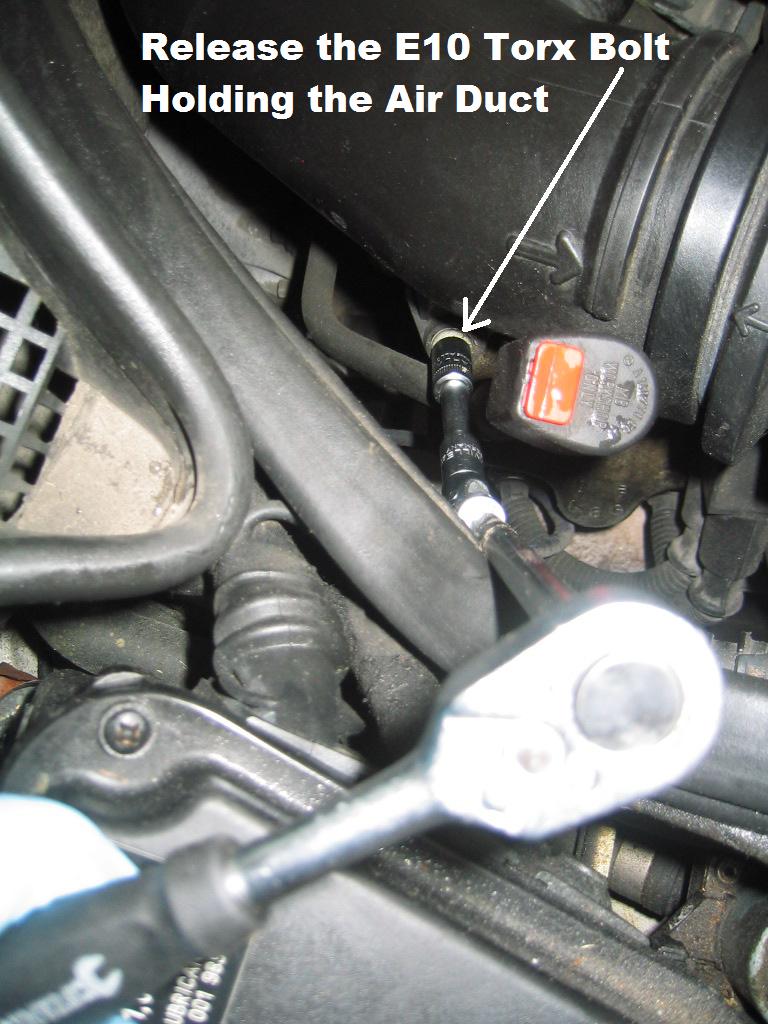

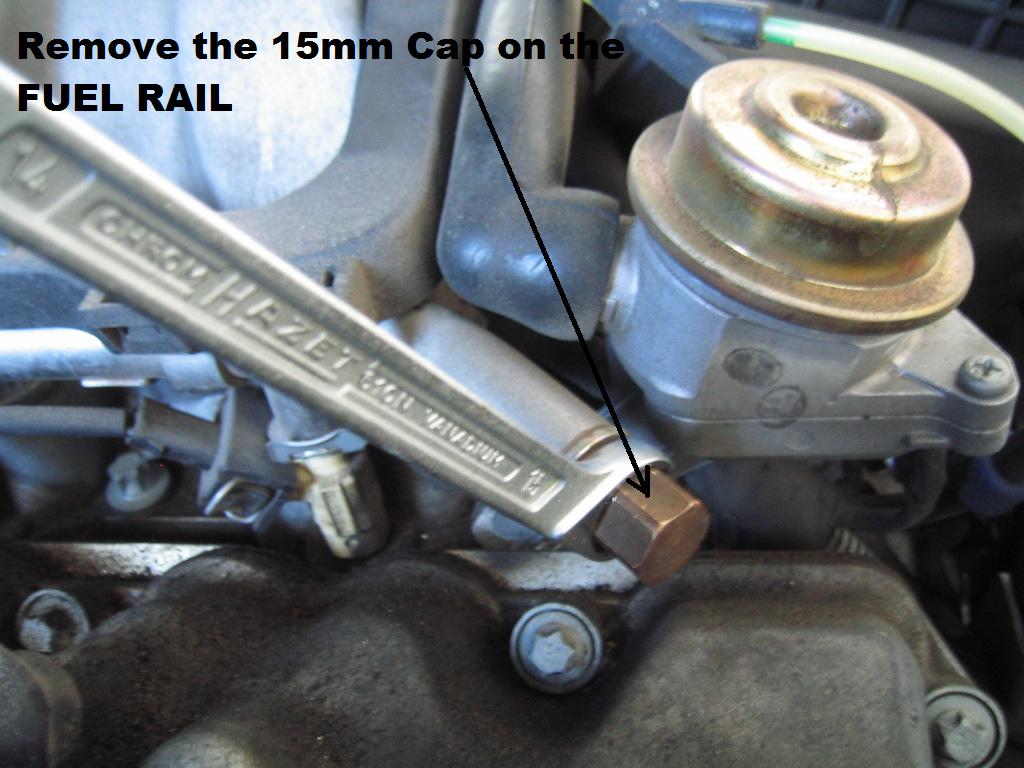

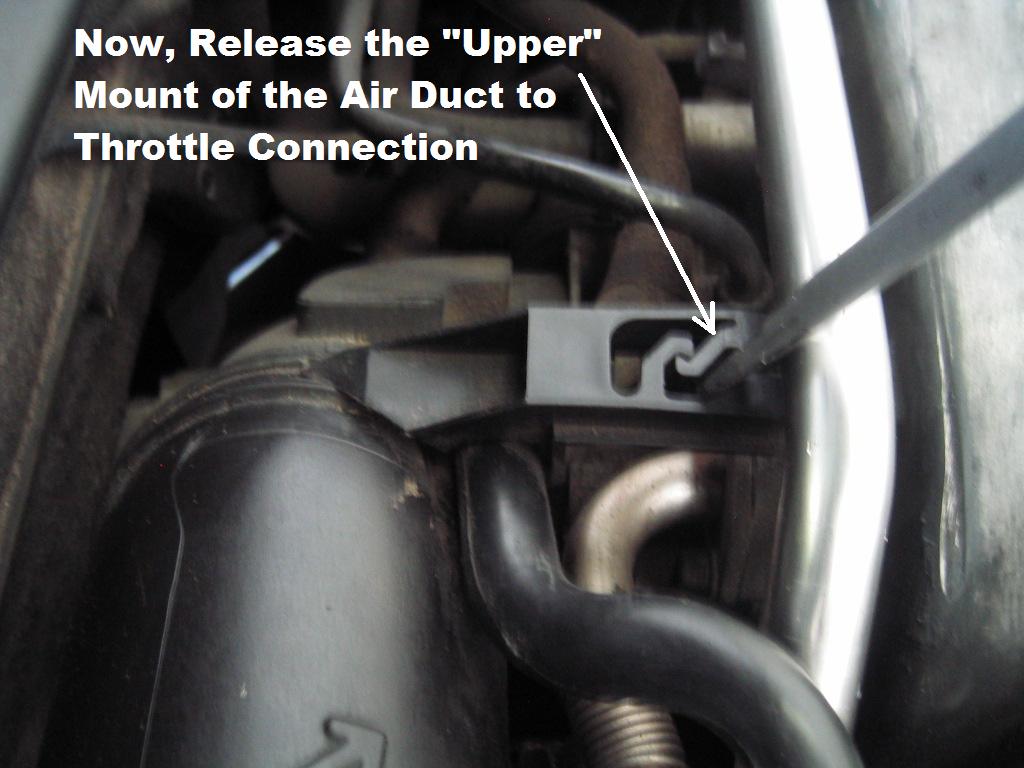

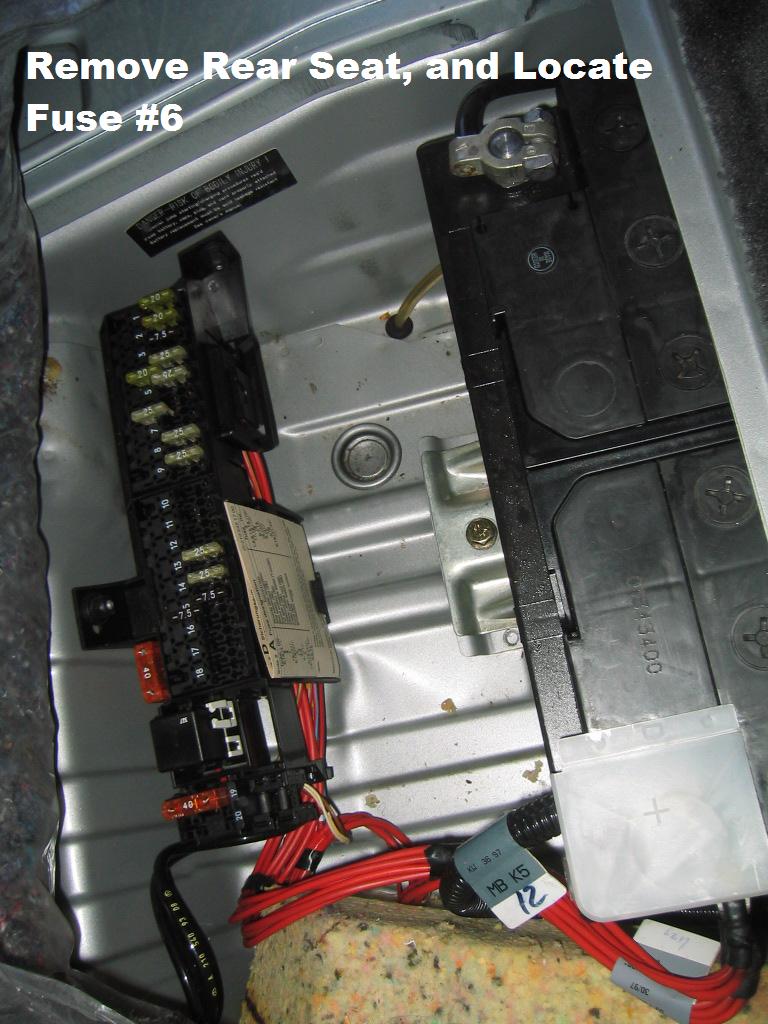

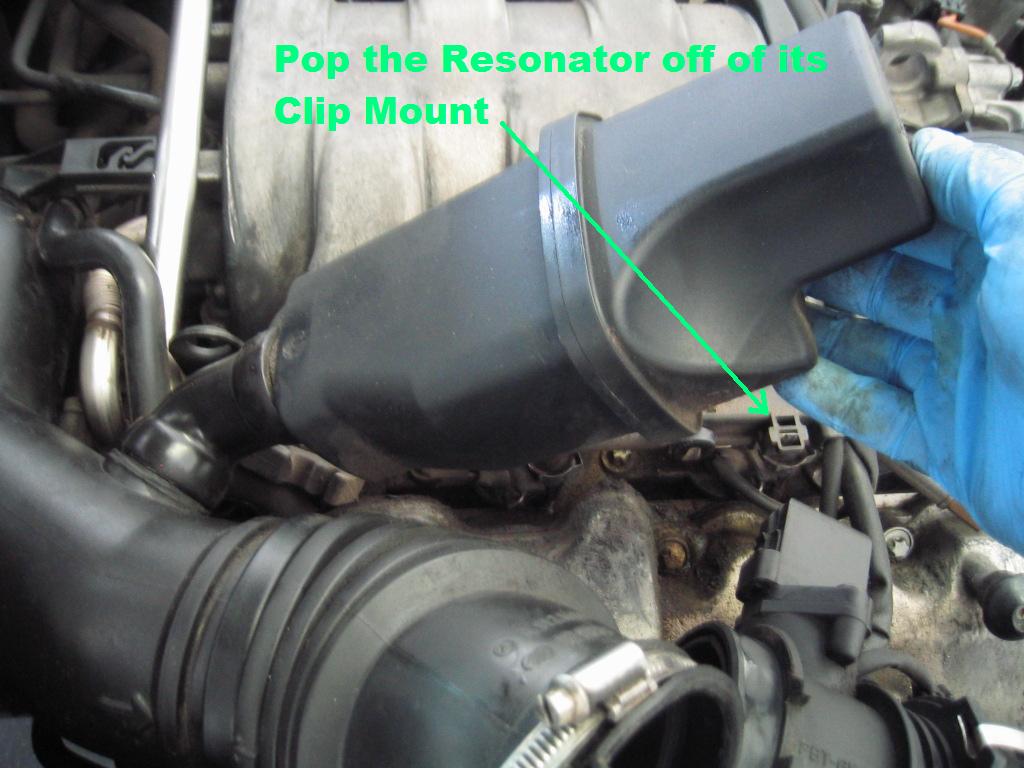

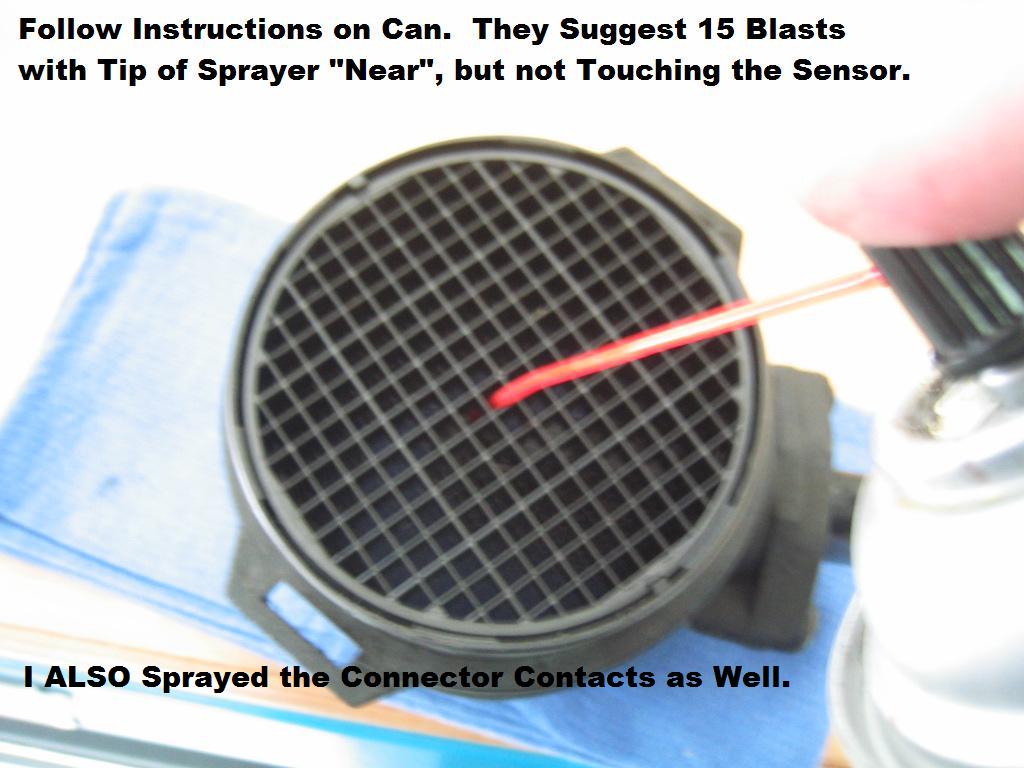

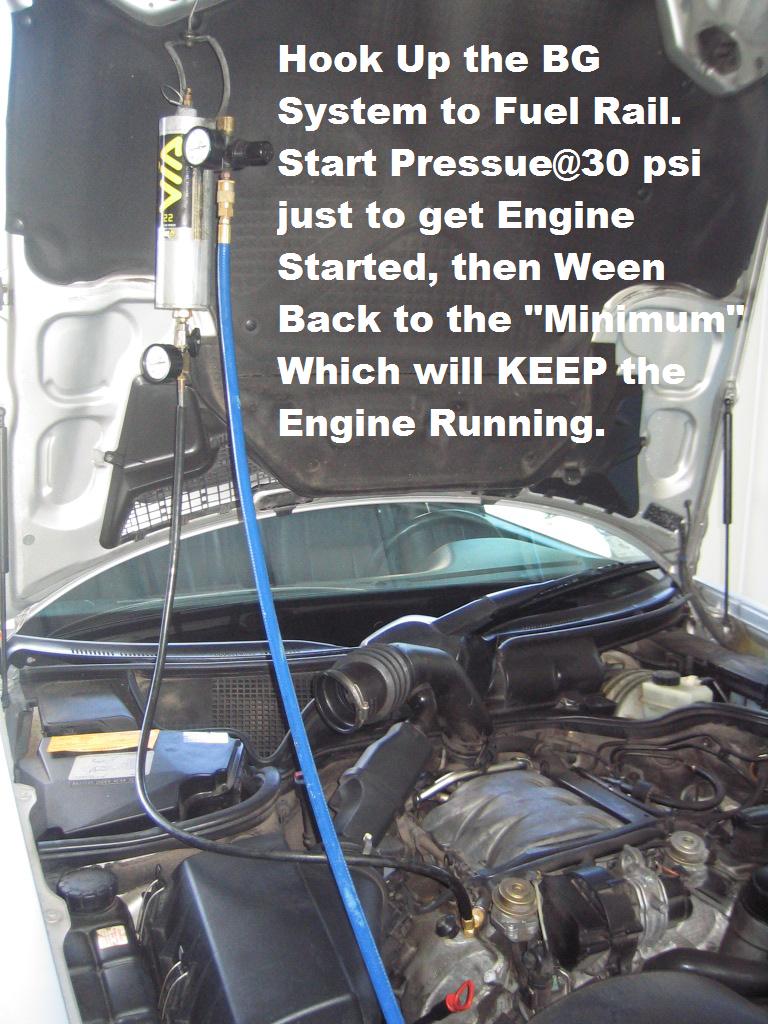

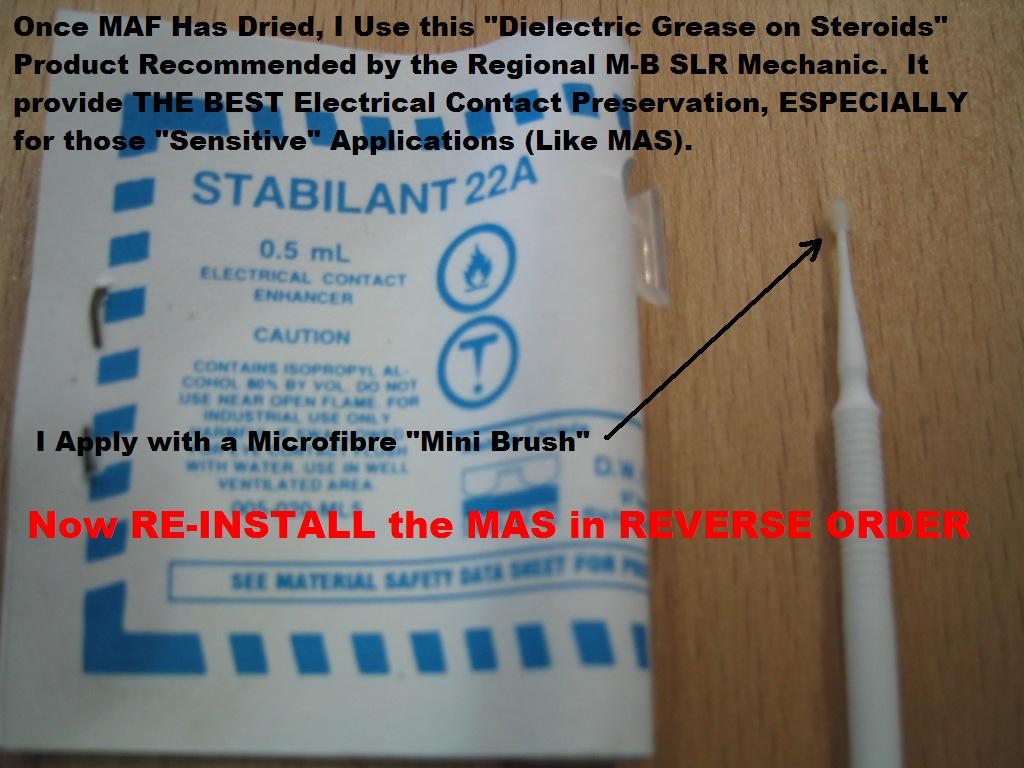

G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | Photo DIY- Complete Fuel System Cleaning Service. Greets. As a Preface- I am NOT Advocating this procedure since it is basically contradicting M-B's Manual "Fuel Additives are Neither NEEDED nor Recommended" The reason "I" am doing this is because TWO of my Trusted MB Lead-Tech's/Master Mechanics (one of which is also on the regional Racing circuit) SWEAR that this is NOT a "Voodoo Chicken"... and one of the Techs states "Their Dealership ROUTINELY does this procedure on ALL Major Services". Since I was working-up a "rough idle" problem on the W140, I was at the "Clean Throttle Body" part of the Mental Diagnostic Flow-Chart. "I might as well service all my cars while I'm at it.." Because I have read a bunch of times the suggestion to "Clean the Throttle Body"... I have YET to run across any PHOTOS of "How To", so I opted to take some pics. I also know several folks recommend MAS cleanings periodically, as well, so I cleaned those while I had them out. The Throttle Body "Flap" is not very accessible to "Open and Close" during the Throttle Body Cleaning Procedure , so I ended up just with the "Standard" Atomized Cleaning, Misting the material into the body neck. Since it is recommended to do the cleaning with the engine WARM, what I did was disassemble as much as possible with the engine COOL, just to make life easier. (1.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) (8.JPG) (9.JPG) (10.JPG) (11.JPG) (12.JPG) (13.JPG) (14.JPG) (15.JPG) (16.JPG) Attachments ---------------- 1.JPG (98KB - 15 downloads) 2.JPG (99KB - 11 downloads) 3.JPG (114KB - 15 downloads) 4.JPG (94KB - 16 downloads) 5.JPG (83KB - 15 downloads) 6.JPG (162KB - 15 downloads) 7.JPG (107KB - 14 downloads) 8.JPG (90KB - 11 downloads) 9.JPG (152KB - 13 downloads) 10.JPG (100KB - 16 downloads) 11.JPG (119KB - 15 downloads) 12.JPG (132KB - 10 downloads) 13.JPG (102KB - 13 downloads) 14.JPG (134KB - 13 downloads) 15.JPG (93KB - 13 downloads) 16.JPG (122KB - 11 downloads) | ||
#177056 | |||
Author |
| ||

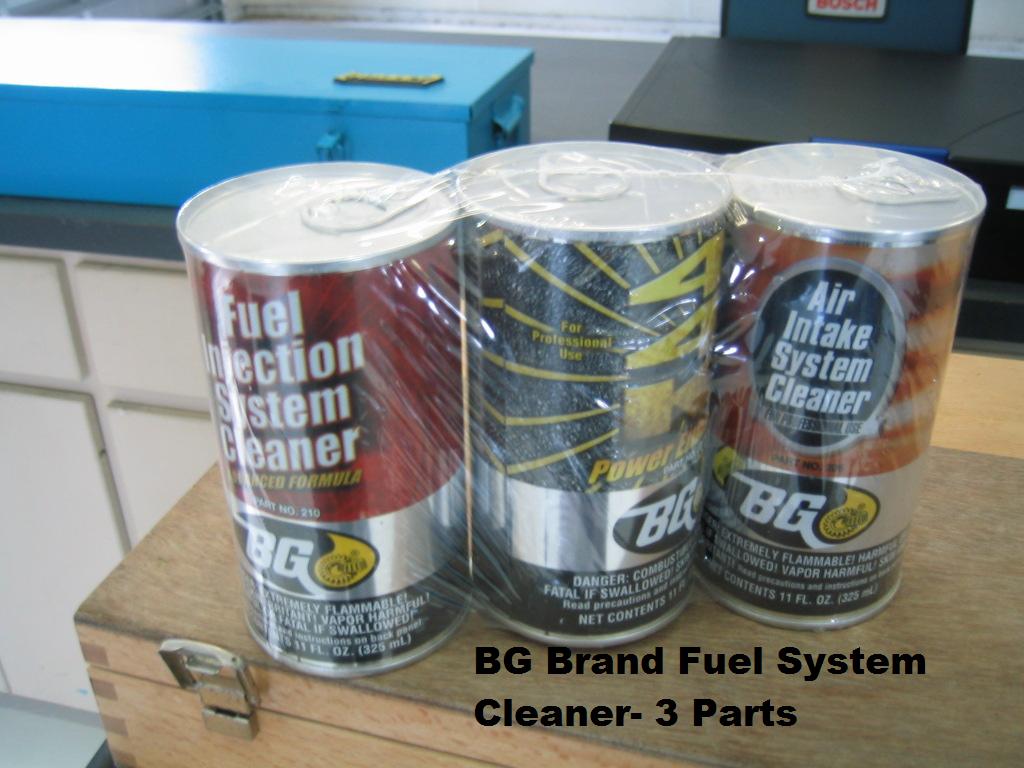

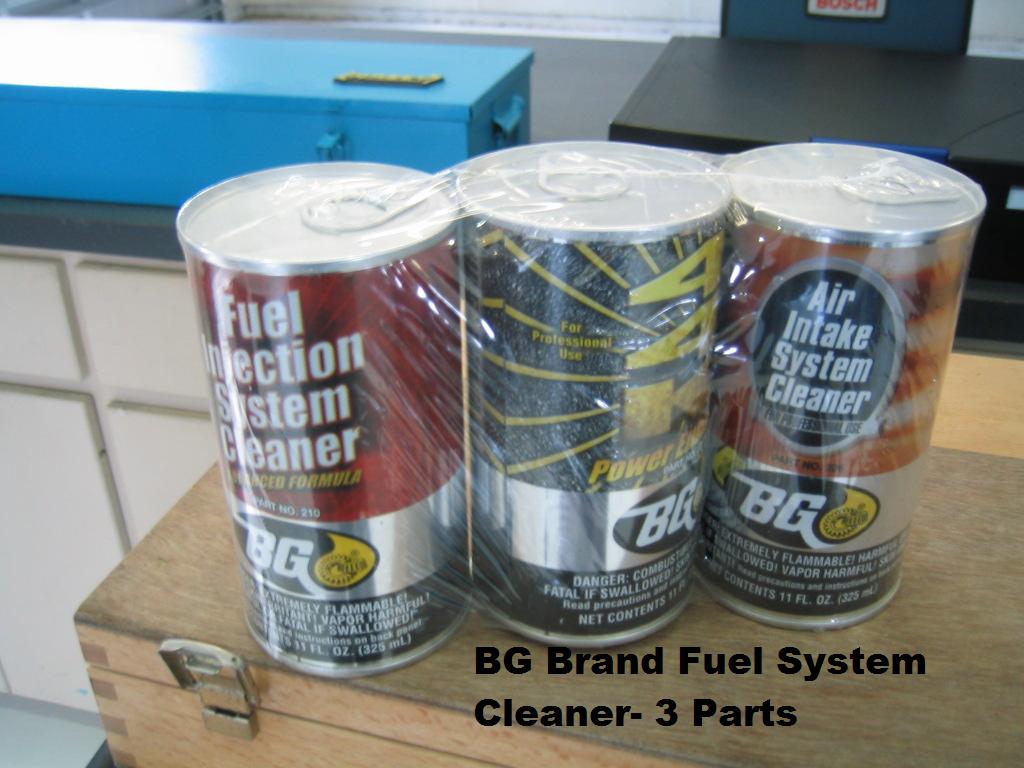

Eyes Member Date registered: Nov 2007 Location: California Vehicle(s): 2000 E320 Posts: 8 | Re: Photo DIY- Complete Fuel System Cleaning Service. Thanks G-AMG Could you please be kind. Tell me where I may order BG Brand fuel system cleaner 3 parts | ||
#177183 - in reply to #177056 | |||
Author |
| ||
G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | Re: Photo DIY- Complete Fuel System Cleaning Service. Eyes - 9/9/2010 7:16 AM Thanks G-AMG Could you please be kind. Tell me where I may order BG Brand fuel system cleaner 3 parts You "should" be able to purchase at your local Auto Parts Store. If not, Ebay, and Internet Sources are available. For ME, my M-B Dealership in town uses the 3 part system in their shop, so I just bought it from them. $22 for the set. G | ||
#177328 - in reply to #177183 | |||
