PHOTO DIY- FUEL FILTER CHANGE

Greetings P3 folks.

Here is a pictorial of the WIS's procedure. I claim no expertise.

It was a suprisingly simple job even for the novice DIY'r.



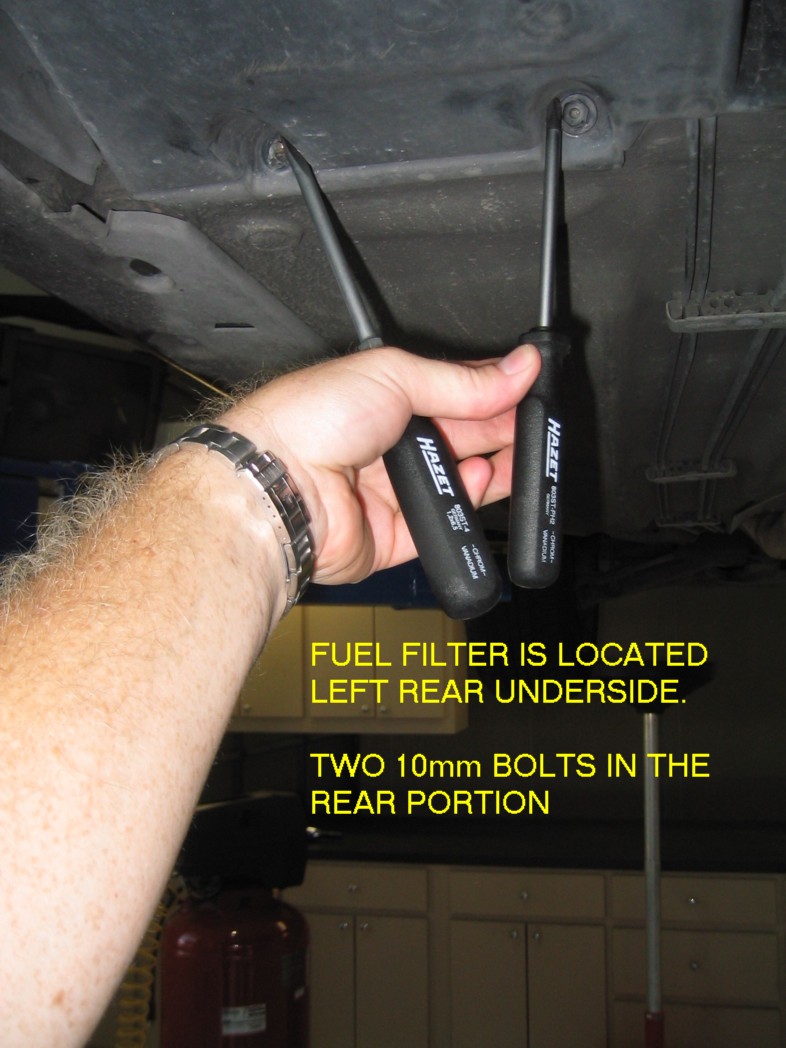

(1.JPG)



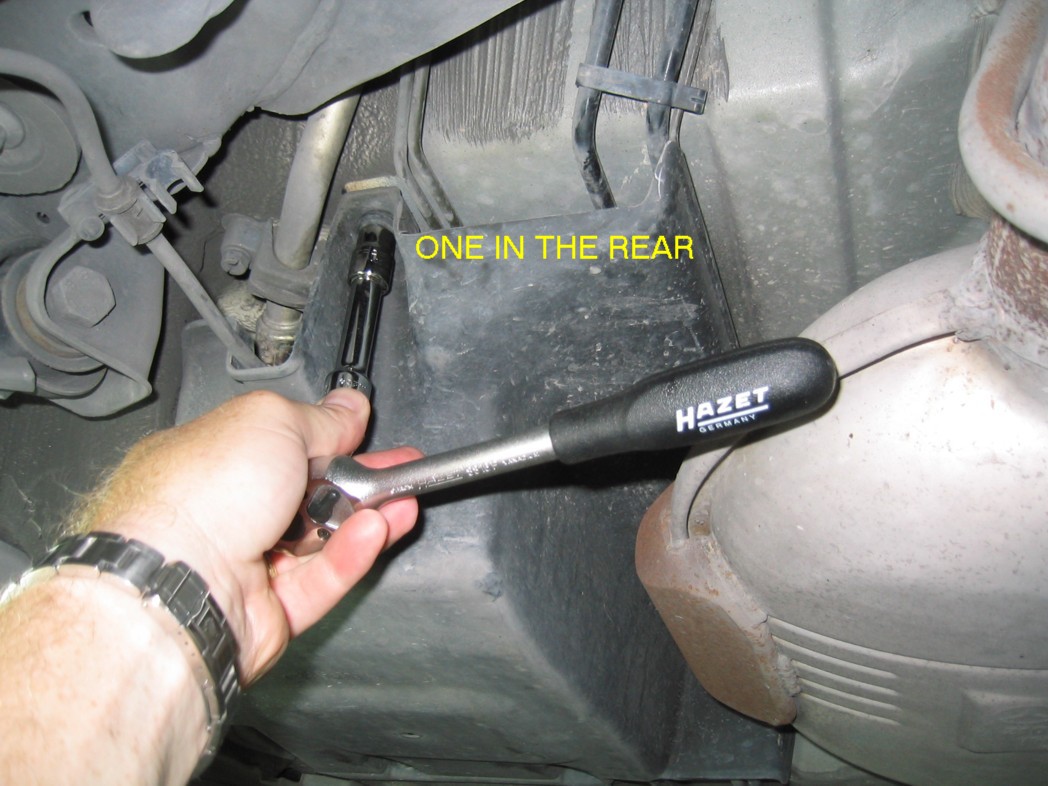

(2.JPG)



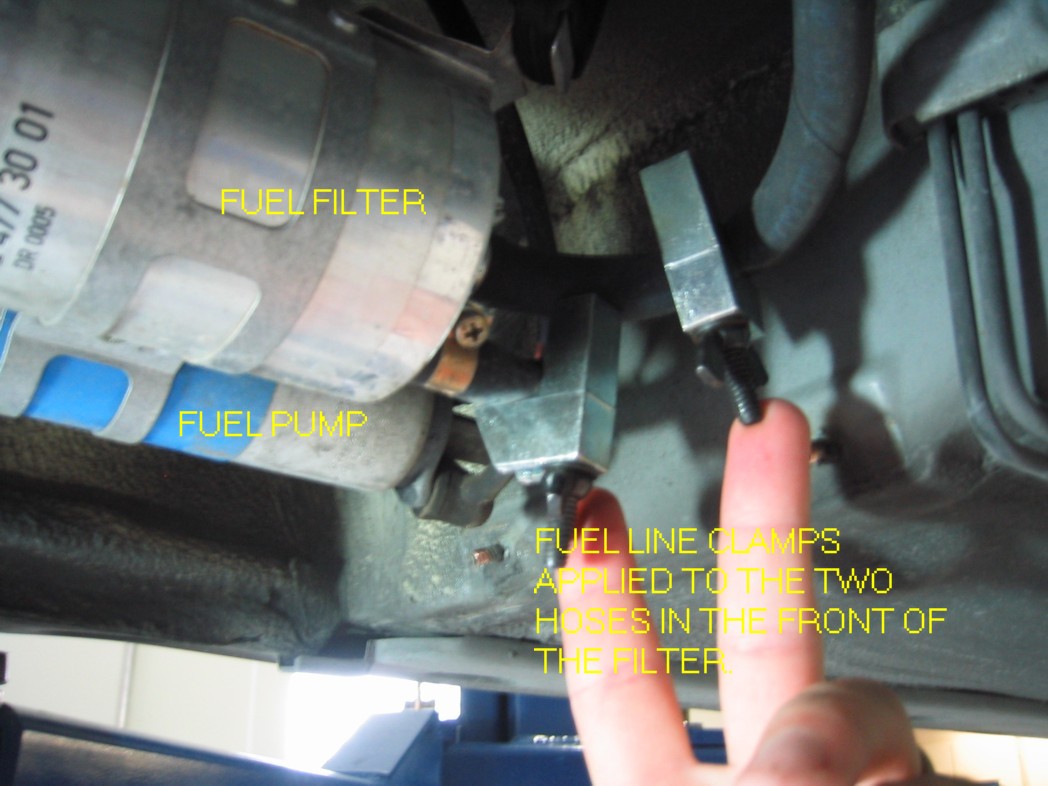

(3.JPG)



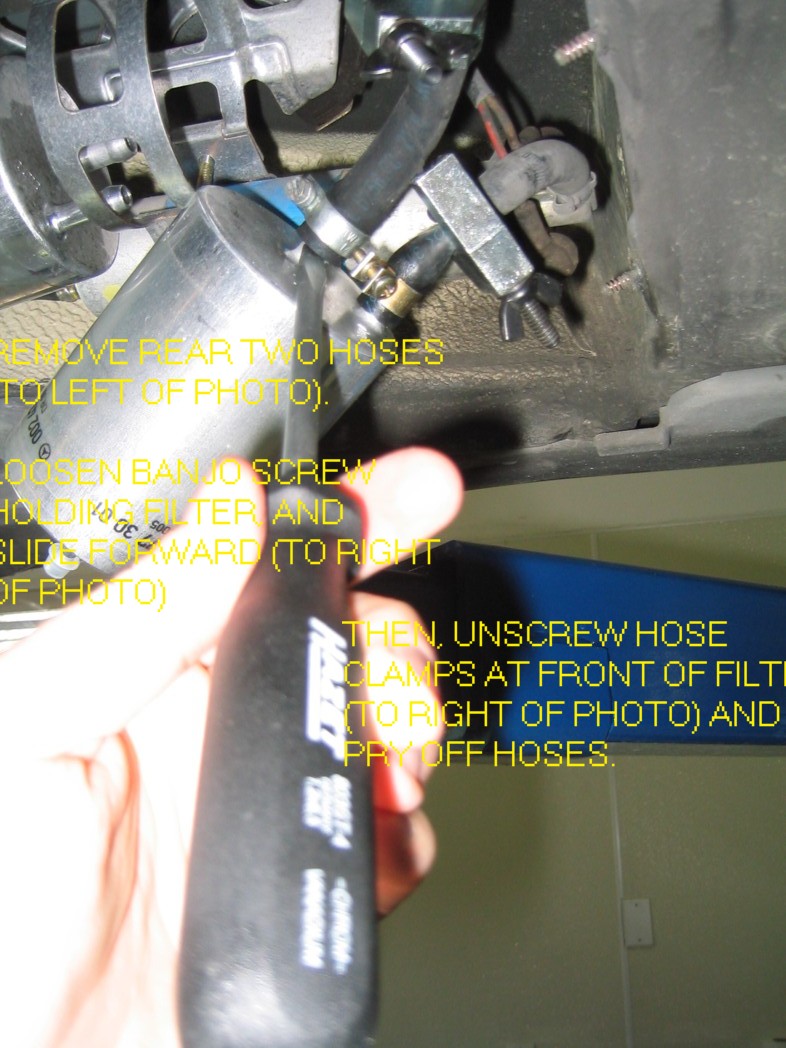

(4.JPG)



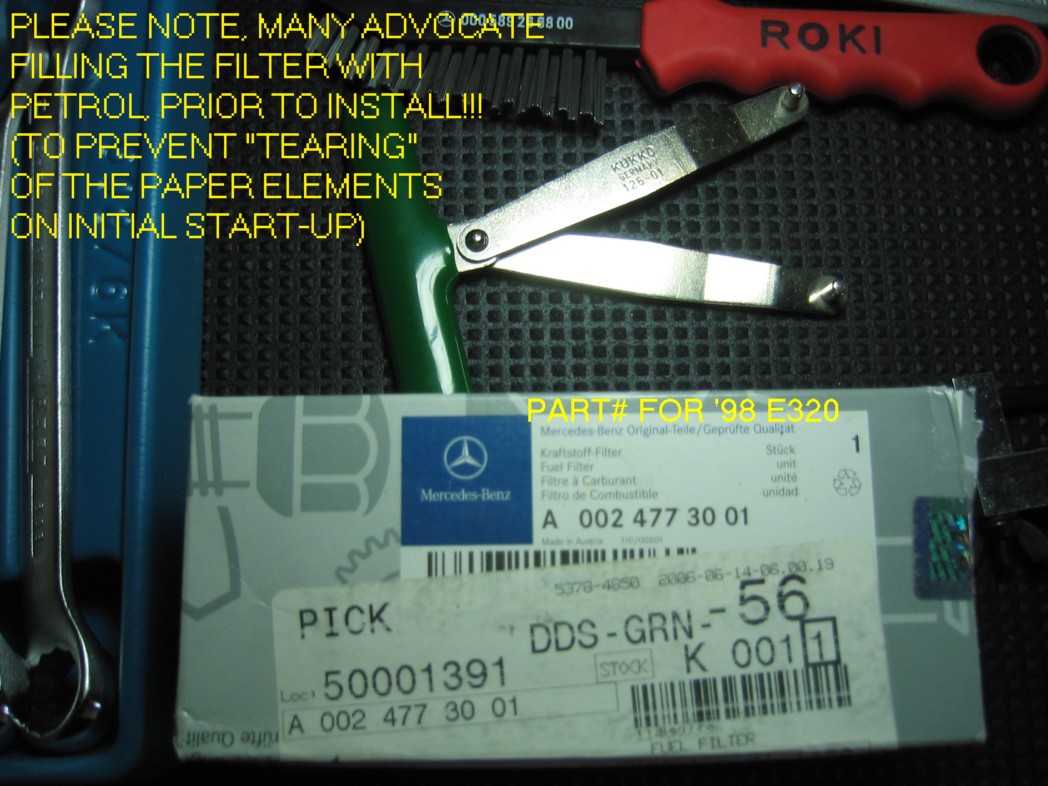

(5.JPG)



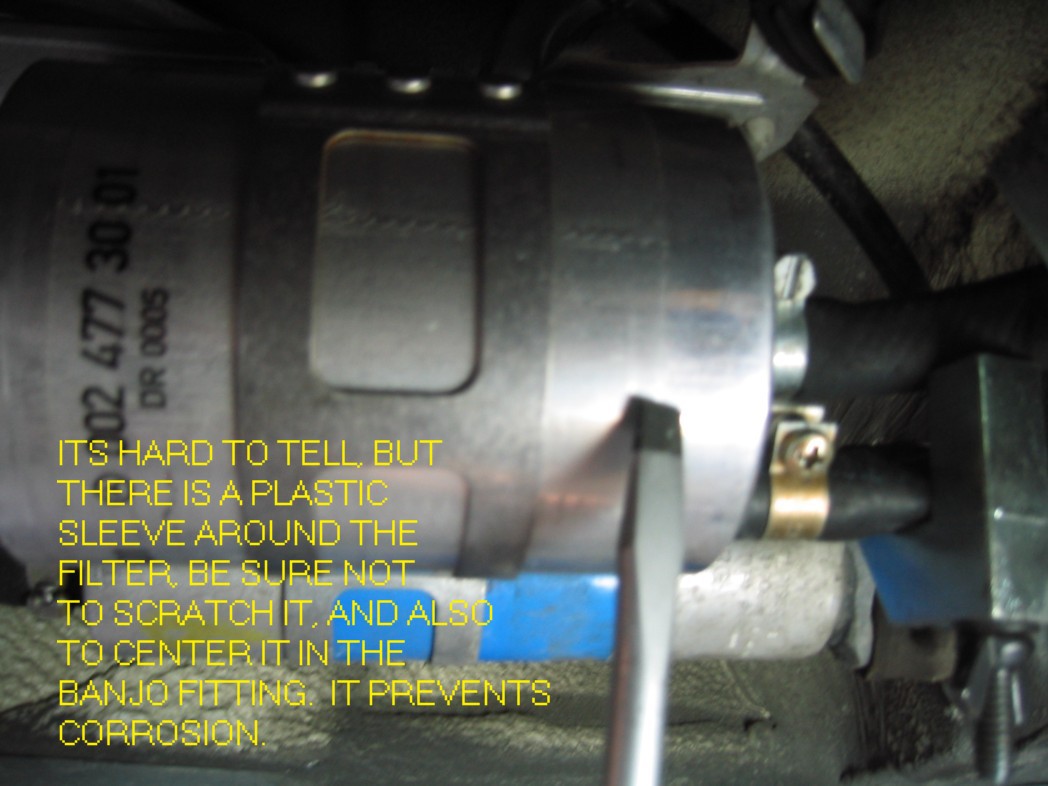

(6.JPG)



(7.JPG)



(8.JPG)



(9.JPG)



Attachments
----------------
Attachments 1.JPG (186KB - 88 downloads)
Attachments 2.JPG (147KB - 75 downloads)
Attachments 3.JPG (168KB - 80 downloads)
Attachments 4.JPG (136KB - 81 downloads)
Attachments 5.JPG (179KB - 70 downloads)
Attachments 6.JPG (204KB - 78 downloads)
Attachments 7.JPG (134KB - 80 downloads)
Attachments 8.JPG (185KB - 83 downloads)
Attachments 9.JPG (205KB - 73 downloads)
#53829
Top of the page Bottom of the page
Author
Posted 3/2/2007 3:02 PM
lkchris
Veteran


Date registered: Nov 2006
Location: Albuquerque
Vehicle(s): '07 GL320CDI, '06 E320CDI
Posts: 144
100
RE: PHOTO DIY- FUEL FILTER CHANGE

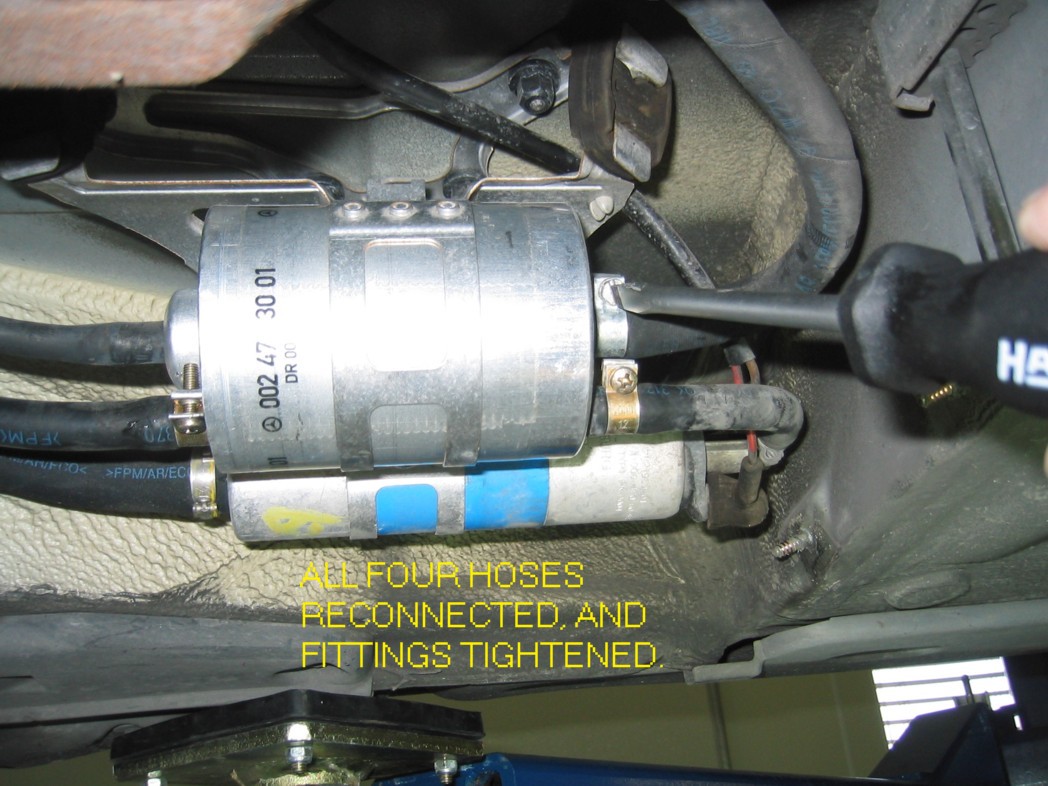

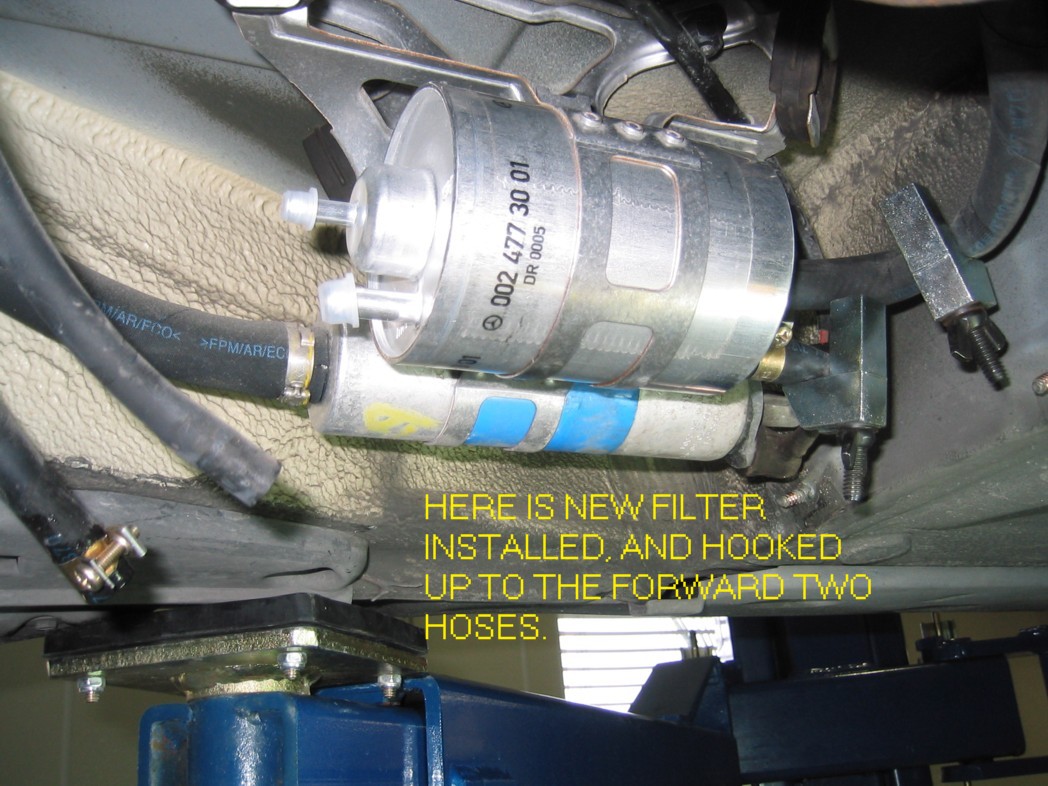

The photo labeled "here is the new filter installed" clearly shows the type hose clamp--on the fuel pump in background--the type clamps ORIGINALLY installed at the fuel filter, too.  They are called CLIC clamps.

The screw-type clamps shown at the fuel fiter in these photos are REPLACEMENTS and NOT OE.

Good to be prepared for this.

Here is a movie showing how to deal with CLIC clamps

http://www.hazet.de/video/VEN15.mpg



Edited by lkchris 3/2/2007 3:03 PM
