Photo DIY- M113 Breather Cover RE-SEALING.
Topic Tools Message Format
Author
Posted 2/5/2015 10:05 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Photo DIY- M113 Breather Cover RE-SEALING.

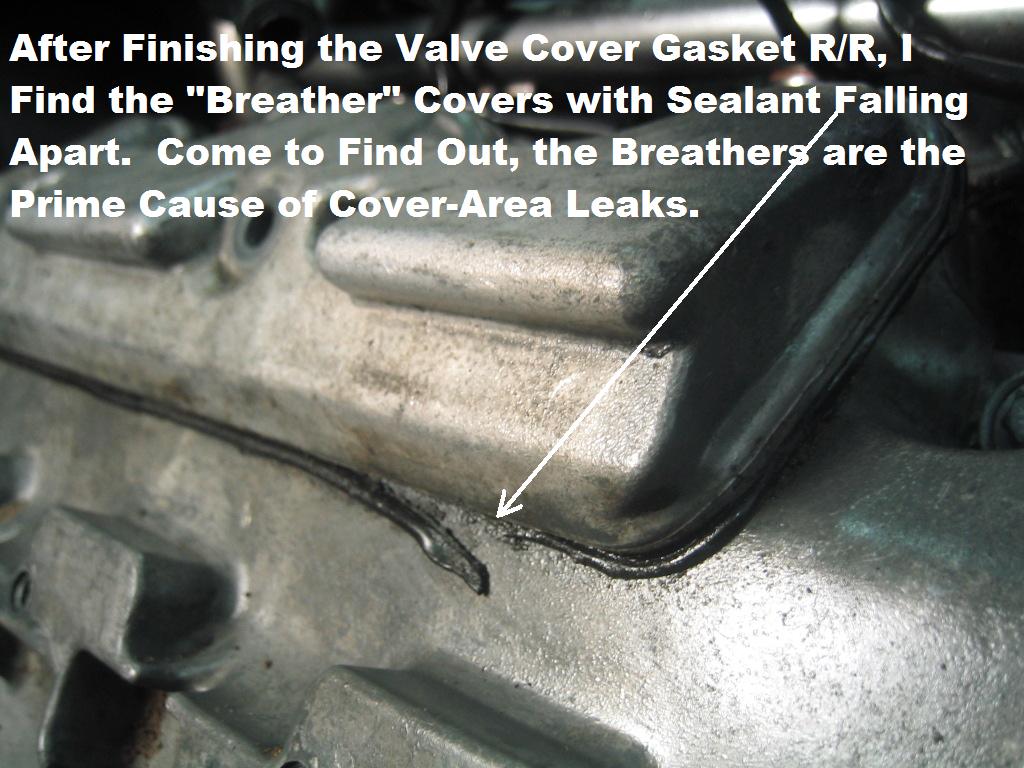

Per my previous DIY, I made the double mistake of NOT re-sealing the Breather Covers. Since, aparently, these are one of the prime causes of Leakes in the valve cover region.

Not a huge deal.... because you can perform the procedure Either with the Valve Covers ON or OFF the Engine. This post is with the Covers ON the Head.

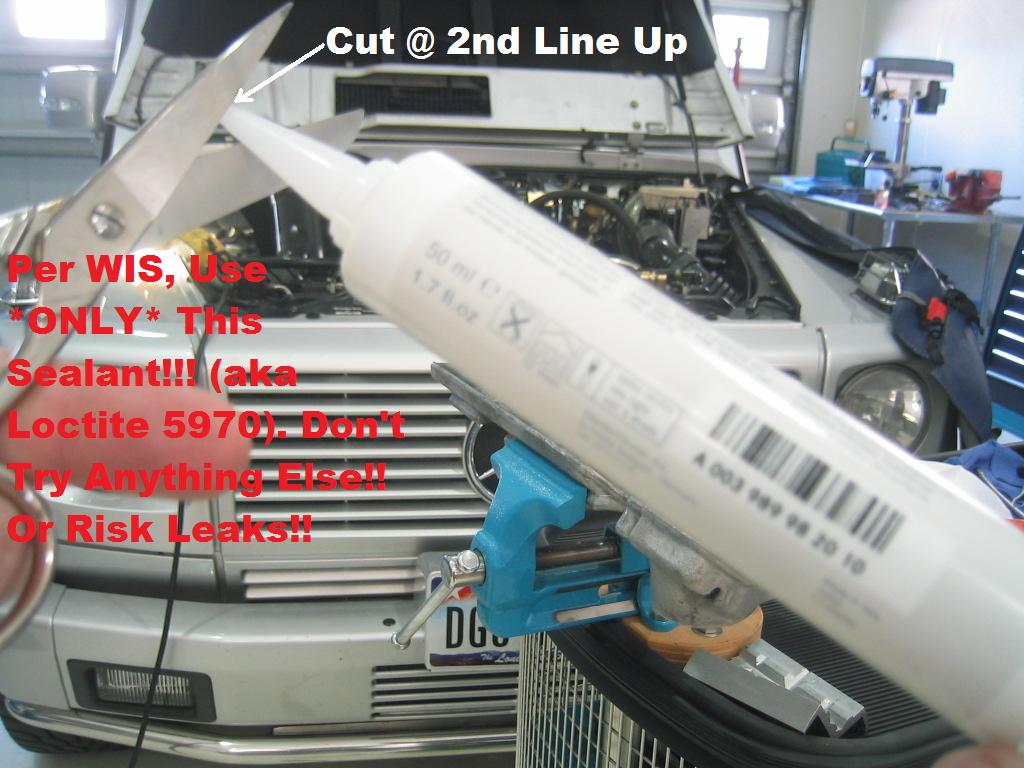

A few words of Caution: ONLY use the Specified Sealant. On the W210 site, there are several folks who tried other material (including well-know German brands), only to have them Re-Leak.

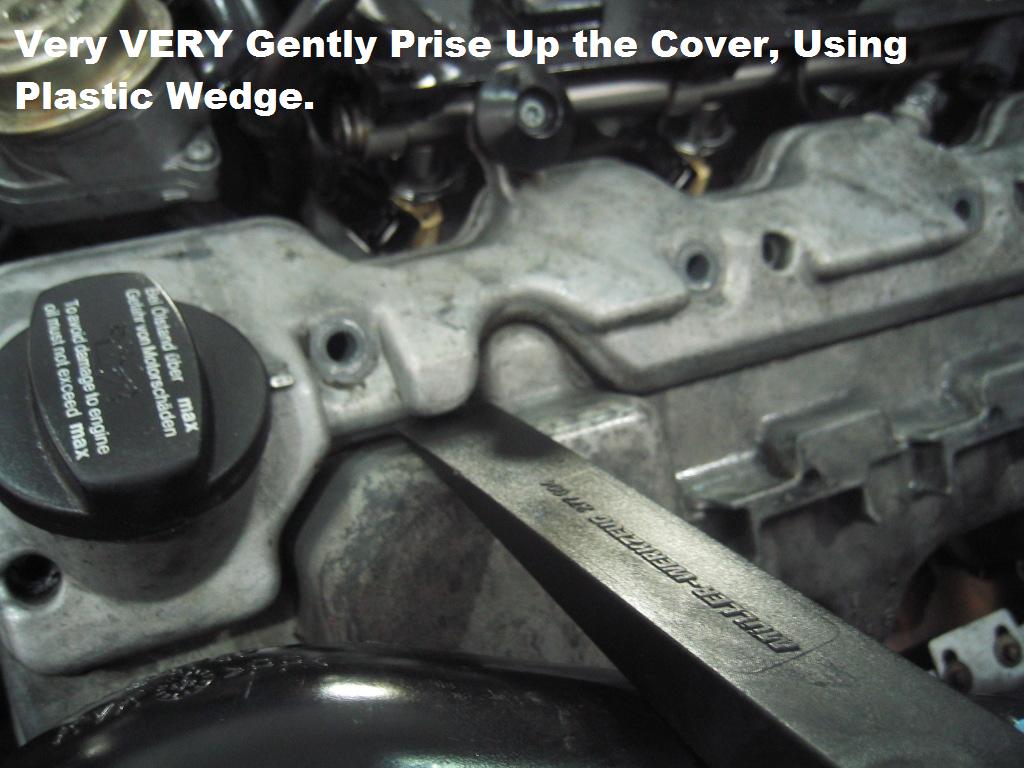

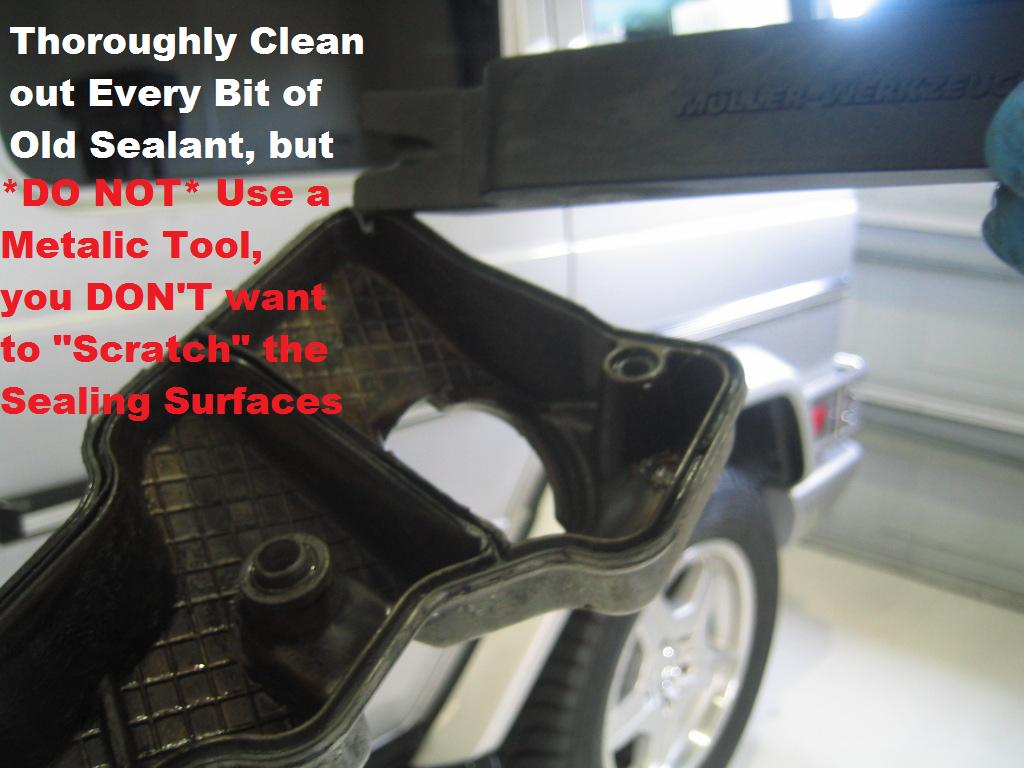

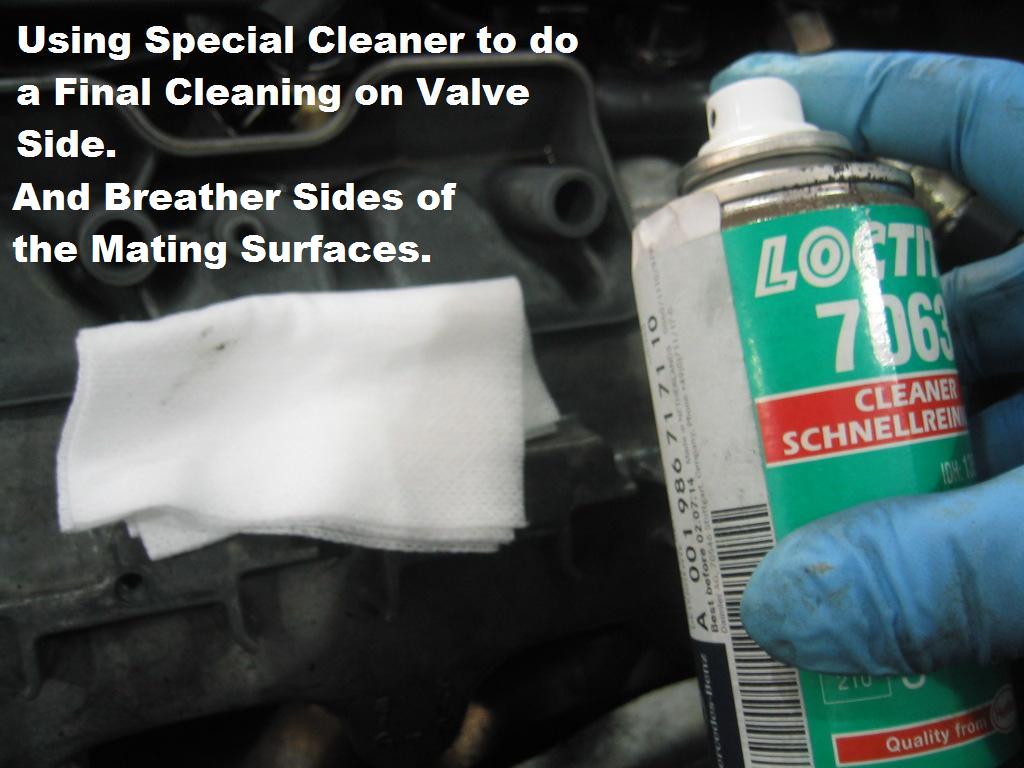

During removal of the OLD Sealant, you can either use a chemical Gasket remover (the Type Specified in WIS is NOT available in the USA, nor was there a M-B Ordering#), or a Non-Scratching/Non-Abrasive method, as I did using a plastic wedge, and my fingers.

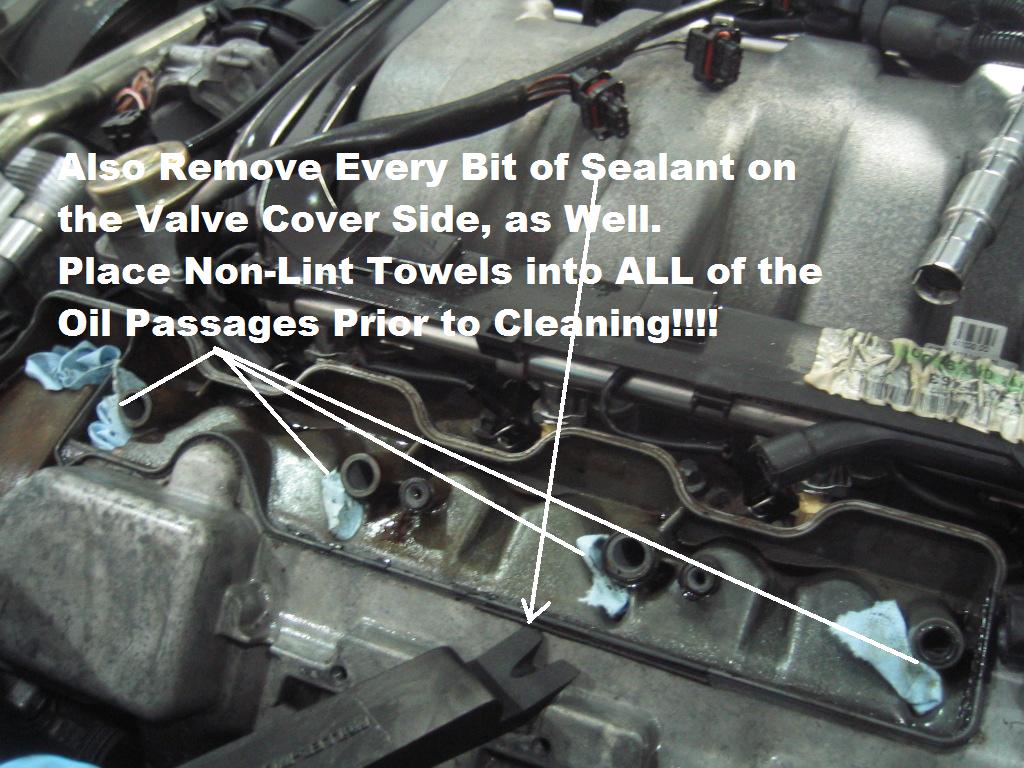

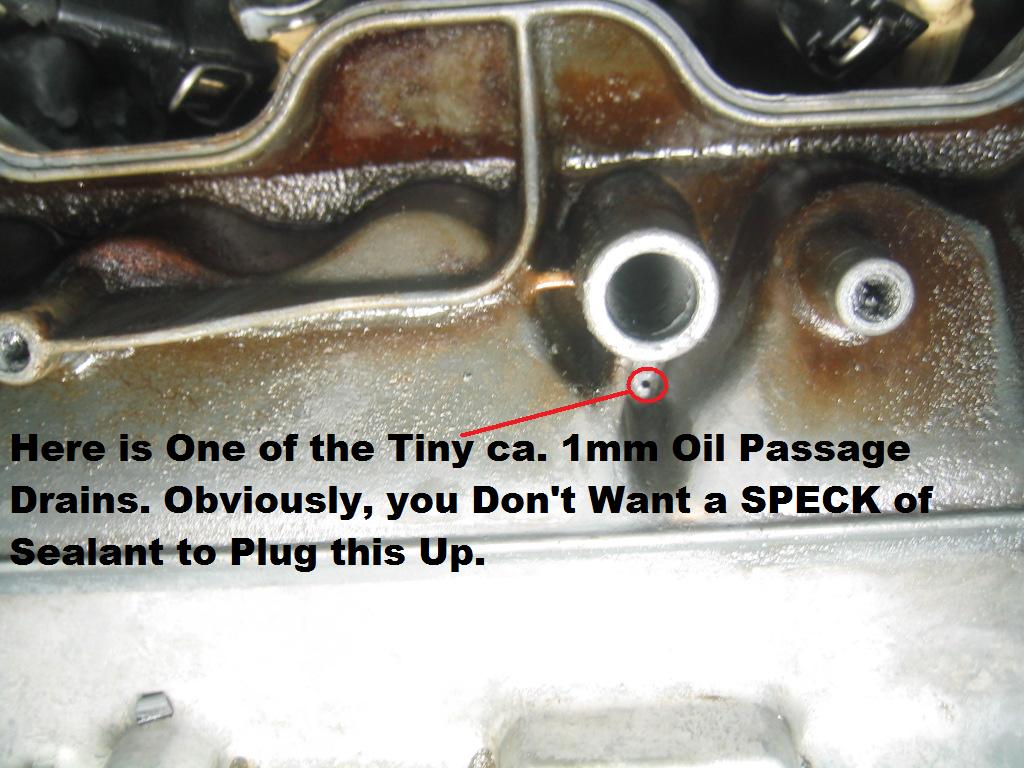

You *MUST NOT GET EITHER THE OLD, OR THE NEW SEALANT INTO THE BREATHER AREAS*, otherwise you might plug one of the tiny Oil Drain Holes.

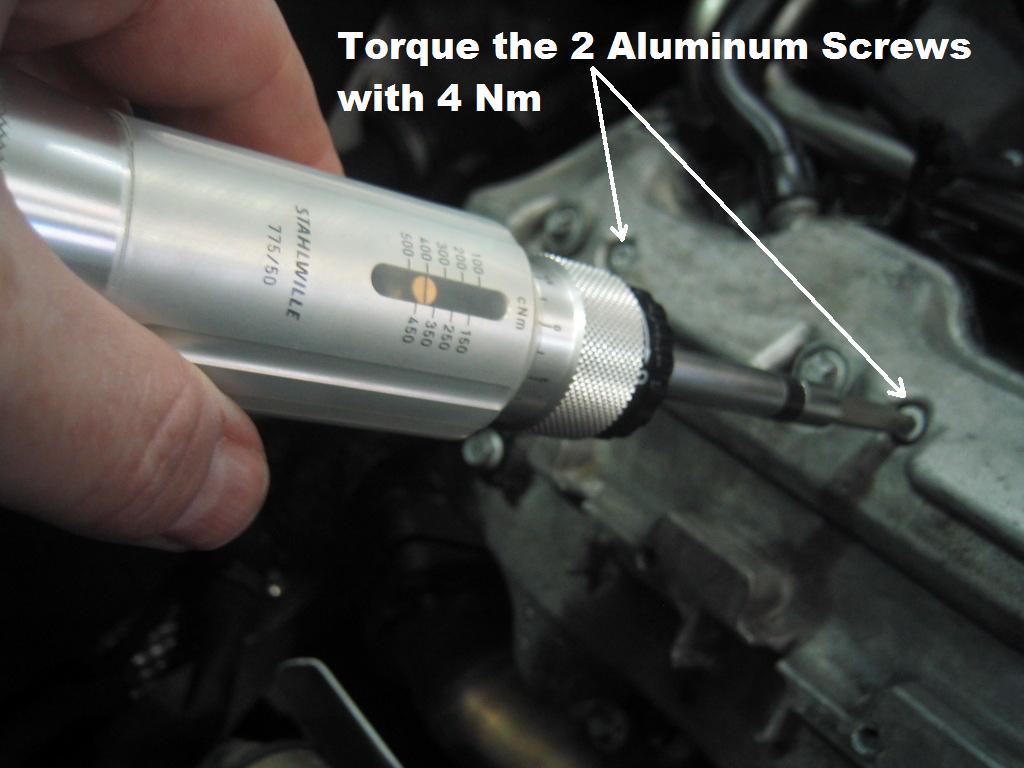

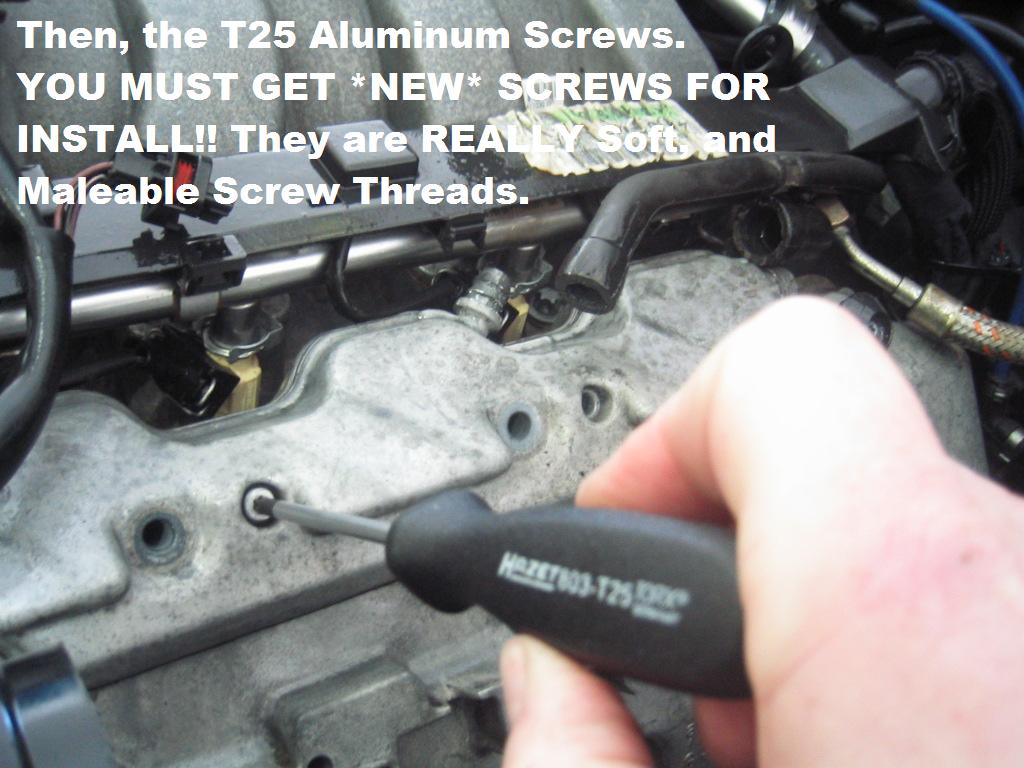

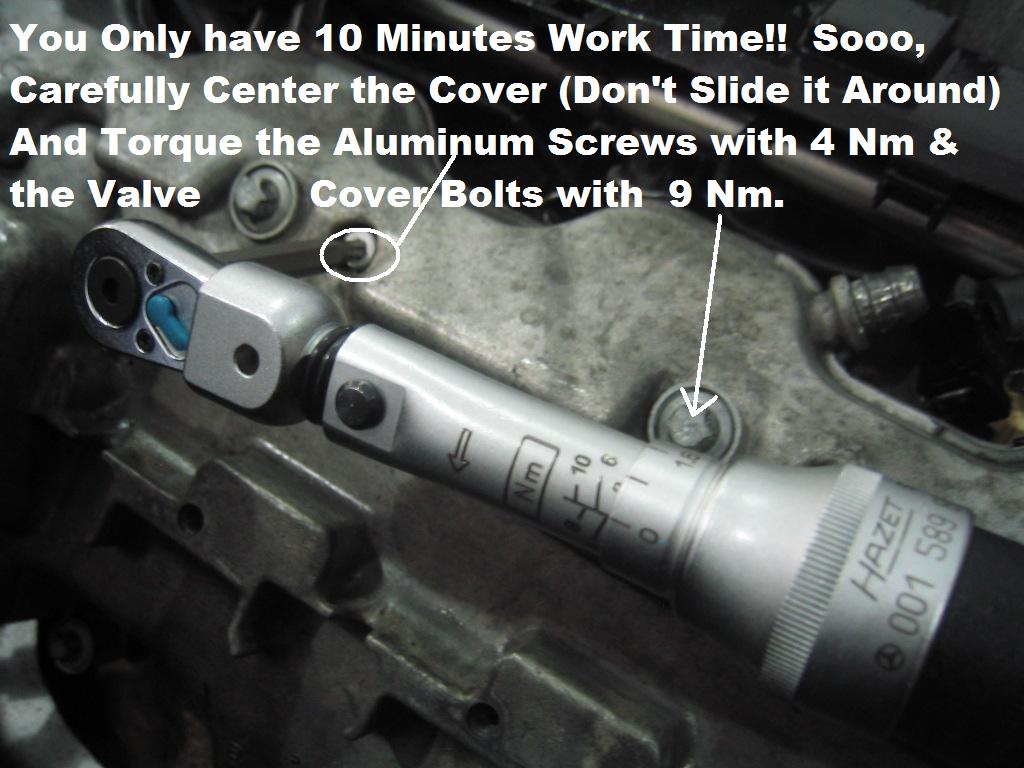

Also, you must purchase New Aluminum Screws.

G



(1.jpg)



(2.jpg)



(3.jpg)



(4.jpg)



(5.jpg)



(6.jpg)



(7.jpg)



(8.jpg)



(9.jpg)



(10.jpg)



(11.jpg)



(12.jpg)



(13.jpg)



(14.jpg)



(15.jpg)



(16.jpg)



Attachments
----------------
Attachments 1.jpg (125KB - 14 downloads)
Attachments 2.jpg (120KB - 13 downloads)
Attachments 3.jpg (106KB - 11 downloads)
Attachments 4.jpg (96KB - 14 downloads)
Attachments 5.jpg (85KB - 13 downloads)
Attachments 6.jpg (137KB - 12 downloads)
Attachments 7.jpg (117KB - 18 downloads)
Attachments 8.jpg (89KB - 13 downloads)
Attachments 9.jpg (111KB - 14 downloads)
Attachments 10.jpg (105KB - 13 downloads)
Attachments 11.jpg (117KB - 14 downloads)
Attachments 12.jpg (106KB - 13 downloads)
Attachments 13.jpg (117KB - 16 downloads)
Attachments 14.jpg (96KB - 11 downloads)
Attachments 15.jpg (71KB - 14 downloads)
Attachments 16.jpg (115KB - 17 downloads)
#226612
Top of the page Bottom of the page
Author
Posted 2/6/2015 6:48 AM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
5000
RE: Photo DIY- M113 Breather Cover RE-SEALING.

Great writeup! Is that sealant the same stuff that is used on the lower oil pan?
#226615 - in reply to #226612
Top of the page Bottom of the page
Author
Posted 2/6/2015 9:00 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
RE: Photo DIY- M113 Breather Cover RE-SEALING.

DUTCH - 2/6/2015 6:48 AM

Great writeup! Is that sealant the same stuff that is used on the lower oil pan?


I'm pretty sure it is.... as well as the Timing Cover Sealing material.
#226620 - in reply to #226615
Top of the page Bottom of the page
Author
Posted 2/6/2015 10:04 AM
jmr89



Date registered: Nov 2012
Location: France
Vehicle(s): Class G W463 320Cab V6 >>Ancien 230 GE Cab 1990
100
Re: Photo DIY- M113 Breather Cover RE-SEALING.

Bravo for this Super work
