DIY Windshield gasket sealent
Topic Tools Message Format
Author
Posted 3/28/2010 6:38 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
DIY Windshield gasket sealent

Caution this post is for entertainment only. Do not try this at home unless you take responsibility for your own work. Nor will I be responsible for lack of entertainment value.

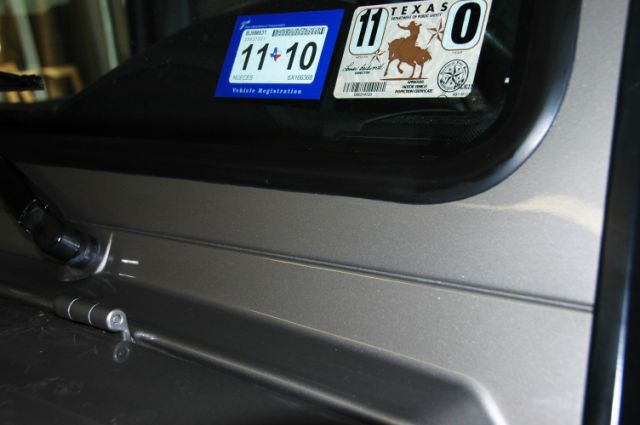

On a flat windshield one of the rust promoting conditions, that is not noticed until damage has occurred, is water getting under the windshield gasket. When you do find a telltale rust bubble forcing the gasket up, it is in an advanced stage that makes for expensive & extensive repairs.
Due to that condition which had developed on a 1989 Montero I owned, I wanted to check my G after washing it.

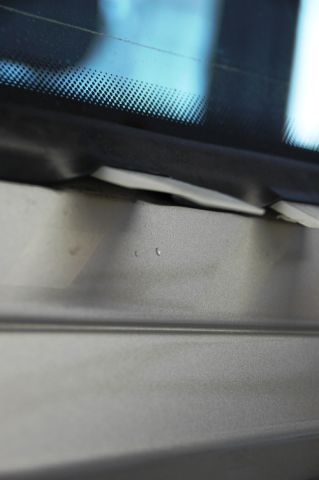

I was upset to find out I had water under the windshield gasket. I checked for this after hand washing & found it was always the same. Water at the base of the windshield on both sides. (Never found any inside the cabin)


Edited by Vehicross99 11/21/2019 3:04 PM




(MBHI 100.jpg)



(MBHIW 012.jpg)



Attachments
----------------
Attachments MBHI 100.jpg (23KB - 27 downloads)
Attachments MBHIW 012.jpg (14KB - 27 downloads)
#168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 6:48 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

My truck is a 2006 with no damage to the gasket and the fit seemed to be snug all around.
Searching on this forum I found this reference to a fix.
http://www.pointedthree.com/disc/forums/showthread.php?tid=7650&pos...

I purchased 1 tube of 3M Automotive Bedding & Glazing Compound. Black. Part No. 08509 (Thanks Dai!) from my local auto paint store.
http://products3.3m.com/catalog/us/en001/government/innovative_solu...

This product is made for filling the voids between the gasket & frame and cleanup is with a dry rag. (More on this later!)
#168774 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 6:49 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

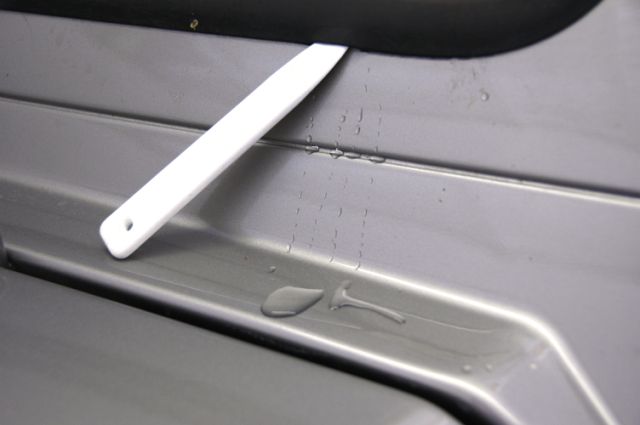

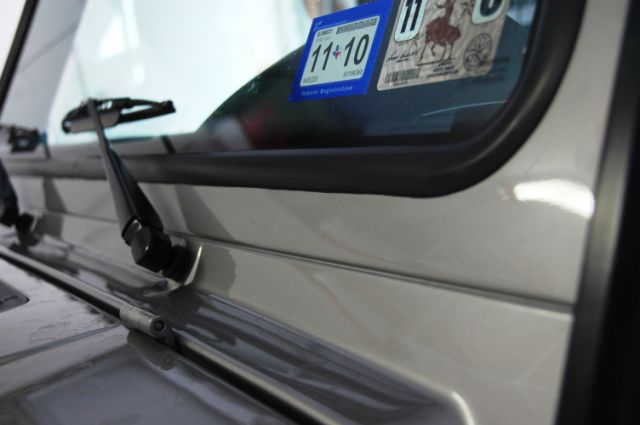

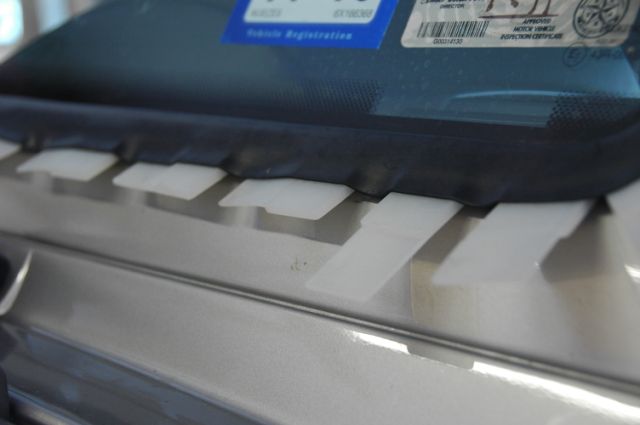

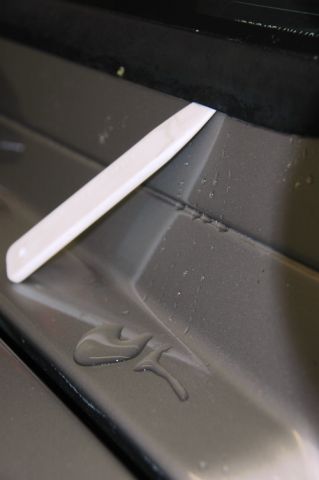

I dried the area with forced air under the gasket while it was pried open with plastic shims.
The one tool that helped with moving the gasket lip is a MB interior tool that is sold by one of the G parts vendors. I also used this tool a lot when installing the Brake Controller wiring. (A future DIY post)
http://www.fourbyfourclub.com/W463Tools/W463Wedge.htm



Edited by Vehicross99 3/28/2010 6:51 PM




(DSC_0972.JPG)



(DSC_0974.JPG)



Attachments
----------------
Attachments DSC_0972.JPG (15KB - 25 downloads)
Attachments DSC_0974.JPG (23KB - 26 downloads)
#168776 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 6:55 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

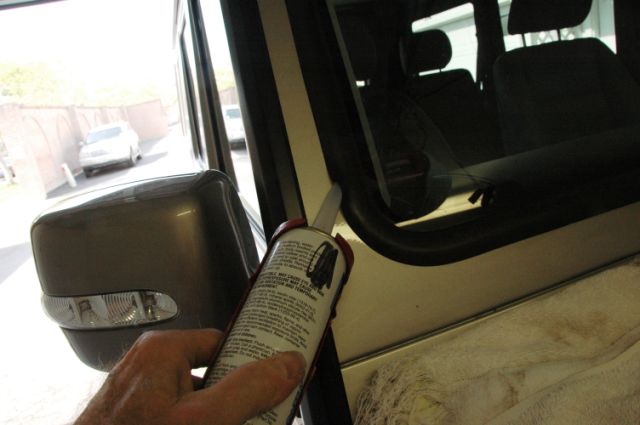

I would advise doing this with a helper as it is a bit awkward at times getting the calk tube nozzle to follow the gasket. I did it alone so it is possible but harder.

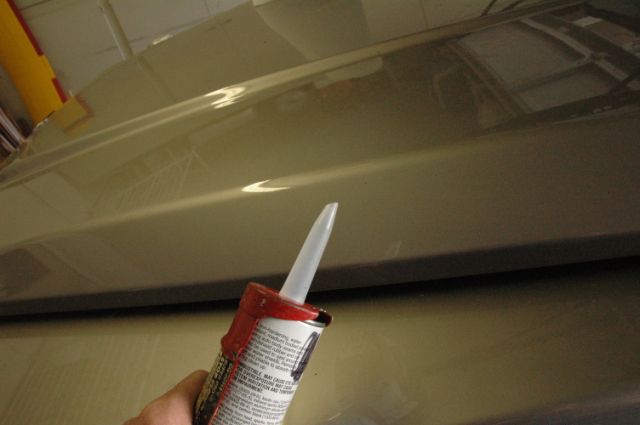

I cut the nozzle and marked the side of the cartridge so that I would know where the nozzle angle was while using the caulk gun. I had to re-cut the nozzle for a larger opening due to the thickness of the glazing compound after I started. It is quite hard to pump with a std caulk gun.




(DSC_0979.JPG)



Attachments
----------------
Attachments DSC_0979.JPG (24KB - 25 downloads)
#168781 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 6:57 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

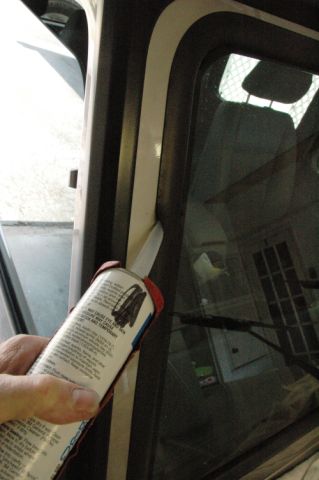

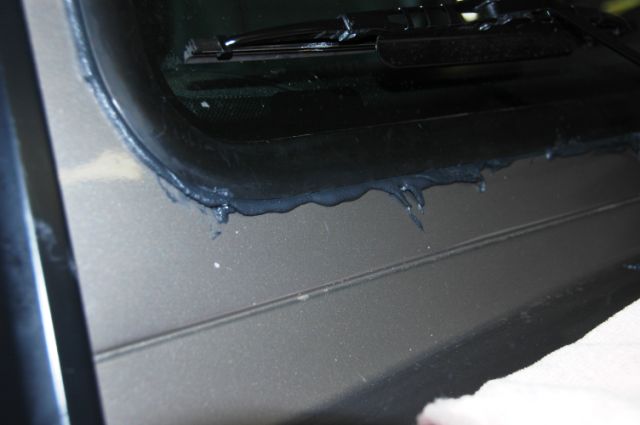

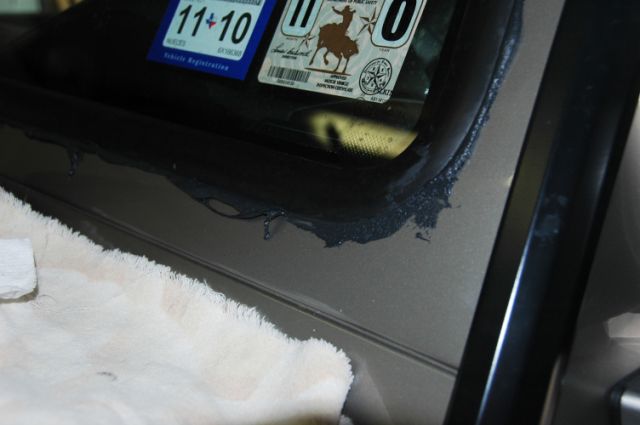

Apply enough of the glazing compound to be assured that the voids are filled. That will give you oozing black sticky stuff coming out all around the gasket. Pay attention to what you touch, where you place your hands, what you lean up against, etc because no matter how careful you are you will be plagued with spots of this stuff starting to show up every where.
This is also about the time you will be come acquainted with what it takes to “remove with a dry rag” After finishing pumping the whole tube completely around the entire windshield I thought that this should be easier to clean up than boat caulk and you do not have a cure time to worry about.




(DSC_0980.JPG)



(DSC_0981.JPG)



(DSC_0982.JPG)



Attachments
----------------
Attachments DSC_0980.JPG (33KB - 25 downloads)
Attachments DSC_0981.JPG (22KB - 16 downloads)
Attachments DSC_0982.JPG (28KB - 23 downloads)
#168782 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 7:00 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

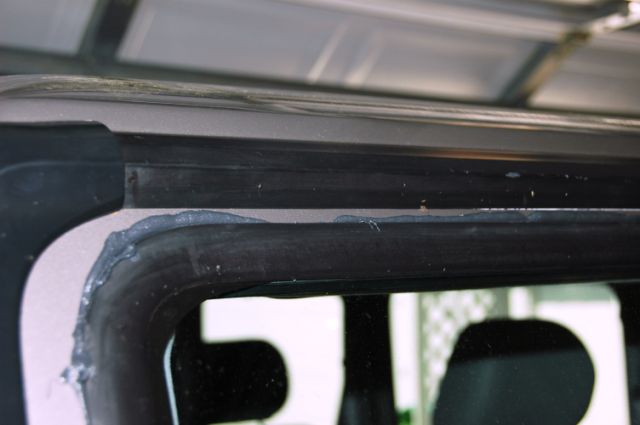

More of the gasket after filling.



(DSC_0983.JPG)



(DSC_0984.JPG)



Attachments
----------------
Attachments DSC_0983.JPG (26KB - 18 downloads)
Attachments DSC_0984.JPG (27KB - 20 downloads)
#168784 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 7:01 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

Well after finding that the darn stuff just about would not come off my hands with a dry cloth nor with a cloth soaked in alcohol. I set out to wipe the gasket & paint down. I scraped the excess off with scrap plastic credit card material. Then started to wipe off what was left. Same results, very difficult to remove & stuck to the gasket like semi-hardened glue.

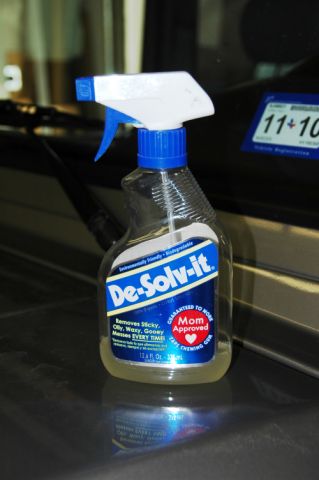

Trying to figure out what to use other than a harsh solvent was difficult but I finally remembered what I had used successfully, removing old weather-stripping adhesive off the aluminum door, on my old Airstream when replacing the rotten door gaskets. It is safe & not harsh on materials. I had managed to find it in the local Ace hardware store.
I had some left and this worked great.



(DSC_0988.JPG)



Attachments
----------------
Attachments DSC_0988.JPG (21KB - 27 downloads)
#168785 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 7:03 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Windshield gasket sealent

In 30 minutes I had it completely cleaned up by just placing a small amount on a small cut up rag and wiping the surface. I found it was all that was needed to be able to clean and smooth the gasket down with a slightly dampened rag, turning & replacing with a new rag when needed. (Have lots of cut up rags available. They work better than paper towels)





(DSC_0985.JPG)



(DSC_0986.JPG)



Attachments
----------------
Attachments DSC_0985.JPG (30KB - 18 downloads)
Attachments DSC_0986.JPG (29KB - 23 downloads)
#168786 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 7:22 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
Re: Photo DIY Windshield gasket sealent

FYI There was no indication that the gasket was retaining water under it. It was just one thing on my list of things to check and I'm glad I did.
#168790 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/28/2010 10:14 PM
Indiana Drew
Expert




Date registered: Feb 2007
Location: Houston Tx
Vehicle(s): 2002 G500 LWB, 1980 280GE SWB (Sold), S500
Posts: 2223
2000
Re: Photo DIY Windshield gasket sealent

I had my windshield replaced last month and there was some surface rust under the gasket ... Thanks for the tip ...
#168801 - in reply to #168790
Top of the page Bottom of the page
Author
Posted 3/29/2010 1:33 AM
T.Schuhe
Elite Veteran




Date registered: Apr 2006
Location: Olympia, Washington State, USA
Vehicle(s): 460 1985 LWB 300GD five speed
Posts: 711
500
RE: Photo DIY Windshield gasket sealent

Thank you for this, Reg. You have inspired me to use this approach. Thank you for the photos and the PM.

Best wishes,

Tom

#168810 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/29/2010 7:10 AM
Inkblotz
Expert




Date registered: Apr 2006
Location: Georgia
Vehicle(s): 90 300GD "Thundering Turtle II", w/ 603A turbo
Posts: 3186
2000
Re: Photo DIY Windshield gasket sealent

Makes me want to wedge a few black plastic shims in the lower edge to allow water run off till I get around to it.

M
#168814 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/29/2010 7:24 AM
Indiana Drew
Expert




Date registered: Feb 2007
Location: Houston Tx
Vehicle(s): 2002 G500 LWB, 1980 280GE SWB (Sold), S500
Posts: 2223
2000
Re: Photo DIY Windshield gasket sealent

Inkblotz - 3/29/2010 6:10 AM Makes me want to wedge a few black plastic shims in the lower edge to allow water run off till I get around to it. M

I was wondering where I would find some shims and your comment reminded me that I have a boat load from installing a cork floating floor in the kitchen. I believe the windshield installer did use some sealant, but I'm not sure how much. I have a much advanced problem with the windshield frame in the 280 ...

#168815 - in reply to #168814
Top of the page Bottom of the page
Author
Posted 3/29/2010 8:53 AM
Jonathan Joseph
Expert




Date registered: Oct 2006
Location: Charleston, South Carolina
Vehicle(s): 2004 G55
Posts: 1538
1000
RE: Photo DIY Windshield gasket sealent

Water doesn't collect under my gasket, I have these wonderful holes that allow it to drain out, onto my feet which is a pleasant cooling sensation when it's hot outside!

Jonathan
#168816 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/29/2010 9:48 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
Re: Photo DIY Windshield gasket sealent

Link for De solv it. This stuff worked on 50 year old gasket adhesive on a Airstream door that acetone/paint remover/etc would not soften or remove from the aluminum.

http://www.orange-sol.com/household/index.html
Drew, my shims were from a flooring project too. Work good as they do not scratch the paint!

Edited by Vehicross99 3/29/2010 9:55 AM
#168818 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/29/2010 10:18 AM
hus55
Expert




Date registered: Apr 2006
Location: north cyprus,lapta.
Vehicle(s): 300GDS, G300 LONG,300GDT CLK55 AMG CAB.
Posts: 2230
2000
RE: Photo DIY Windshield gasket sealent

fantastic tip mate ! i will get round to doing mine soon.
#168819 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/30/2010 12:33 PM
Otiswesty
Administrator




Date registered: Jun 2007
Location: Portland, Oregon
Vehicle(s): 463.241, 461.213
Posts: 3013
2000
Re: Photo DIY Windshield gasket sealent

Consider also sealing between the glass and gasket.

Nice write up.

Edited by otiswesty 3/30/2010 12:34 PM
#168921 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/30/2010 2:13 PM
BlueG
Elite Veteran


Date registered: Aug 2009
Location: DC
Vehicle(s): 2003 G500
Posts: 714
500
Re: Photo DIY Windshield gasket sealent

Could one just seal the top and sides allowing the bottom for drainage or is the bottom also the problem?
#168933 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 3/30/2010 5:31 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
Re: Photo DIY Windshield gasket sealent

BlueG,
The water collects in the bottom trough and sits there due to the angle of the metal. That’s where the rust will start. I had no idea there was water under the gasket until, a few days after washing it, I pried up the gasket in a bottom corner just out of curiosity. (I wanted to check this because I knew that area had been a known rust spot)
I was surprised at the amount that came out.
I do believe that it was the upper corners that were not totally sealing perfectly around the curve but you could not tell that by their appearance.
In fact the whole gasket looked flawless and in good contact with the paint.
I did it to seal AND fill all the voids under the gasket!

Thanks for the kind words otiswesty

Edited by Vehicross99 3/30/2010 5:33 PM
#168947 - in reply to #168772
Top of the page Bottom of the page
Author
Posted 6/3/2010 3:10 PM
sps
Veteran


Date registered: Oct 2007
Location: "G" is in the DC area
Vehicle(s): 2000 G500 Cabriolet plus others
Posts: 236
100
Re: Photo DIY Windshield gasket sealent

Mine is holding some H2O also. Is this just the design? I'm wondering if it really is a problem.
#173022 - in reply to #168772
