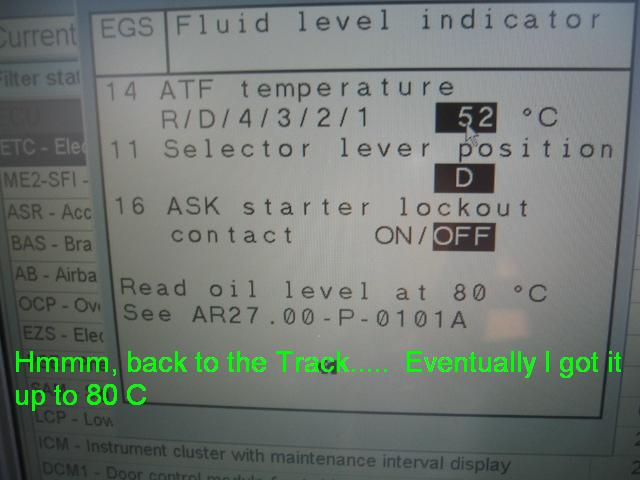

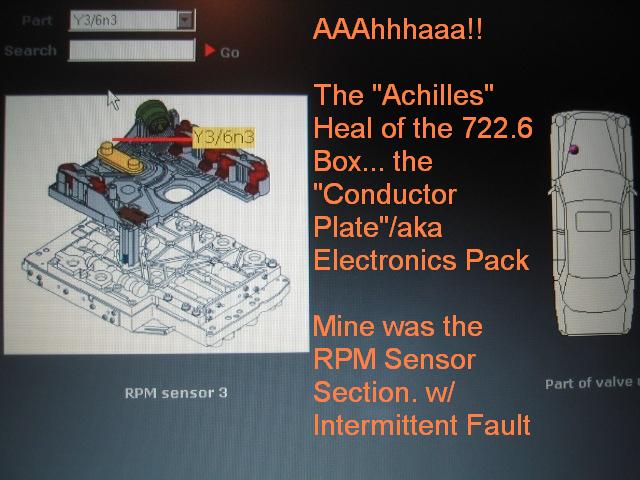

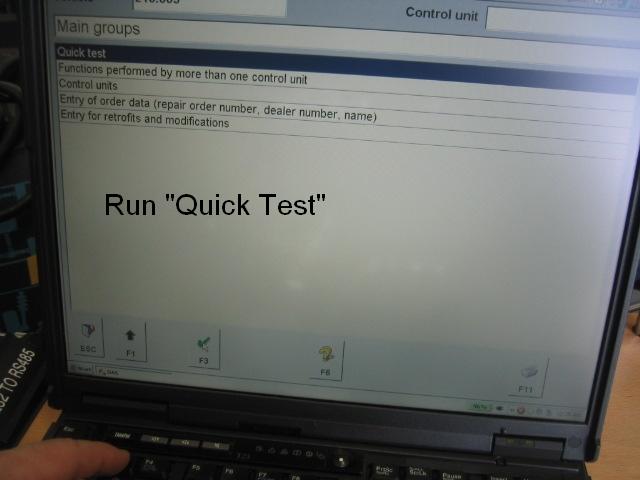

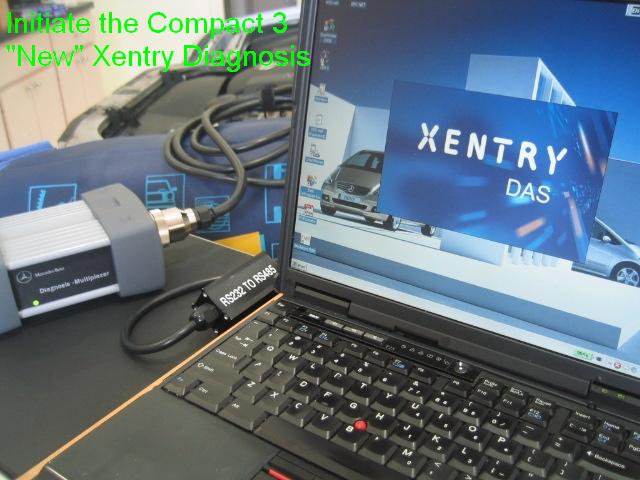

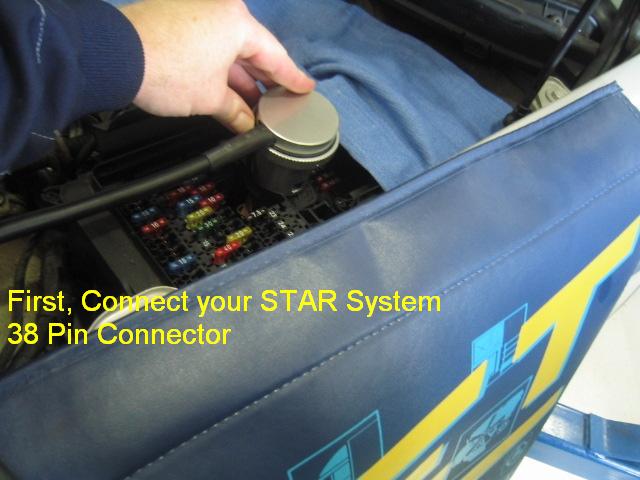

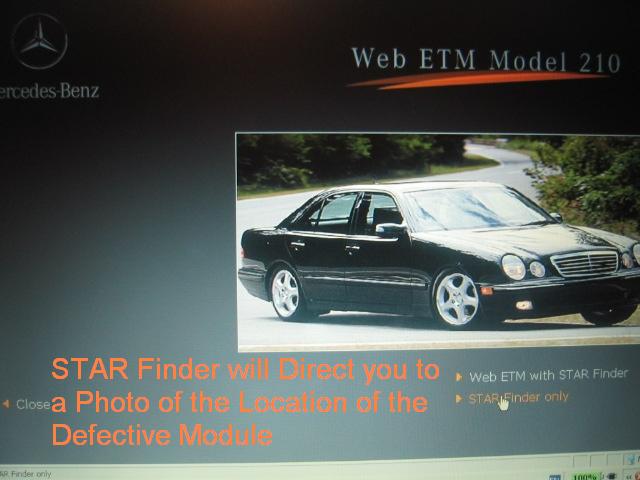

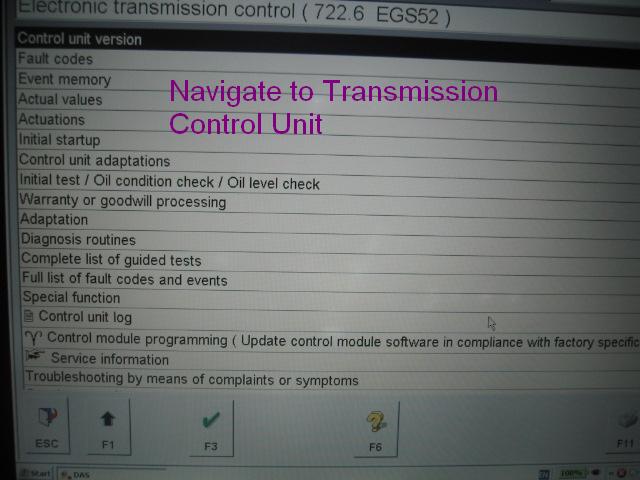

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R A well know problem to us all.... Failure of the "Electronics Pack/Conductor Plate".... With 2 other MB with the 722.6 box, I've "always" noticed a "Difference" in the way the E320 shifted.. Even straight out of the Sindelfingen plant... "A different thrust/weight ratio??".. who knows... Well the Human self-defense mechanism of "Denial" is quite strong.... After having a progressively more "noticeable" shifting between 1->2, and 2->3.... "Well, I'll reset the computer".... It is slightly better for "awhile"... then Yuck. "Well I say (again) to myself.... OhLord *DID* say the new 722.9 fluid causes a harsher shift..."" My bubble of Denial burst the other day... Going to work... at a stop sign, hit the gas... VVRROOMMM... but am NOT MOVING!! Ok, let's try reverse... VVROOOMMM Oh.... Sh.....ugar!! A $5,000 trany needed!! After a "reset" I get home, and hook my Baby up to my new "toy" STAR Compact3. Since I have the diagnostic skill of a Temple Monkey... I use my "Mechanic in a Laptop" to take my hand and guide me down the diagnostic tree to determine my "Speed Sensor #3" is "Intermittently" failing.. So, I'll change it out. Thus, the post. Here is a list of needed Parts: 8 quarts of the "new" MB fluid 001-989-68-03-10 Filter 140-277-00-95 Pan Gasket 140-271-00-80 Lock Clip 140-991-00-55 Trans Pan Drain Washer 140-271-00-60 Torque Converter Washer N 007603010100 Conductor Plate/"Electronics Pack" 140-270-11-61 "Updated" Connector Bushing 203-540-02-53 Pressure Regulator Spring (Yes, those Idiots at MB change out the WHOLE Valve body, rather than the stupid $8 spring-- thus, NO MB number) Sonnax 68942-01 You should be able to get it at your local Transmission Supply house. Like the WIS warns.. "Even a Speck of Foreign Material can Cause **FAILURE** of the Transmission"---- So BE WARNED!! Absolutely METICULOUS Cleanliness must be observed... I LITERALLY wore surgical garb, so no Hair, no NOTHING would inadvertently fall into the valve body... and I did the work on a sterile surgical drape.. Overkill?? Perhaps... but that's just me... Of course, "usual" safety procedures must be observed. If you don't know what that means... then this job is NOT for you.. Do work at your OWN RISK!! Cheers, G (0.JPG) (1.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) Attachments ----------------  0.JPG (48KB - 165 downloads) 1.JPG (58KB - 156 downloads) 2.JPG (32KB - 163 downloads) 3.JPG (47KB - 164 downloads) 4.JPG (51KB - 162 downloads) 5.JPG (50KB - 150 downloads) 6.JPG (41KB - 158 downloads) 7.JPG (56KB - 162 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R part 2 (8.JPG) (9.JPG) (10.JPG) (11.JPG) (12.JPG) (13.JPG) (14.JPG) (15.JPG) Attachments ---------------- 8.JPG (40KB - 158 downloads) 9.JPG (49KB - 173 downloads) 10.JPG (56KB - 150 downloads) 11.JPG (52KB - 174 downloads) 12.JPG (43KB - 172 downloads) 13.JPG (46KB - 155 downloads) 14.JPG (51KB - 158 downloads) 15.JPG (61KB - 183 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R part3 (16.JPG) (17.JPG) (18.JPG) (19.JPG) (20.JPG) (21.JPG) Attachments ---------------- 16.JPG (52KB - 170 downloads) 17.JPG (88KB - 170 downloads) 18.JPG (41KB - 145 downloads) 19.JPG (66KB - 169 downloads) 20.JPG (50KB - 161 downloads) 21.JPG (56KB - 149 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R part 4 (22.JPG) (23.JPG) (24.JPG) (25.JPG) (26.JPG) (27.JPG) (28.JPG) (29.JPG) Attachments ---------------- 22.JPG (66KB - 167 downloads) 23.JPG (60KB - 160 downloads) 24.JPG (52KB - 152 downloads) 25.JPG (63KB - 156 downloads) 26.JPG (52KB - 164 downloads) 27.JPG (45KB - 163 downloads) 28.JPG (47KB - 170 downloads) 29.JPG (49KB - 167 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R part 5 (30.JPG) (31.JPG) (32.JPG) (33.JPG) (34.JPG) (35.JPG) (36.JPG) Attachments ---------------- 30.JPG (58KB - 150 downloads) 31.JPG (61KB - 156 downloads) 32.JPG (43KB - 185 downloads) 33.JPG (50KB - 151 downloads) 34.JPG (48KB - 155 downloads) 35.JPG (39KB - 171 downloads) 36.JPG (52KB - 151 downloads) | |
| ||
| ||
| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350 | RE: Photo DIY- 722.6 Conductor Plate and Pressure Regulator Spring R/R part 6 (37.JPG) (38.JPG) (39.JPG) (40.JPG) (41.JPG) (42.JPG) (43.JPG) (44.JPG) Attachments ---------------- 37.JPG (39KB - 169 downloads) 38.JPG (32KB - 162 downloads) 39.JPG (33KB - 155 downloads) 40.JPG (32KB - 166 downloads) 41.JPG (37KB - 147 downloads) 42.JPG (57KB - 156 downloads) 43.JPG (41KB - 158 downloads) 44.JPG (50KB - 157 downloads) | |
| ||
| ||
| ||
| ||
| ||
| ||
| ||
| ||
